Top Li-Thium 60L Anode Battery Paste Mixing Double Planetary Disperser Mixer

Product Description

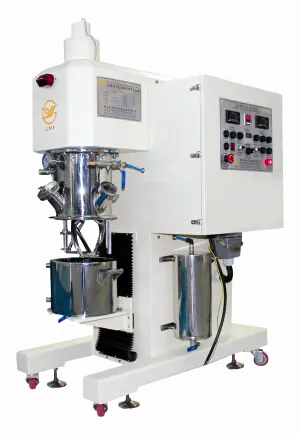

Double Planetary Mixer with Disperser for Lithium Battery

Specifications

It is a kind of all-round mixer with planetary mixing and high speed dispersion, widely used for lithium ion battery industry.

Summary:

G.M.K LDH series Double Planetary Mixer with Disperser is combined the theories of traditional double planetary mixer and high speed dispersing mixer, to be an all-round new machine, it has been widely used in many fields at present.

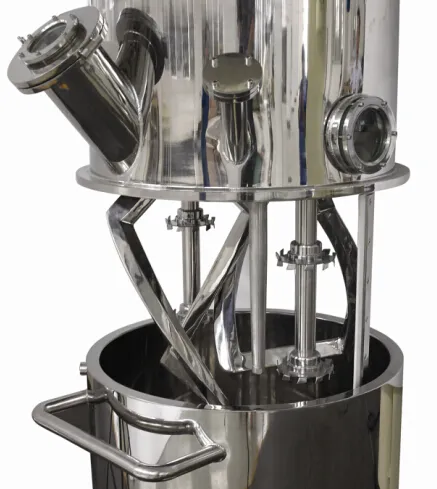

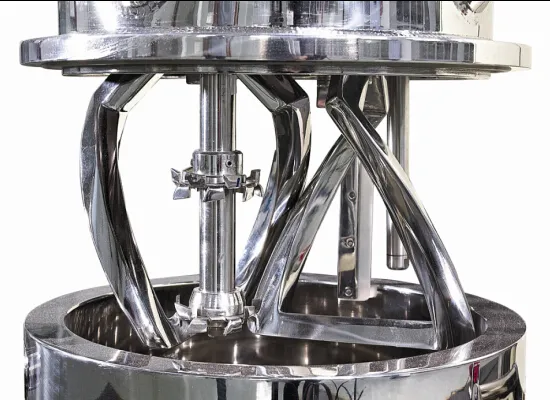

As per the character of power battery - high solid content and high viscosity, based on the traditional planetary & dispersing power mixer, we developed new reinforced one with higher rotation speed and bigger torque. During the design, we fully consider the factors such as rotation speed of stirrers, mixing power, dispersion linear speed, suspending grade, liquid flow pattern and distribution of turbulence intensity inside of vessel, the highest dispersion speed is up to 25m/s, reinforced twist stirrer can deal with any high viscosity battery paste. A new mixing way——the revolution of twist stirrer is clockwise,, the rotation of twist stirrer is anticlockwise, ensure the mixing without dead point and climbing problem. Three sets of mechanical seal together with soft & silence sealing to ensure vacuum degree, sealing is improved 30% in theory. Pt100 temperature measurement sensor can contact with material directly, temperature measurement is more accurate, response is more faster, error is only between ±0.5°C.

Available capacity: 2L, 5L, 10L, 15L, 20L, 30L, 40L, 50L, 60L, 100L, 150L, 200L, 250L, 300L, 500L, 600L, 800L, 1000L
3.Characteristic:
1) High speed
2) Low noise
3) High sealing
4) Small gap
5) High strength
6) High system integration

Superfine high speed dispersive grain size (from macroscopic dispersion to microcosmic dispersion)
Superfine dispersing homogeneity emulsification, no dead angle, extremely narrow gap between stator and rotor (0.3~1mm)
Increase electrical conductivity of lithium battery, improve plate electrode quality. Material is transited instantly, calorific value drops to the lowest.

4. SPECIFICATION

SPEC. MODEL	VESSEL SPEC.			MOTOR POWER		SPEED
SPEC. MODEL	Effective volume (L)	Design volume (L)	Vessel dimension Dia.:Dep. (mm)	Mixing motor KW	Dispersion motor KW	Revolution speed RPM	Mixing speed RPM	Dispersion speed RPM	Liner speed m/s
LDH-2L	2	3	180x120	0.7	1.1	0-48	0-118	0-9040	0-19
LDH-5L	5	7.8	250x160	1.5	1.5	0-61	0-122	0-8173	0-21.4
LDH-10L	10	14	300x200	1.5	2.2	0-61	0-105	0-6764	0-21.2
LDH-15L	15	24	350x250	1.5	2.2	0-61	0-105	0-6200	0-22
LDH-20L	20	29	350x300	2.2	3	0-49	0-100	0-6000	0-22
LDH-30L	30	44	400x350	2.2	3	0-49	0-96	0-5317	0-21
LDH-40L	40	56	450x350	3	4	0-49	0-95	0-4800	0-22

SPEC. MODEL	VESSEL SPEC.			MOTOR POWER		SPEED
SPEC. MODEL	Effective volume (L)	Design volume (L)	Vessel dimension Dia.:Dep. (mm)	Mixing motor KW	Dispersion motor KW	Revolution speed RPM	Mixing speed RPM	Dispersion speed RPM	Liner speed m/s
LDH-60L	60	88	500x450	5.5	7.5	0-50	0-91	0-4393	0-23
LDH-100L	100	149	650x450	7.5	11	0-38	0-78	0-3682	0-23
LDH-150L	150	212	700x550	11	15	0-41	0-85	0-3225	0-25
LDH-200L	200	287	750x650	11	18.5	0-41	0-85	0-2977	0-25
LDH-250L	250	327	800x650	15	22	0-41	0-80	0-2800	0-25
LDH-300L	300	369	850x650	15	22	0-33	0-56	0-2607	0-27
LDH-500L	500	668	1000x550	30	45	0-26	0-42	0-2200	0-23
LDH-600L	600	807	1100x850	37	45	0-26	0-40	0-1920	0-23
LDH-800L	800	1080	1200x900	45	55	0-25	0-35	0-1800	0-23
LDH-100L	1000	1327	1300x1000	55	75	0-22	0-35	0-1600	0-23
