Product Description
Working Principle
High Shear Mixers work with a special designed stator/rotor working head. When it works, this stator/rotor head is able to draw the solids and liquids around it into its center, and then push them radially through the stator openings back to the tank. During this period, the solids and liquids are subject to an action of milling and shearing which is so intensive that they are deagglomerated, homogenized and dispersed into each other even though they are immiscible by traditional agitation.

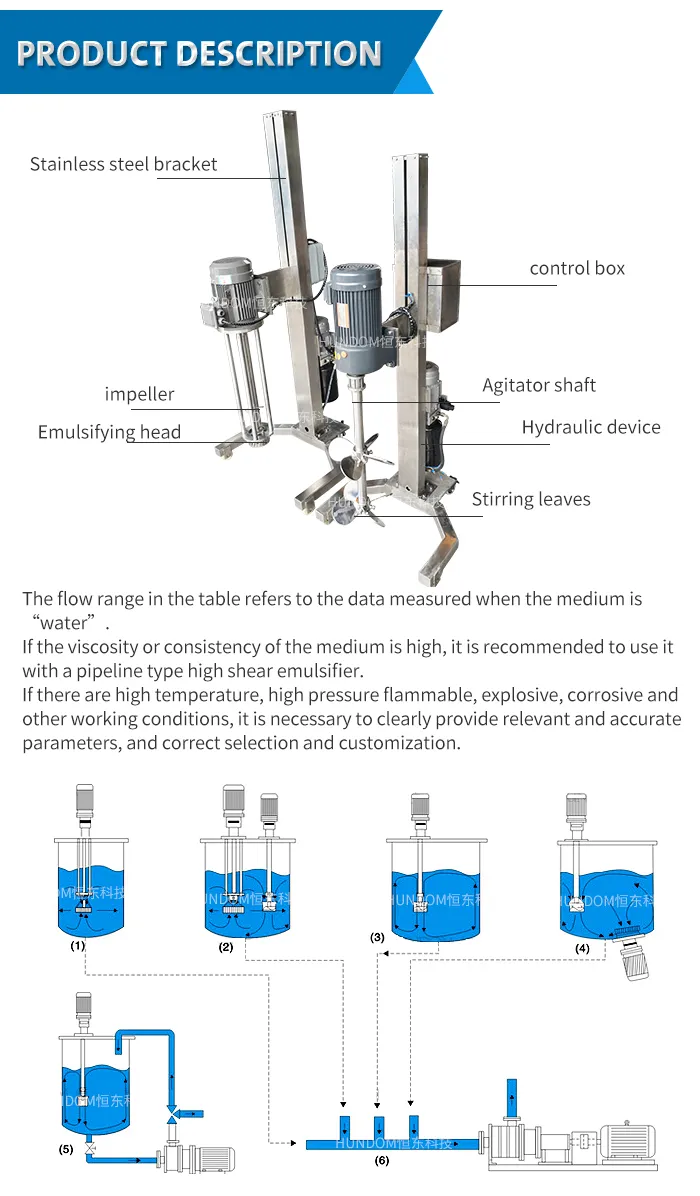

Installation and Set-up

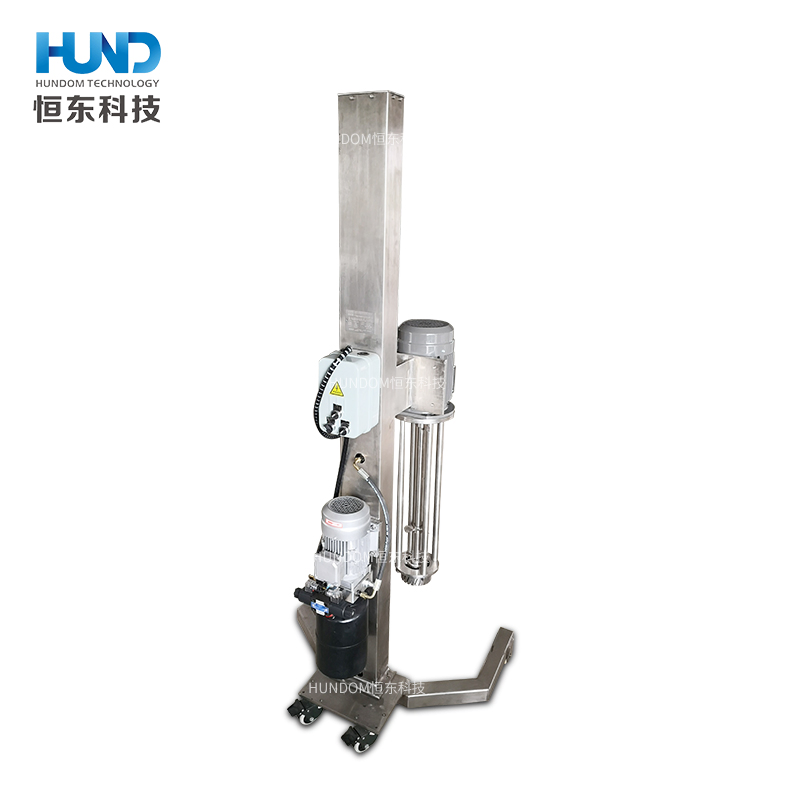

In the Batch process, the mixer is immersed into the liquid. There are many installation methods for the PS series High Shear Mixers. It can be lifted up by a lifting stand (hydraulic or electric), or it can be installed with flange on the top of a tank, or from its side, or at its bottom. For the vacuum or pressurized tank, the mixer must be equipped with a mechanical shaft sealing.
Features
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design.
Explosion-proof ABB Motor 3 Phase
Technical Parameters:
It can be customized according to customers requirements.
| Model | Capacity(L/H) | Power(kw) | Speed(rpm) |
| BRH-80 | 5-40 | 1.1 | 2800 |
| BRH-90 | 5-50 | 1.5 | 2800 |
| BRH-100 | 50-100 | 2.2 | 2800 |
| BRH-120 | 100-300 | 4 | 2800 |
| BRH-140 | 200-800 | 7.5 | 2800 |
| BRH-160 | 300-1000 | 11 | 2800 |
| BRH-180 | 500-1500 | 18.5 | 2800 |
| BRH-200 | 800-2000 | 22 | 1400 |
| BRH-220 | 1000-3000 | 30 | 1400 |
| BRH-240 | 1500-5000 | 37 | 1400 |
| BRH-270 | 2000-8000 | 55 | 1400 |
| BRH-290 | 300-10000 | 75 | 1400 |

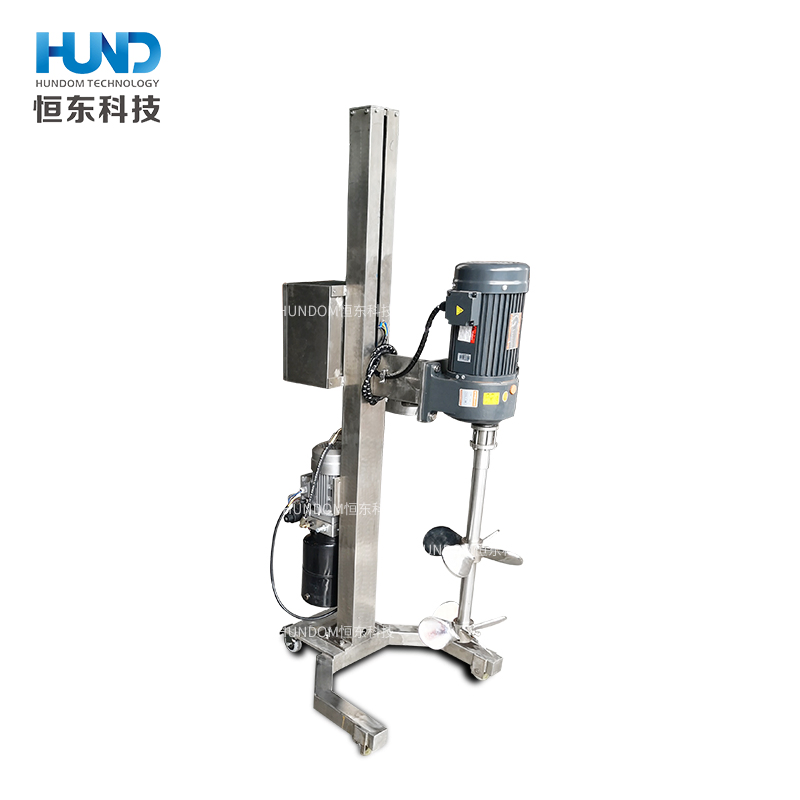

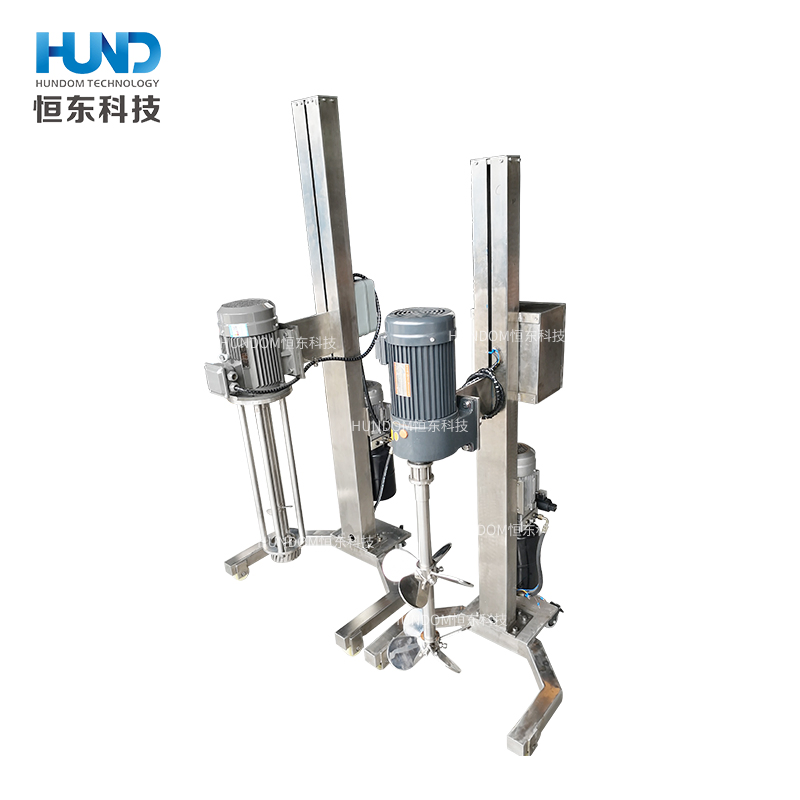

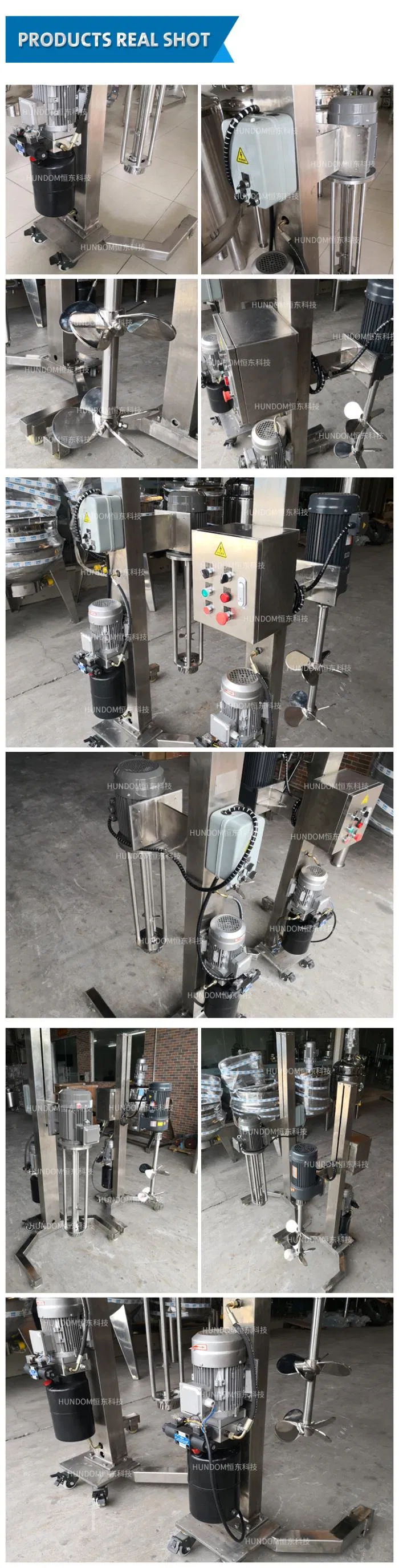

Product Show
About Hundom
Guangzhou Hundom Machinery Equipment Co., Ltd. has been manufacturing colloid mill, jacketed kettle, rotor pump, mixing tank and other machinery equipment for 14 years , putting quality as our first consideration. We own a team with rich experience in the field, if you have any question, contact us for the professional answer.
