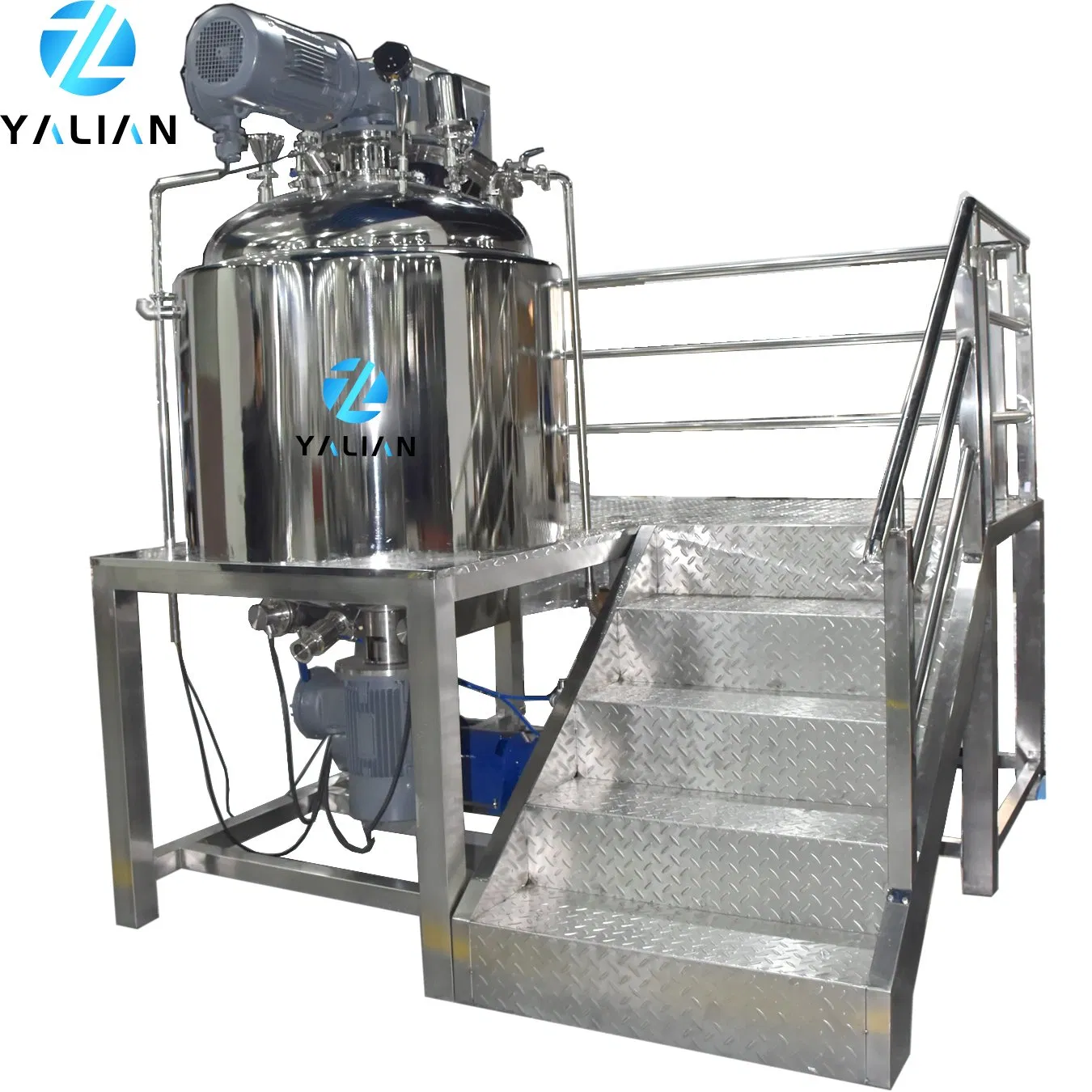

Stainless Steel Hand Sanitizer Mixing Machine Homogenizer Mixer Machine

Description:

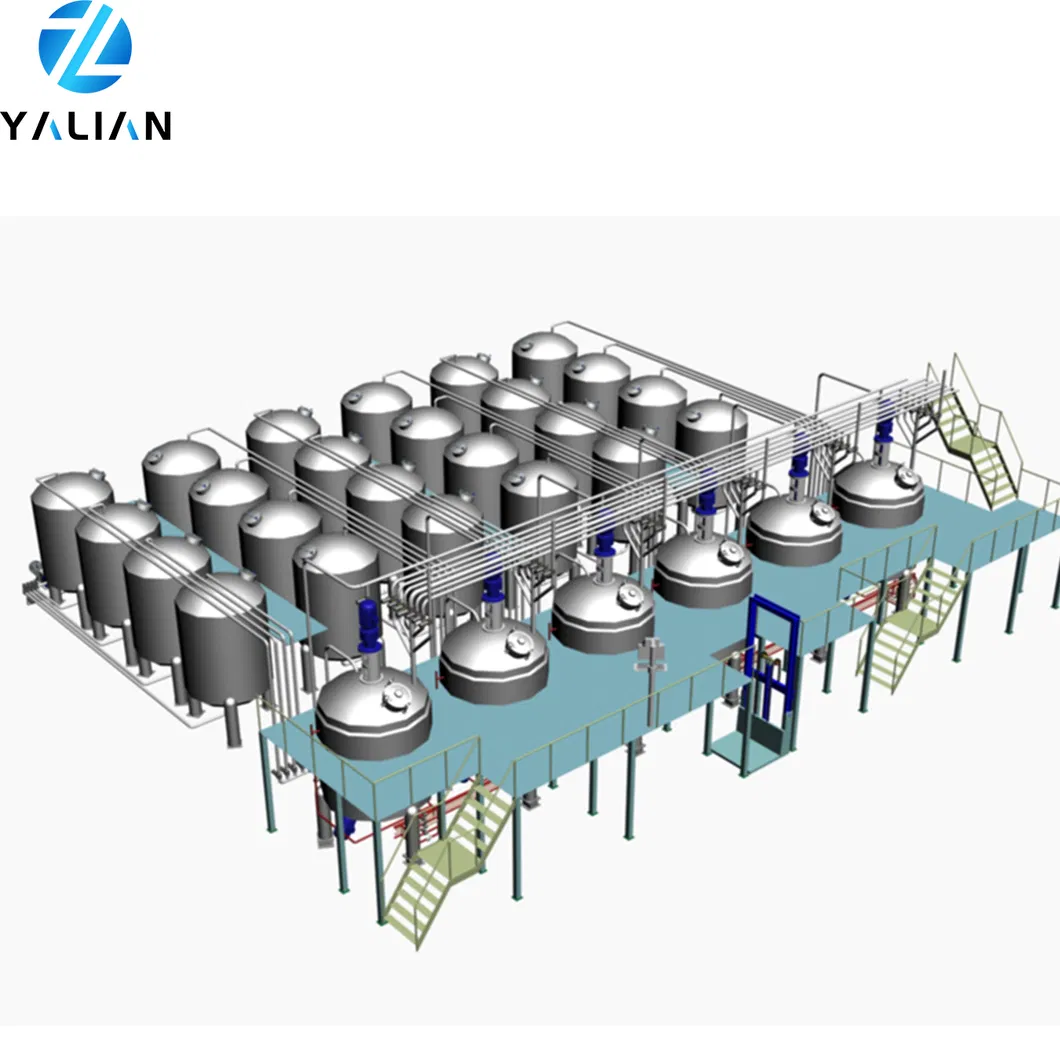

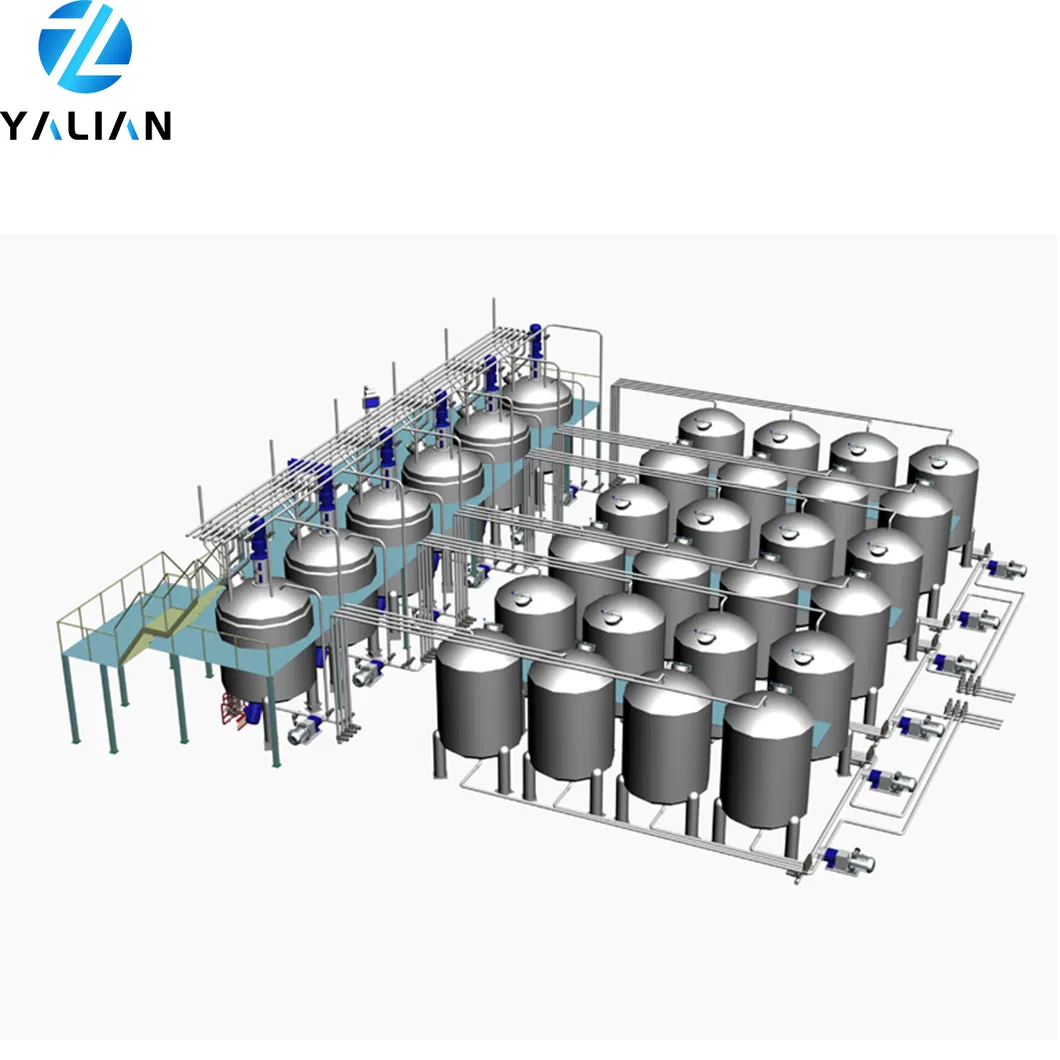

This automatic liquid soap production line is for manufacturing liquid soap for washing clothes,dishwashing detergent,hand sanitizer.

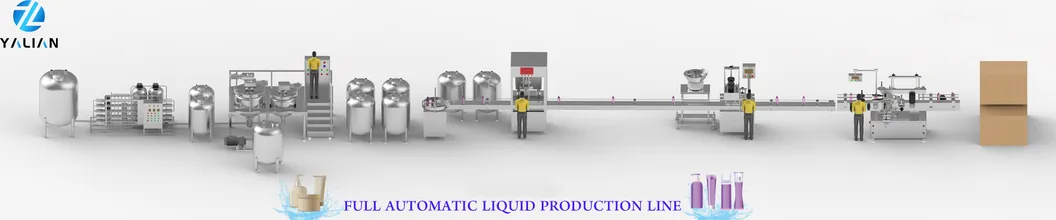

The production process:
The treatment equipment for softening water is connected with water faucet to make treated water flow into mixing tank. At same time, the raw materials are gradually put into mixing tank to begin production. When the production is finished, the liquid soap will be transported to storage tank. The filling machine is connected with storage tank. Meanwhile, an air pump is connected with filling machine. The worker set the outlet volume for filling machine in advance, a certain volume of liquid soap can flow into the bottle. The detail formula and production process will be supplied when buyer buy this liquid soap production line.
Capacity per batch: 50 L ~6000Litres/batch
The followings are specifications for 1000L/batch
Power: 380V ,50Hz,3Phase or 220V, 50Hz,2Phase
Motor Power: 0.37-22kw
Mixing Tank Volume: 50-5000l
Mixer Speed: 0-65rpm
Material of Mixing tank: 316l stainless steel
Material of Storage tank: buyer choose one from 316 stainless steel tank or plastic storage tank.
Storage tank Volume: 50-5000L
Filling Speed:10~24 bottles per minute for 1KG~3KG bottles
Total Weight of finishing line: as how many liter capacity of tank will u need ?
Measurement (for shipment): as how many liter capacity of tank will u need ?
Installation Method: Faucet-pipe-treatment equipment for softening water-pipe-mixing tank-pipe-storage tank- pipe filling machine.


Main Features
1. The all-round wall scraping mixing adots the frequency converter for speed adjustment, so that high quality products of different processes according to customer requirements.
2.The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES,AESA,LSA,etc. during the liquid detergent production process so as to save energy consumption and shorten production period.
3.The pot body is welded by imported three -layer stainless steel plate.The tank body and pipes adopt mirror polishing ,which fully confirms to GMP requirement.
4.According to costomer requirement,the tank can heat and heat and cool materials. The heating way including steam heating and eletric heating. Easy to discharge, bottom direct discharge or by transfer pump.

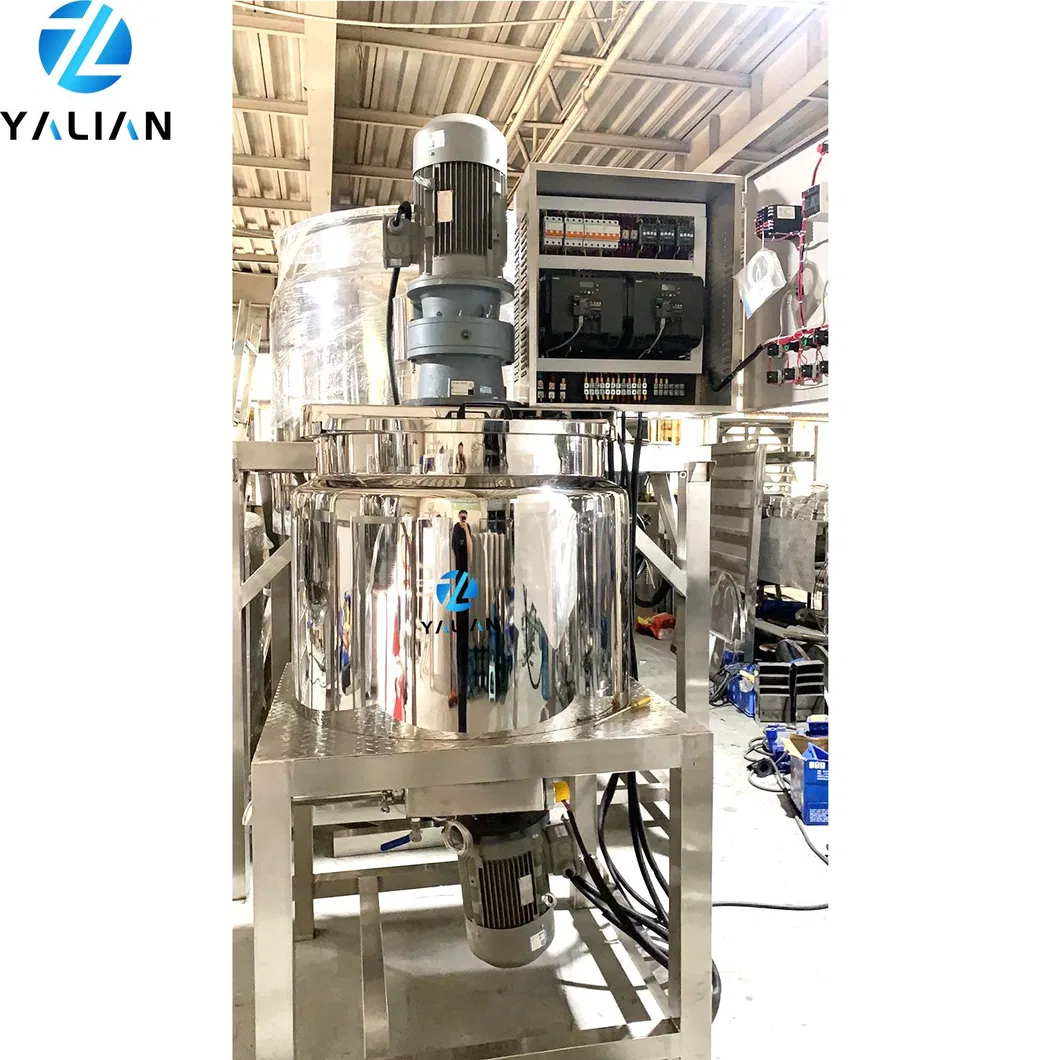

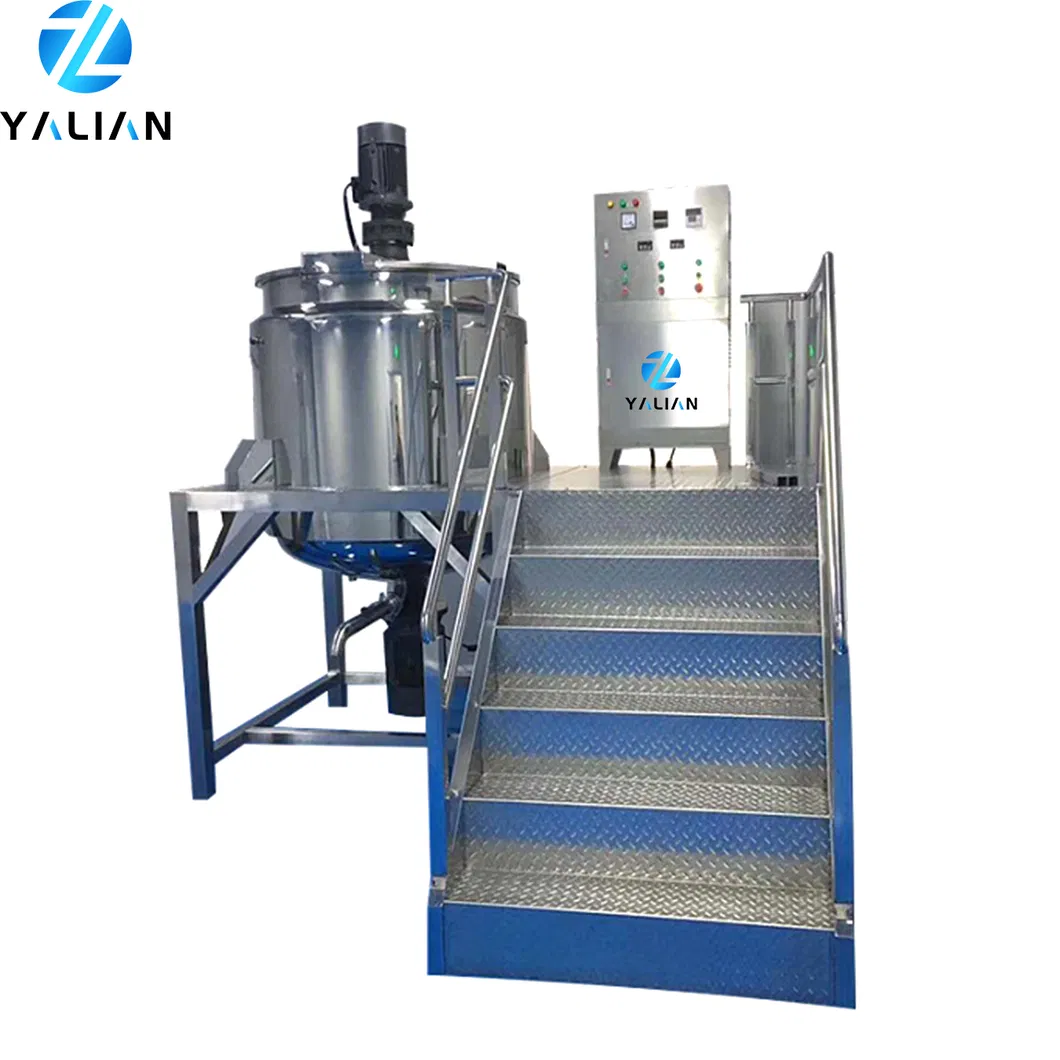

TOP Mixer :
mixing speed :0-65rpm (can be customized as your idear)

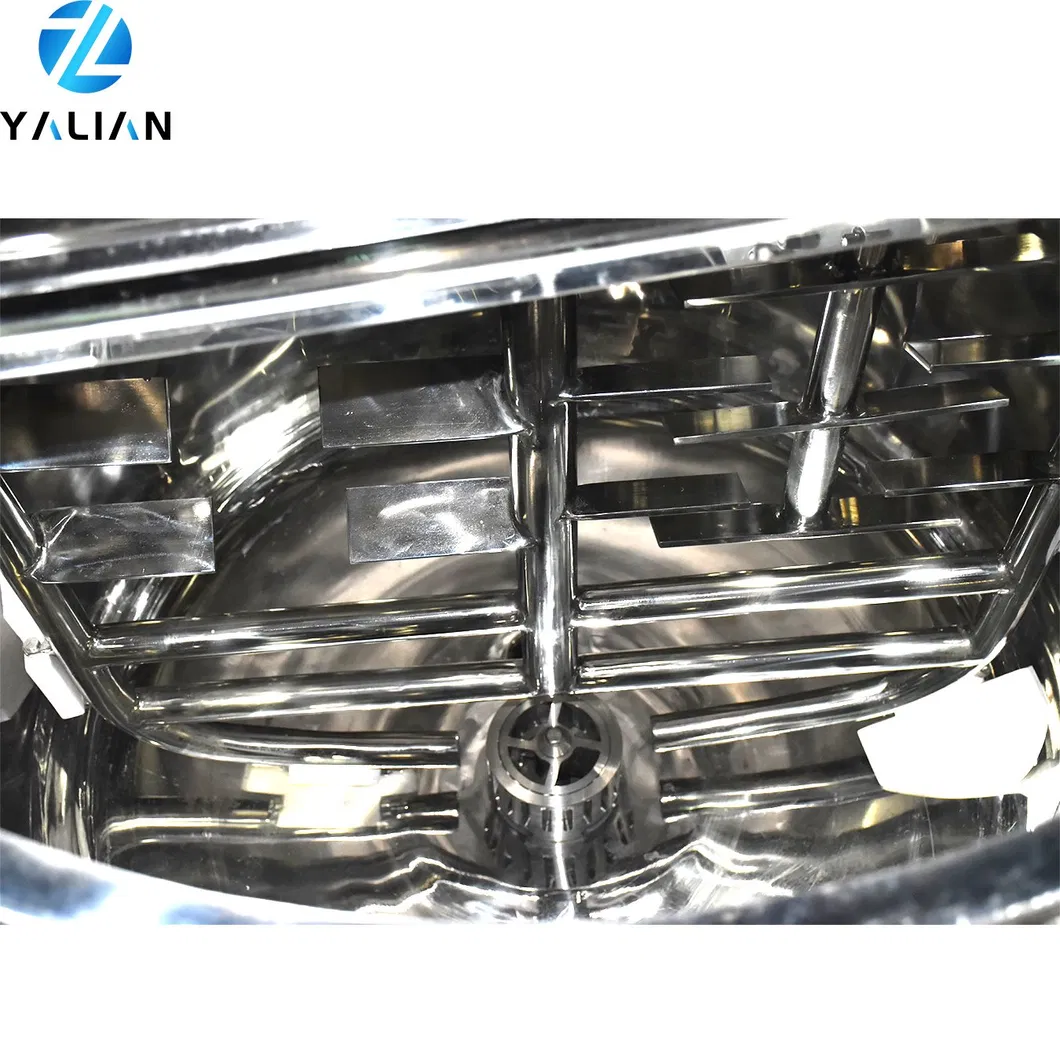

scraper mixer : with whiter blade easy to clean

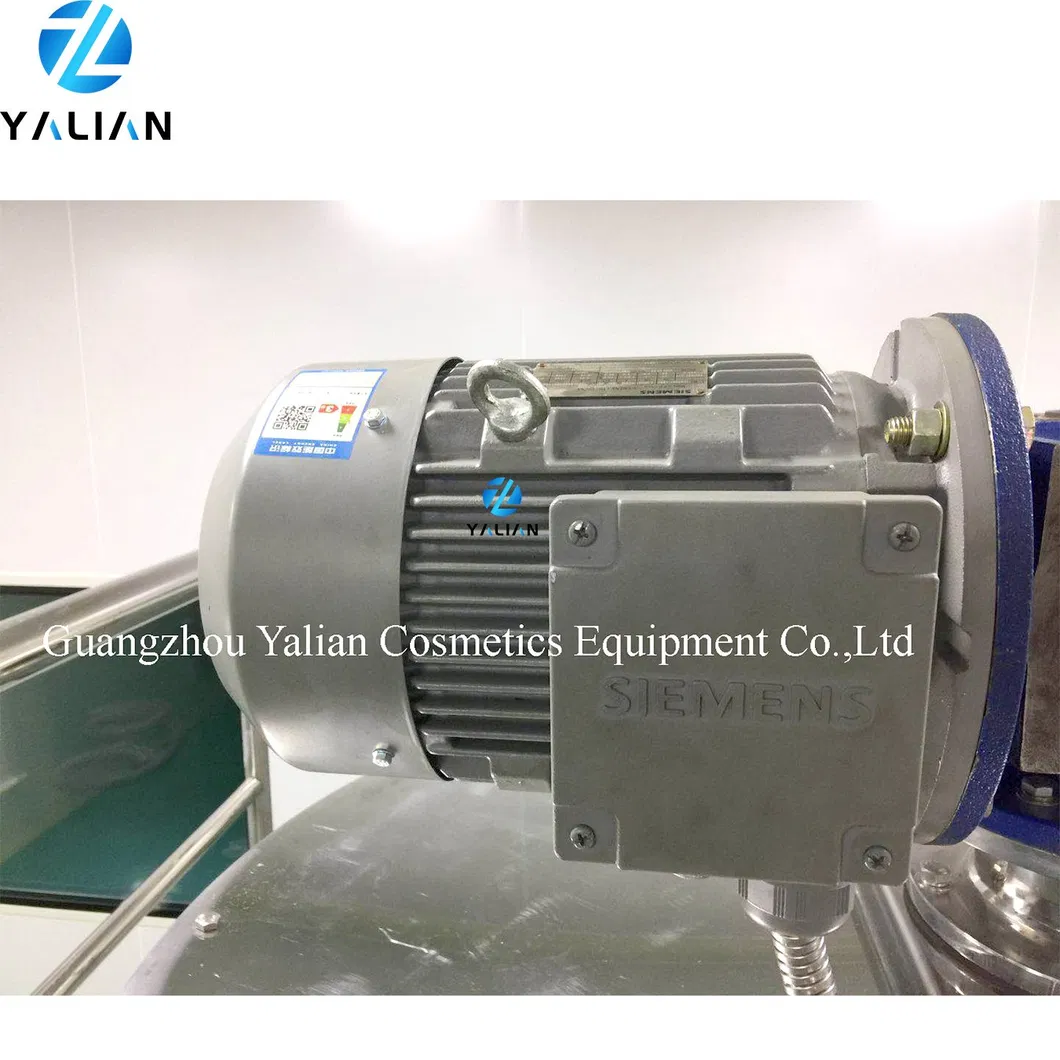

Siemens motor
Siemens inveter

High speed shear homogenizer :

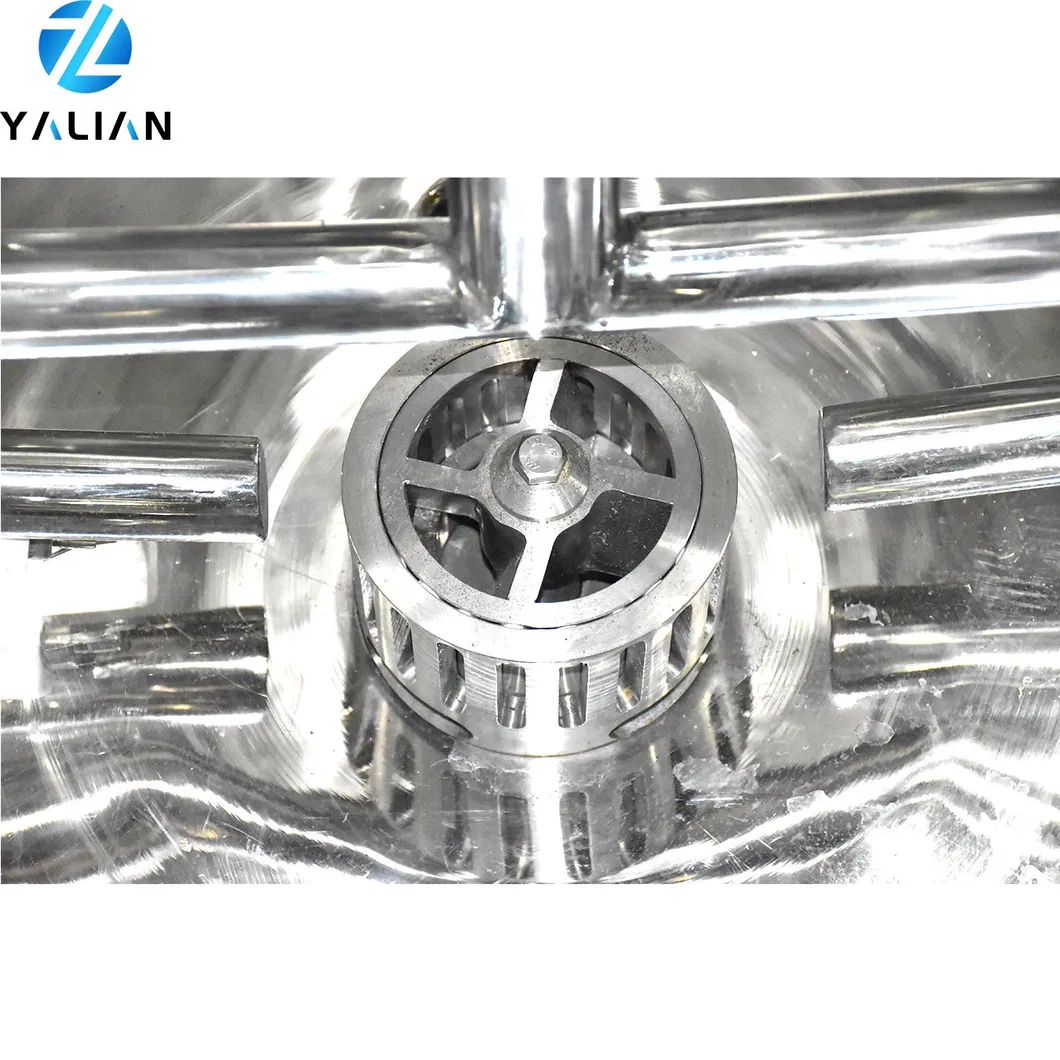

homogenizer with rotor and stator speed :0-3000rpm ( can custom as your idear)
Can be install on bottom and top
Siemens motor
Siemens inveter

Best femouse brand :
Siemens /ABB motor

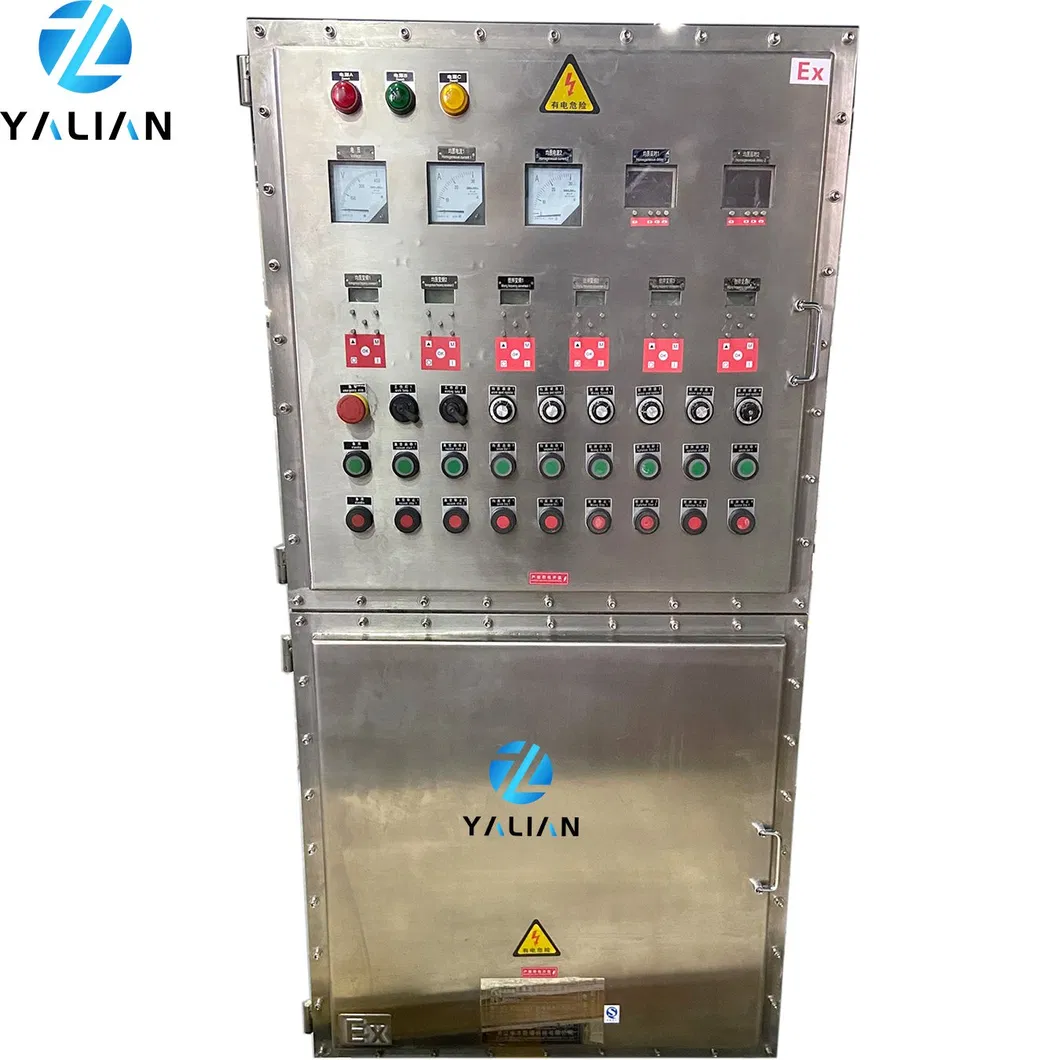

PLC & Press-button control panel
It can custom with explosion proof .

Engineering

Advantages
The heating pot and cooling pot are used independently so as to enhance efficiency and save energy;
The material sucking (AES) homogenizer is adopted to accelerate the dissolution and alleviate labor intensity;
The whole machine has compact structure with convenient operation;
If it is allocated with heating water furnace, the plate type heat exchanger will make the using effect better;
Sanitary;
Guangzhou Yalian introduced inline homogenizing pump in liquid products production. What impressed is its top level produce effciency and series of aseptic level parameters. Also it can be inserted in the existing pipes.

Company introduce
Guangzhou Yalian is a large-scale company specialized in design, manufacturing, installation and commissioning of daily chemical, chemical, food and pharmaceutical machinery, as well as water treatment equipment. With powerful technical strength, complete inspection facilities, unique and advanced technique as well as great varieties of products, the enterprise strictly implements ISO9001 standard management.
RFQ:
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How do you offer technical support?
A4:
1.Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
Q5:How do you work your after sales service?
A5:Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately. And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.
Order guide:
There are many types of filling machine,we need to know more details about your products in order that we can recommend the most suitable machine for you.Our questions as below:
1.What's your product?Please send one picture to us.
2. How many grams do you want to fill?
3.Do you have requirement of capacity?
