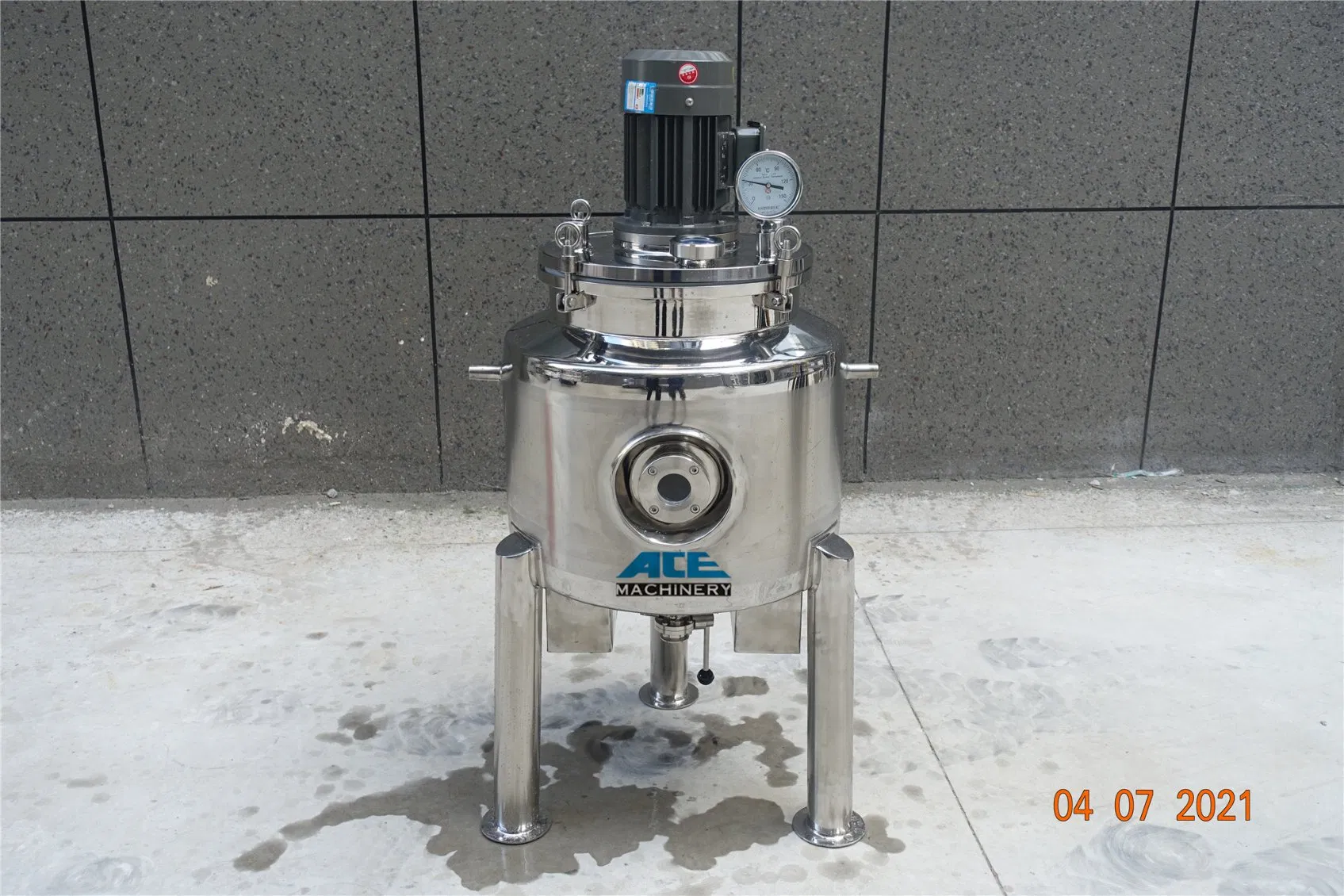

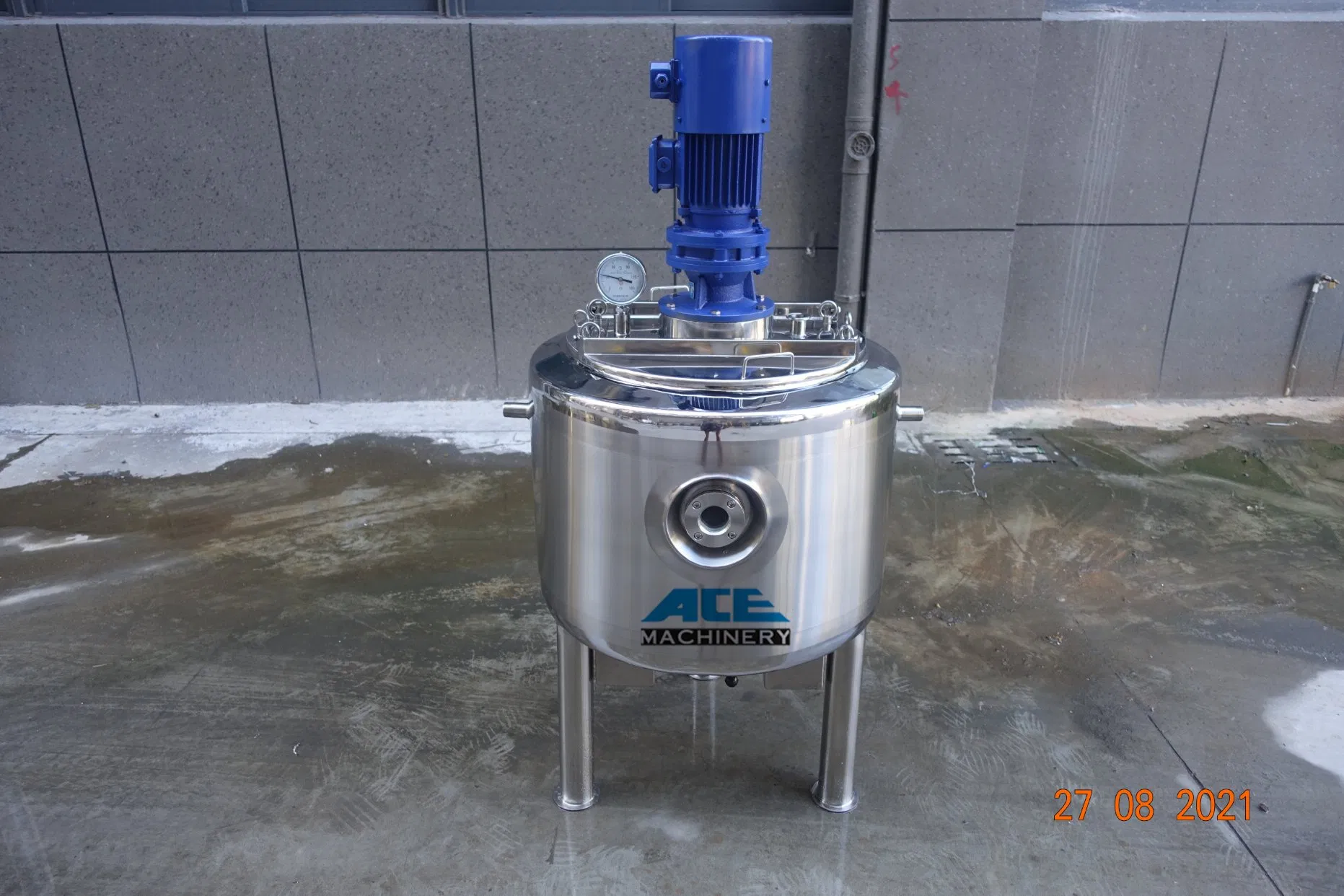

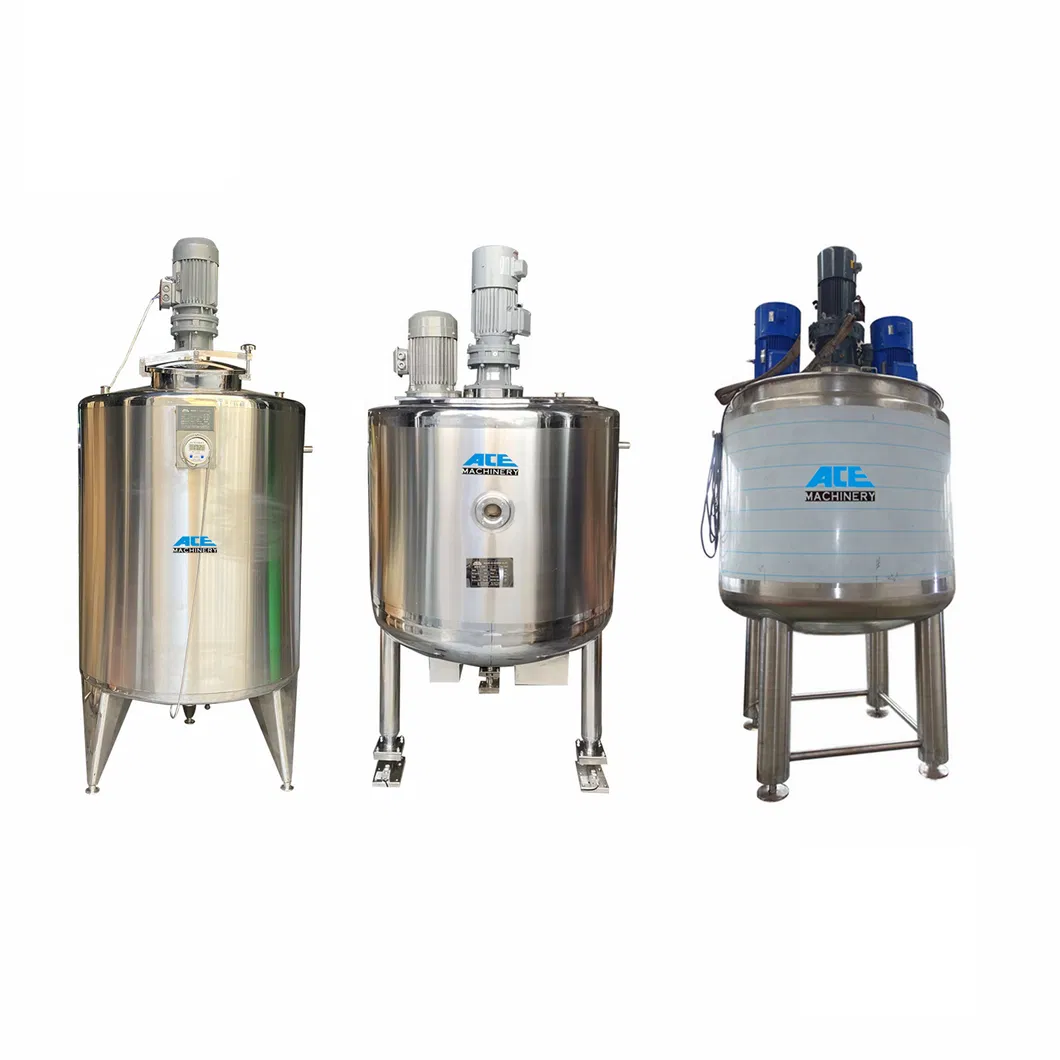

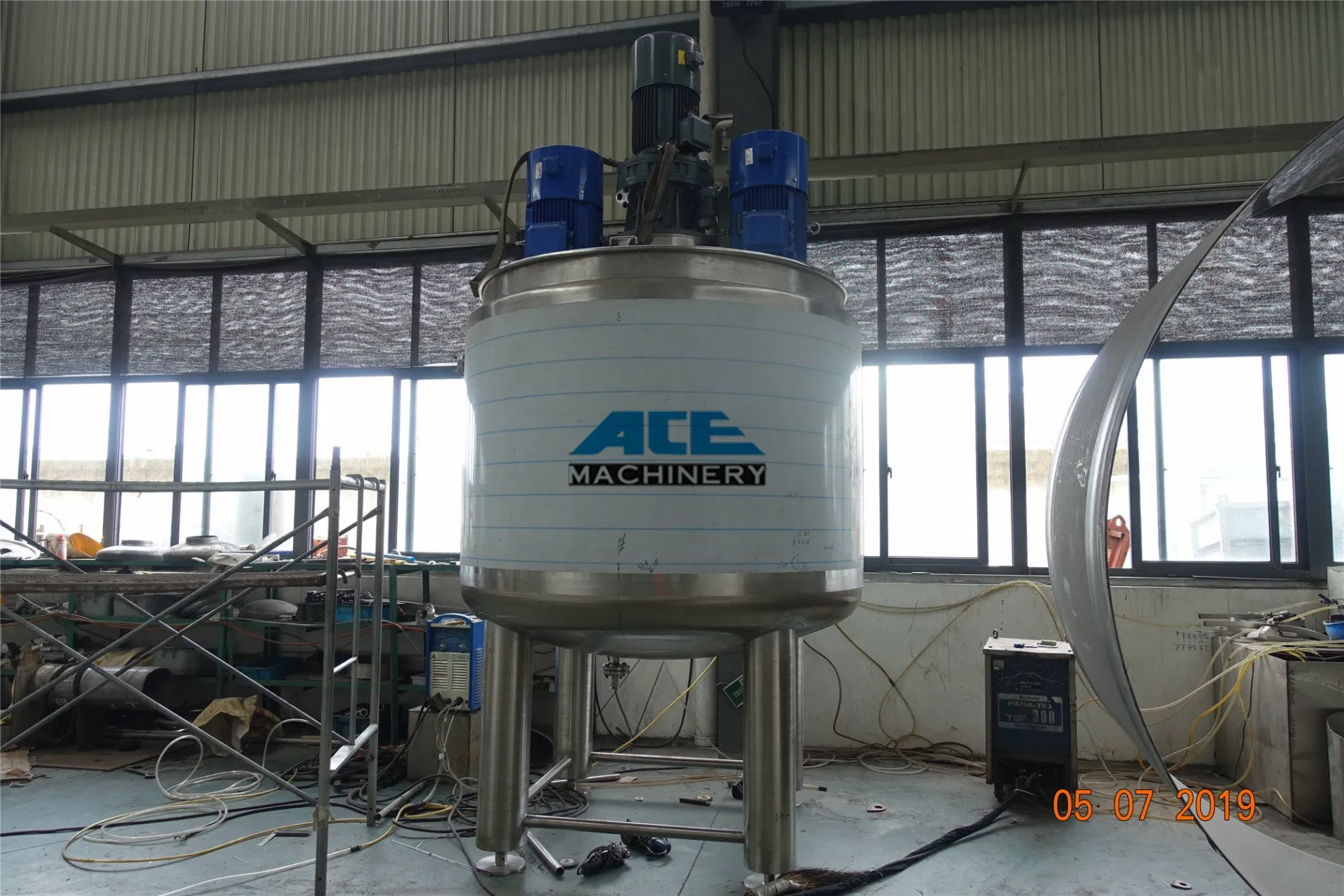

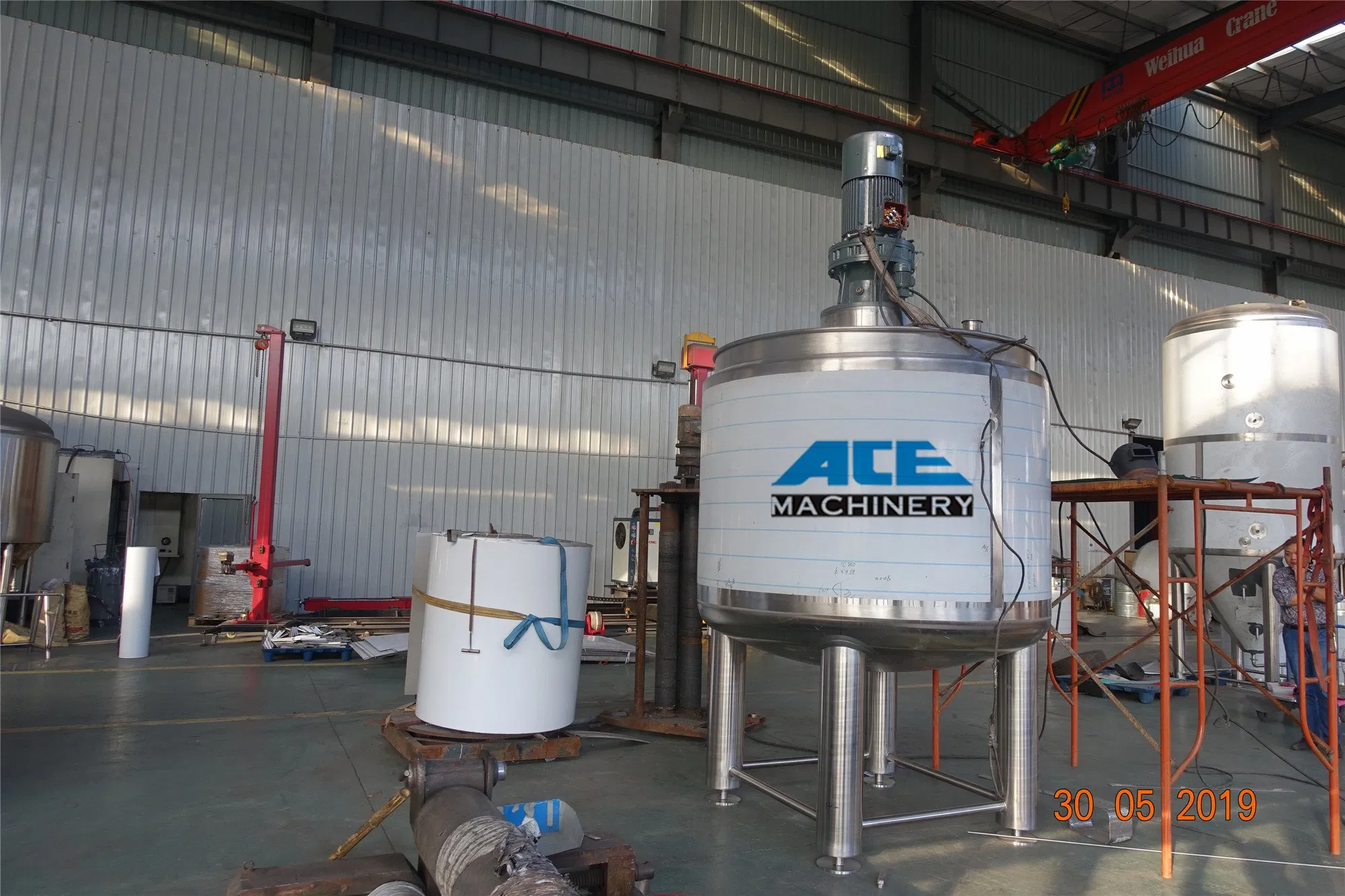

Stainless Steel Emulsifier Tank/ Single Layer Emulsifying Tank Machine/ Batch Mixer Tank

Custom Made 50L- 30,000L Mixing tank, 20 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products.Sold to Over 180 Countries.Advanced Technology.Contact us for the offer.

Description:




stainless steel mixing tank could be used in food, beverage, pharmacy, chemical industry,wine and alcohol etc industries.

The inside surface finish of stainless steel mixing tank is Mirror polished, Ra<0.4um. />The welding are polished to ground smooth.

There are various agitator options of stainless steel mixing tank: impeller type, Anchor type, Turbine type, High shear mixer,magnetic mixer. The mixing tank could be made with or without jacket.

stainless steel food grade mixing tank could be made with or without jacket. Jacket type including full jacket, Dimple jacket,Heating coils. Heating and cooling type including steam heating and electric heating.

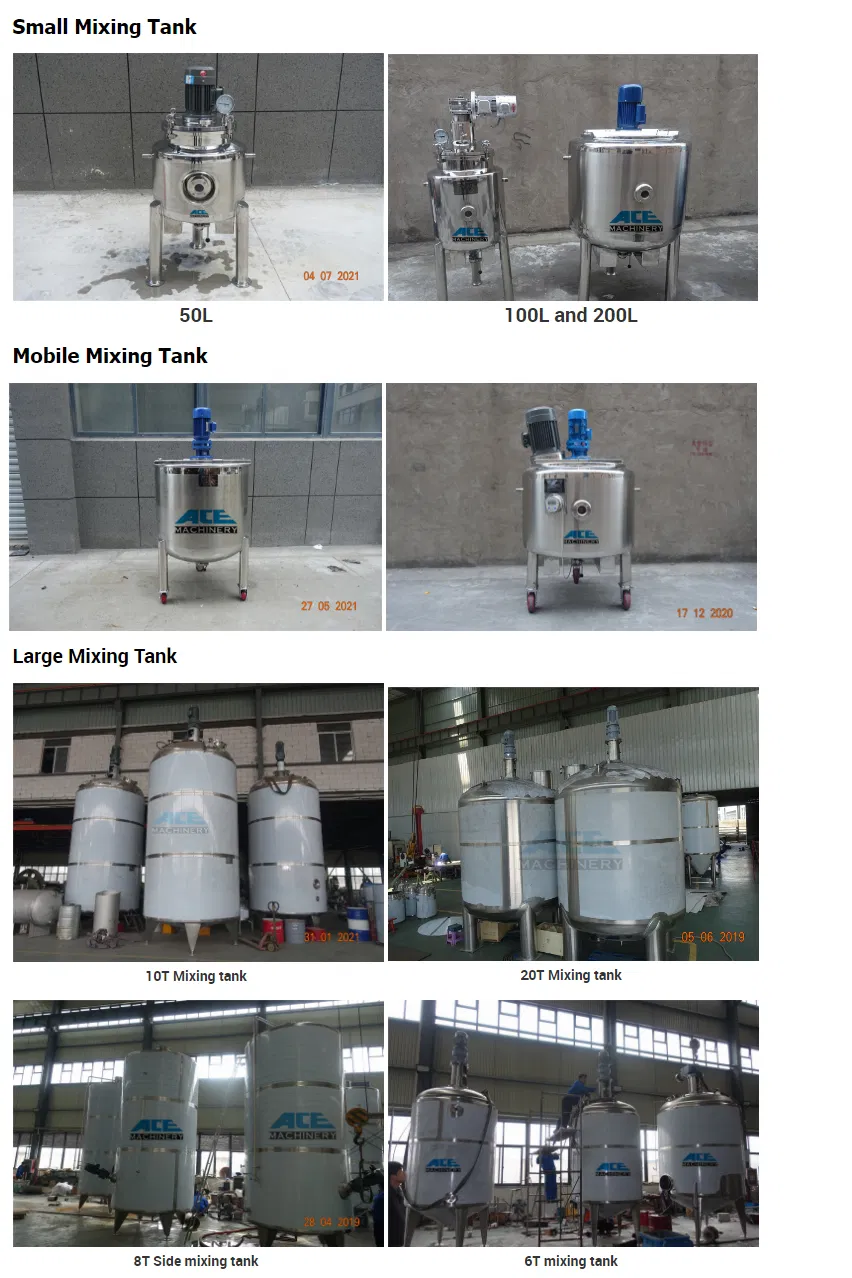

Mixing tank (Accept customized)
Profile/type	Single layer tank	Double layer tank	Three layer tank
Material	SS304 or SS316L
Volume	50L-30T (Customized)
Tank Type	Vertical type/Horizontal type/Mobile type
Structure	one layer	Inner layer+jacket	inner layer+jacket+insulation
heating way	Electric/Steam Heating
Inside Finsh	Mirror polished Ra<0.4um<>
Outside Finish	2B or Satin Finish
Stirrer type	impeller, Anchor , Turbine , High shear, magnetic mixer, Anchor mixer with scraper
Power	0.55~55KW
Voltage	110V~480V
Top Head type	Dish top, Open lid top, Flat top
Bottom type	Dish bottom, Conical bottom, Flat bottom
PARTS DETAILS	1.Quick open manhole / Pressure manhole
	2.Various types of CIP cleaners
	3.Sterile respirator
	4.Adjustable Legs
	5.Inlet and Outlet sanitary valve
	6.Thermometer (According to customer requirements )
	7.Paddle blender .(According to customer requirements)
	8.Liquid level meter and lever controller (According to customer requirements)
	9.Ladder
Application	Food, Beverage, pharmacy, biological,honey, chocolate, alcohol ,chemical industry etc
We can customize the mixing equipment according to customer requirements.



Have different kinds of agitators: ( Other Stirrer can be customized )



1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.

2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.

3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.

4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.

5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.



Applicable Products.
1. Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, Hand cream and so on.
2. Daily chemical industry:Laundry liquid production, hand sanitizer, toilet net, car glass water.
3. Pharmaceutical Industry:Latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like.
4. Food Industry:Sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on.
5. Chemical Industry:Latex, Sauce, saponified products, paints, coatings, resins, adhesives, lubricants and so on.

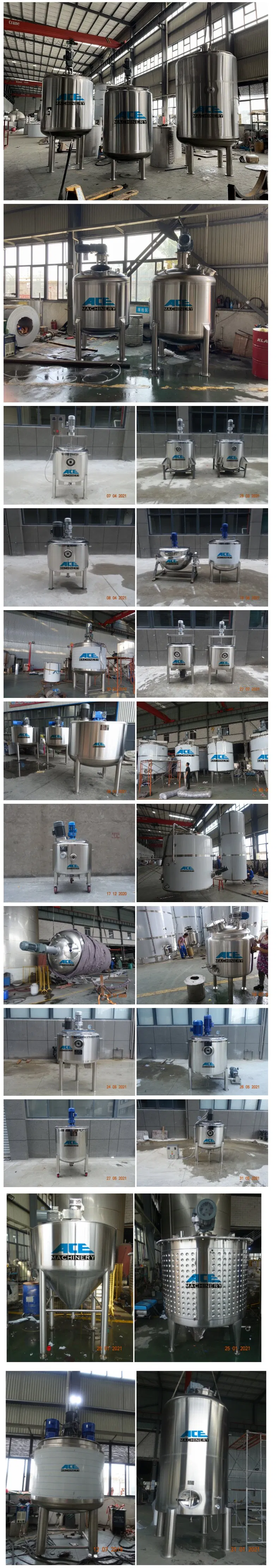

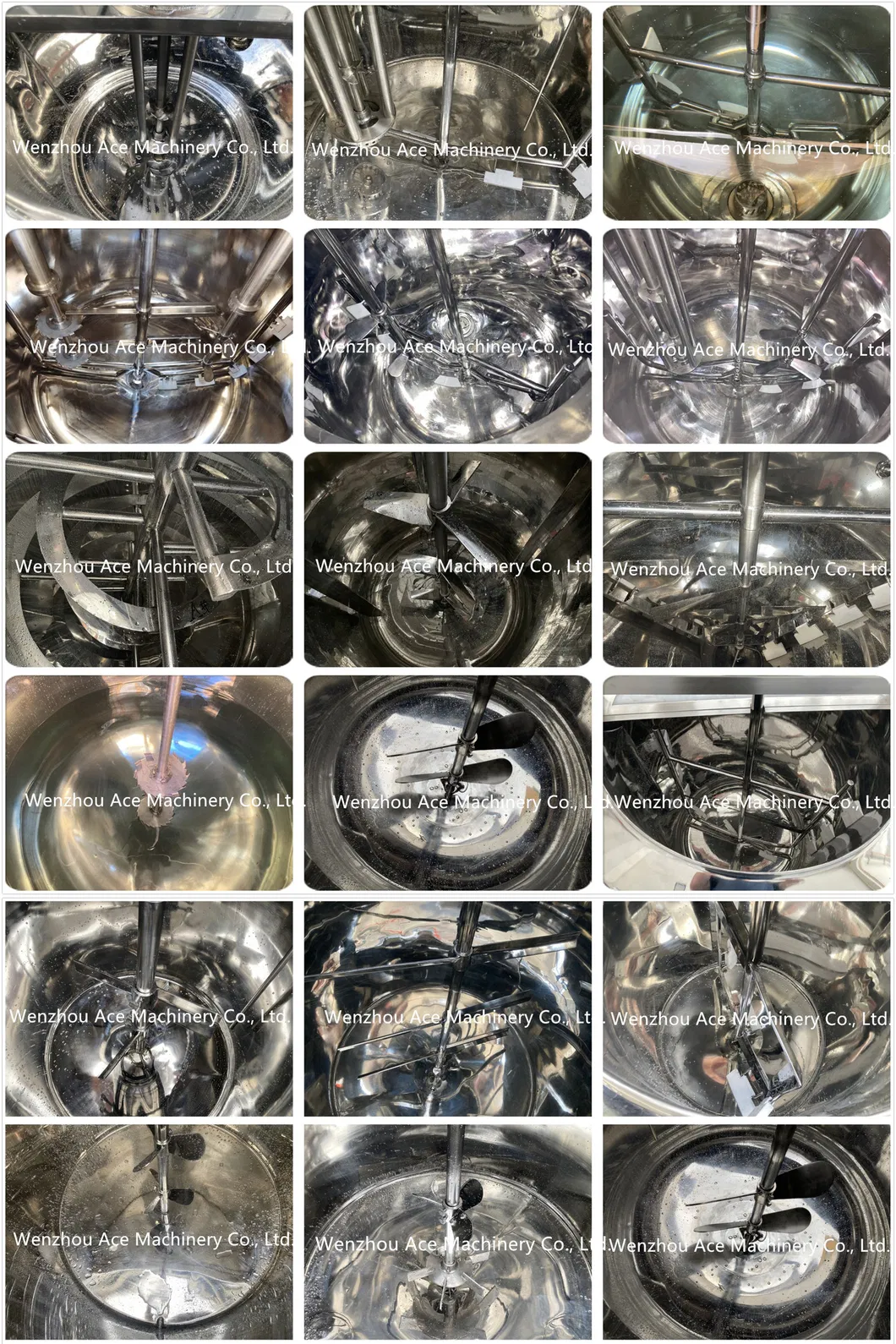

Detailed Photos





We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods




Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
