Single Shaft/ Double Shaft/ Customized High-Speed Liquid Mixer
Product description Disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid.This series of agitators can be easily operated with hydraulic elevation and rotation frame. The high speed of the mixing head makes the raw mat......
Send Inquiry
Product Description
Product description

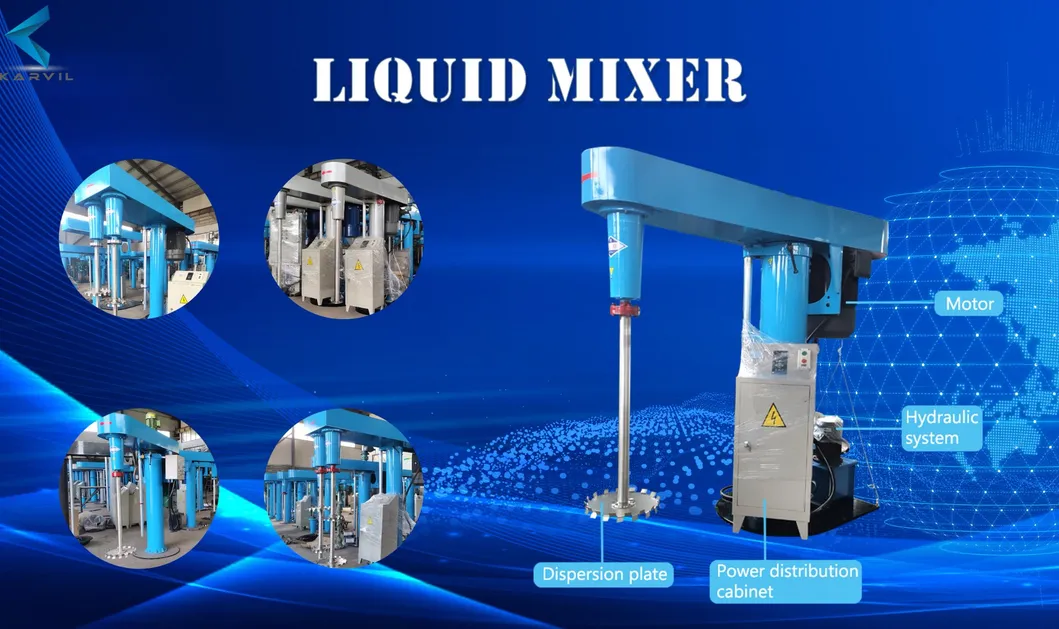

Disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid.
This series of agitators can be easily operated with hydraulic elevation and rotation frame. The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely.
High speed mixer is suitable for batch production, it is apply to all kind of liquid to pre-mix, disperse, color matching, etc.
This series of agitators can be easily operated with hydraulic elevation and rotation frame. The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely.
High speed mixer is suitable for batch production, it is apply to all kind of liquid to pre-mix, disperse, color matching, etc.
Main features and advantages
1. Hydraulic lifting.
2. Reliable frequency rotation speed control for various producing materials.
3. 360 degrees can be achieved for the convenient producing position.
4. Equipment materials which touch the processed material: SS304/316L.
5. Mixer shaft: single shaft/ double shaft/ customized.
6. Mixing tank: single-layer/ jacket heating/ jacket cooling/ vacuum system.
7. Ex-proof system can be optional as required.
8. One machine can serve several tanks.
1. Hydraulic lifting.
2. Reliable frequency rotation speed control for various producing materials.
3. 360 degrees can be achieved for the convenient producing position.
4. Equipment materials which touch the processed material: SS304/316L.
5. Mixer shaft: single shaft/ double shaft/ customized.
6. Mixing tank: single-layer/ jacket heating/ jacket cooling/ vacuum system.
7. Ex-proof system can be optional as required.
8. One machine can serve several tanks.
Technical Parameters
| Model | Power (KW) | Capacity (L) | Disc Dia (mm) | Speed (rpm) | Stroke (mm) | Hydraulic Power (KW) |
| LM2.2 | 2.2 | 50-150 | 150 | 0-1440 | 600 | 0.75 |
| LM4 | 4 | 50-200 | 200 | 0-1440 | 600 | 0.75 |
| LM5.5 | 5.5 | 80-250 | 200 | 0-1440 | 800 | 0.75 |
| LM7.5 | 7.5 | 100-300 | 250 | 0-1440 | 800 | 0.75 |
| LM11 | 11 | 100-400 | 250 | 0-1440 | 800 | 0.75 |
| LM15 | 15 | 150-500 | 300 | 0-1440 | 800 | 0.75 |
| LM18.5 | 18.5 | 200-800 | 300 | 0-1440 | 1100 | 1.1 |
| LM22 | 22 | 200-1000 | 300 | 0-1440 | 1100 | 1.1 |
| LM30 | 30 | 300-1500 | 350 | 0-1440 | 1100 | 1.1 |
| LM37 | 37 | 400-2000 | 400 | 0-1440 | 1100 | 1.5 |
| LM45 | 45 | 500-2500 | 450 | 0-1440 | 1100 | 1.5 |
| LM55 | 55 | 600-3000 | 450 | 0-1440 | 1300 | 2.2 |
| LM75 | 75 | 800-4000 | 550 | 0-1440 | 1800 | 2.2 |
| LM90 | 90 | 1200-6000 | 600 | 0-1440 | 1800 | 2.2 |
| LM110 | 110 | 1600-8000 | 700 | 0-1440 | 2100 | 3 |
| LM132 | 132 | 2000-10000 | 800 | 0-1440 | 2300 | 3 |
Application Range
Paint: Emulsion paint, wall paint, industrial paint, automotive paint, metal paint, wood lacquer, pearl paint, enamel, alkyd paint, epoxy paint, acrylic paint, color paste, white paste, etc.
Ink: Printing ink, textile ink, digital ink, photographic ink, sublimation ink, screen ink, etc;
Others: epoxy resin, fertilizer, pesticide, dyestuff, pigment, glues/adhesives, , detergent, etc.
Ink: Printing ink, textile ink, digital ink, photographic ink, sublimation ink, screen ink, etc;
Others: epoxy resin, fertilizer, pesticide, dyestuff, pigment, glues/adhesives, , detergent, etc.
About us
Shandong Karvil Machinery Technology Co., Ltd. is specializing in the research, design, manufacturing and sales of mixing machines, grinding equipment and reaction machines. The company is committed to the advanced technology of machines, strict quality control standards and perfect sales service experience to achieve a win-win situation with our customers.
Karvil products have been successful used in the field of powder processing, food, medicine, fine chemical industry, cosmetics, adhesives, paints, inks, dyes, pastes, organic solvents and ceramics, etc.
Our product warranty period is one year. If the machine has broken within one year, you can send us videos and photos, and our engineers can help you analyze the problem. If you need to replace the parts, we will provide them for free within one year, and the parts will be charged after one year. The engineer's consulting service is free for life.
Shandong Karvil Machinery Technology Co., Ltd. is specializing in the research, design, manufacturing and sales of mixing machines, grinding equipment and reaction machines. The company is committed to the advanced technology of machines, strict quality control standards and perfect sales service experience to achieve a win-win situation with our customers.
Karvil products have been successful used in the field of powder processing, food, medicine, fine chemical industry, cosmetics, adhesives, paints, inks, dyes, pastes, organic solvents and ceramics, etc.
Our product warranty period is one year. If the machine has broken within one year, you can send us videos and photos, and our engineers can help you analyze the problem. If you need to replace the parts, we will provide them for free within one year, and the parts will be charged after one year. The engineer's consulting service is free for life.
FAQ1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong,--Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
We are a manufacturer with strict production standards in China.
2. Where is your company?
Our company is located in Yantai, Shandong,--Powder Equipment Industry Belt.
3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.
4. What is the main market for your company?
Asia and Africa, Australia, America, Europe.
5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.
6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.
7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.
8. What are the payment terms?
T/T, L/C, etc.
