Product Description

Liquid powder mixer
SS304,SS316(L)
CE,ISO9001:2008
Reliable quality,beatiful surface

Operation Principle of Powder liquid mixer :

Powder liquid mixer is composed of machine body and centrifugal pump water wheel, which are vertically installed. Through a double-layer wall pipe, the liquid materials and solid materials are separately pumped in, which can prevent them from agglomeraling before entering into the main body. When the liquid enters into the main machine body of mixer at high speed, vacuum will produce in the center of water wheel to suck the solid materials. The solid materials will be evenly sucked in through the regulation of valve under the doukou tank. It has brief design and multiple functions. It can rapidly and evenly mix multiple solid materials without contacting the air. The mixing is enough and the product can be recycled. with advanced design, fine manufacturing, high production efficiency and durable use, it obtained stale patent.

Photos of products

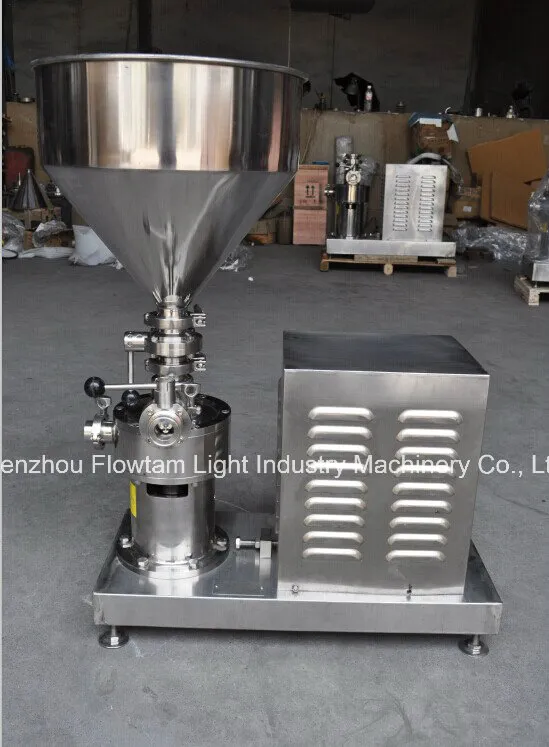

TRL-1 Liquid powder mixer

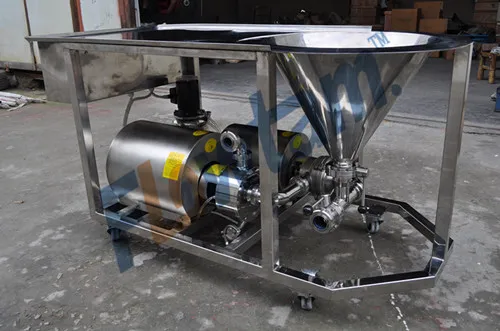

WPL liquid powder mixer

Model	Power(kw)	Speed(rpm)	Flow (m3/h)
TRS1-60	1.5	2800	0-1.5
TRS1-100	2.2	2800	0-3
TRS1-120	4	2800	0-4
TRS1-140	5.5	2800	0-5
TRS1-165	7.5	2800	0-8
TRS1-180	11	2800	0-12
TRS1-185	15	2800	0-18
TRS1-200	22	2800	0-25
TRS1-210	30	2800	0-35
TRS1-230	45	2800	0-50
TRS1-240	55	2800	0-75
TRS1-260	75	2800	0-90
TRS1-275	90	2800	0-110
TRS1-280	132	2800	0-130

Model	Inline high shear mixer(kw)	self priming pump(kw)	Flow (m3/h)
WPL-140	4.0	1.5	0.1-3
WPL-160	5.5	4.0	0.3-6
WPL-180	7.5	5.5	1-10
WPL-200	11	7.5	1-15
