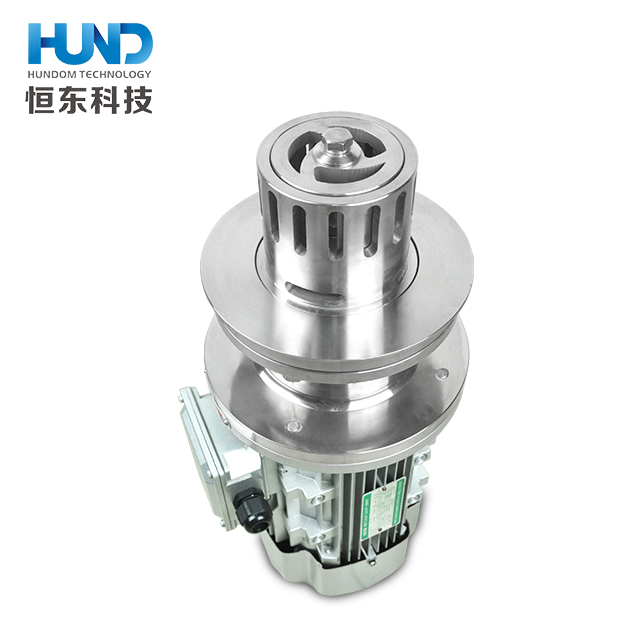

Sanitary Inline Bottom High Shear Emulsifying Mixer for Pharmaceutical
Tag:Sanitary Inline Bottom High Shear Emulsifying Mixer for PharmaceuticalWorking PrinciplesHigh Shear Mixers work with a special designed stator/rotor working head. When it works, this stator/rotor head is able to draw the solids and liquids around it into its center, and then push them radially th......
Send Inquiry
Product Description
Tag:Sanitary Inline Bottom High Shear Emulsifying Mixer for Pharmaceutical
Working Principles

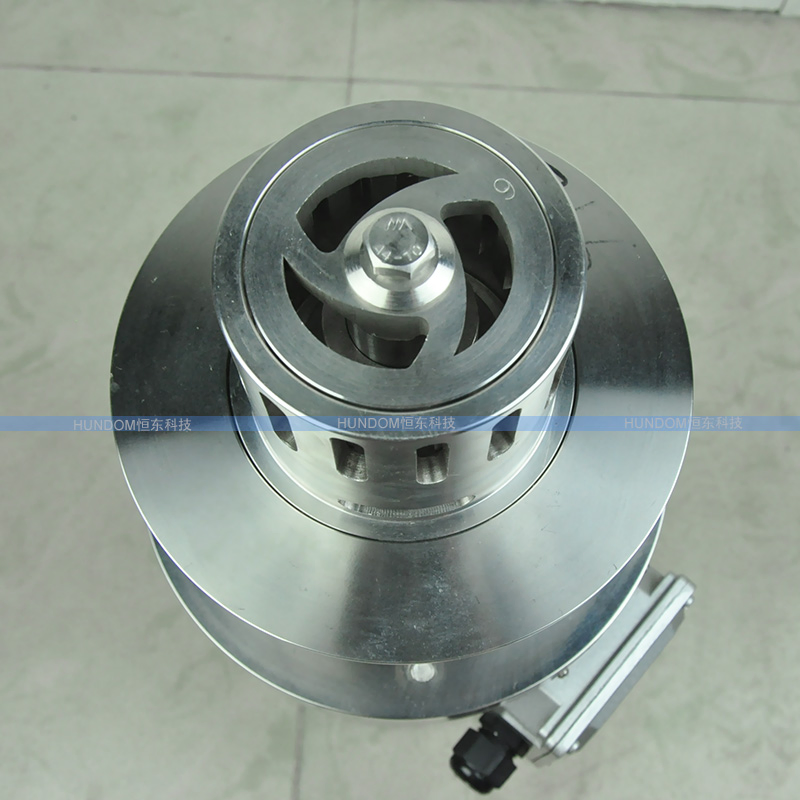

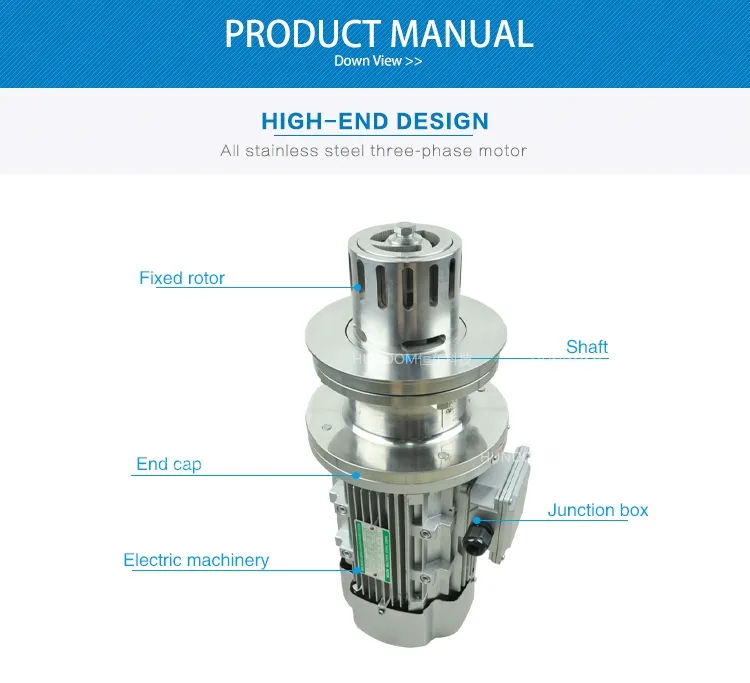

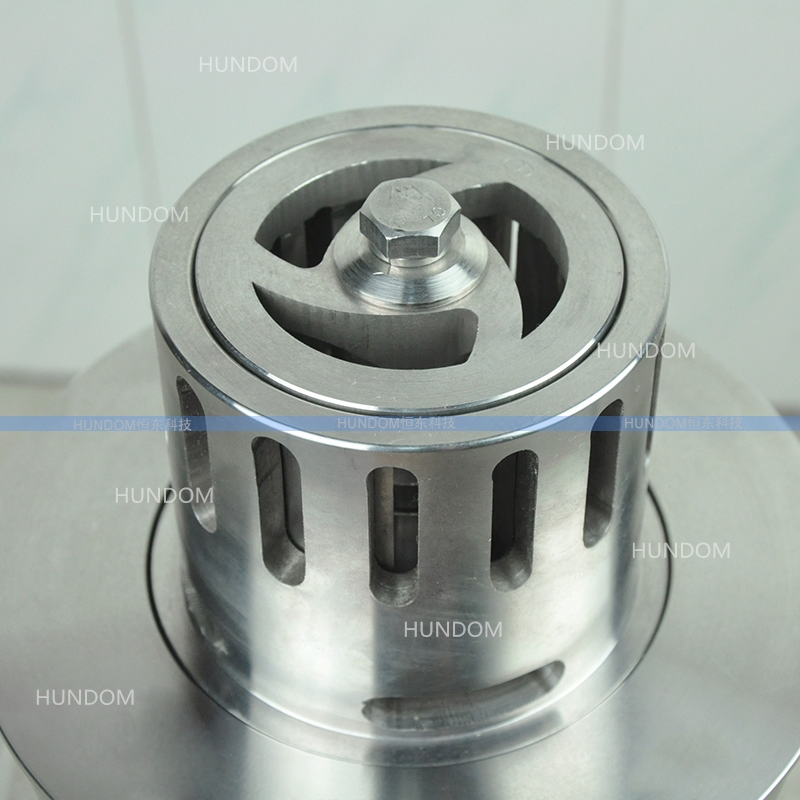

High Shear Mixers work with a special designed stator/rotor working head. When it works, this stator/rotor head is able to draw the solids and liquids around it into its center, and then push them radially through the stator openings back to the tank. During this period, the solids and liquids are subject to an action of milling and shearing which is so intensive that they are deagglomerated, homogenized and dispersed into each other even though they are immiscible by traditional agitation.
Installation and Set-up

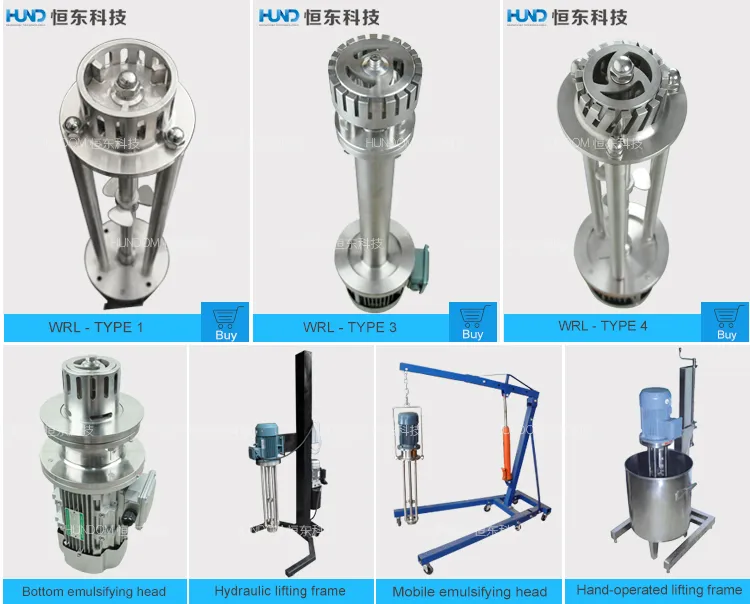

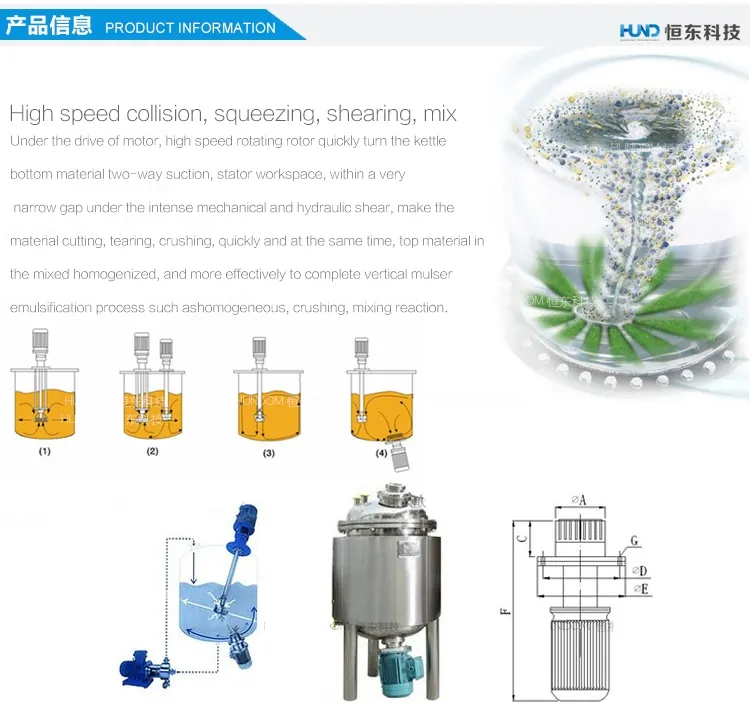

In the Batch process, the mixer is immersed into the liquid. There are many installation methods for the PS series High Shear Mixers. It can be lifted up by a lifting stand (hydraulic or electric), or it can be installed with flange on the top of a tank, or from its side, or at its bottom. For the vacuum or pressurized tank, the mixer must be equipped with a mechanical shaft sealing.
- Top entry, open vessel
These mixers are used in an open vessel, that is, a vessel with normal pressure. They are top entry mixers, can be installed onto a lifting stand, or directly onto the vessel by a flange or traverse. A coupling between the motor and shaft is optional for low noise and stable running.
- Side entry
The side entry mixers are very useful when the tank is deep but narrow, or when the top space of the vessel is limited for the top entry ones.
- Bottom entry
The bottom mixers are outstanding when the liquid level in the tank can get very low during operation, or there is very limited space above or around the tank for either top or side mounted ones. What is more, strong vortex as well as aeration is greatly reduced with the PERMIX bottom mounted mixers.
Technical Parameters
Product Show
About HUNDOM
Guangzhou Hundom Machinery Equipment Co., Ltd.has been manufacturing colloid mill, jacketed kettle, rotor pump, mixing tank and other machinery equipment for 14 years , putting quality as our first consideration. We own a team with rich experience in the field, if you have any question, contact us for the professional answer.
Guangzhou Hundom Machinery Technology Co.,Ltd.
Add:No. 115, No. 7, Haina Industrial Park, Shibi Street, Panyu District, Guangzhou City, Guangdong Province, China
Sales:Shum
Tel:+86-020-89081205
Mobile:+86-138-2213-4643
Welcome to visit our factory !
Working Principles
High Shear Mixers work with a special designed stator/rotor working head. When it works, this stator/rotor head is able to draw the solids and liquids around it into its center, and then push them radially through the stator openings back to the tank. During this period, the solids and liquids are subject to an action of milling and shearing which is so intensive that they are deagglomerated, homogenized and dispersed into each other even though they are immiscible by traditional agitation.
Installation and Set-up
In the Batch process, the mixer is immersed into the liquid. There are many installation methods for the PS series High Shear Mixers. It can be lifted up by a lifting stand (hydraulic or electric), or it can be installed with flange on the top of a tank, or from its side, or at its bottom. For the vacuum or pressurized tank, the mixer must be equipped with a mechanical shaft sealing.
- Top entry, open vessel
These mixers are used in an open vessel, that is, a vessel with normal pressure. They are top entry mixers, can be installed onto a lifting stand, or directly onto the vessel by a flange or traverse. A coupling between the motor and shaft is optional for low noise and stable running.
- Top entry, closed vessel
These PS series top entry High Shear Mixers are with a mechanical seal, which enables them to be working in a pressurized or vacuum vessel. Single seal or double seals are available.- Side entry
The side entry mixers are very useful when the tank is deep but narrow, or when the top space of the vessel is limited for the top entry ones.

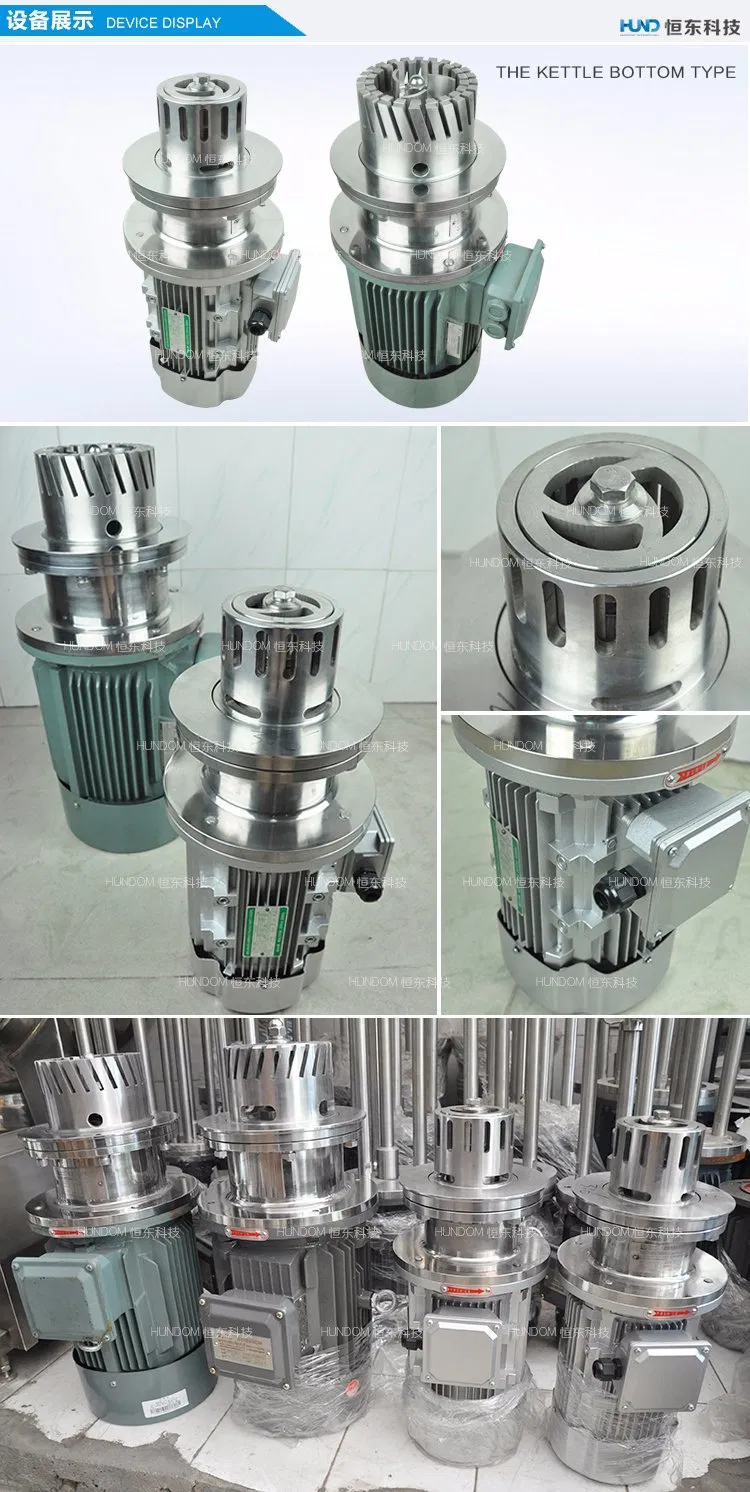

- Bottom entry
The bottom mixers are outstanding when the liquid level in the tank can get very low during operation, or there is very limited space above or around the tank for either top or side mounted ones. What is more, strong vortex as well as aeration is greatly reduced with the PERMIX bottom mounted mixers.
Technical Parameters
| Model | Power(kw) | Speed(RPM) | Length(mm) | Capacity(L) |
| BRH-80 | 1.1 | 2800 | 350 | 10-40 |
| BRH-90 | 1.5 | 2800 | 350 | 10-50 |
| BRH-100 | 2.2 | 2800 | 650 | 50-100 |
| BRH-120 | 4 | 2800 | 750 | 100-300 |
| BRH-140 | 7.5 | 2800 | 900 | 200-800 |
| BRH-160 | 11 | 2800 | 1050 | 500-1500 |
| BRH-180 | 18.5 | 2800 | 1200 | 600-2000 |
| BRH-200 | 22 | 2800 | 1200 | 800-2500 |
| BRH-220 | 30 | 1400 | 1355 | 1000-3500 |
| BRH-240 | 45 | 1400 | 1395 | 1500-5000 |
| BRH-270 | 55 | 1400 | 1600 | 2000-8000 |
| BRH-290 | 75 | 1400 | 1650 | 3000-10000 |
About HUNDOM
Guangzhou Hundom Machinery Equipment Co., Ltd.has been manufacturing colloid mill, jacketed kettle, rotor pump, mixing tank and other machinery equipment for 14 years , putting quality as our first consideration. We own a team with rich experience in the field, if you have any question, contact us for the professional answer.
Guangzhou Hundom Machinery Technology Co.,Ltd.
Add:No. 115, No. 7, Haina Industrial Park, Shibi Street, Panyu District, Guangzhou City, Guangdong Province, China
Sales:Shum
Tel:+86-020-89081205
Mobile:+86-138-2213-4643
Welcome to visit our factory !
