Product Description

Reactor High pressure reactor Titanium reactor Batch reactor

Usage and application field
The product is mainly applied in such industries dailt chemical care products , biopharmaceutical industry , food industry , paint and ink , nanometer materials , petrochemical industry , printing and dyeing auxiliaries , pulp&paper , pesticide , fertilizer , plastic&rubber, electric and electonics , fine chemical industry , etc . The emulsifying effect id more prominent for materilas of high base viscosity and high solid content .

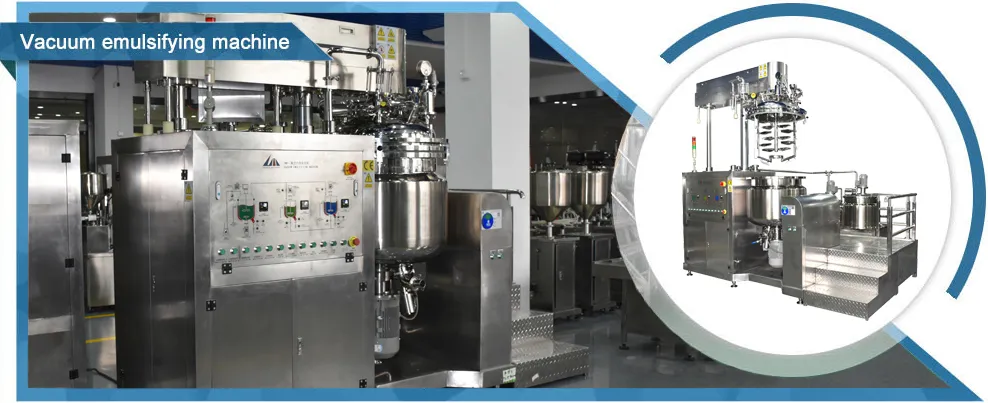

Definition of vacuum homogenizer emulsifier :
It means that when the materials are under the vacuum confition , it makes use of the high shear emulsifier to distribute one ot several phases to another continuous phase repidly and evenly , The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect . By the operation of hydraulic shearing , centrifugal extruding . impacting , breaking and turbulrnce for over 100 thousand times per minute , the materials will be dispersed and emulsified indtantly and evenly . after reciprocation circulation at high frequency , the fine finished products of stable and high quslity without bubbles will be achieved
Reactor High Pressure Reactor Titanium Reactor Batch Reactor

Performances and features

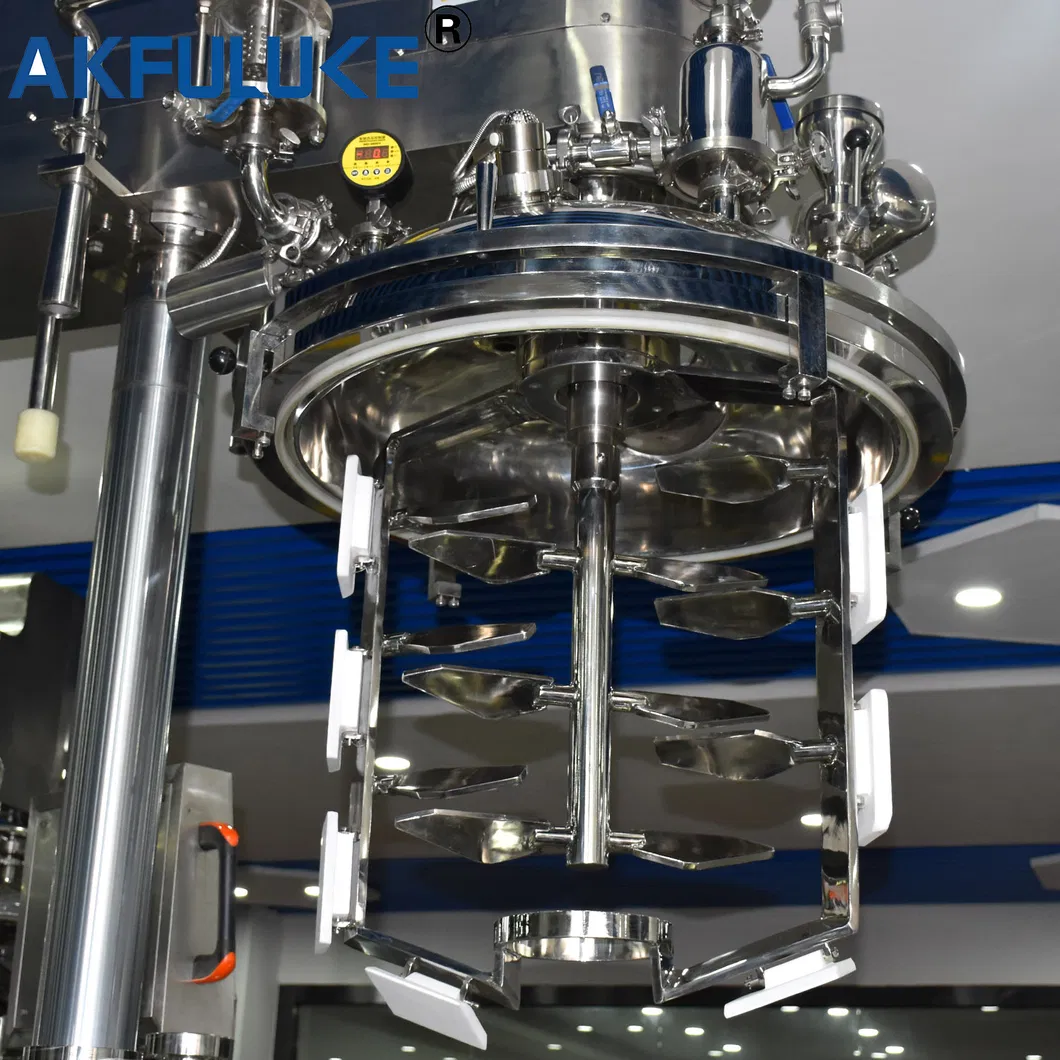

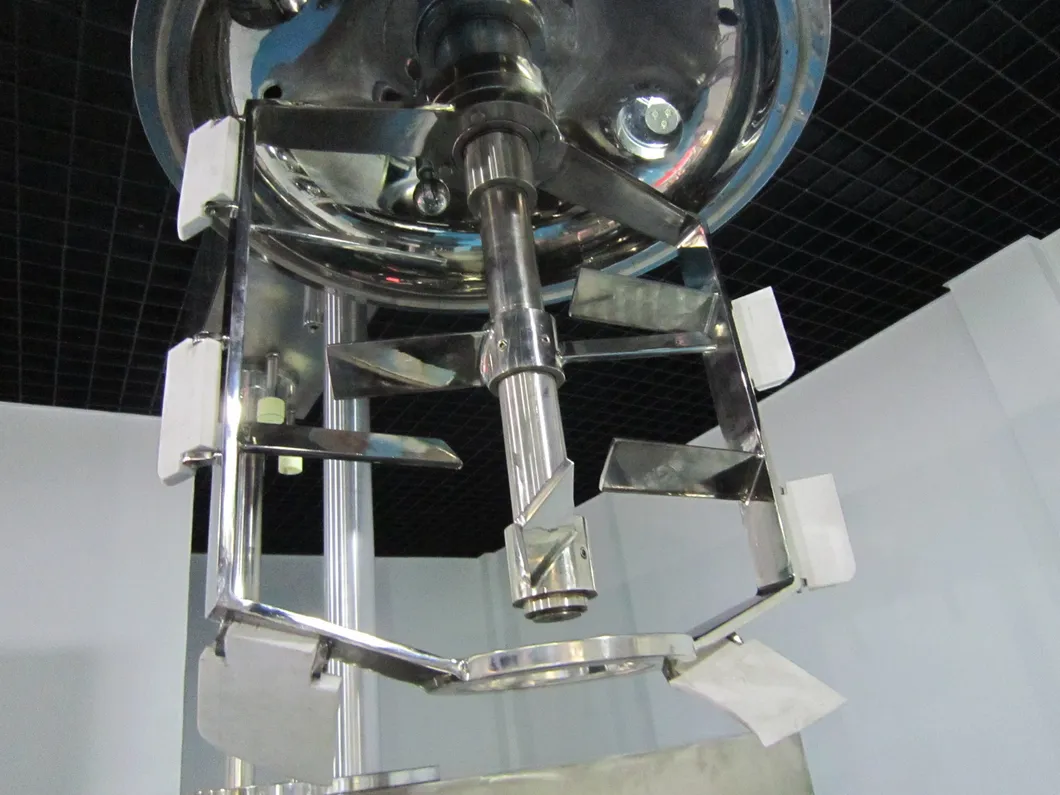

1. the vacuum emulsifiers produced by out company include many varieties . the homogenizing systems included upper homogenization, lower homogenization , internal and external circulating homogenization . The mixing systems includ dingle-way mixing , double-way mixing and helical ribbon mixing , the lifting systems include single-cylinder lifting and double-cylinder lifting . Various high quality products can be customized according to customer's requirements
2.The triple mixing adopts the imported frequency converter for speed adjustment , which can meet different technological damands .
3.The homogenizing structure made through German technology adopts the i,ported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4200rpm and the highest shearing fineness can reach 0.2-0.5um ,
4. The vacuum defoaming can make the materials meet the requirment of being aseptic. The vacuum materials sucking is adopted , and especially for the powder materials , vacuum sucking can avoid dust .
5. The emulsifying pot lid can adopt lifting system, easy to clean and the cleaning effect is more abvious , the emulsifying pot can adopt tilt disvharge .
6. The pot body is welded by imported three-layer stainless steel plat . The tank body and the pipes adopt mirroe polishing , ehich fully conforms to GMP requirements
7. According to technological requirements , the tank body can heat or cool the materials the heating modes manily included steam heating or electric hetaing .

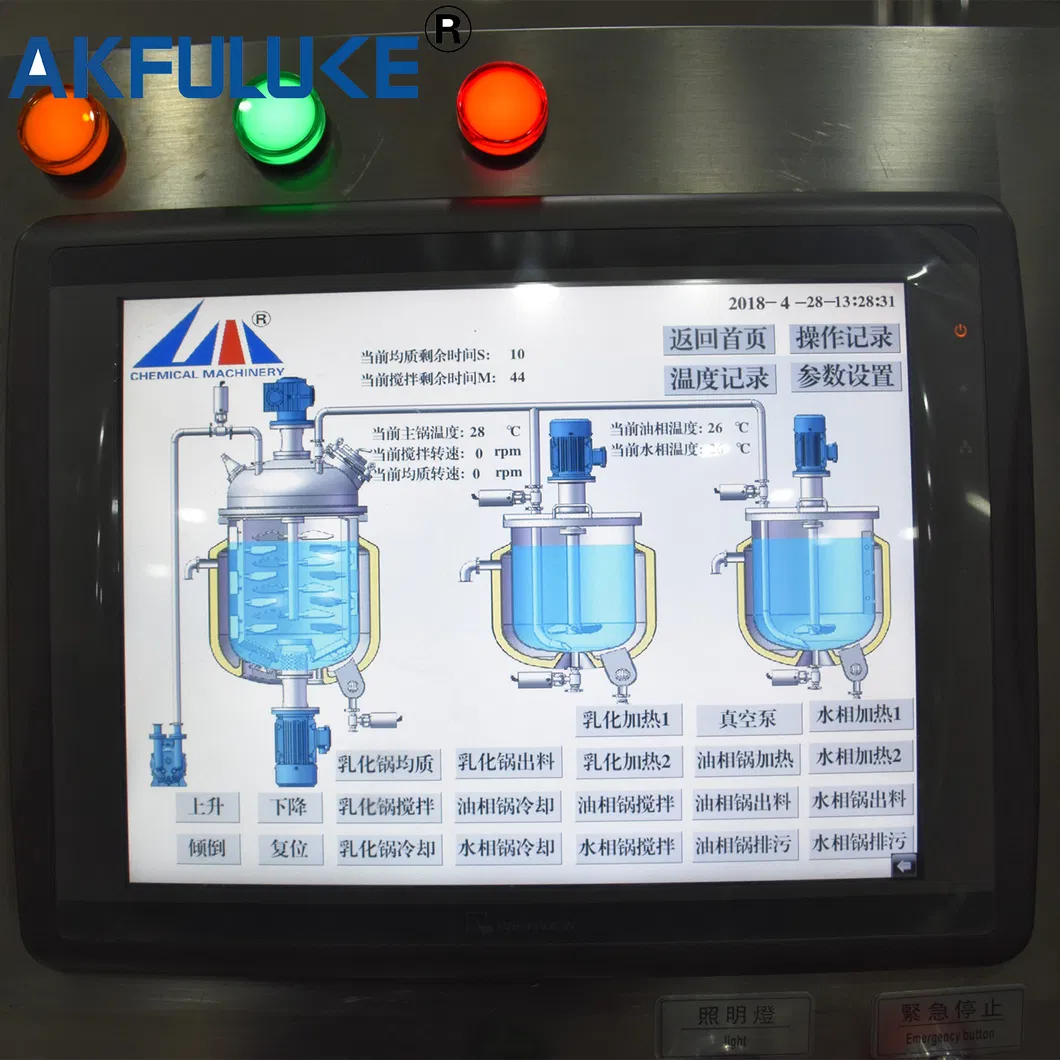

8. To esure the conmtrol of the whole machines is more stable , the electric appliances adopt imported configurations , so as to fully meet the internatonal standards.
Reactor High Pressure Reactor Titanium Reactor Batch Reactor

Main composition :

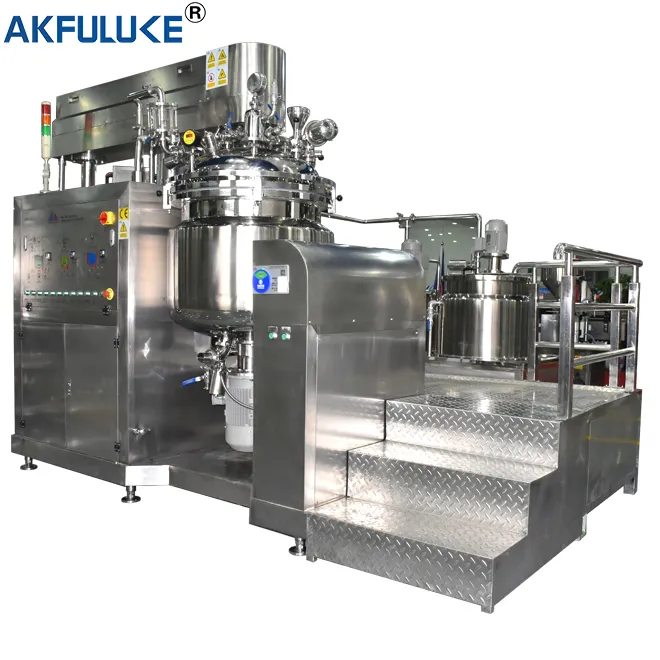

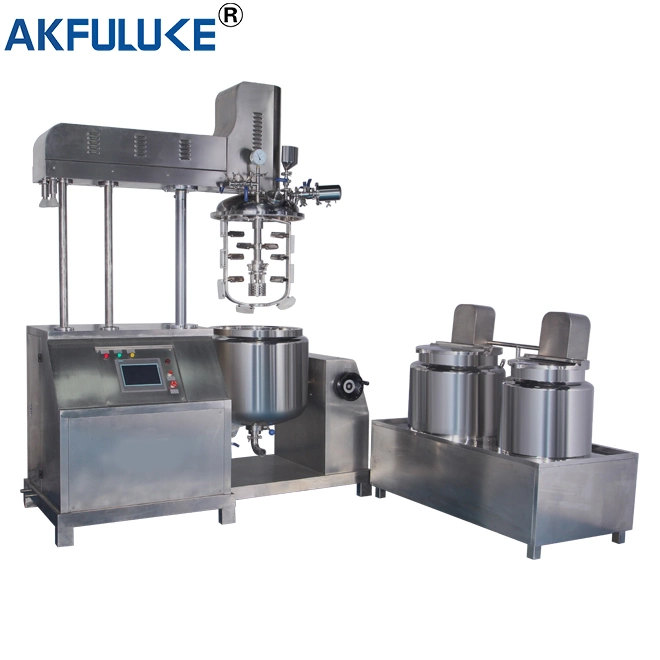

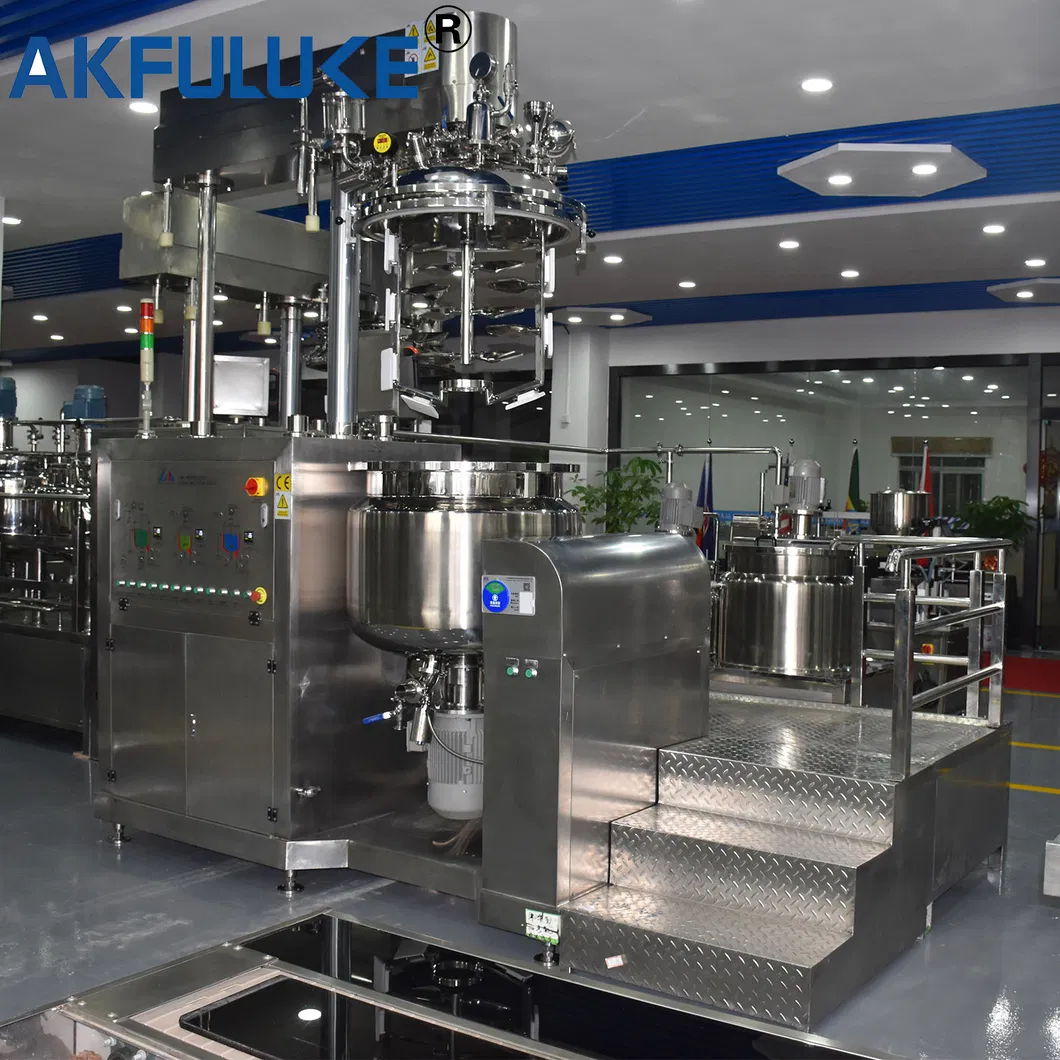

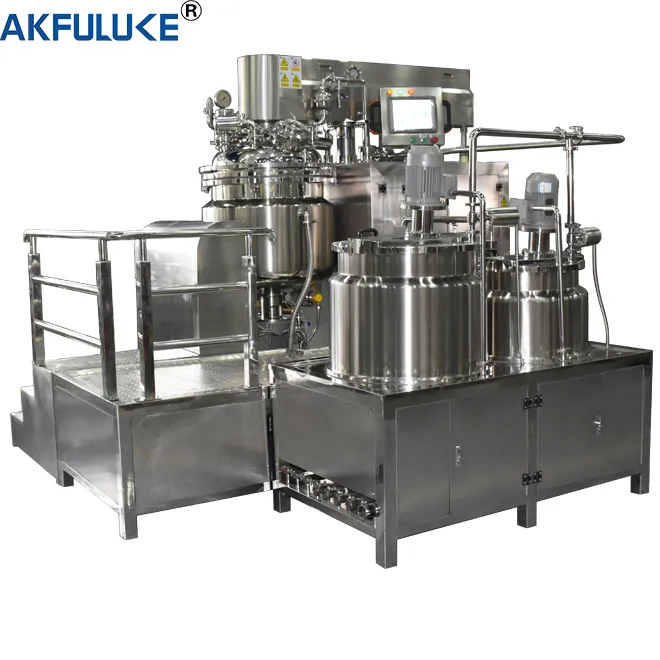

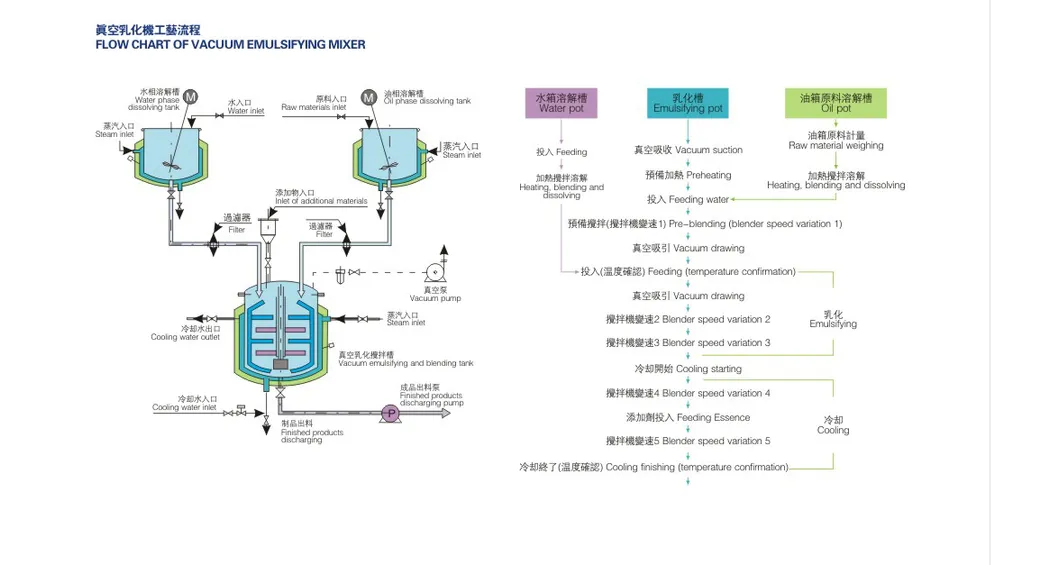

The vacuum emulsifying mixer is mainly composed of water pot , oil pot , emulsifying pot , vacuum system , lifting system (optional), electric contorl system (PLC is opetional ) operation platform etc .
Reactor High Pressure Reactor Titanium Reactor Batch Reactor

Main technical

model	Effective capacity	homogenizer motor kw	r/min	Stir motor KW	r/min	vacuum pump kw	limit vacuum	heating power steam heating	electric heating
FMB-10L	10	0.55	0-3600	0.37	0-65	0.37	-0,085	6	2
FMB-50L	50	0.75	0-3600	0.75	0-65	0.75	-0,085	9	3
FMB-100L	100	4	0-3600	1.5	0-65	1.5	-0,085	24	9
FME-200L	200	5.5	0-3300	1.5	0-65	2.2	-0,085	28	10
FME-300L	300	5.5	0-3300	2.2	0-65	2.2	-0,085	32	12
FME-500L	500	7.5	0-3300	4	0-65	4	-0,085	45	16
FMH-800L	800	11	0-3300	5.5	0-65	4	-0,085	54	25
FMH-1000L	1000	11	1400-3000	5.5	0-65	4	-0,085	54	29
FMH-2000L	2000	15	1400-3000	5.5	0-65	5.5	-0,085	63	38

Above are our some vacuum emulsifying mixer technologe , The more details pls contact me in bwlow contact way
