Product Description

Packing and Delivery:
Packing Detail:Normally packed in wooden case or customized.
Delivery Detail:Shipped in 30 days after receiving deposit.
Product Description:

Model	Effective Capcity	Emulsifying Motor		Agitator		Vacuum pump		Heating power
		KW	R/MIN	KW	R/MIN	KW	Limit Vacuum	Electric heating	Steam heating
VME-B10	10	0.55	0-3600	0.37	0-85	0.37	-0.09	6	2
VME-B20	20	0.75	0-3600	0.37	0-85	0.37	-0.09	9	3
VME-B50	50	2.2	0-3600	0.75	0-80	0.75	-0.09	12	4
VME-B100	100	4	0-3500	1.5	0-75	1.5	-0.09	24	9
VME-B150	150	4	0-3500	1.5	0-75	1.5	-0.09	24	9
VME-C200	200	5.5	0-3300	1.5	0-65	2.2	-0.09	28	10
VME-C300	300	5.5	0-3300	2.2	0-65	2.2	-0.085	32	12
VME-C500	500	7.5	0-3300	4	0-60	4	-0.085	50	16
VME-C800	800	11	0-3300	5.5	0-60	4	-0.08	65	25
The parameters are for reference only, the products and capacity can be customized.

Application Field And Usage:
The vacuum emulsifier is professionally designed according to the ointment manufacturing process of
cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump,
hydraulic system, dumping system, electric control system and work platform etc. The machine unit is
featured by simple operation, stable performance, good homogenizing performance, high production
efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.

Main Composition:
The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.

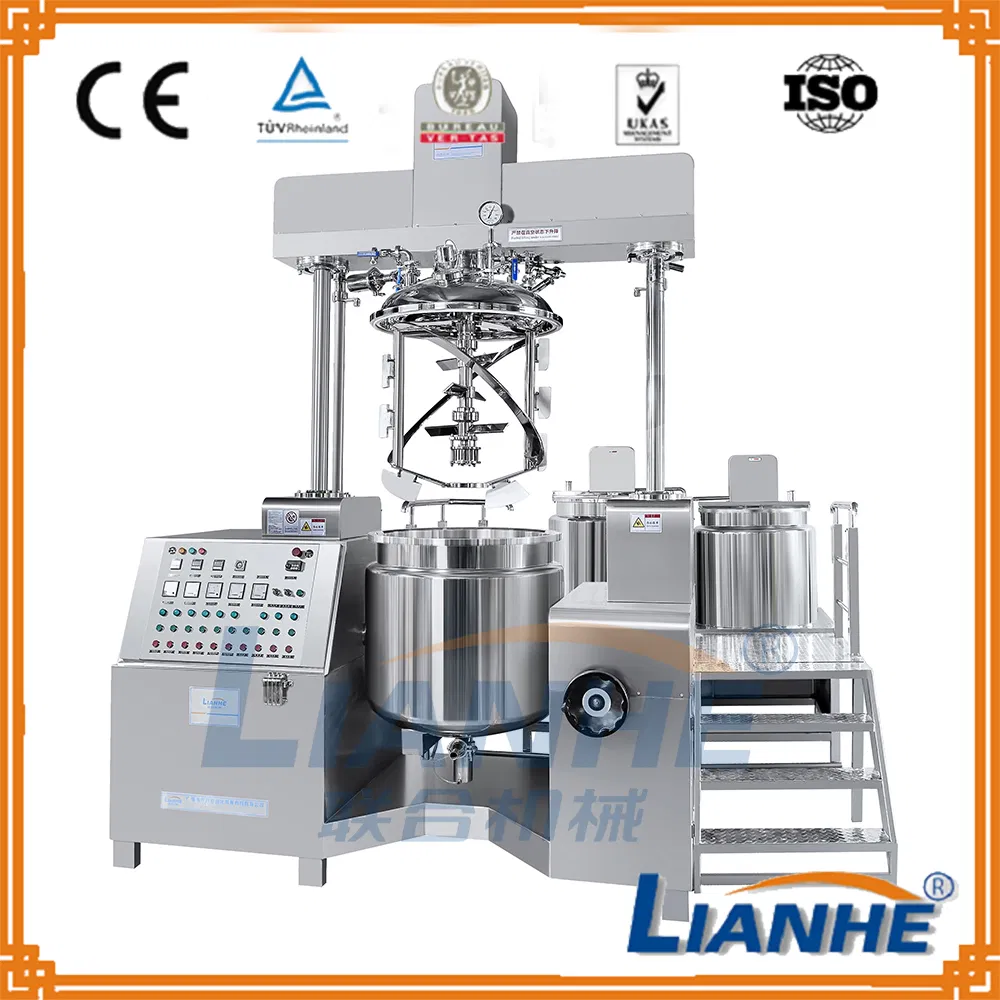

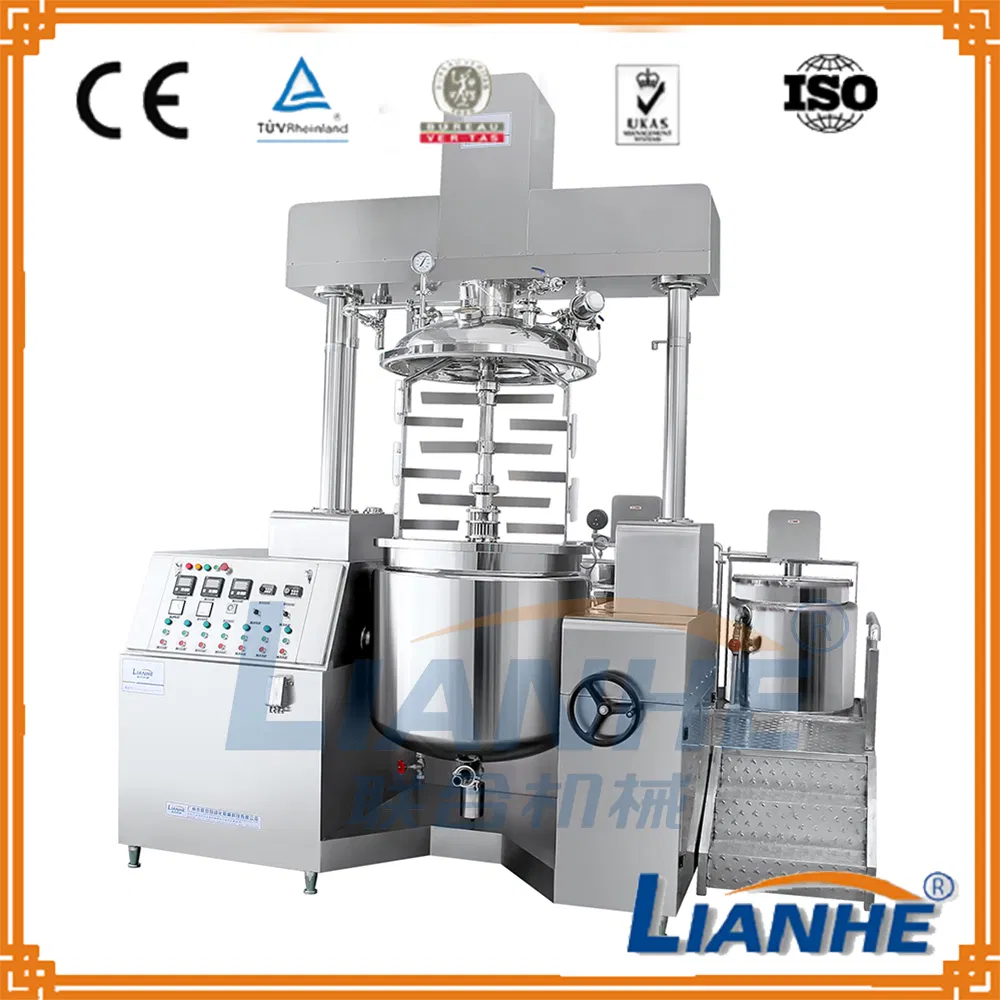

Product Picture:
Pharmaceutical Ointment Mixing Equipment Vacuum Mixing Machine

Pharmaceutical Ointment Mixing Equipment Vacuum Mixing Machine

Performances And Features:
1. The vacuum emulsifiers produced by our company include many varieties. The homogenizing systems include upper homogenization, lower homogenization, internal and external circulating homogenization. The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single -cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to customer's requirements.
2. The triple mixing adopts the imported frequency converter for speed adjusment, which can meet different technological demands.
3. The homogenizing structure made through German technology adopts the improted double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4,200rpm and highest shearing fineness can reach 0.2-5μm.
4. The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust.
5. The emulsifying pot lid can adopt lifting system, easy to clean and the cleaning effect is more abvious, the emulsifying pot can adopt tilt discharge.
6. The pot body is welded by imported three-layer stainless steel plate. The tank body and pipes adopt mirror polishing, which fully meet the international standards.

Analysis table:

Material Sources & Certificates:

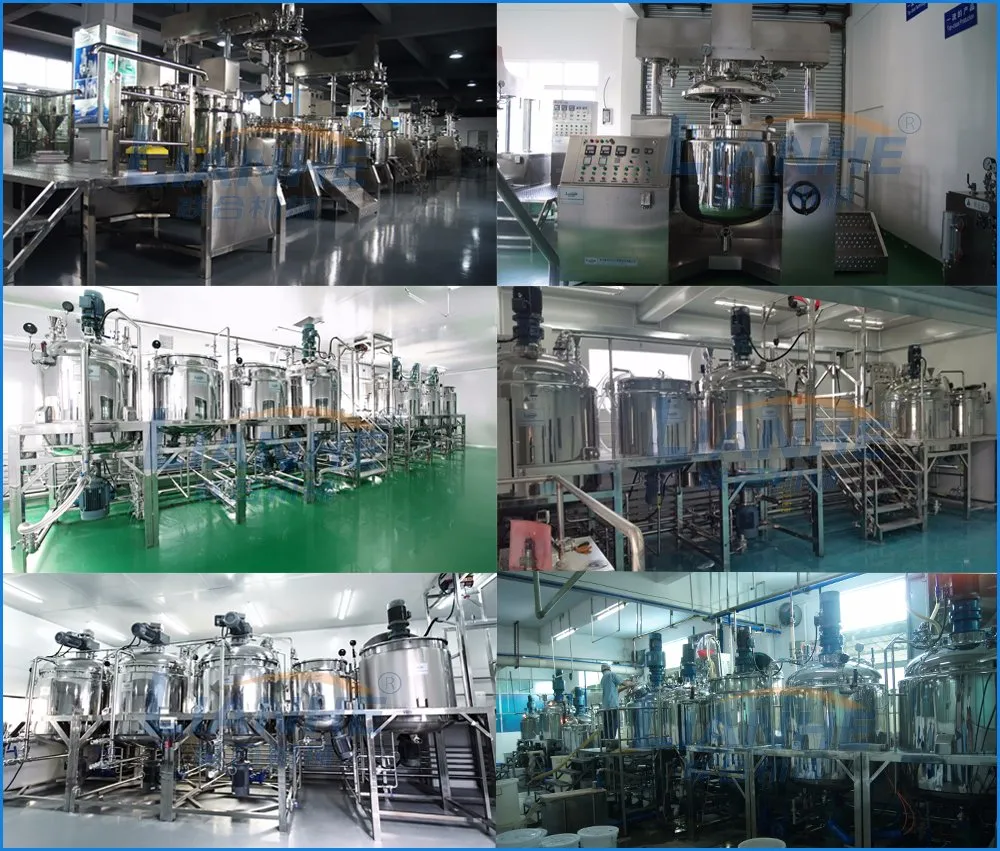

Company & Factory:

FAQ:

1.Q:Are you a factory?

A:Yes,our factory is in Guangzhou, China,warmly welcome to visit us.

2.Q:Do you provide after-sale service?

A:Sure, we have a good after sale service.

3.Q:what is your advantage?

A:We have the high quality ,and the good factory price.

4.Q:What about the installation?

A: Our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.

5.Q:How can you control the quality and delivery?

A: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .
