Mixing Homogenizr Machine for Cosmetics Cream Price
Mixing Homogenizr Machine For Cosmetics Cream PriceMachine in ctockWhat products do u do ?How many liter machine u need? Offer sheet in detail will be provided by below contactAtt : Manman Zhong Vacuum Emulsifying Machine ApplicationThis machine is Conform to the requirements of the GMP .It's......
Send Inquiry
Product Description
Machine in ctock
How many liter machine u need? Offer sheet in detail will be provided by below contact
Att : Manman Zhong

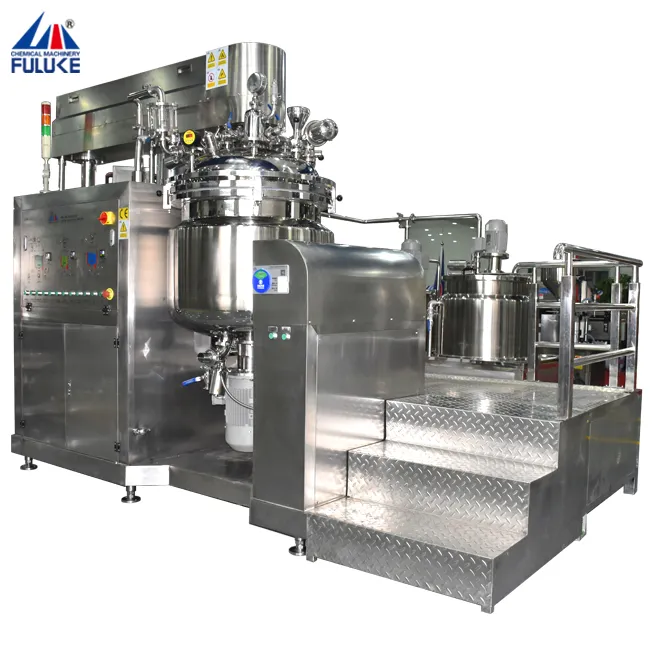

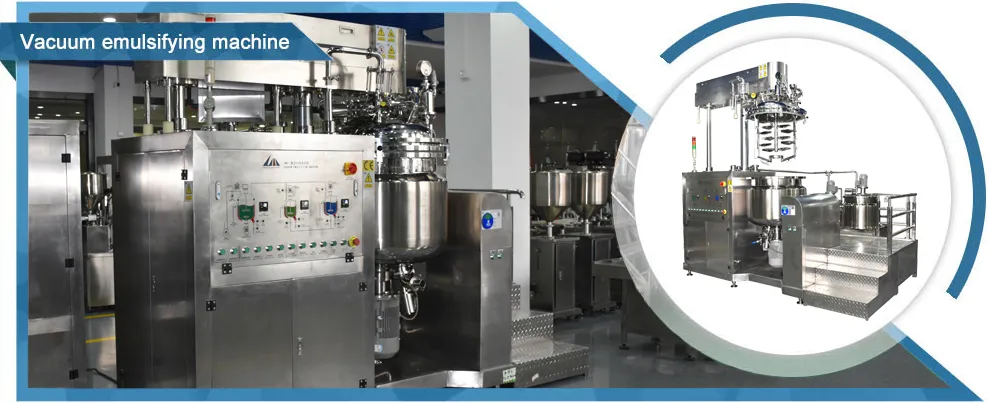

Vacuum Emulsifying Machine Application
This machine is Conform to the requirements of the GMP .It's suitable for making cream, milk liquid , cosmetics , shampoo , liquid wash etc.

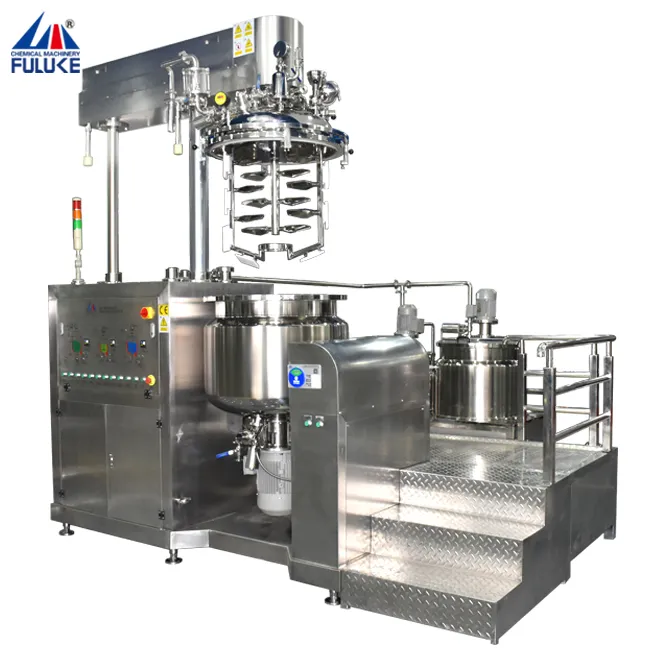

Vacuum Emulsifying Machine Main System

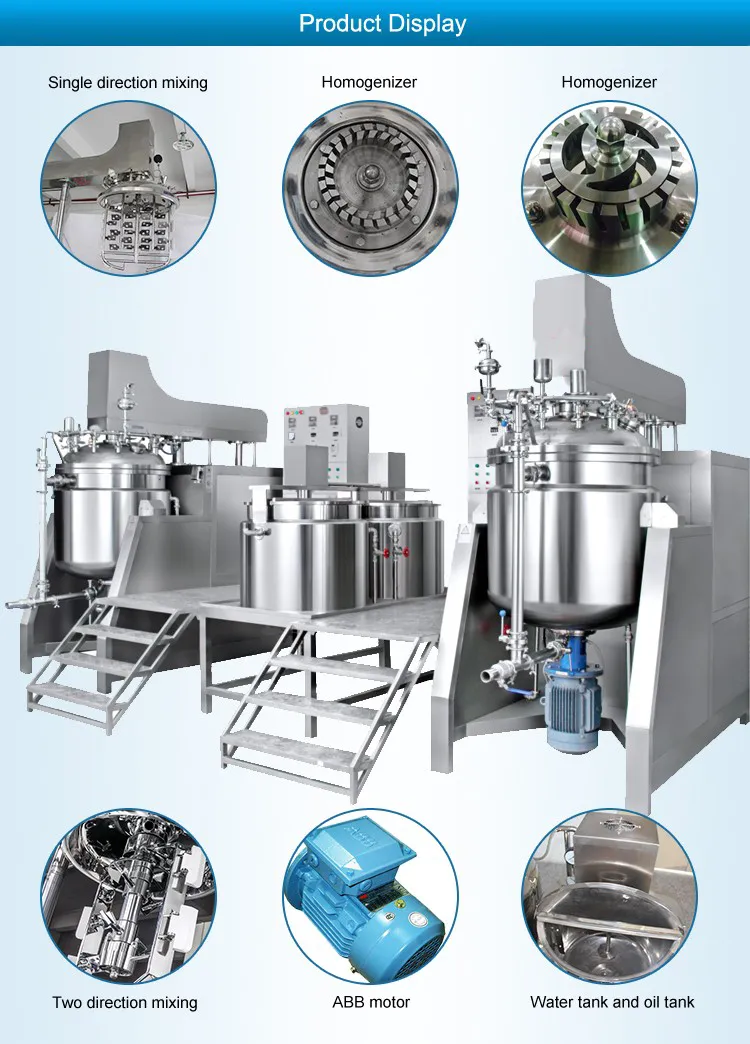

Main pot, water pot, oil pot, mixing homogenizing system, lift system, vacuum system, electrical apparatus control system etc.
Vacuum Emulsifying Machine Technical Parameters
| Model | Effective capacity | Homogenizer motor | Stir motor | Vacuum pump | Heating power | |||||
| kW | r/min | kW | r/min | kW | Limit vacuum | Electric heating | Steam heating | |||
| FMB-10 | 10 | 0.55 | 0-3600 | 0.37 | 0-85 | 0.37 | -0.09 | 6 | 2 | |
| FMB-20 | 20 | 0.75 | 0-3600 | 0.37 | 0-85 | 0.37 | -0.09 | 9 | 3 | |
| FMB-50 | 50 | 2.2 | 0-3600 | 0.75 | 0-80 | 0.75 | -0.09 | 12 | 4 | |
| FMB-100 | 100 | 4 | 0-3600 | 1.5 | 0-75 | 1.5 | -0.09 | 24 | 9 | |
| FMB-200 | 200 | 4 | 0-3600 | 1.5 | 0-75 | 1.5 | -0.09 | 24 | 9 | |
| FME-200 | 200 | 5.5 | 0-3300 | 1.5 | 0-65 | 2.2 | -0.09 | 28 | 10 | |
| FME-300 | 300 | 5.5 | 0-3300 | 2.2 | 0-65 | 2.2 | -0.085 | 32 | 12 | |
| FME-500 | 500 | 7.5 | 0-3300 | 4 | 0-60 | 4 | -0.085 | 50 | 16 | |
| FME-800 | 800 | 11 | 0-3300 | 5.5 | 0-60 | 4 | -0.08 | 65 | 25 | |
| FMH-500 | 500 | 7.5 | 0-3300 | 4 | 0-60 | 4 | -0.085 | 32 | 12 | |
| FMH-1000 | 1000 | 11 | 0-3300 | 5.5 | 0-60 | 4 | -0.08 | 65 | 25 | |
| FMD-2000 | 1000 | 11 | 1400-3000 | 5.5 | 0-60 | 4 | -0.08 | 65 | 25 | |
| FMD-3000 | 2000 | 15 | 1400-3000 | 5.5 | 0-60 | 5.5 | -0.08 | 72 | 43 | |
| FMD-5000 | 5000 | 22 | 1400-3000 | 11 | 0-60 | 7.5 | -0.08 | 90 | 63 | |
| ... | ||||||||||
| (The parameters are for reference only,the product depend on actual items.) | ||||||||||

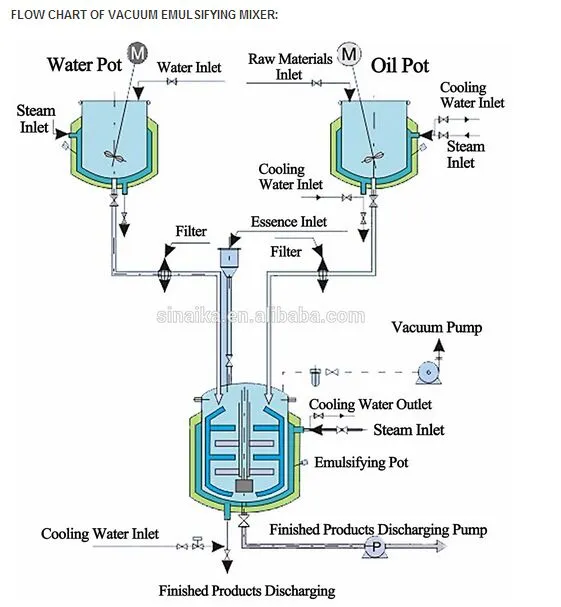

Flow Chart Vacuum Emulsifying Machine
Vacuum Emulsifying Machine Profile
1. Vacuum emulsifier mixer is specially designed adopting advanced technology of oversea accordingto the cosmetic cream and ointment production technology.
2. The machine is made up of pretreatment boiler, vacuum emulsification blending boiler, vacuum pump hydraulic system, pouring-out system, electro control system and workable.
3. The function of the machine including mixing, homogenizing, heating, emulsifier etc. It's the best choose for making high grade cosmetic cream, lotion and can hight viscosity paste etc.
Vacuum Emulsifying Machine Configuration
| Frequency speed control | Siemens |
| Motor | Siemens / ABB |
| Inner material | Japan SUS 316L |
| Control box | Schneider |
| Upper/ bottom | homogenizer |
| heating | steam / electric |
| Touch PCL control | Siemens |
In order give you best suggestion, need you comfirm the detail information as following,
1. What is your made products? Show us picture.
2. Capacity?
3. Heating method steam or electric (the electric heating, temperature can arrive to 100degrees, the steam heating temperature can arrive to 170degrees)
4. With the oil and water phase boiler? (the oil and the water phase boiler have the heating, stiring function)
5. With homogenizer? Do you need the upper homogenizer or bottom homogenizer?
6. Buttom control or PLC touch sreem control, seimens?
Welcome to got more information (video, picture etc) CE certification(our showroom and fatory will show you, Pls contact with us )

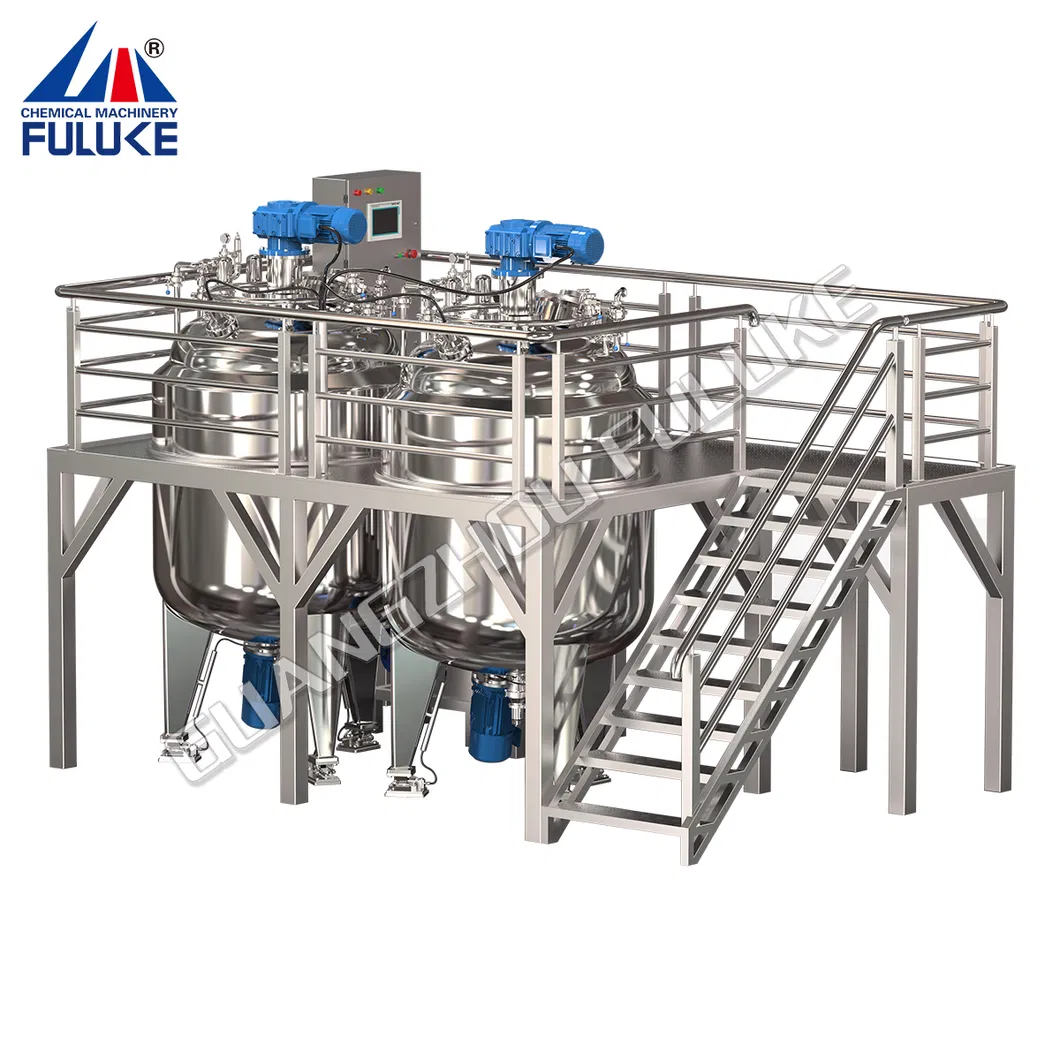

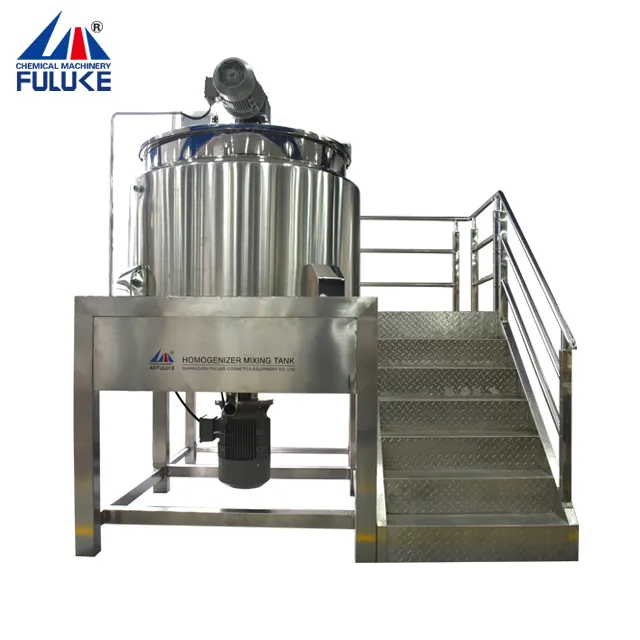

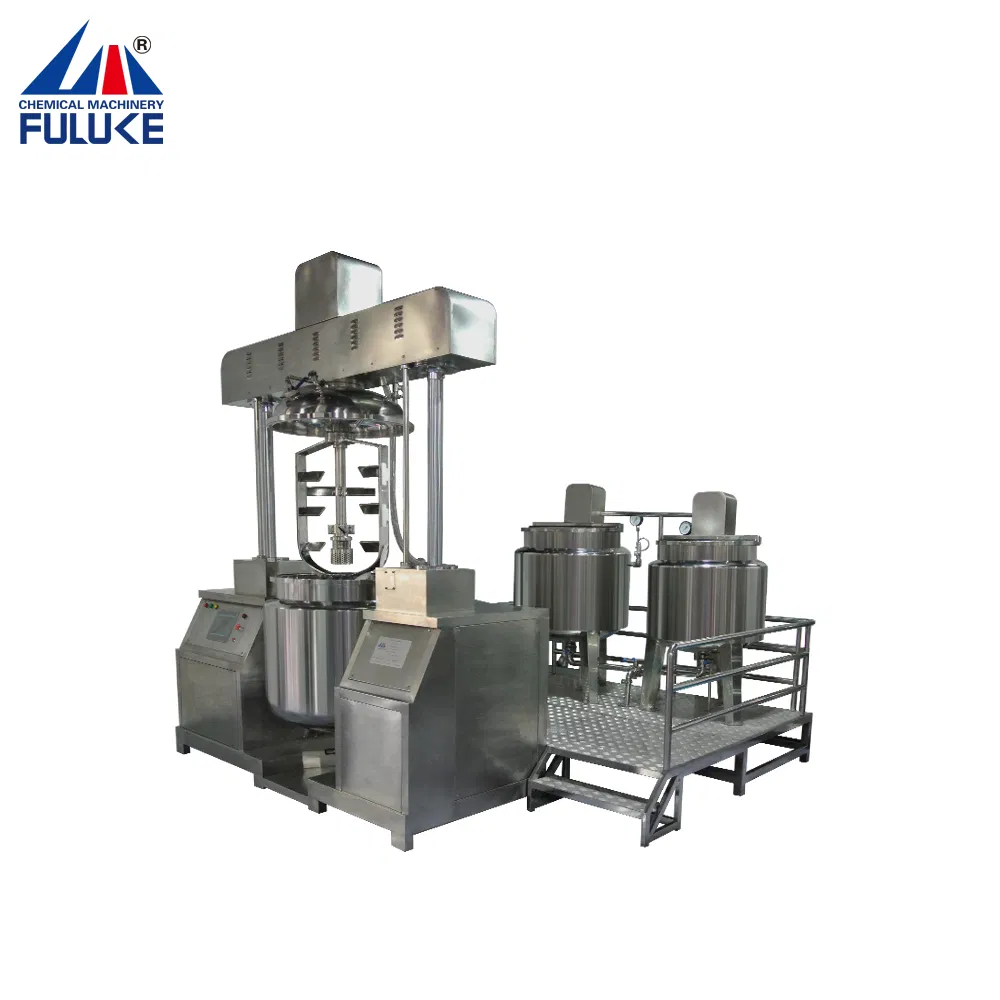

FMB
FME

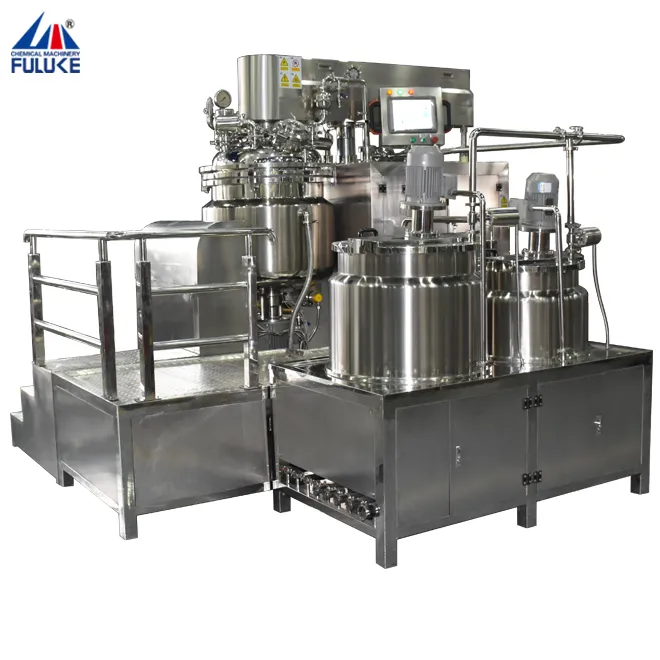

FMH
FMD
FMC

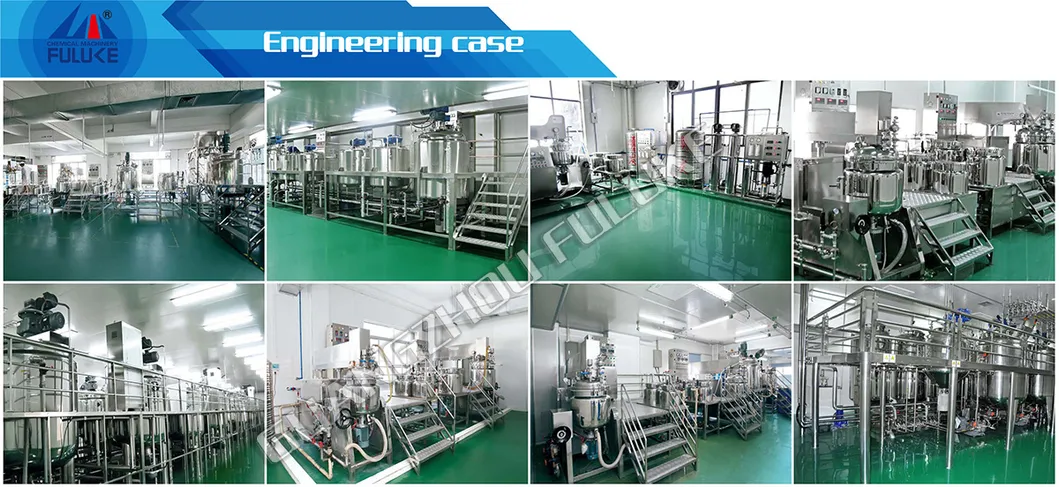

Customer from all over the wold factory
Vacuum Emulsifying Machine Package & Shipping
| Package | stand wooden case |
| Delivery time | 20-40days by sea shipping / air fright |

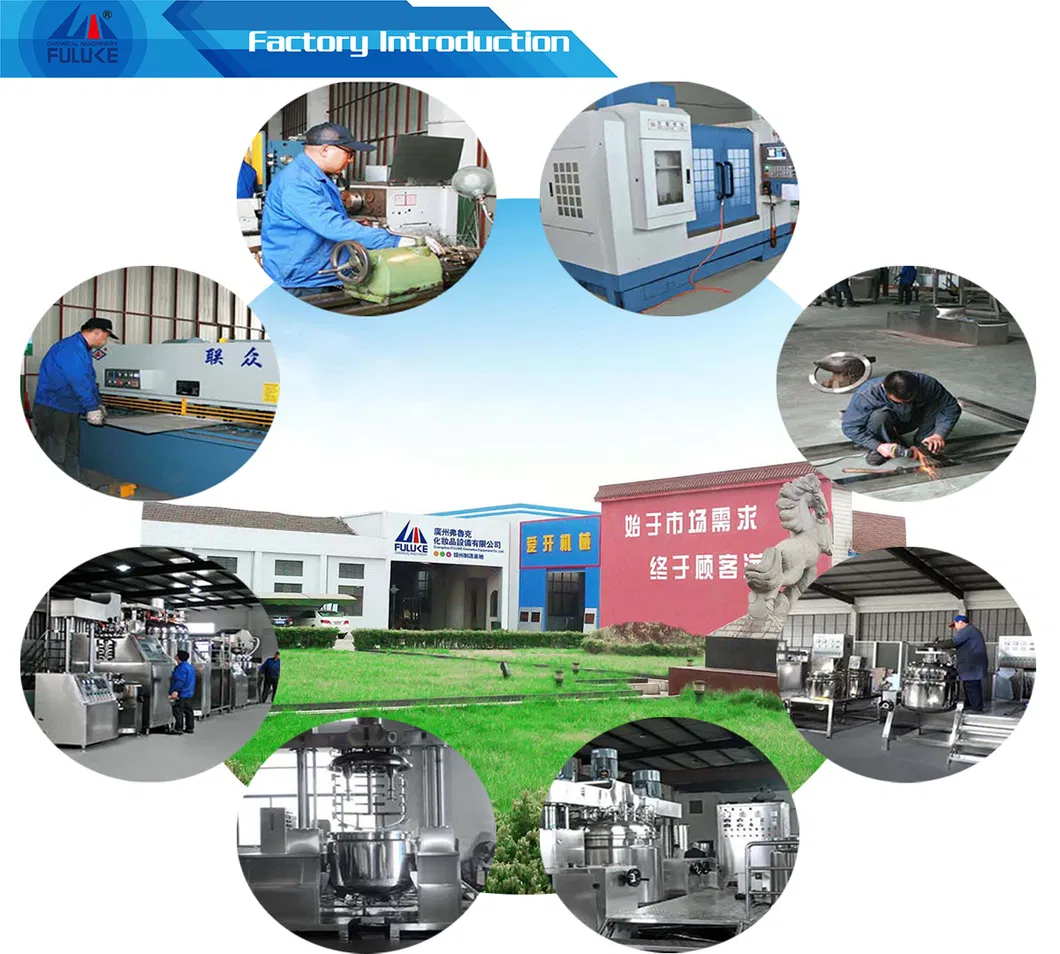

Vacuum Emulsifying Machine Fatory & Company
Guangzhou FULUKE Cosmetics Co., Ltd. Mainly for cosmetic machine for skin ,washing hand equipment to research and development, production, sales and service of integrated company. We are based on Yangzhou AIK Chemical Equipment Co., Ltd. for a total production ,There are excellent chemical equipment manufacturing R & D team and high-end processing equipment .and absorbing the international advanced experience in chemical manufacturing equipment, Continue to strengthen the development and management of the company's internal technology. After 10 years of development, we already own homogenizing core technology and combined with sophisticated production technology and perfect quality management system that create a series of quality and stability of emulsification equipment, and constantly praised by customers and create a good reputation ,according for market demand , we will developed in the next batch with progressive cosmetics machine design team to produce a series of equipment, such as vacuum emulsification equipment, multifunctional reaction mixing tank, filling machines, water treatment equipment for better sales and services in many well-known Cosmetic foreign manufacturers.
Vacuum Emulsifying Machine Contact Way
Wanly welcome you come to our company or factory check the machine
Att: Manman Zhong
