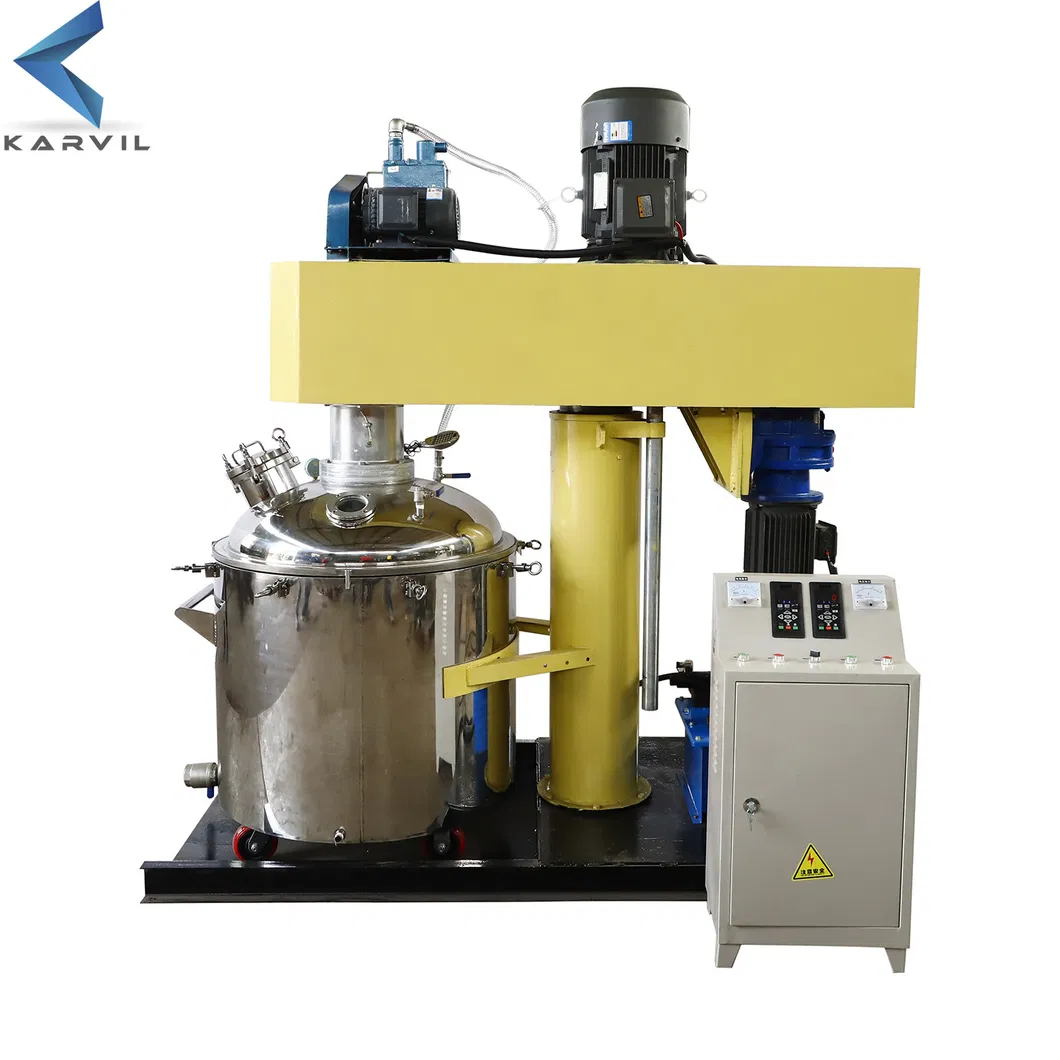

Low Viscosity Liquid Mixer with Explosion-Proof Function

Product Description

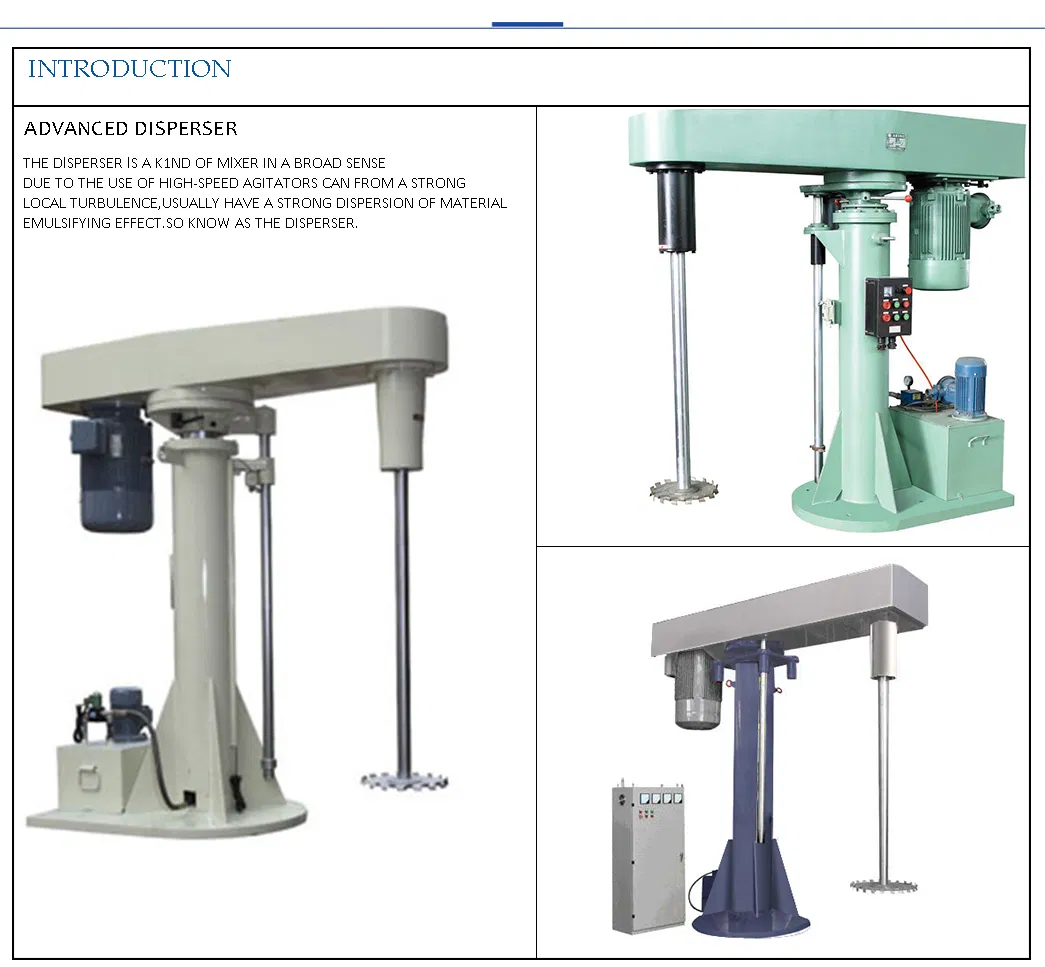

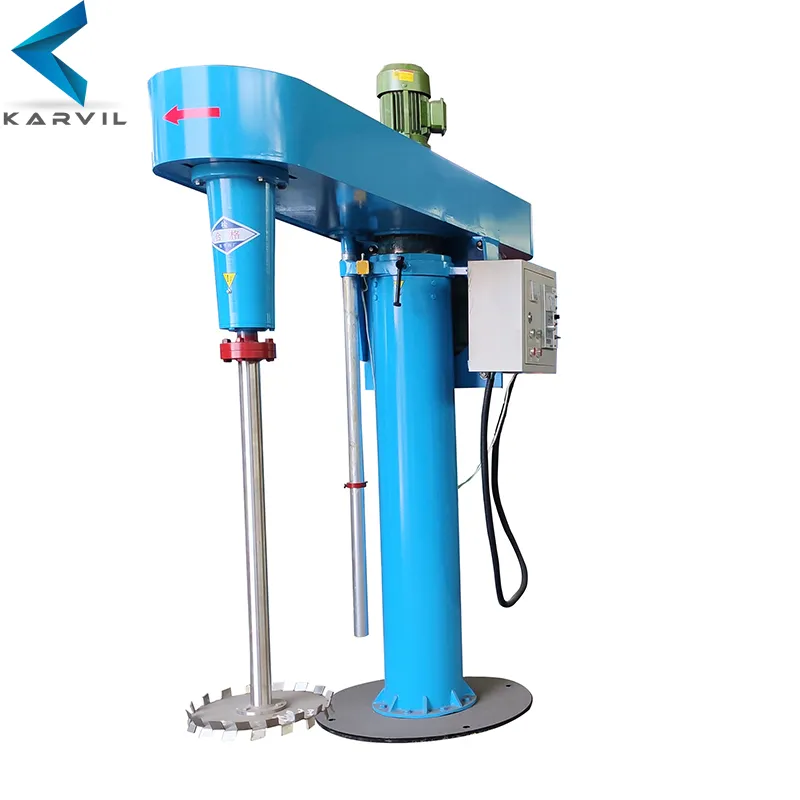

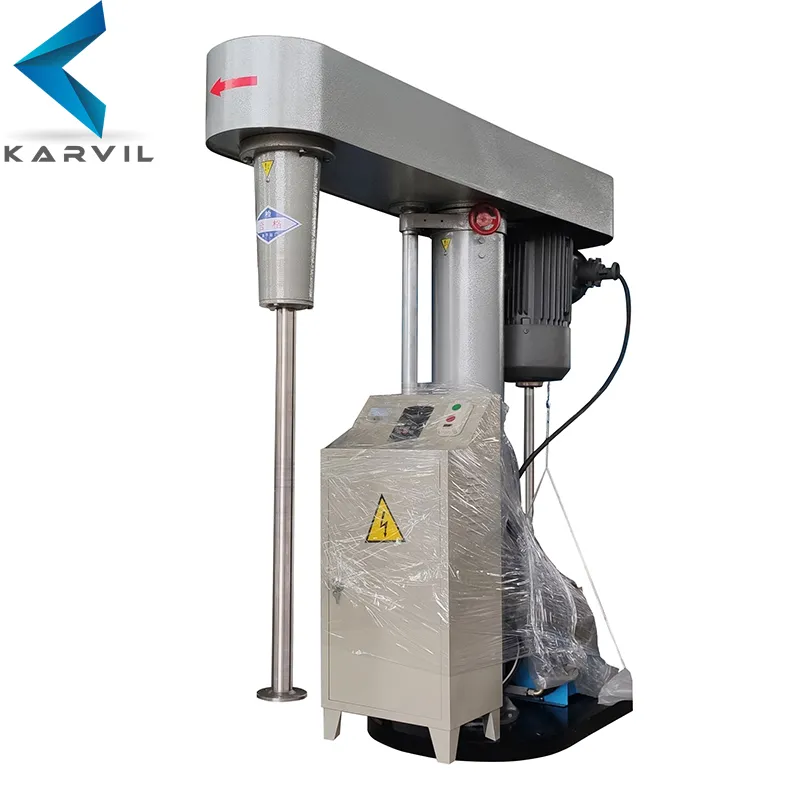

Disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid.

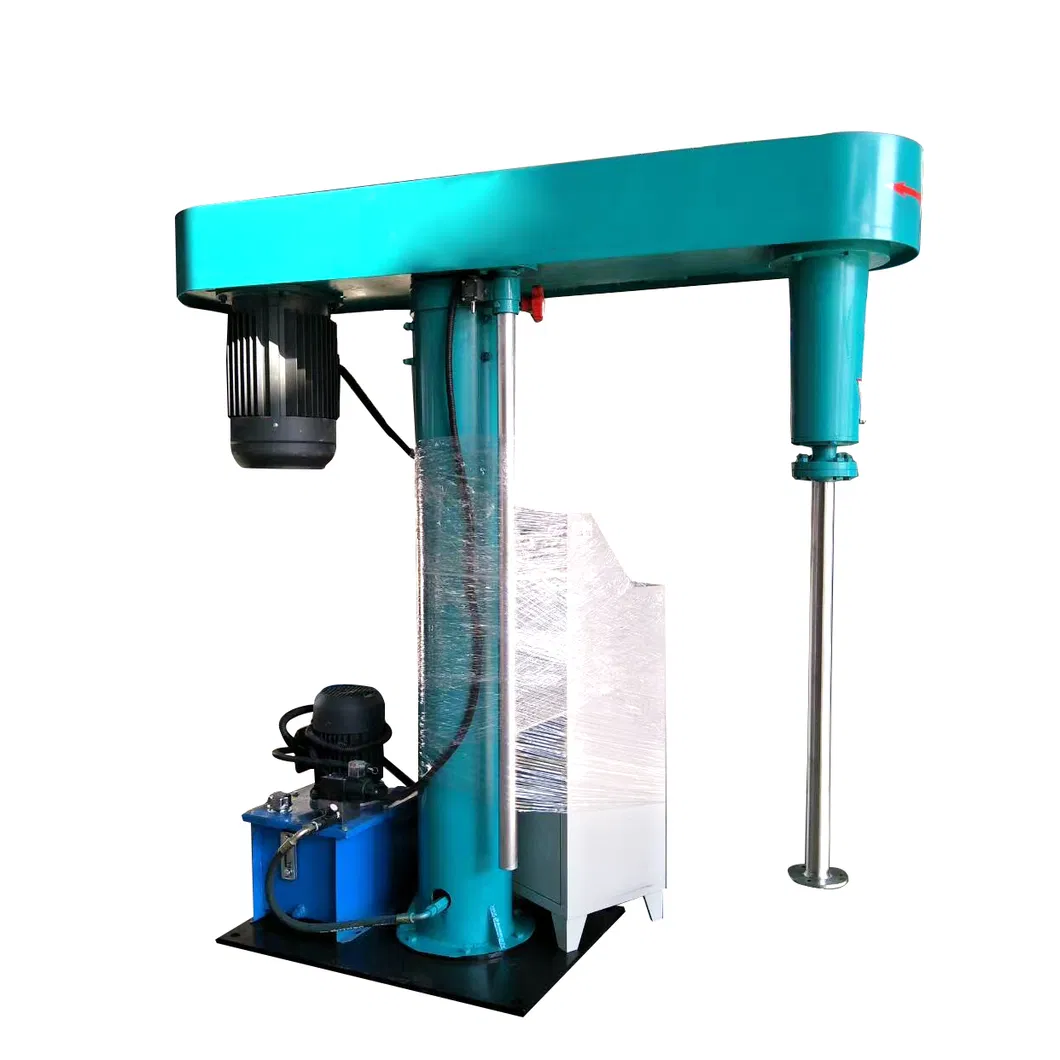

This series of agitators can be easily operated with hydraulic elevation and rotation frame. The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely.

Low Viscosity Liquid Mixer with Explosion-Proof Function

1. Hydraulic lifting.

2. Reliable frequency rotation speed control for various producing materials.

3. 360 degrees can be achieved for convenient producing position.

4. Equipment materials which touch the processed material: SS304/316L.

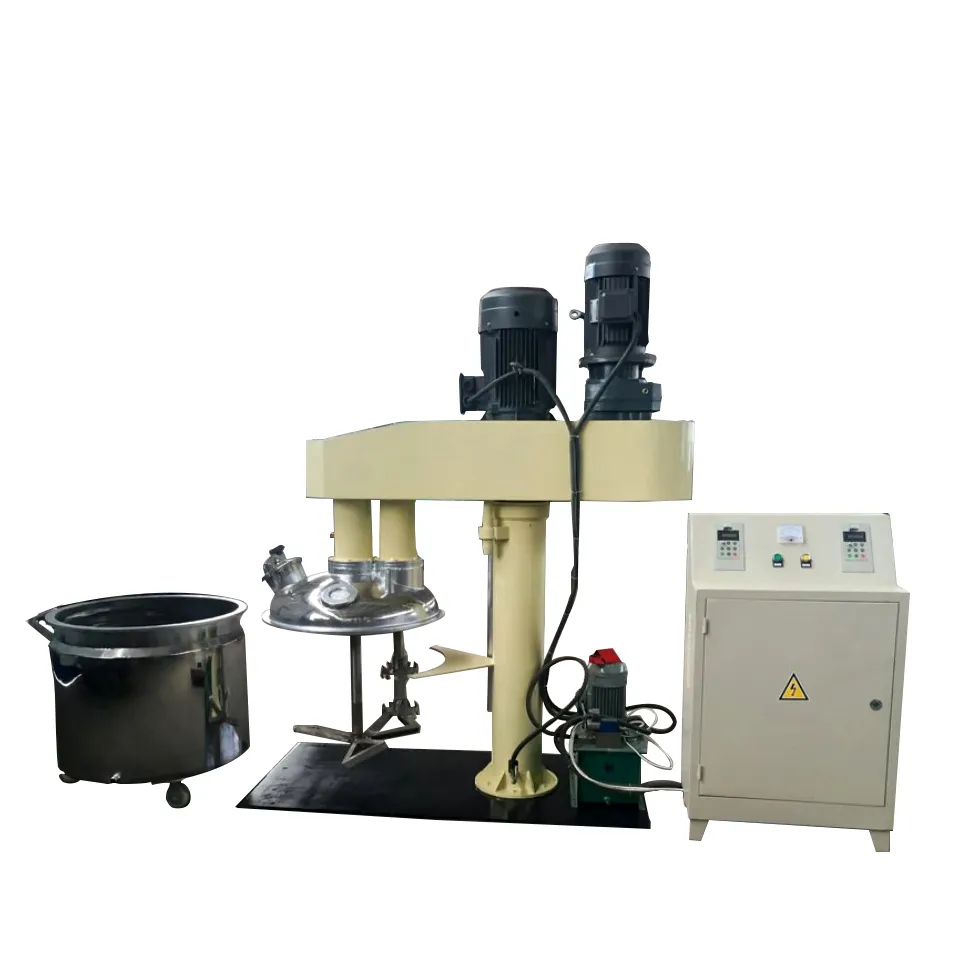

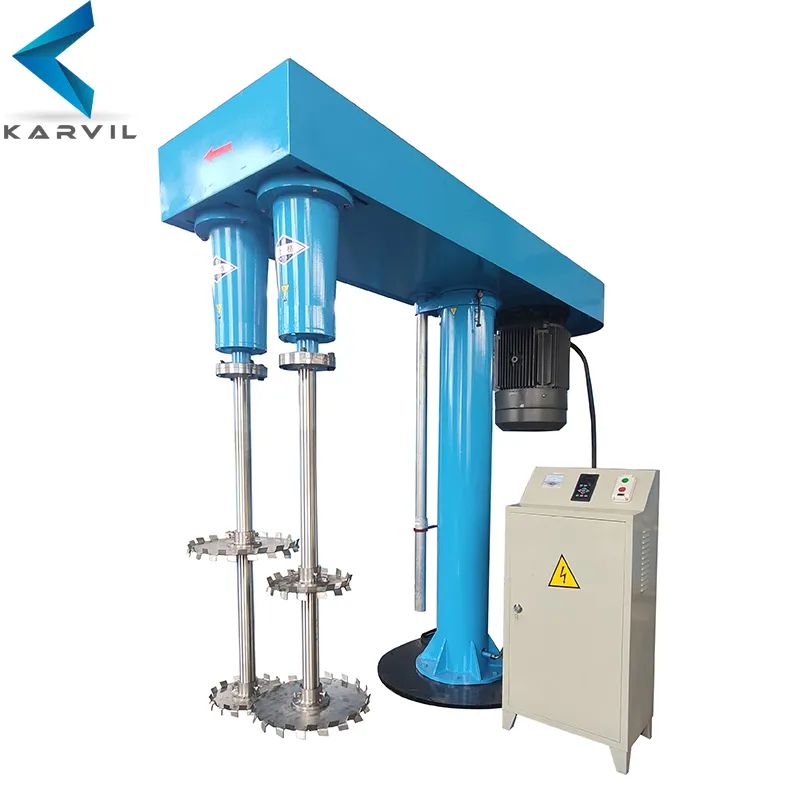

5. Mixer shaft: single shaft/ double shaft/ customized.

6. Mixing tank: single layer/ jacket heating/ jacket cooling/ vacuum system.

7. Ex-proof system can be optional as required.

High speed disperser is widely used in dispersing paste such as color paint, ink, dye, adhesion, ceramic glaze, magnetic materials, and non-metallic materials, etc. Disperser is a good solution for mixing, dispersing and dissolving.

Model	Power (KW)	Capacity (L)	Disc Dia (mm)	Speed (rpm)	Stroke (mm)	Hydraulic Power (KW)
LM2.2	2.2	50-150	150	0-1440	600	0.75
LM4	4	50-200	200	0-1440	600	0.75
LM5.5	5.5	80-250	200	0-1440	800	0.75
LM7.5	7.5	100-300	250	0-1440	800	0.75
LM11	11	100-400	250	0-1440	800	0.75
LM15	15	150-500	300	0-1440	800	0.75
LM18.5	18.5	200-800	300	0-1440	1100	1.1
LM22	22	200-1000	300	0-1440	1100	1.1
LM30	30	300-1500	350	0-1440	1100	1.1
LM37	37	400-2000	400	0-1440	1100	1.5
LM45	45	500-2500	450	0-1440	1100	1.5
LM55	55	600-3000	450	0-1440	1300	2.2
LM75	75	800-4000	550	0-1440	1800	2.2
LM90	90	1200-6000	600	0-1440	1800	2.2
LM110	110	1600-8000	700	0-1440	2100	3
LM132	132	2000-10000	800	0-1440	2300	3

FAQ
1. Manufacturer or trading company?
We are a manufacturer with strict production standards in China.

2. Where is your company?
Our company is located in Yantai, Shandong, a 2-hour drive from Qingdao.

3. About your company's visit?
We can pick you up at Qingdao Airport conveniently, and then we can take you to our factory.

4. What is the main market of your company?
Asia and Africa, Australia, America, Europe.

5. Can you provide customized products?
Yes, we have professional engineers to meet your special design needs, so we can provide customized products.

6. What is your delivery time?
It usually takes about 20 to 30 days, the exact time also depends on the type and quantity of the product.

7. About the product warranty?
Usually, we provide a 1-year warranty for the products that have been sold, but we can also provide life-long service when you need it to maintain a long-term relationship with you.

8. What are the payment terms?
T/T, L/C, etc.
