Low Noise Small Laboratory Planetary Ball Mill for Mixing, Fine Grinding, Small Sample Preparation, Small Batch Production of High-Tech Materials
Low noise small laboratory planetary ball mill for mixing, fine grinding, small sample preparation, small batch production of high-tech materialsDescription of Vertical semicircular laboratory planetary ball mill:The vertical semicircle planetary mill is a device for mixing, fine grinding, sample pr......
Send Inquiry
Product Description
Description of Vertical semicircular laboratory planetary ball mill:
The vertical semicircle planetary mill is a device for mixing, fine grinding, sample preparation, new product development and small batch production of high-tech materials. Our planetary ball mill has small volume, full function, high efficiency and low noise. It is a powder equipment for scientific research institutions, colleges and universities, and enterprise laboratories to obtain research samples (four samples can be obtained at the same time for each experiment). It is equipped with a vacuum ball mill, which can grind test samples in vacuum state
Application of Vertical semicircular laboratory planetary ball mill:
Vertical semi-circular planetary mill is widely used in geological, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments,
It is applicable to electronic ceramics, structural ceramics, magnetic materials, lithium cobate, lithium manganate, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder, electronic glass powder, fuel cell, zinc oxide varistor, piezoelectric ceramics, nano materials, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics Zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder, Ni Zn ferrite, Mn Zn ferrite and other products
Features of Vertical semicircular laboratory planetary ball mill:
Equipment shell adopts semicircle design elements, high-precision die stamping, generous and refined, high-end stable;
CNC machining process is adopted for machining parts, planetary disk is cast as a whole, and special material precision gear is selected for transmission gear to ensure stable and quiet operation of equipment at high speed;
The pressing device of grinding tank is easy to operate, safe and reliable.
Technical specifications of Vertical semicircular laboratory planetary ball mill:
| Transmission mode | gear drive |
| operation mode | Two or four ball mills working at the same time |
| Maximum sample loading | Two thirds of the volume of the ball mill |
| Volume | 0.05l-4l per tank, total volume 0.2l-16l |
| Feeding size | Soil ≤ 10 mm, other ≤ 3 mm |
| Discharge particle size | Up to 0.1 μ m minimum |
| Speed ratio (Revolution: rotation) | See main parameters for details |
| Speed (rotation) | See main parameters for details |
| Speed regulation mode | Brand frequency converter, stepless speed regulation |
Technical parameters(1)
| type | SPEC | Ball mill SPEC | quantity | Matching vacuum ball mill tank | Standard ball milling tank locking device |
| PBM-0.2A | 0.2 | 10-50ml | 4 | 10ml | Manual |
| PBM-0.4A | 0.4 | 50-100ml | 4 | 50ml | Manual |
| PBM-1A | 1 | 50-250ml | 4 | 50ml-100ml | Manual |
| PBM-2A | 2 | 50-500ml | 4 | 50-250ml | Manual |
| PBM-4A | 4 | 250-1000ml | 4 | 50-1000ml | Manual |
| PBM-8A | 8 | 1-2L | 4 | 50-2000ml | Manual |
| PBM-10A | 10 | 1-2.5L | 4 | 1-2L | Manual |
| PBM-12A | 12 | 1-3L | 4 | 1-2L | Manual |
| PBM-16A | 16 | 1-4L | 4 | 1-2L | Manual |
Technical parameters(2)
| type | Voltage (single phase) | motor power(KW) | Run setting total time(min) | Alternate running time(min) | Adjustable speed Revolution (rpm) rotation(rpm) | |
| PBM-0.2A | 220V-50HZ | 0.09 | 1-9999 | 1-999 | 60-580 120-1160 | |
| PBM-0.4A | 220V-50HZ | 0.25 | 1-9999 | 1-999 | 47-465 94-930 | |
| PBM-1A | 220V-50HZ | 0.75 | 1-9999 | 1-999 | 35-370 70-740 | |
| PBM-2A | 220V-50HZ | 0.75 | 1-9999 | 1-999 | 35-370 70-740 | |
| PBM-4A | 220V-50HZ | 0.75 | 1-9999 | 1-999 | 35-370 70-740 | |
| PBM-8A | 220V-50HZ | 1.5 | 1-9999 | 1-999 | 35-320 70-640 | |
| PBM-10A | 220V-50HZ | 1.5 | 1-9999 | 1-999 | 35-320 70-640 | |
| PBM-12A | 220V-50HZ | 2.2 | 1-9999 | 1-999 | 35-320 70-640 | |
| PBM-16A | three phase 380V-50HZ | 3 | 1-9999 | 1-999 | 35-255 70-510 |
Technical parameter(3)
| type | Basic panel (intelligent, touch screen optional) | Lubrication method | Speed mode | Weight(kg) | Size Length X width X height(mm) | Noise≤db |
| PBM-0.2A | ordinary | grease | frequency control | 18 | 430X250X270 | 50±5 |
| PBM-0.4A | ordinary | grease | frequency control | 26 | 520X300X420 | 55±5 |
| PBM-1A | ordinary | grease | frequency control | 74 | 740X470X600 | 65±5 |
| PBM-2A | ordinary | grease | frequency control | 74 | 740X470X600 | 65±5 |
| PBM-4A | ordinary | grease | frequency control | 80 | 740X470X600 | 65±5 |
| PBM-8A | ordinary | grease | frequency control | 132 | 870X560X680 | 65±5 |
| PBM-10A | ordinary | grease | frequency control | 138 | 870X560X680 | 65±5 |
| PBM-12A | ordinary | grease | frequency control | 140 | 870X560X680 | 65±5 |
| PBM-16A | ordinary | grease | frequency control | 200 | 940X600X710 | 65±5 |

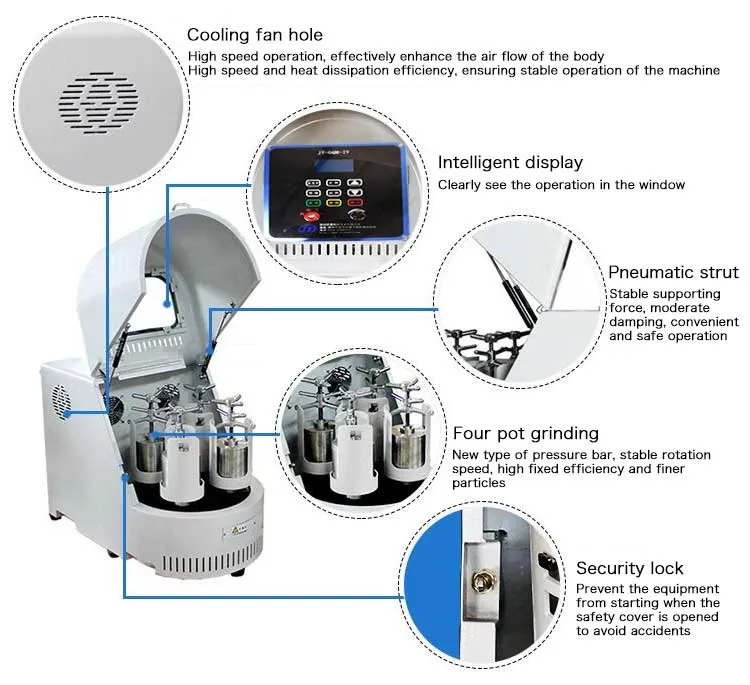

Detail pictures of Vertical semicircular laboratory planetary ball mill:
Cooling fan hole
High speed operation, effectively enhance the air flow of the body
High speed and heat dissipation efficiency, ensuring stable operation of the machine

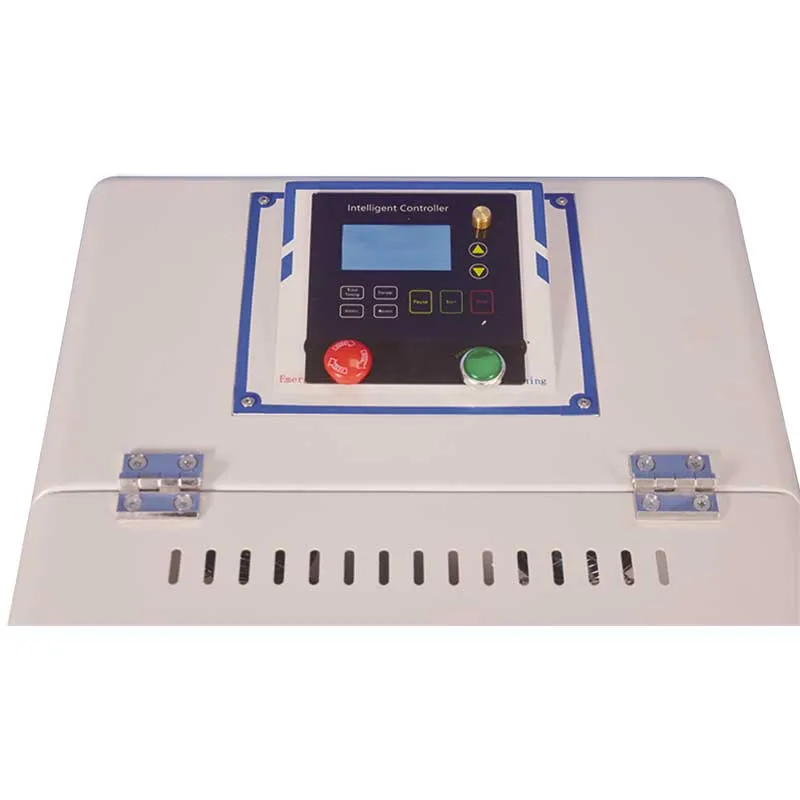

Intelligent display
Clearly see the operation in the window
Pneumatic strut
Stable supporting force, moderate damping, convenient and safe operation

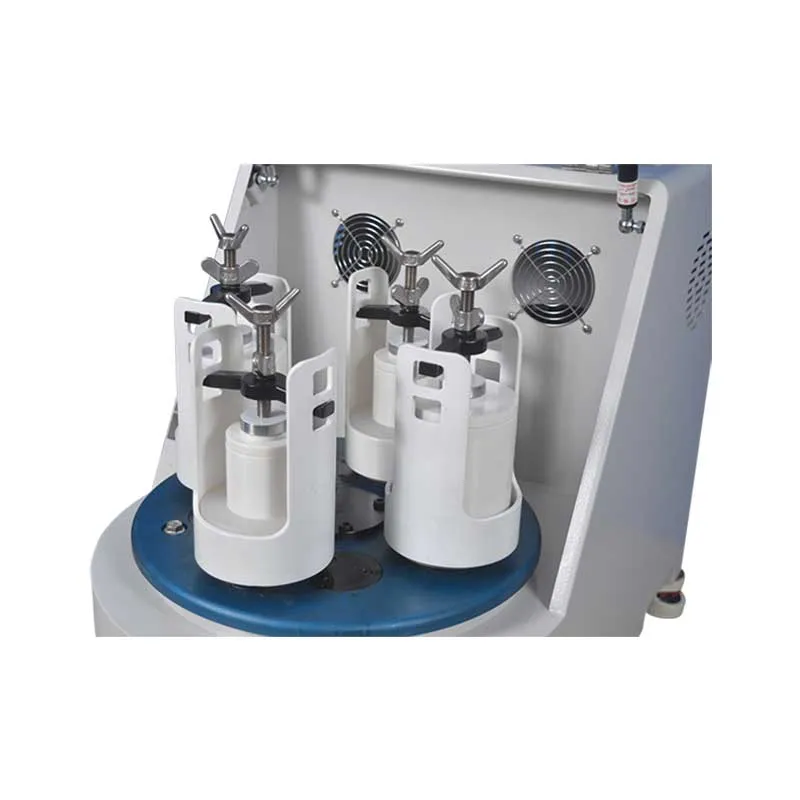

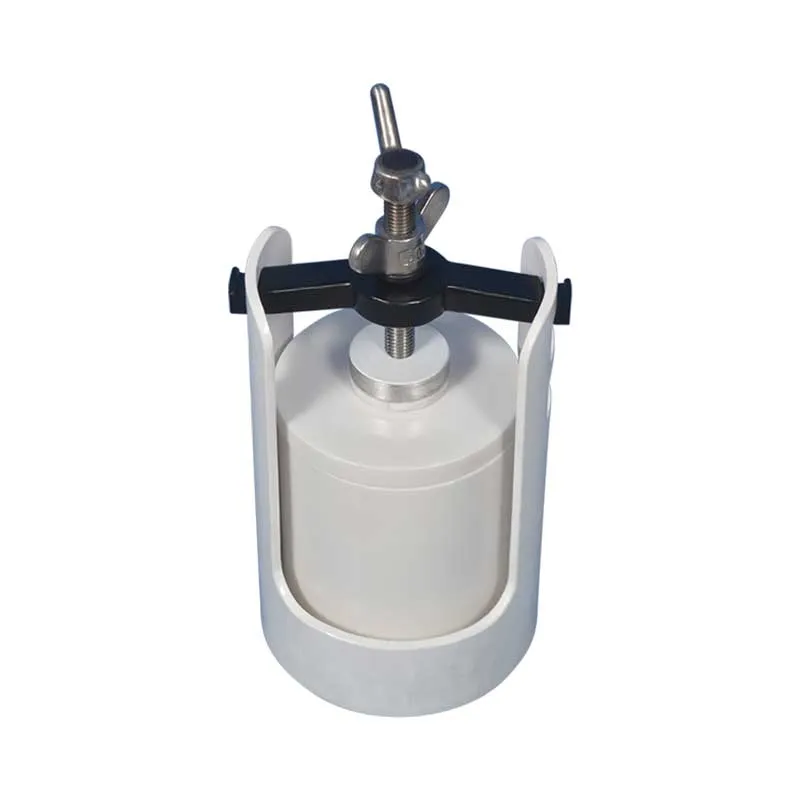

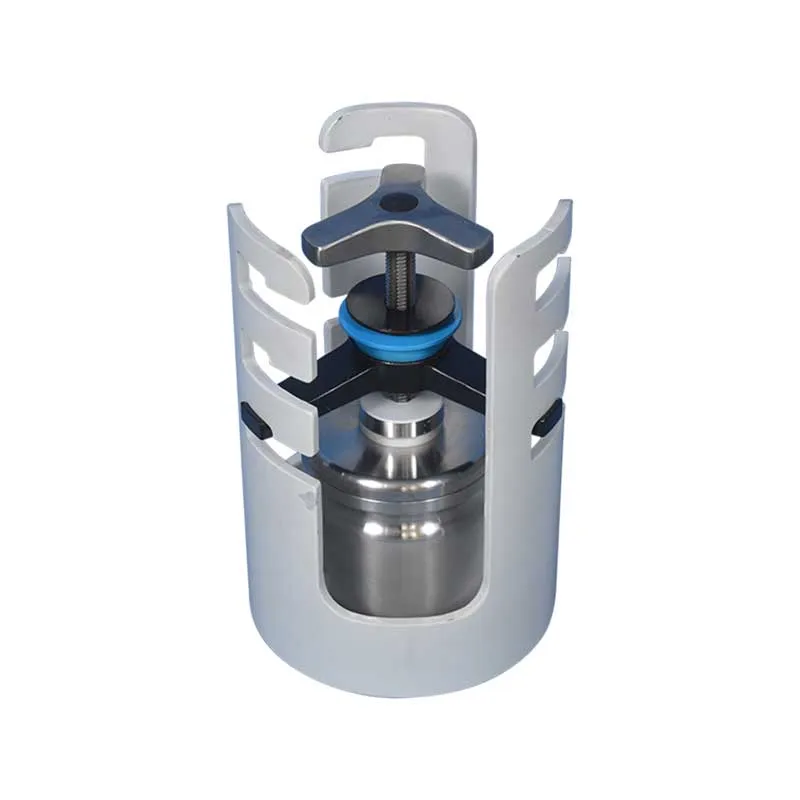

Four pot grinding
New type of pressure bar, stable rotation speed, high fixed efficiency and finer particles
Security lock
Prevent the equipment from starting when the safety cover is opened to avoid accidents

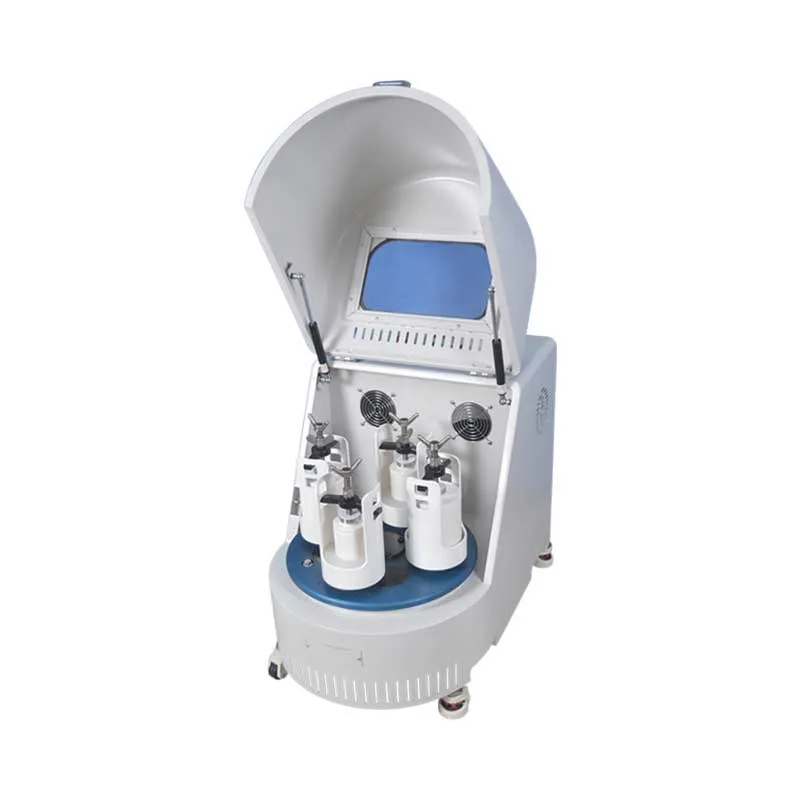

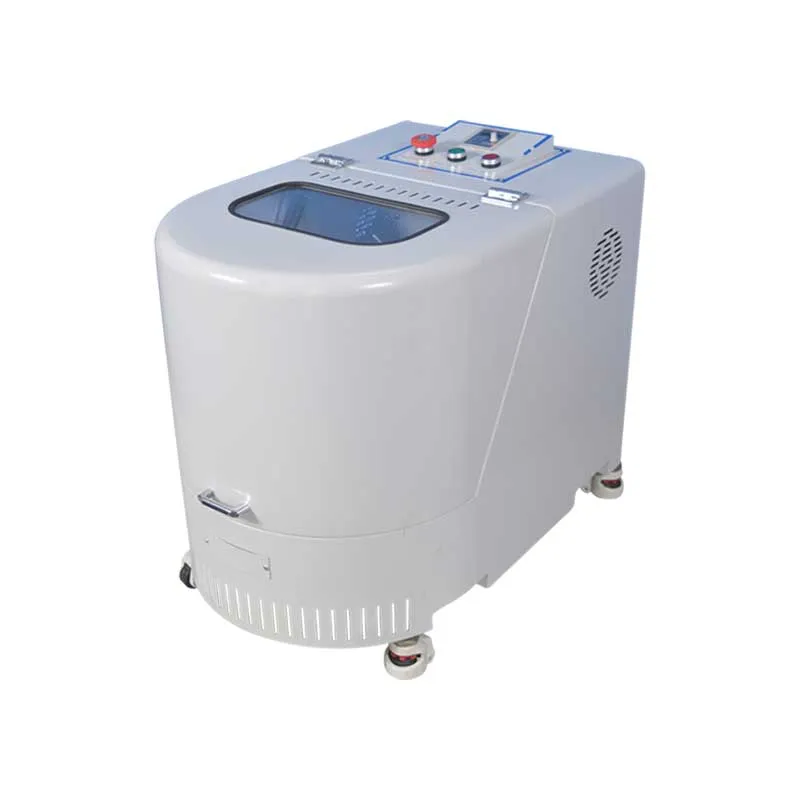

Reference pictures of Vertical semicircular laboratory planetary ball mill:
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service
