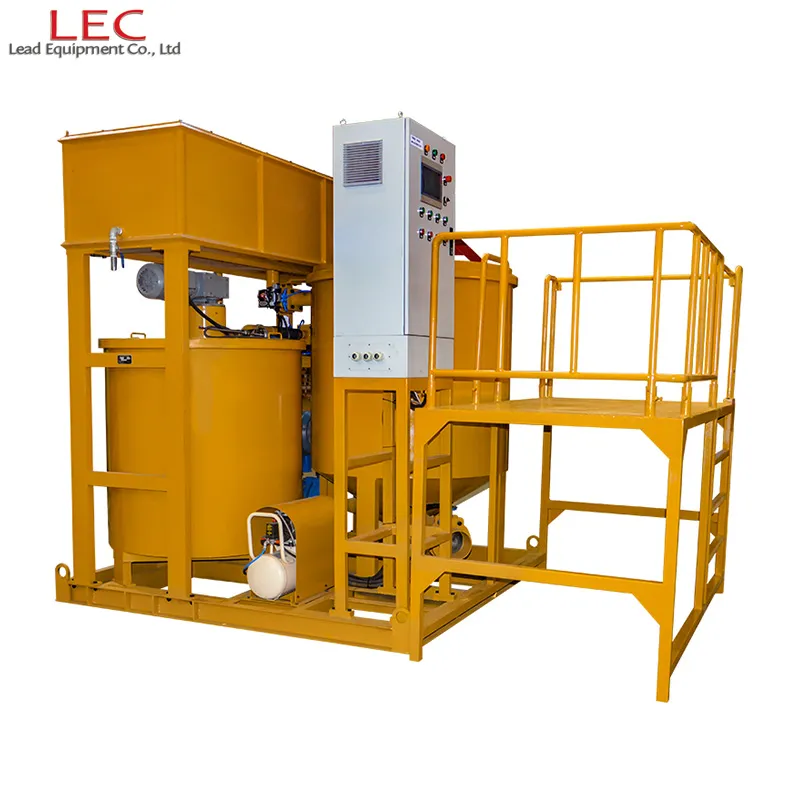

LMA1500-1200E Big capacity cement grout mixer for Singapore
Product description:

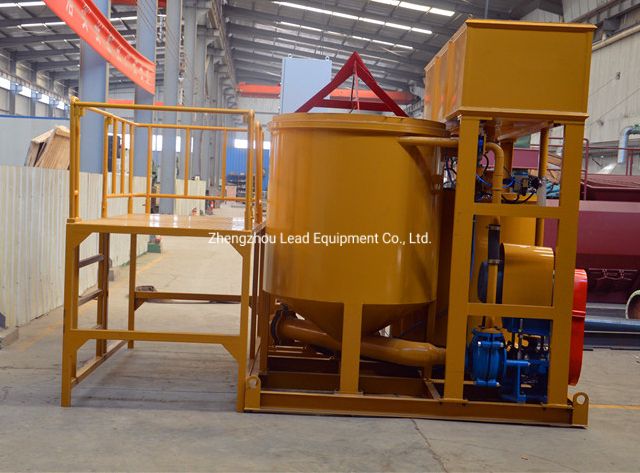

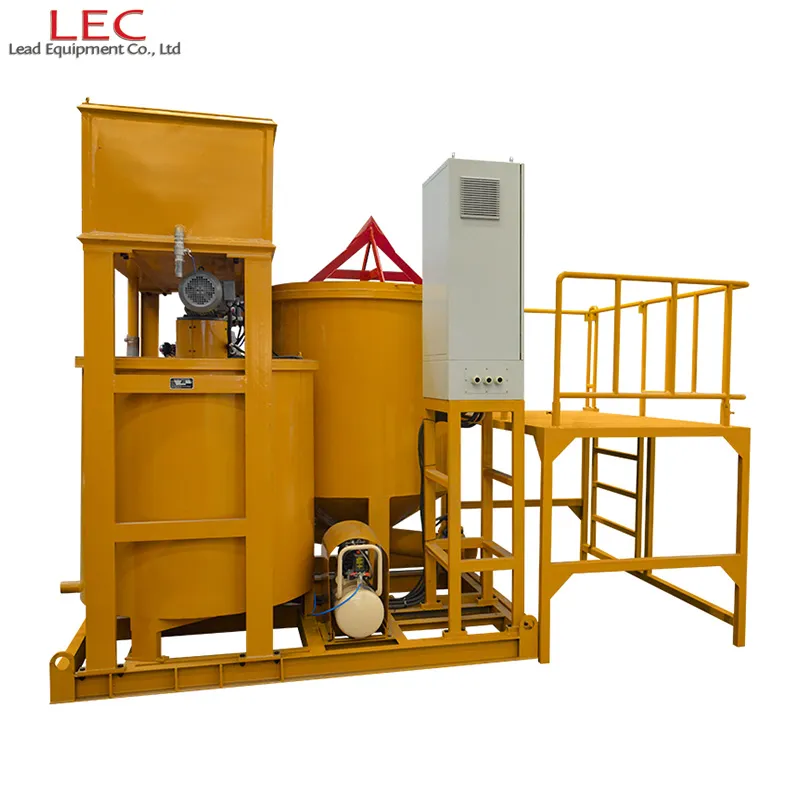

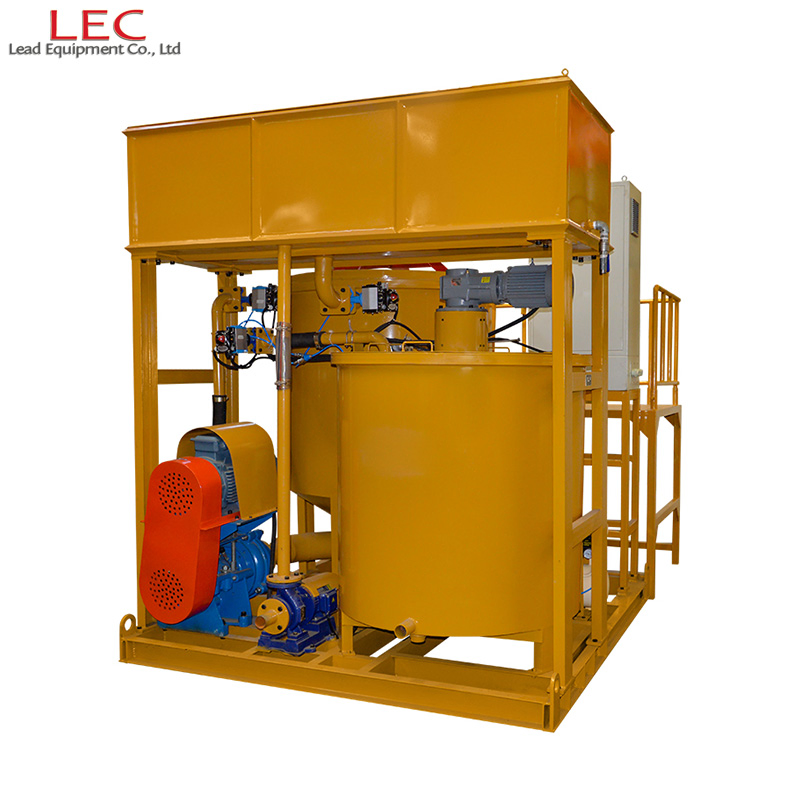

LMA1500-1200E Turbo Mixer/Agitator is a combination consist of a steel sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame. This product is equipped with an automatic control system that can automatically control the operation of the equipment. The slurry is mixed through a high speed vortex produced by a special pump which, after sucking the material from the bottom of the mixer tank, sends it back tangentially into the same tank in order to get highest possible efficiency. By this process it is possible to obtain homogeneous colloidal and high quality mixtures within a very short period of time.
After mixing, this mixtures are pumped into the agitator tank with slow speed mixing paddles by the above same pump.
When all the mixture in the mixing tank is pumped out, press the discharge completion button to start the next cycle of pulping.
Technical Parameter:
Main Features:
Packaging&Transportation:
Company Information:
Product description:

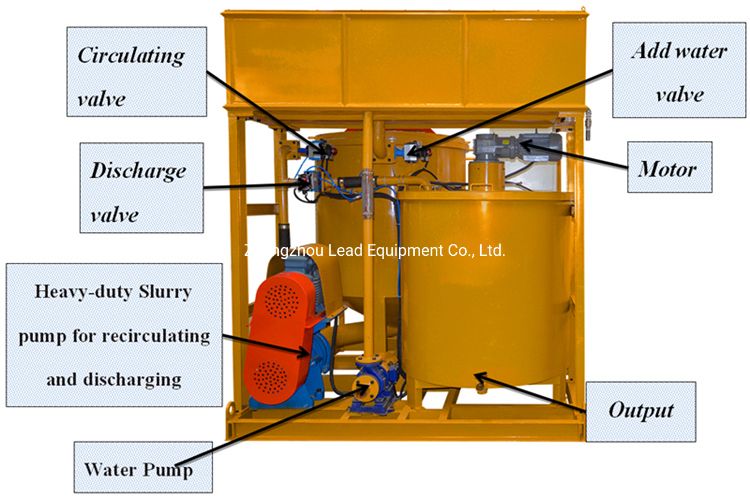

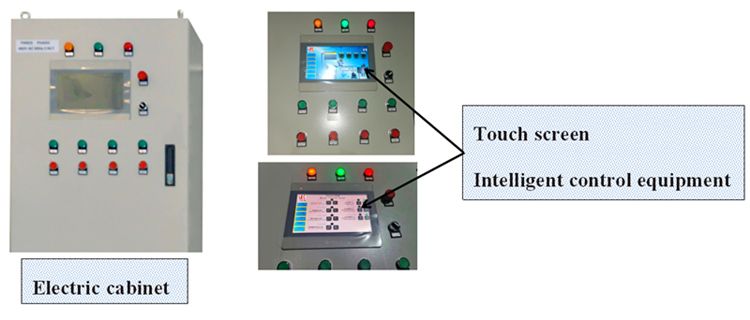

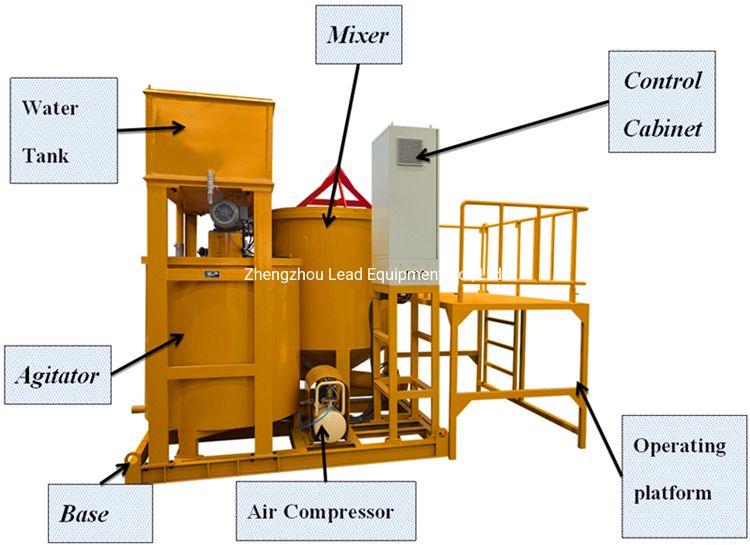

LMA1500-1200E Turbo Mixer/Agitator is a combination consist of a steel sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame. This product is equipped with an automatic control system that can automatically control the operation of the equipment. The slurry is mixed through a high speed vortex produced by a special pump which, after sucking the material from the bottom of the mixer tank, sends it back tangentially into the same tank in order to get highest possible efficiency. By this process it is possible to obtain homogeneous colloidal and high quality mixtures within a very short period of time.
After mixing, this mixtures are pumped into the agitator tank with slow speed mixing paddles by the above same pump.
When all the mixture in the mixing tank is pumped out, press the discharge completion button to start the next cycle of pulping.
Technical Parameter:
| Model | LMA1500-1200E | |
| Output | 15~18m3/h | |
| Mixer Volume | 1500L | |
| Agitator Volume | 1200L | |
| Motor Power | 15+3 Kw | |
| Mixer/Agitator | Dimension | 2230×2340×2630mm |
| Weight | 2230kg | |
| Operating platform | Dimension | 2210×1200×2010mm |
| Weight | 220kg | |
| We reserve the right to change technical specifications without prior notice. | ||
Main Features:
1.Automatic control, simple operation, saving labor,great reliability ;
2.High speed mixing and high efficiency to achieve continuous mixing;
3.Simple structure, easy assemble;
4.Less spare parts, low maintenance;

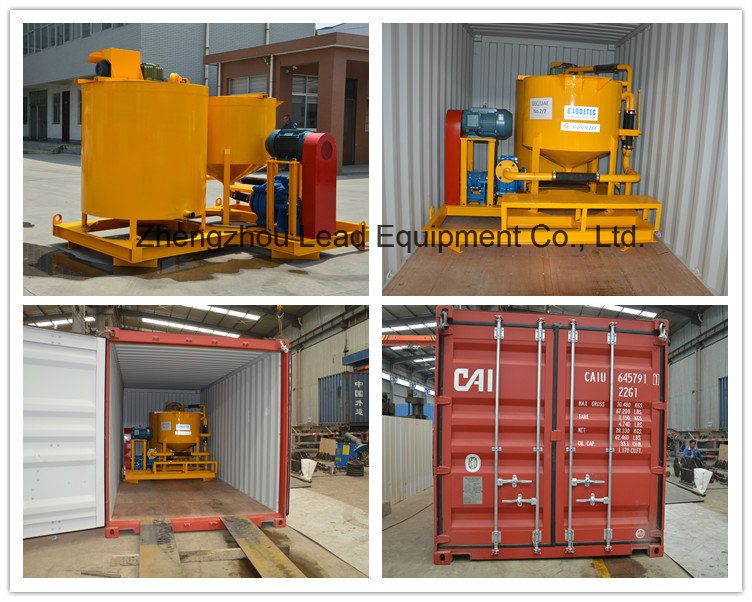

Packaging&Transportation:
