Product Description

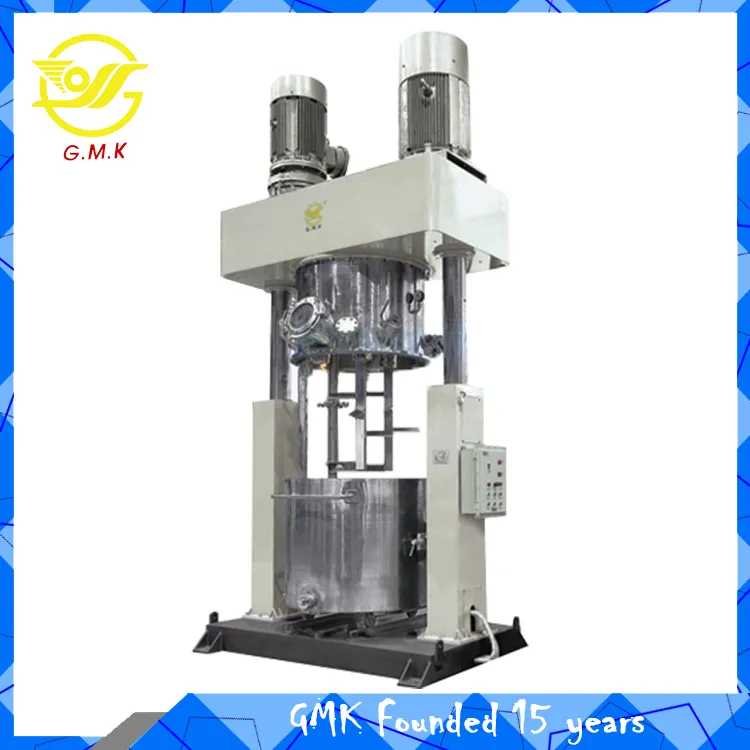

Liquid Silicone Rubber Vacuum Power Mixer

Silicone sealant dispersing power mixer
Summary

DLH series power mixer is a kind of new no-dead-point power mixing and dispersion equipment. It combines functions of planet mixer and power dispersion, adopts unique stirring mechanism, with charging barrel fixed and unmoved, with dispersion plate and stirring paddle realizing planet movement of revolution and rotating, with frequency conversion speed regulation. It makes the materials to move complicatedly, with strong shearing and kneading, for full dispersion and mixing of materials without mixing dead point. An automatic wall scraper mechanism is designed in the kettle, which continuously scrapes the materials adhering to the wall. The equipment is uniquely sealed, can be pressurized or vacuumed. It is extensively used in solid-solid, solid-fluid and fluid-fluid mixing, reaction, dispersion, dissolving, homogenizing and emulsification, etc., in chemical, light industry, medicine, food, building materials, farm chemical industries, etc. It is ideal equipment for production of ink, pigment, adhesive sealant, paste, paste-type material, lubricant, paint, paste cosmetics,
emulsion, cream food and additive, etc.

Specifications

1	Vacuum Degree	-0.098MPa
2	Structure	Gantry Type(DLHL)
3	Rotation Speed r/min	Revolution:0~42r/min,Rotation:0~66r/min( Frequency-converting); High speed:0~980r/min( Frequency-converting).
4	Slow Shaft	Two set ribbons, two set bottom scraper and one set wall scraper.
5	Fast shaft	Single fast shaft with two Φ250 dispersion disk structure, no hole in the middle of dispersion disk ( or with two above butterfly stirrers )
6	Lifting mode of vessel cover	Hydraulic
7	Lifting height of vessel cover	1200mm
8	Mode of Temperature Measurement	Temperature detector fixed on scraper, rotation electric conduction device inside, temperature detector contacting material, it is exact for measurement, the patent no. of this device is Z200520112283.5.
9	Location of vessel	Adopt guiding device for pushing and location way of arc plate, lugs structure on the vessel, ensure the middle location.
10	Lock of vessel	Mechanical manual lock
11	Total Power(KW)	164kw
12	Power Supply	AC:3*380V,50HZ
13	Dimension	L2720 W1750 H4480(the higest)
14	Weight(kg)	Abt 8500kgs
