Lab Horizontal Grinding Milling Machine Sand/Bead Mill for Pigment/ Ink/Paint/Pesticides
Horizontal bead mill/sand mill Product Parameters ModelSW-5SW-15SW-20SW-30SW-50SW-100Dimension (mm)L60015301690169019002000W500800800850900900H48013001300130014001600Ex-proof Motor (kW)31518.5223055Speed (rpm)12001055870870800680Qty of dispersion plate (pcs)456899Viscosity (Pa.s)≤10Weight (Kg......
Send Inquiry
Product Description

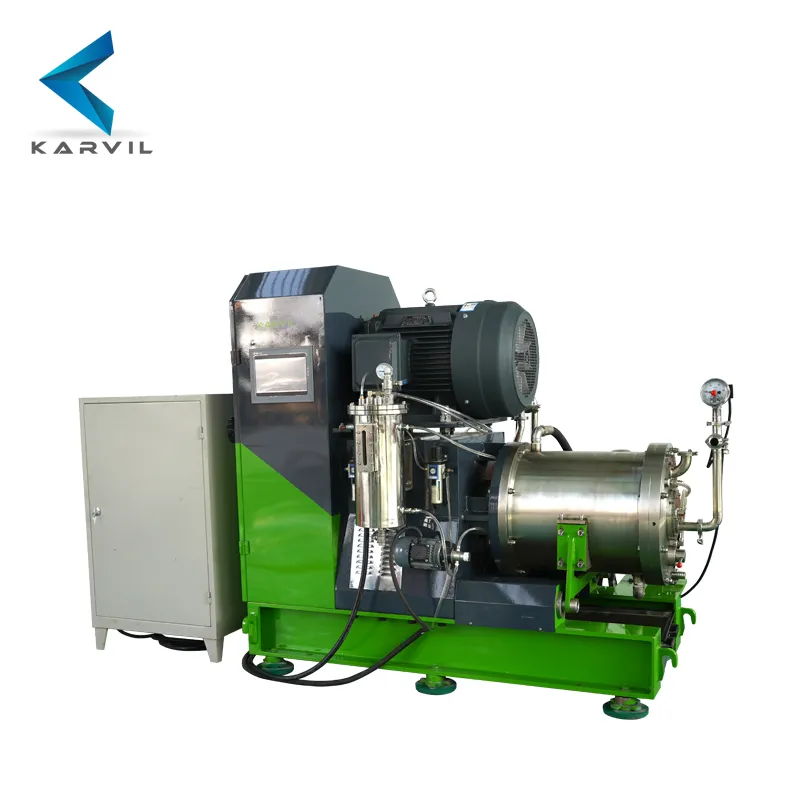

Horizontal bead mill/sand mill
| Model | SW-5 | SW-15 | SW-20 | SW-30 | SW-50 | SW-100 | |
| Dimension (mm) | L | 600 | 1530 | 1690 | 1690 | 1900 | 2000 |
| W | 500 | 800 | 800 | 850 | 900 | 900 | |
| H | 480 | 1300 | 1300 | 1300 | 1400 | 1600 | |
| Ex-proof Motor (kW) | 3 | 15 | 18.5 | 22 | 30 | 55 | |
| Speed (rpm) | 1200 | 1055 | 870 | 870 | 800 | 680 | |
| Qty of dispersion plate (pcs) | 4 | 5 | 6 | 8 | 9 | 9 | |
| Viscosity (Pa.s) | ≤10 | ||||||
| Weight (Kg) | 260 | 600 | 700 | 800 | 960 | 2300 | |
| Drum Material | Stainless steel with wear-resistant treatment | ||||||
| Dispersion plate material | Dearing steels, GCr15 | ||||||
| Seal | Double end-face mechanical seal | ||||||
| Grinding Fineness | Reach below 10 microns after four times grinding | ||||||
| Capacity (Kg/8h) | 300 | 1000-1500 | 2000 | 2000-2500 | 2500-3000 | 5000-6000 | |

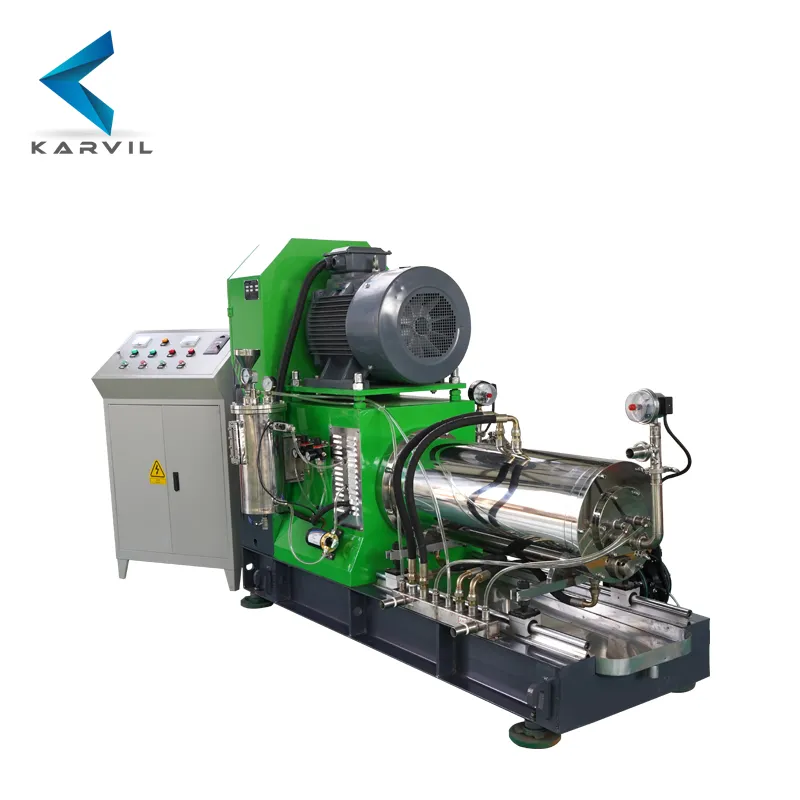

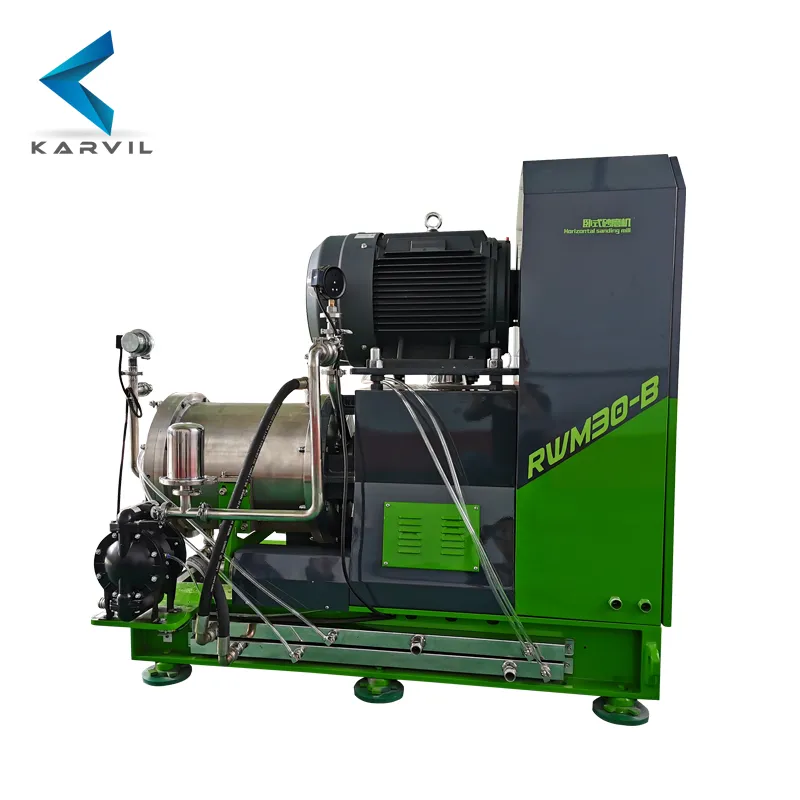

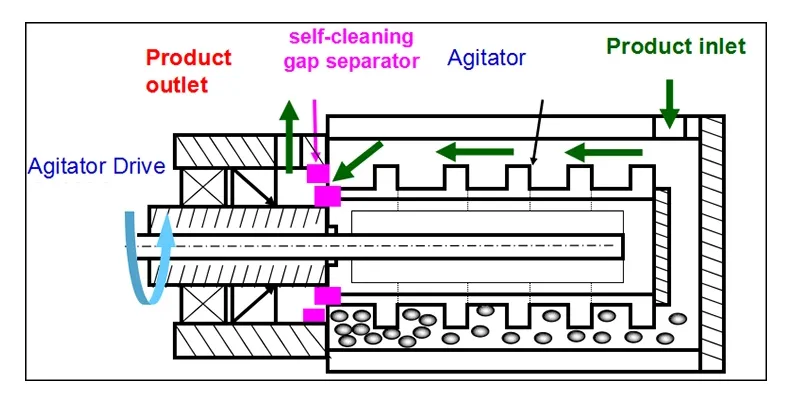

The horizontal disc type bead mill is an improved, continuous working laboratory and production machine for a wide variety of grinding applications, with low-cost and high grinding performance.

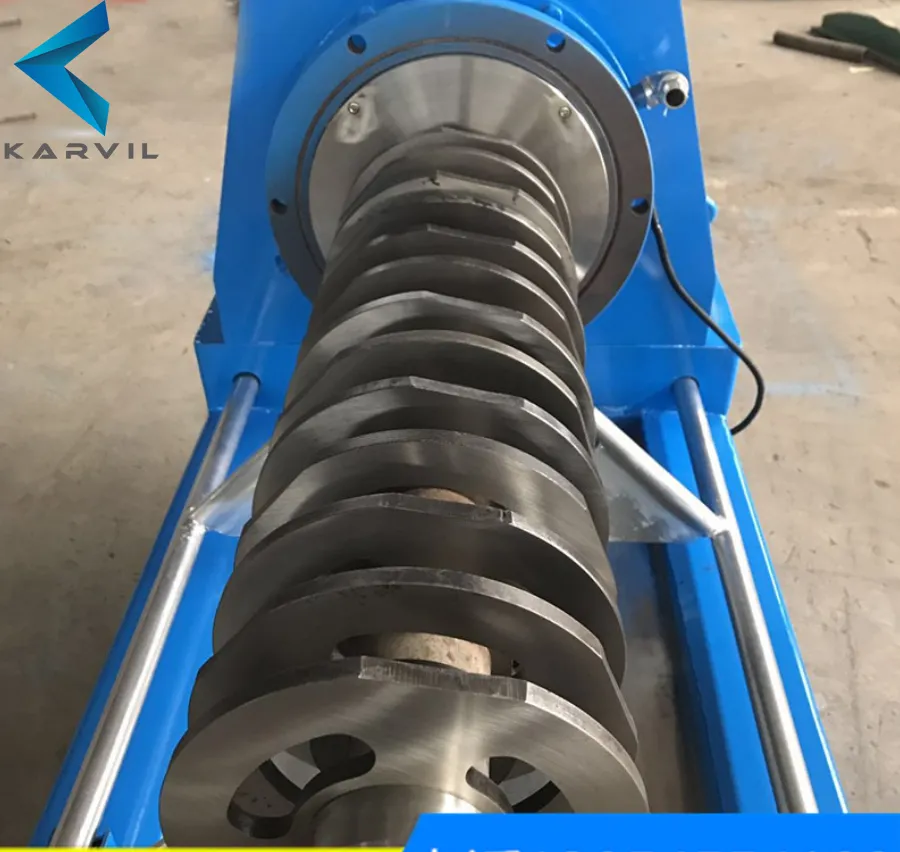

1. Patent grinding disc structure has a bigger action area for the grinding media. Bigger shearing force and higher efficiency.
2. Continuous mass production, according to fineness requirements to adjust the speed of incoming and outgoing material.
3. Double cooling systems for the chamber and end cap. The dissolvent which is compatible with grinding material can be added as a cooling agent to reduce the production loss from leakage.
4. Feeding device: imported pneumatic diaphragm pump or frequency control gear pump is optional as clients' requirements. Feeding and discharging tubes are imported with good solvent-resistant properties.
5. High-security property. The bead mill will automatically stop working when there is a water shortage, air pressure shortage, or over-high material temperature.
6. Reasonable design for inner and outer structures allows stable performance with no vibration and noise.
7. Grinding chamber and rotor are made of high wear-resistant alloy steel which has no metallic pollution and discoloring. PU and ceramic material are optional according to the actual condition.
8. Frequency control and PLC are optional.
9. Dynamic or static separating system for different materials to ensure smooth discharging.
Horizontal bead mills are widely used in paints, coatings, dyes, inks, magnetic material, food, medicine, pesticide, ceramic, paste, adhesive, etc.
Karvil machinery --- a chemical equipment factory from Shandong, China.
More than 10 years of equipment research and development experience.

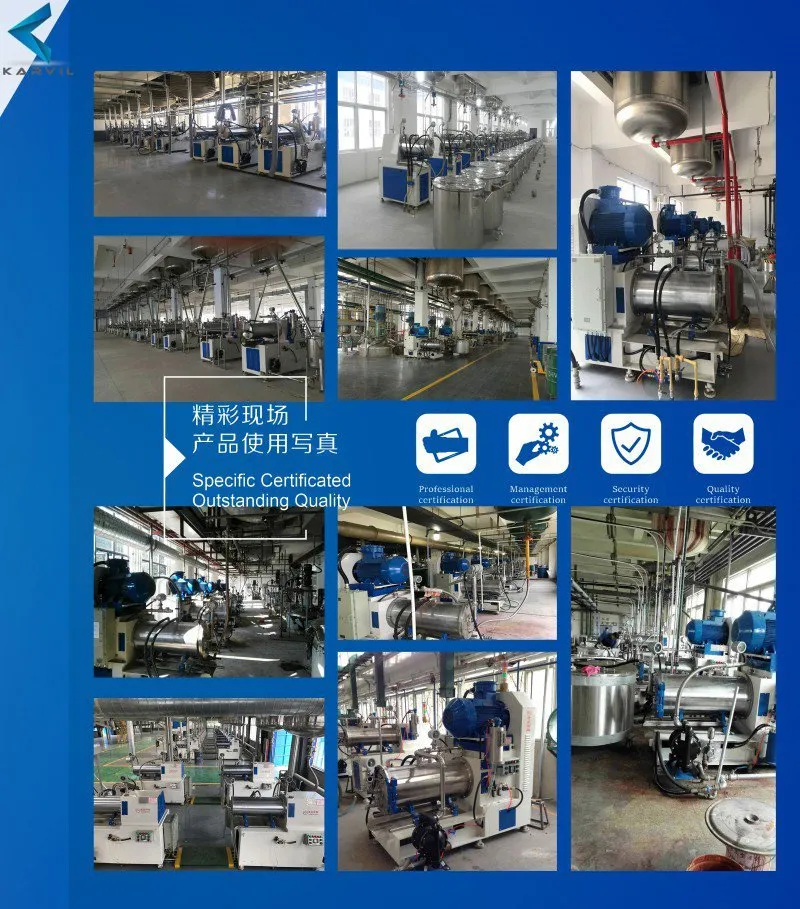

Serving the world from Asia to Europe, Africa, South America, and many other new and old customers.
Including the paint mixer, powder mixer, grinding equipment, glue machine, production line, etc.
Flexible delivery time, the fastest delivery in 10 days.
One-year warranty and lifetime service.
1. Guarantee.
Our product warranty period is one year. If the machine has broken within one year, you can send us videos and photos, and our engineers can help you analyze the problem. If you need to replace the parts, we will provide them for free within one year, and the parts will be charged after one year. The engineer's consulting service is free for life.
2. Installation.
The equipment is generally delivered as a complete machine, which is easy to operate. We can provide video guidance during the epidemic. Let you have no worries.
3. Delivery time.
Usually, it takes 20 to 30 days; the exact time also depends on the type and quantity of the product.
4. Delivery port.
Qingdao, China.
5. Who are we?
We are a chemical equipment manufacturer from Yantai, Shandong, China.
