Product Description

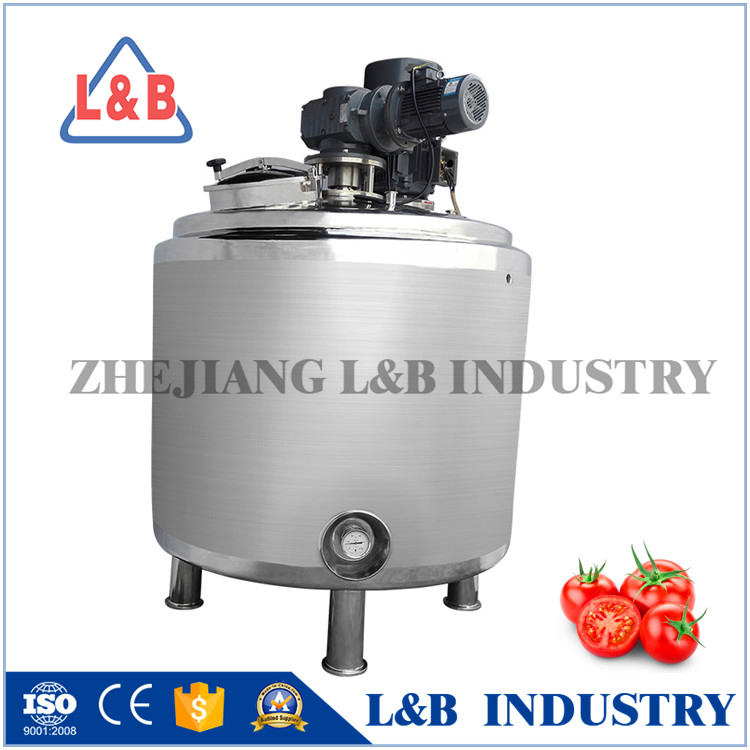

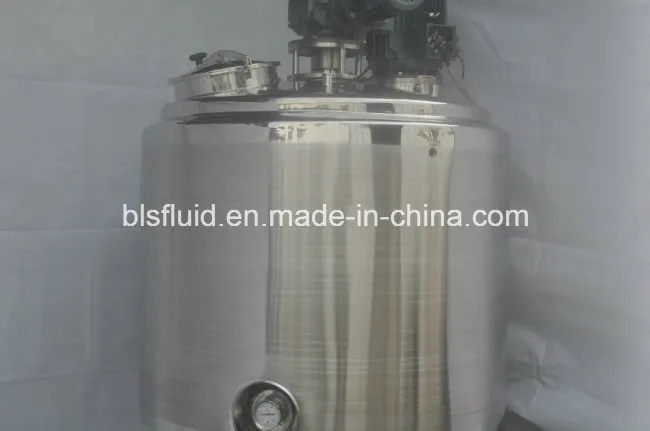

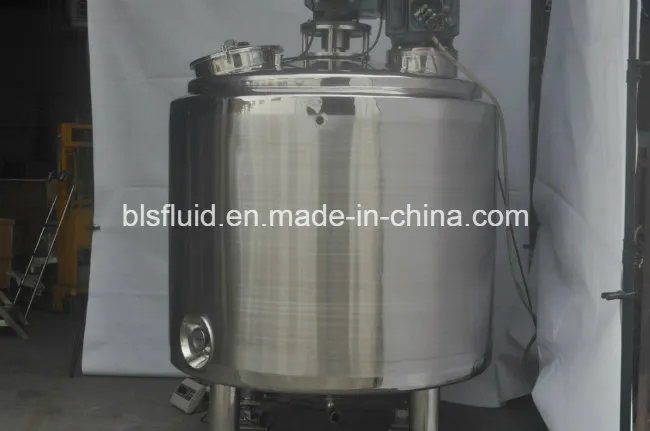

Jacketed Tomato Ketchup Making Machine

Brand: L&B
Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2000

Product Name:	High Quality Jacketed Tomato Ketchup Making Machine
Description:	Designed according to ISO9001/GMP standard, widely used for mixing liquid medium in the food-processing, cosmetics and pharmaceutical industries
Heating method	By electricity (oils or water), by steam, by gas
Material:	SS304/SS316L
	jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc.
	insulation layer: PU Foam
	as to the thickness, we can make it according to your requirement.
Optional Configuration	1.manhole
	2.CIP spraying ball
	3.adjusting feet
	4.sample valve
	5.temperature gauge
	6.pressure gauge
	7.level gauge
Capacity:	50L-10000L
Agitator:	With agitator or not

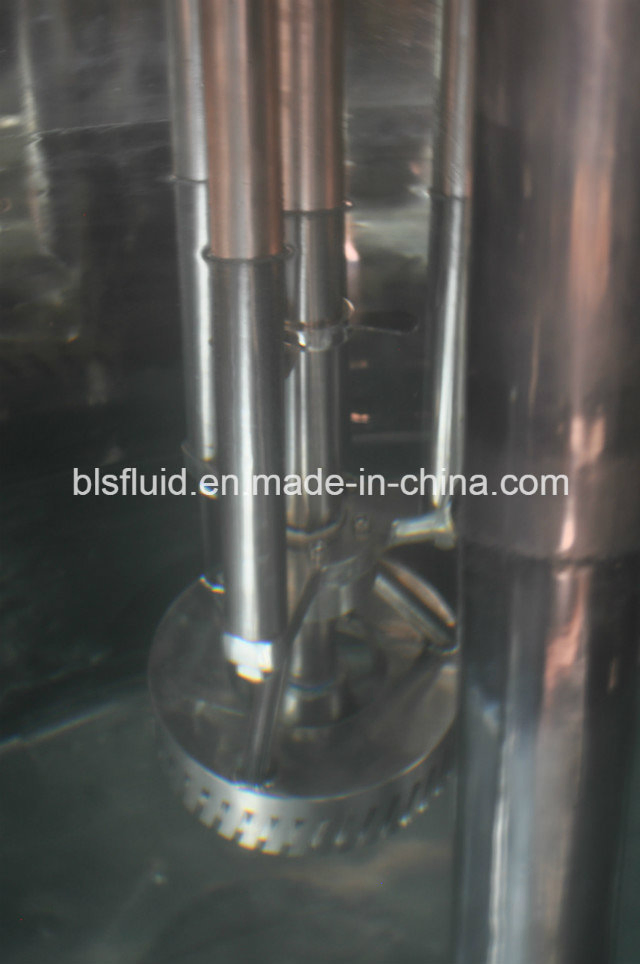

Agitator type	Frame, paddle, scraper, homogenizer, turbo type etc.
Agitator Speed	20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm
Mechanical seal:	SIC/SiC/EPDM(Standard)
Agitator power:	0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:	Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:	110-480V, 50/60Hz
Motor:	ABB, LOCAL,50hz/ 60hz
Surface treatment:	Inner polished and outside polished
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electric
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case Or as per the request of customers
Delivery details:	Usually within 35 days after receiving T/T down payment

Applicable range:
Used as blending tank, mixing tank, preparation tank, fermentation tank, disinfection tank and ageing tank etc.
Ideal in fields such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics:
Adopt structure of internal tank and external package, with heat preservation materials inside.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.
Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

Configuration of tank:
Quick open manhole.
Various types of CIF cleaners.
Fly and insect resistant sanitary breathing cover.

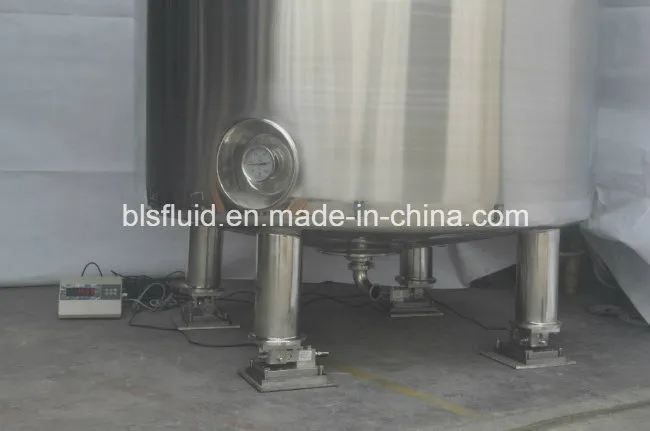

Adjustable triangular bracket.
Dismountable materials input pipe assembly.

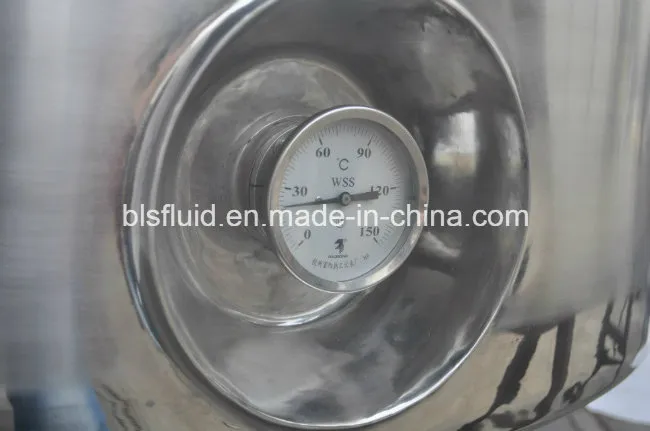

Thermometer (according to customer requirements).
Ladder (according to customer requirements).

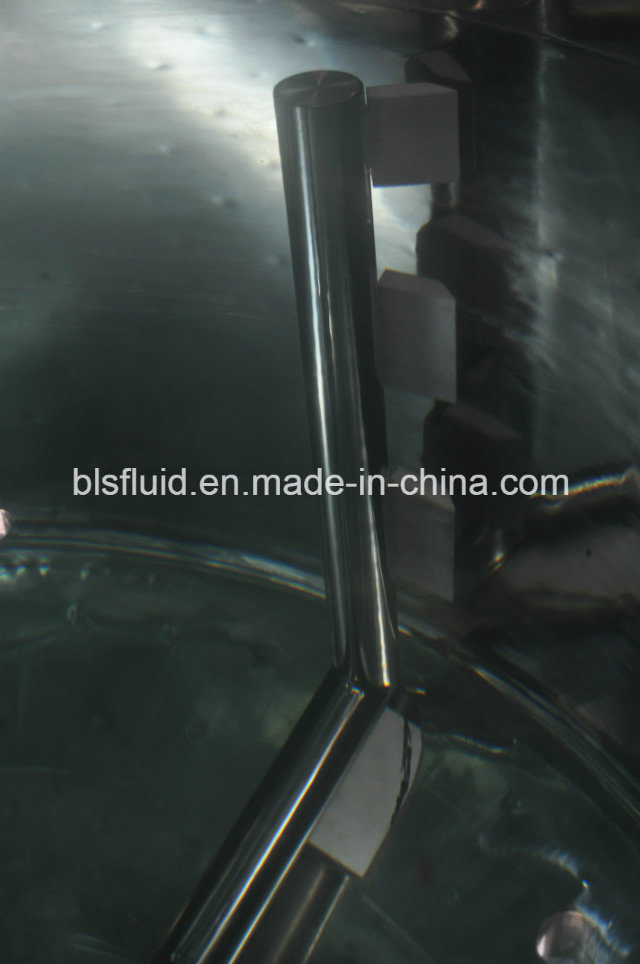

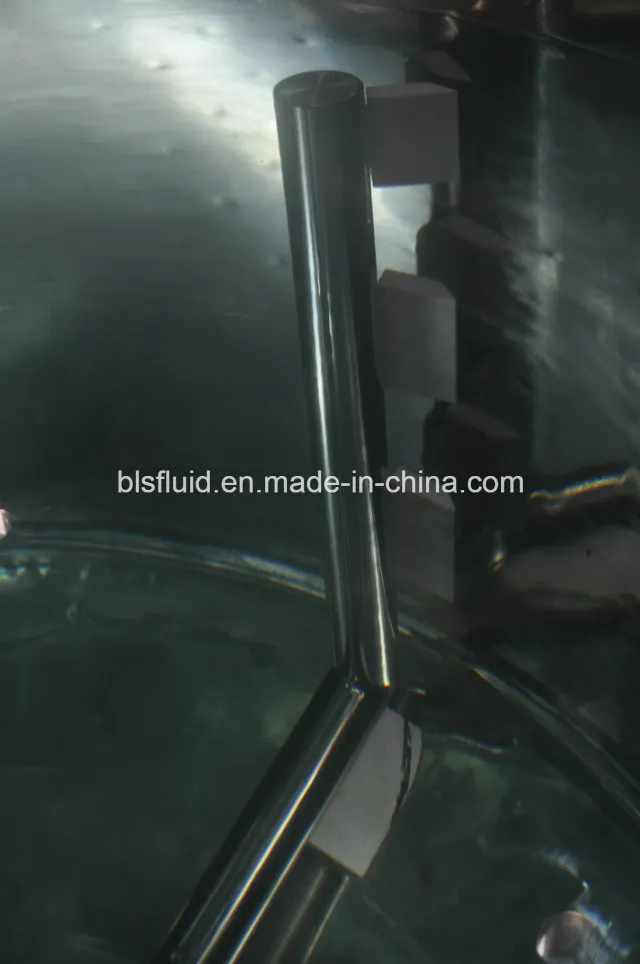

Vertical blender (paddle type or fame type are available if customer require).
Jacket (miller board, hollow jacket or coil pipe jacket are available according to customer requirements).
Liquid level meter and level controller (according to customer requirements).
Eddy-proof board.

It can be customized according to special requirements of our customers. Total height is computed according to the height (800mm) of the discharge outlet. If the height of discharge outlet is changed, total height shall be adjusted.

Effective volume	Dimension of tank	Total height	Diameter of inlet&outlet	Heat preservation layer
(L)	(mm)	(mm)	(mm)	(mm)
500	840*1000	2250	38	60
600	920*1000	2300	38	60
700	990*1000	2300	38	60
800	950*1220	2500	38	60
900	1010*1220	2500	38	60
1000	1060*1500	2850	51	60
1500	1160*1500	2850	51	60
2000	1340*1500	2900	51	60
3000	1410*2000	3400	51	60
4000	1620*2000	3450	51	60
5000	1810*2000	3500	51	60
6000	1980*2000	3550	51	60
7000	1930*2440	4000	51	60
8000	2060*2440	4000	51	60
9000	2180*2440	4050	51	60
10000	2300*2440	4050	51	60
12000	2270*3000	4600	51	60
15000	2530*3000	4700	51	60
20000	2640*3660	5400	51	60
