Humic Acid Organic Fertilizer Production Usage High Efficiency Mixing Kneading Mixer
Humic acid organic fertilizer making sigma mixer/sigma kneader1.The humic acid organic fertilizer is a new type of fertilizer mainly containing humic acid. It uses humic acid as the main mechanism and adds appropriate amount of nutrients necessary for plant growth and development to form an organic ......
Send Inquiry
Product Description

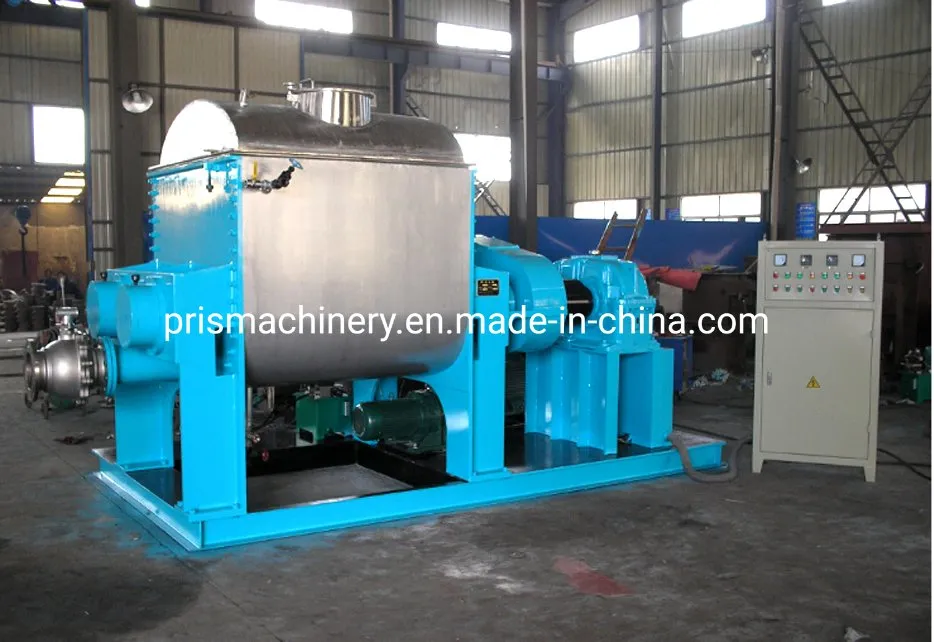

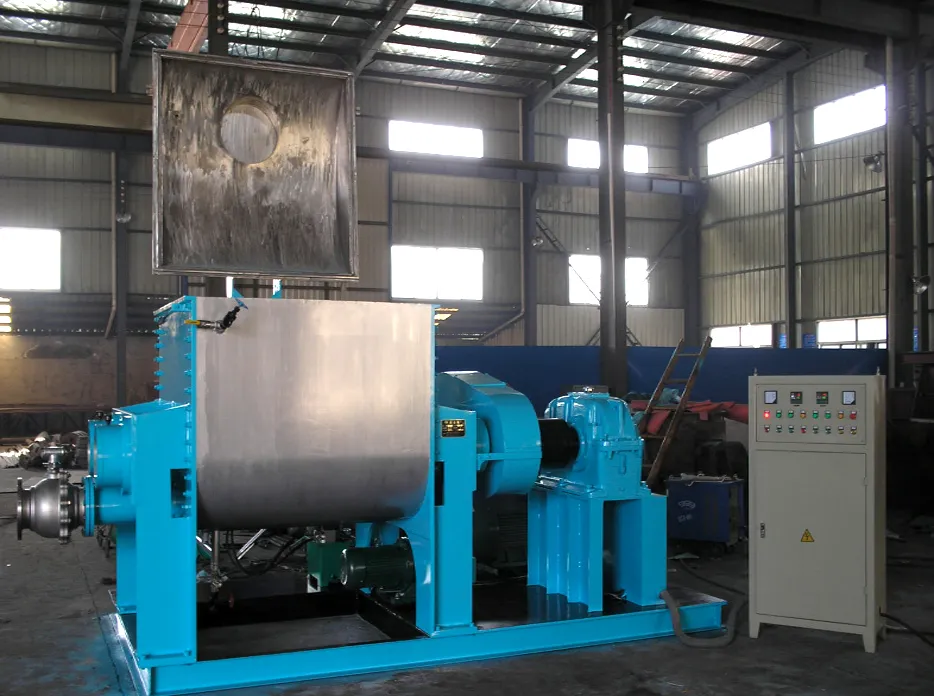

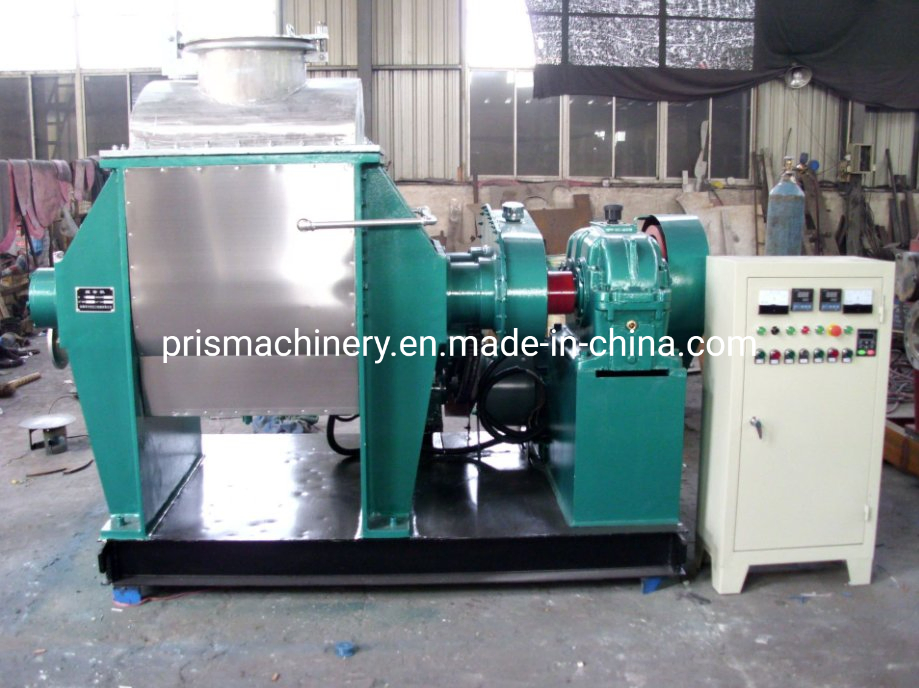

Humic acid organic fertilizer making sigma mixer/sigma kneader
1.The humic acid organic fertilizer is a new type of fertilizer mainly containing humic acid. It uses humic acid as the main mechanism and adds appropriate amount of nutrients necessary for plant growth and development to form an organic fertilizer through scientific preparation.
2.Using lignite, oil shale and other raw materials, using different production methods to produce products containing a large amount of humic acid and oxygen, phosphorus, potassium and certain medium and trace elements required for crop growth and development, also called humic acid organic fertilizer.
3.How to produce humic acid organic fertilizer?
The kneader for producing humic acid organic fertilizer includes a trough, a stirring shaft is installed in the trough, the stirring shaft is connected with a stirring motor through a reducer, and a plurality of stirring paddles are installed on the stirring shaft. The stirring paddle is installed evenly and inclinedly on the stirring shaft. The use of the utility model kneader for the production of humic acid organic fertilizer can make the liquid-solid ratio of about 1:1 to meet the reaction requirements, and the reacted material has a moisture content of 40%-50 %, in a "semi-dry" solid state, so as to achieve the requirements of fast drying, energy saving, and easy to achieve large-scale production. The production process is to use humic acid raw materials and potassium and sodium elements after the raw materials are pretreated and fermented and stored, then crushed and mixed with a kneader, and dried by a dryer to obtain qualified products.
Part One: Introduction of kneader:
The kneader is an ideal equipment for kneading, mixing, vulcanizing, and polymerizing high-viscosity, elastic-plastic materials.
The kneader is a special mixing and stirring equipment. The most commonly structure is to use two sigma blades and adopt a side-by-side tangent differential arrangement, that is, one stirring blade is fast, and the speed of one stirring blade is slow, so as to produce shear The shear force and different paddle speeds allow the materials to be mixed.
Part Two:The structure of the kneader:

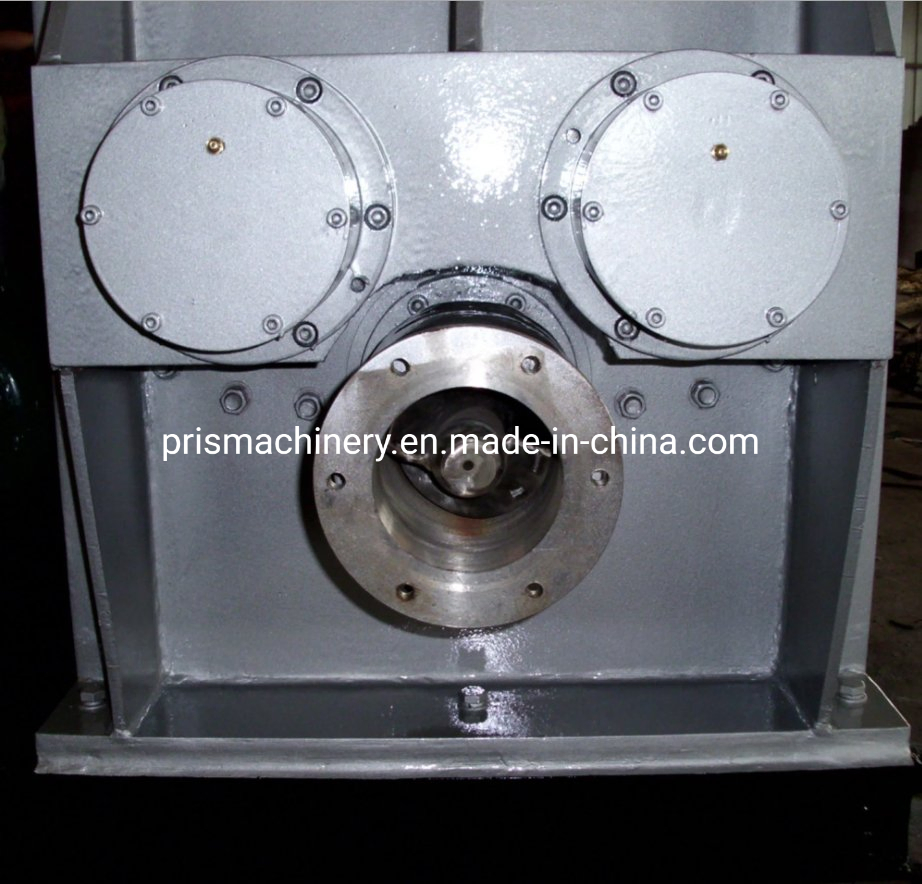

The kneader is mainly composed of six parts: the kneading part, the base part, the hydraulic system, the transmission system, the vacuum system and the electric control system.
Part three: Application fields of kneader:
Chewing gum, bubble gum, toothpaste, plastics, rubber, silicone rubber, dyes, pigments, inks, food gum bases, pharmaceuticals, architectural coatings, carbon, fiber, high-viscosity sealants, neutral glass glue, aluminum silver paste, silica gel , Pulp, cellulose, battery slurry, dyes, silicone resins, cosmetics,etc.
Part Four:Compared with the planetary mixer, what are the characteristics of the kneader?
Both the kneader and planetary mixer are suitable for the mixing reaction of high-viscosity materials. The key difference lies in the structure and blade form. The kneader is horizontal, suitable for kneading and mixing materials with high viscosity to ultra-high viscosity. The planetary mixer is vertical, expensive, and suitable for high viscosity, paste-like multifunctional applications. However, from the perspective of material cleaning, the planetary mixer is easier to clean, and is more suitable for the production of frequently cleaned materials with multiple formulas and colors.
Part Five:Kneader classification
1. From the discharging method, it is divided into: screw extrusion kneader, bottom discharging kneader, hydraulic tilting cylinder kneader, etc.
2. From the heating and cooling system, it is divided into: electric heating kneader, steam heating kneader, hot water heating kneader, single-layer kneader, cooling type kneader, heating belt cooling type kneader, zero distance high temperature kneader, etc.
3. From the explosion-proof grade: ordinary kneader and explosion-proof kneader;
4. From the application field, it is divided into: chewing gum, bubble gum, toothpaste, plastic, rubber, silicone rubber, dyes, pigments, inks, food gum bases, pharmaceuticals, architectural coatings, carbon, fiber, high-viscosity sealants, medium Glass glue, aluminum silver paste, silica gel, paper pulp, cellulose, battery paste, dyes, silicone resin, cosmetics, etc.
5.From the material, it can be divided into: carbon steel kneader, stainless steel kneader, copper kneader, Harbin alloy kneader, etc.
Part Six:Technical Data:
| Model | Volume | Drive(KW) | Discharging | Heating | ||
| Full(L) | Effective(L) | |||||
| DSM-2 | 2 | 1.2 | 1.1 | Manual tilting | Steam | Electric |
| DSM-5 | 5 | 3 | 1.5-2.2 | Manual tilting | Steam | Electric |
| DSM-10 | 10 | 6.5 | 2.2-3 | Manual tilting | Steam | Electric |
| DSM-50 | 50 | 33 | 5.5-7.5 | Tilting,Screw extruder | Steam | Electric |
| DSM-150 | 150 | 100 | 7.5-11 | Tilting,Screw extruder | Steam | Electric |
| DSM-200 | 200 | 130 | 11-18.5 | Tilting,Screw extruder | Steam | Electric |
| DSM-300 | 300 | 180 | 18.5-22 | Tilting,Screw extruder | Steam | Electric |
| DSM-500 | 500 | 330 | 22-30 | Tilting,Screw extruder | Steam | Electric |
| DSM-1000 | 1000 | 650 | 37-110 | Tilting,Screw extruder | Steam | Electric |
| DSM-1500 | 1500 | 920 | 37-110 | Tilting,Screw extruder | Steam | Electric |
| DSM-2000 | 2000 | 1250 | 55-160 | Tilting,Screw extruder | Steam | Electric |
| DSM-3000 | 3000 | 1950 | 75-220 | Screw extruder | Steam | Electric |
| DSM-4000 | 4000 | 2500 | 90- | Screw extruder | Steam | Electric |
| DSM-5000 | 5000 | 3300 | 110- | Screw extruder | Steam | Electric |
