Product Description

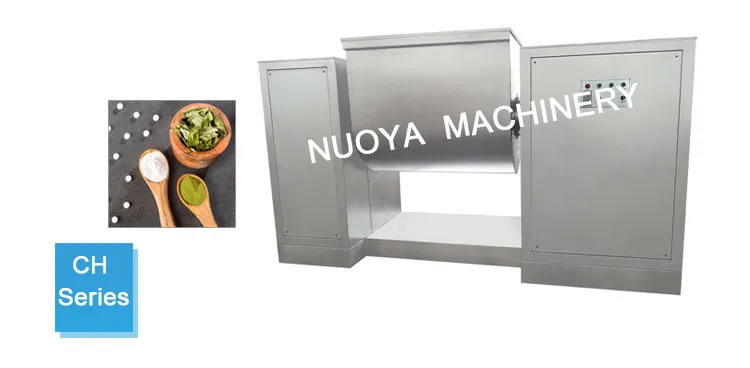

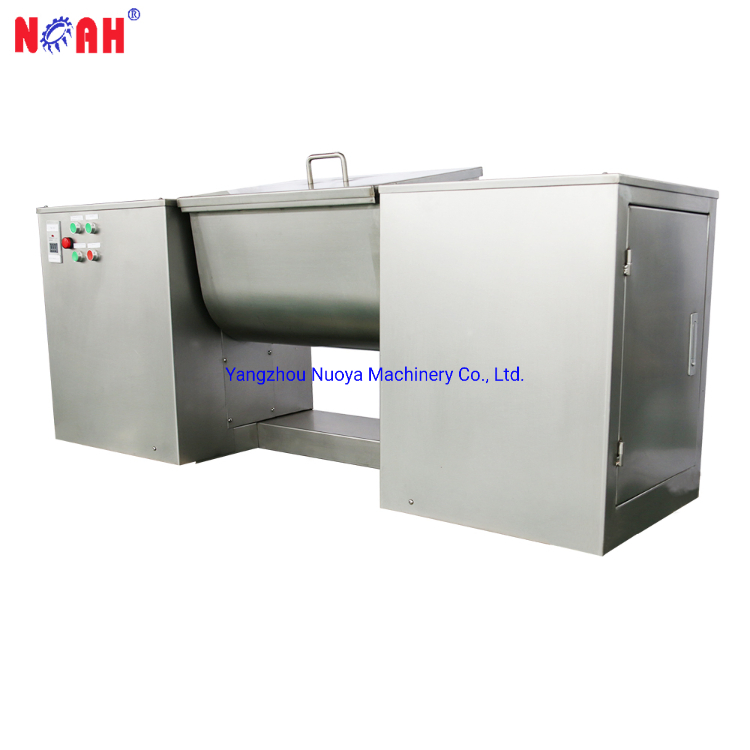

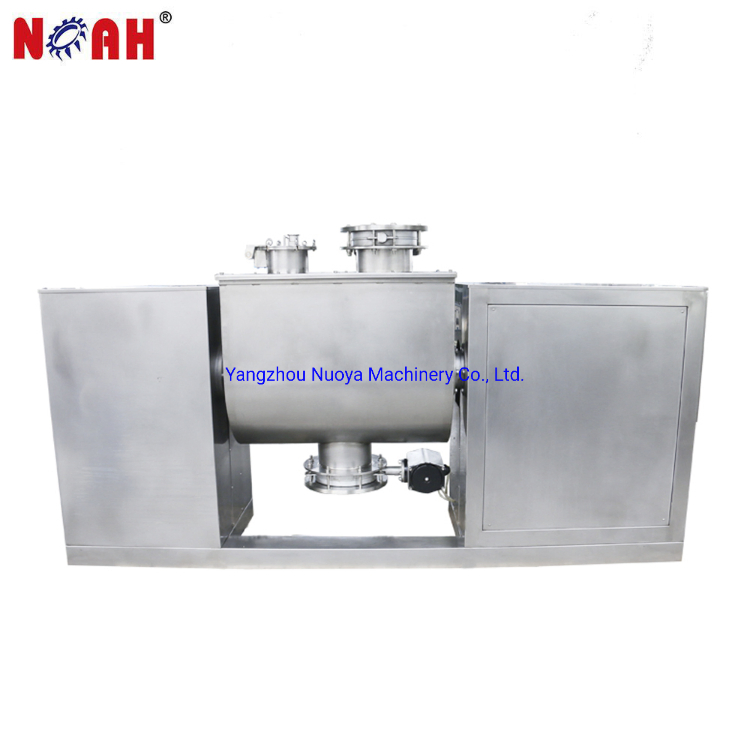

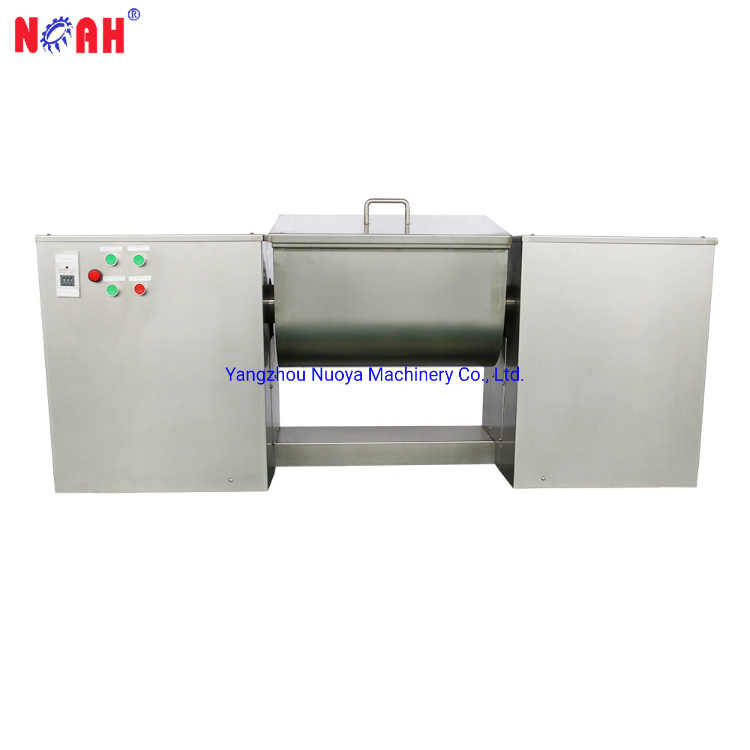

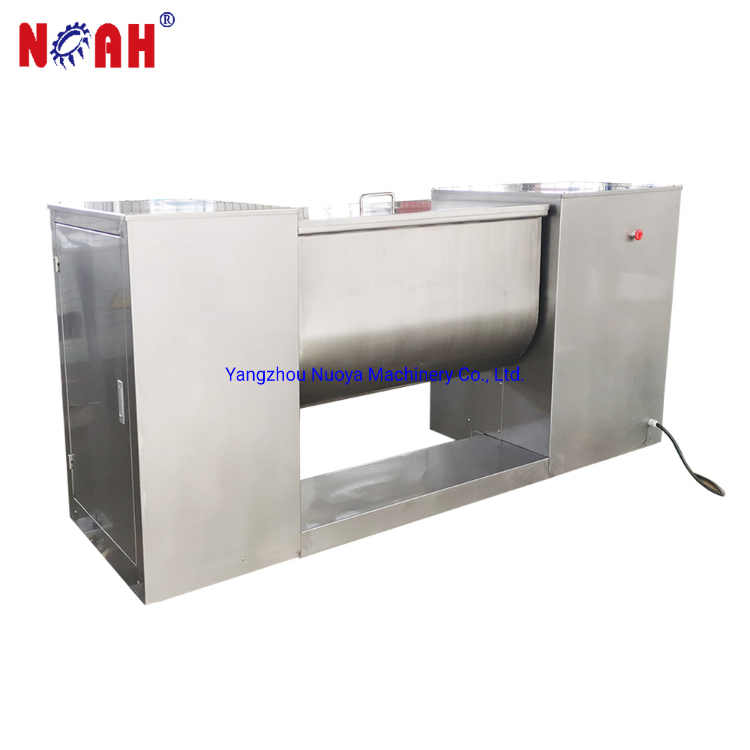

CH150 Horizontal Tank Type Mixer

Main Application:
As a whole stainless horizontal tank type mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.

Working Principle:

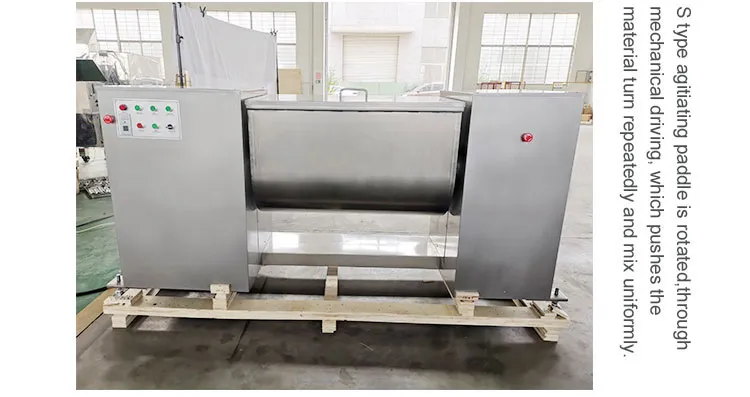

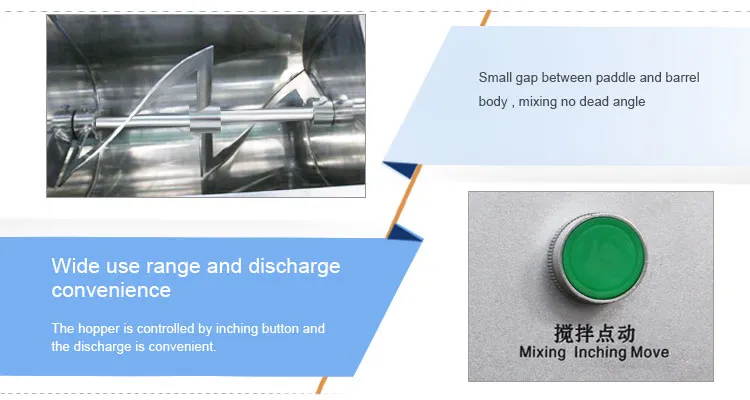

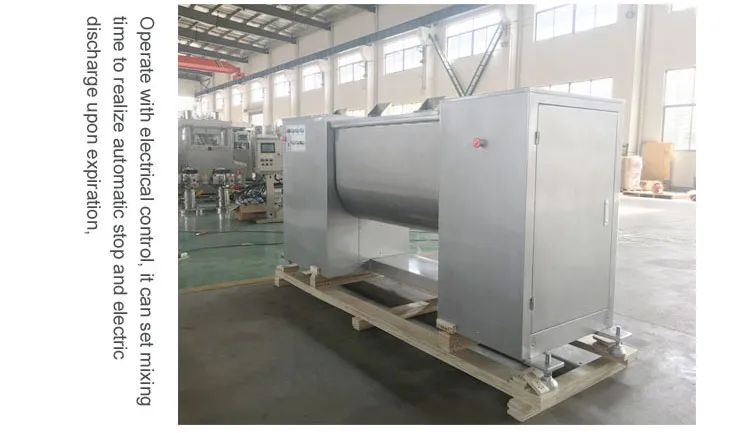

S type agitiating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homogeneous mixing.

ITEM	TYPE
ITEM	CH10	CH50	CH100	CH150	CH200
Trough capacity L	10	50	100	150	200
Miaing arm speed r/min	25	24	24	24	24
tilting angle of the trough	105	105	105	105	105
Main motor KW	0.37	1.5	2.2	3	3
tilting motor KW	by hand
overall dimension mm	550250540	12005201000	13806851125	14806851125	16607001200
weight kg	65	120	200	250	300
