Horizontal Paddle Mixer/Blender Mixing/Blending Machine for Dry Wet Powder Granule
Horizontal Paddle Mixer/Blender Mixing/Blending Machine For Dry Wet Powder Granule Main Technical Data:Model no.Effectivevolume(L)LoadingcoefficientPower(KW)Rotate speed(R/min)Dimension(mm)Weight(kg)TDS-2002000.6-0.84.0531800X900X1110430TDS-3003000.6-0.85.5531900X1000X1250680TDS-5005000.6-0.87.54520......
Send Inquiry
Product Description
Model no. | Effective volume(L) | Loading coefficient | Power(KW) | Rotate speed(R/min) | Dimension(mm) | Weight(kg) |
TDS-200 | 200 | 0.6-0.8 | 4.0 | 53 | 1800X900X1110 | 430 |
TDS-300 | 300 | 0.6-0.8 | 5.5 | 53 | 1900X1000X1250 | 680 |
TDS-500 | 500 | 0.6-0.8 | 7.5 | 45 | 2050X1200X1250 | 890 |
TDS-1000 | 1000 | 0.6-0.8 | 11.0 | 45 | 2500X1200X1350 | 1360 |
TDS-1500 | 1500 | 0.6-0.8 | 15.0 | 39 | 2950X1350X1400 | 1780 |
TDS-2000 | 2000 | 0.6-0.8 | 18.5 | 39 | 3330X1500X1650 | 2260 |
TDS-3000 | 3000 | 0.6-0.8 | 30.0 | 31 | 3650X1880X1950 | 3150 |
Pls feel free to contact us if you need more technical parameters! | ||||||
FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year

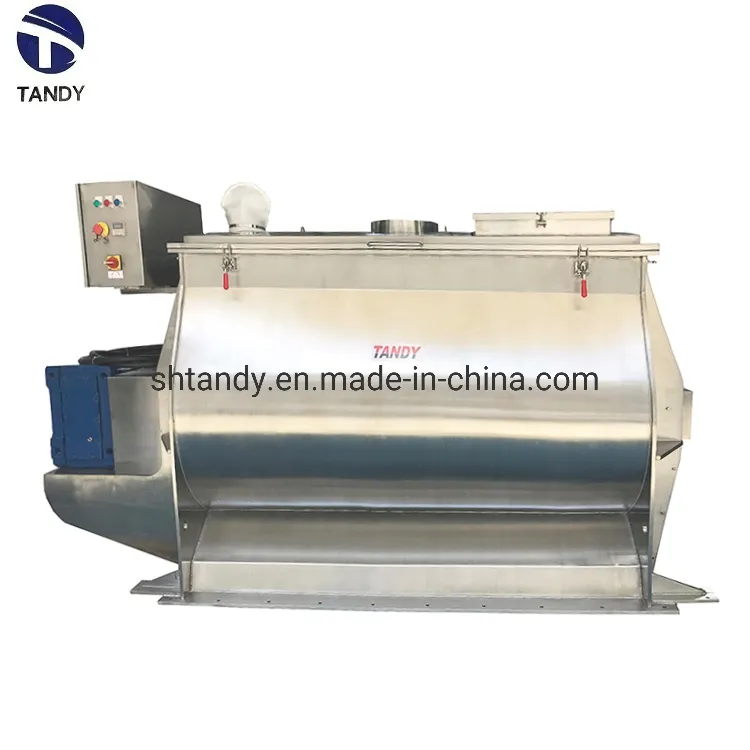

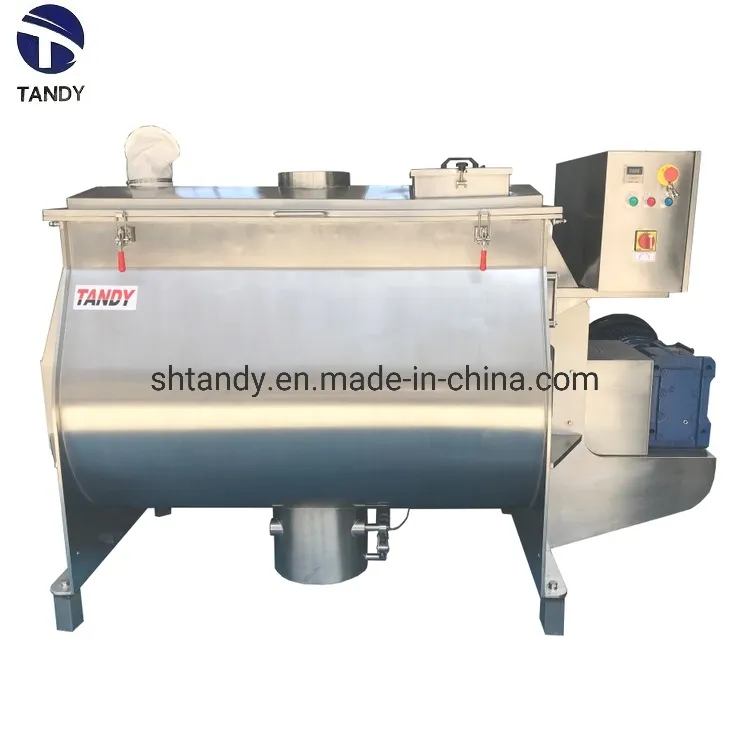

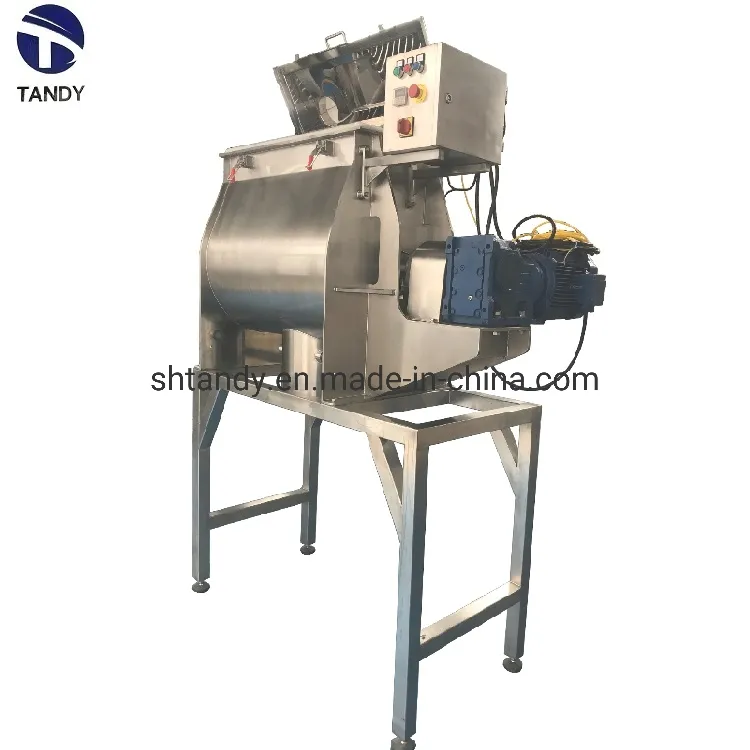

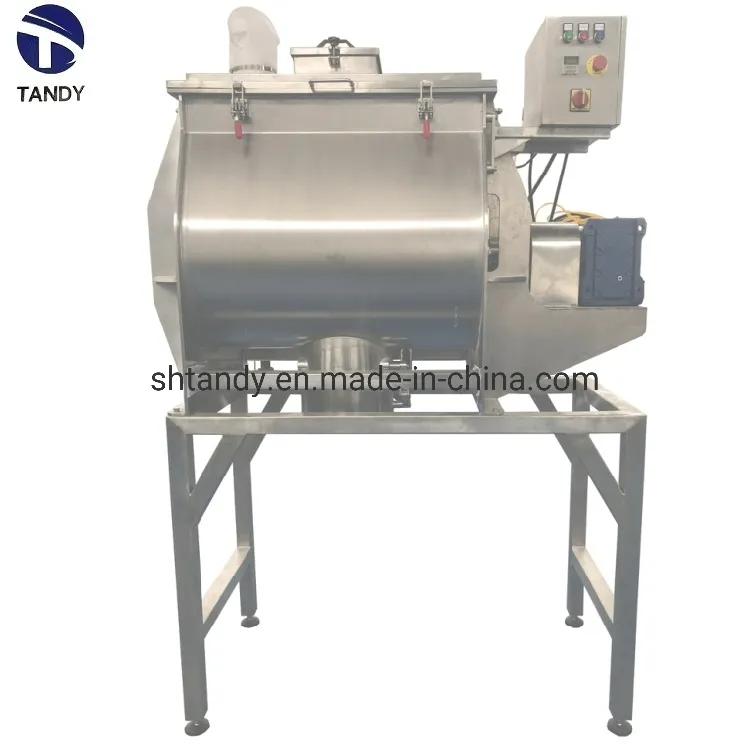

The single shaft paddle mixer is suitable for powder and powder, granule and granule or add a little liquid to mixing. It is widely applied in nuts, beans, feed or other kinds of granule material. The machine have different angle of blade inside thrown up the material thus cross mixing.
Main Features:
1. Rotate reversely and throw material to different angles, mixing time 1-3 minutes.
2. Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%.
3. Only 2-5mm gap between shafts and wall,open-type dischrging hole.
4. Patent design and ensure the rotating axle & dischrging hole with zero leakage.
5. Full weld and polishing process for mixing hopper, without any fastening piece like screw, nut.
6.The whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.

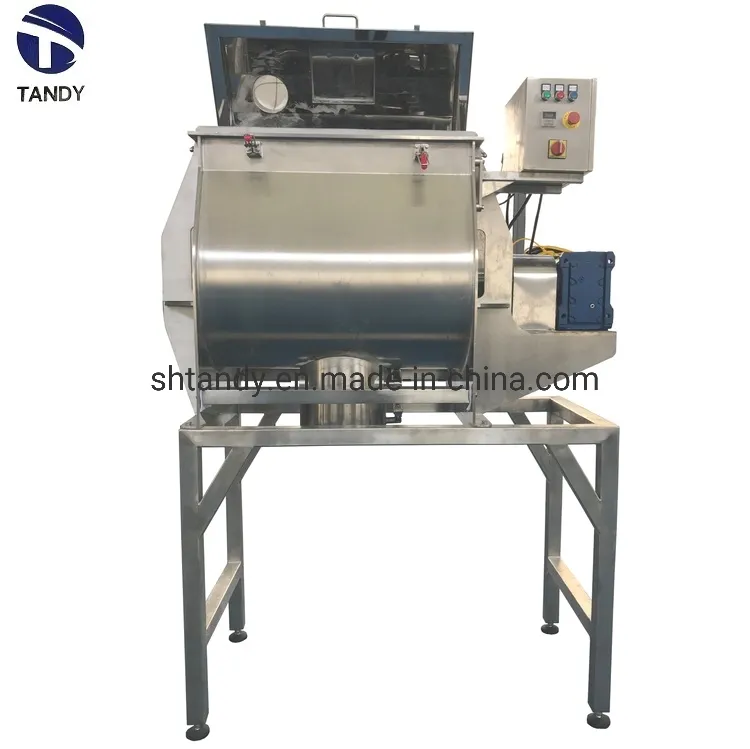

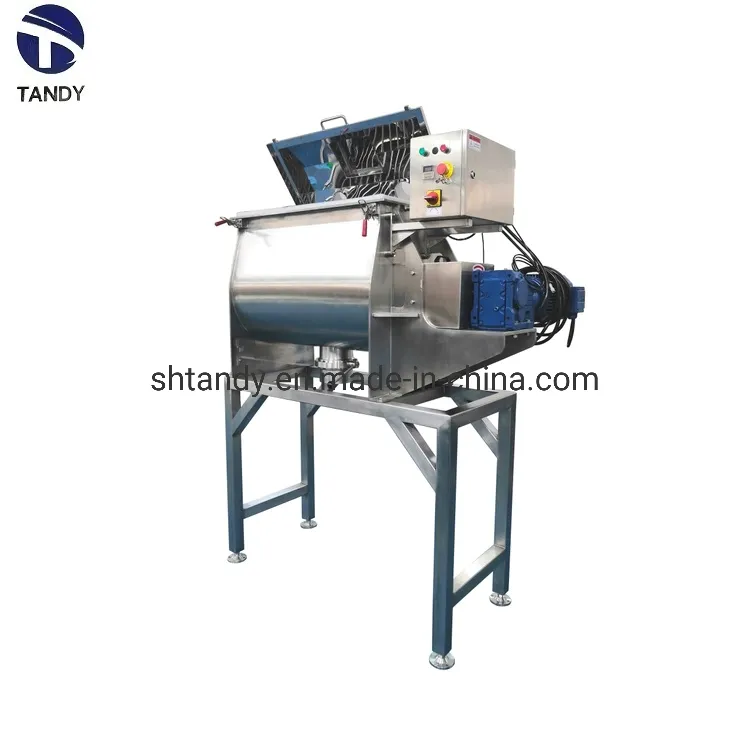

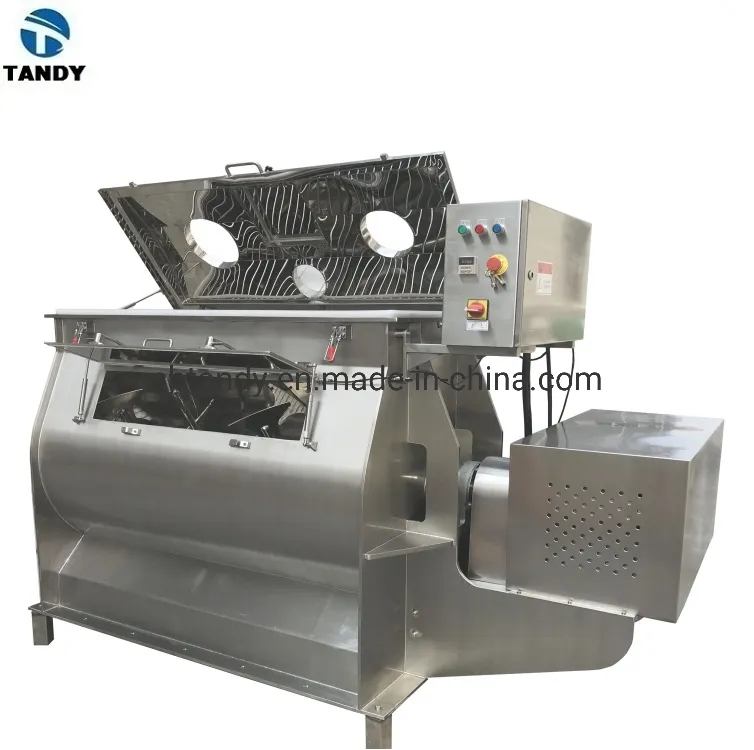

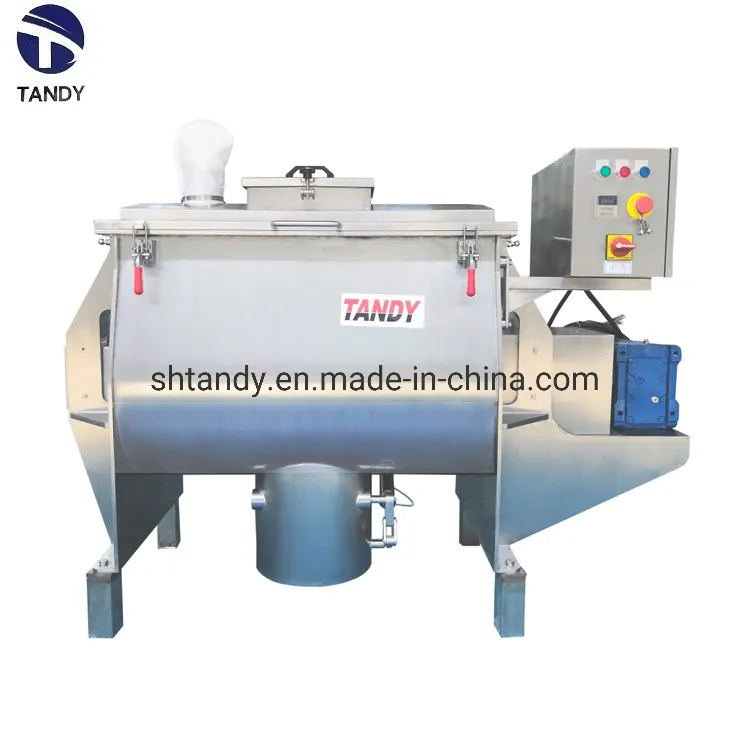

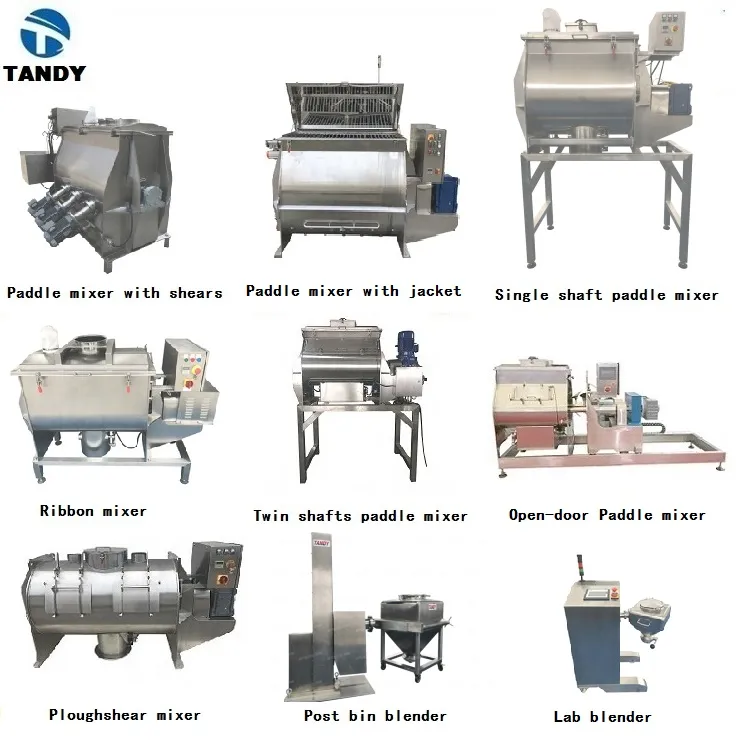

More Pictures Show:
Packaging & Shipping:
Company Information:
Our Exhibitions:
Welcome to Contact:
