China Homogenize Mixing Blender Tank Veseel for Cosmetic Lotion Cream Ointment

Product Description

Stainless Steel emulsify mixer homogenize tank for disinfectant Hand Gel

Homogenize Mixing Blender Tank Veseel for Cosmetic Lotion Cream Ointment

Homogenize Mixing Blender Tank Veseel for Cosmetic Lotion Cream Ointment

Application:
1.Cosmetic and daily chemical product: Cosmetic cream, lotion, shampoo, detergent, health care product, gel, Laundry detergent, hand sanitizer, armpits lotion etc.
2.Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc.
3.Food : Salad, mayonnaise, peanut butter, sesame butter, buttery, Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5.Chemical: Paints, Pigments, dyes, photo solvents, Rubber and resin, pesticides ,Shoe polish, general chemicals etc.

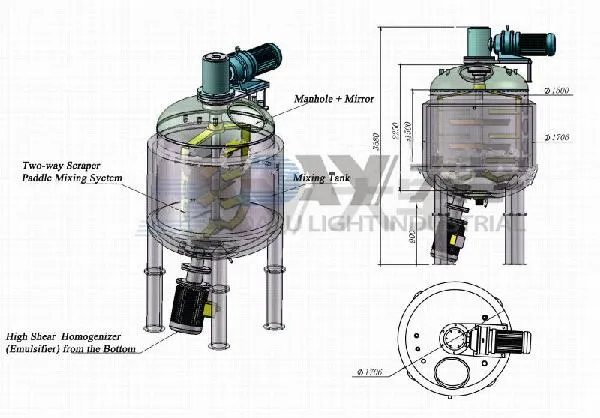

Standard structure drawing:

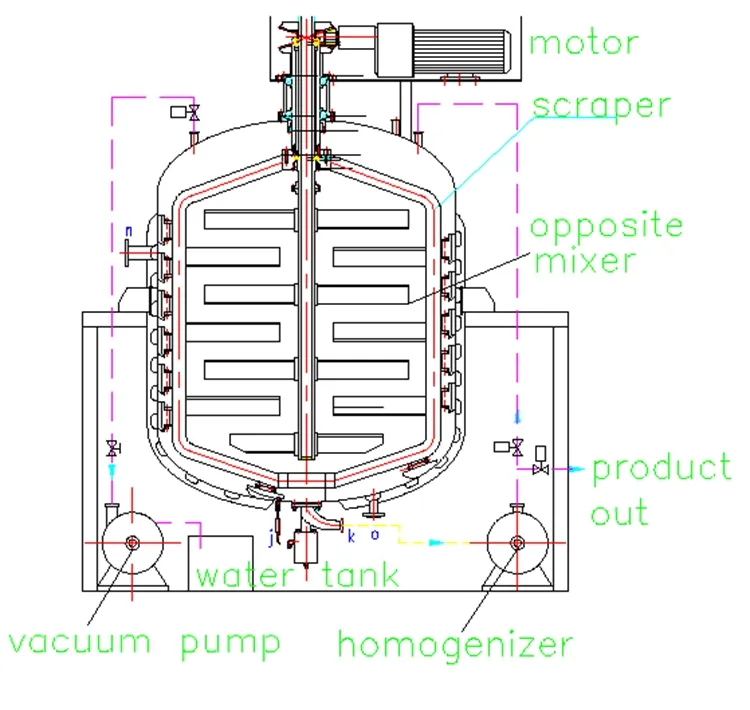

Structure:
This homogenize tank include tank, homogenizer, vacuum pump, water tank, mixer, pipes, meters, valves, temperature control system, heating system, cooling system and control system.
The detail requirement should be according to customer' requirement.

Description:
This stainless steel homogenize tank is used for mixing, dispersing, dissolving, emulsification, dissolution, reaction, formulating, heating, cooling, warm-keeping, cultivating, disinfecting and storage etc. Different types of blades and relevant speed achieve the production condition.

Parameter:

Model	30L	50L	100L	200L	500L	1000L	2000L	3000L	5000L	10000L	50000L
Diameter mm	300	300	400	500	700	900	1200	1300	1500	1800	3100
Height mm	1600	1700	2000	2300	2600	3000	3800	4300	4500	5300	8000
Filling capacity	65%-80%
Inside Pressure Mpa	-0.1---0.2
Jacket pressure Mpa	-0.1---0.4
Cool method	By jacket							By pipe
Mix speed rpm	0--300
Motor Power kw	1.1	1.5	1.5	2.2	3	4	5.5	7.5	15	22	50

Feature:
1. Suit for the process about formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage. It is available online CIP cleaning (only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤0.4µm); the welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process
arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.
4.T he main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
5.The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.

Order requirement:
1 How much liter of homogenize tank do you need?
2 what this tank used for?
3 What way do you want to heat the homogenize tank ? By steam or electric?
4 How much speed of the mixer do you need? Do you need Frequency speed?
5 Do you need vacuum system?
6 do you need automatic or manual?
5 When do you need this mixing tank?

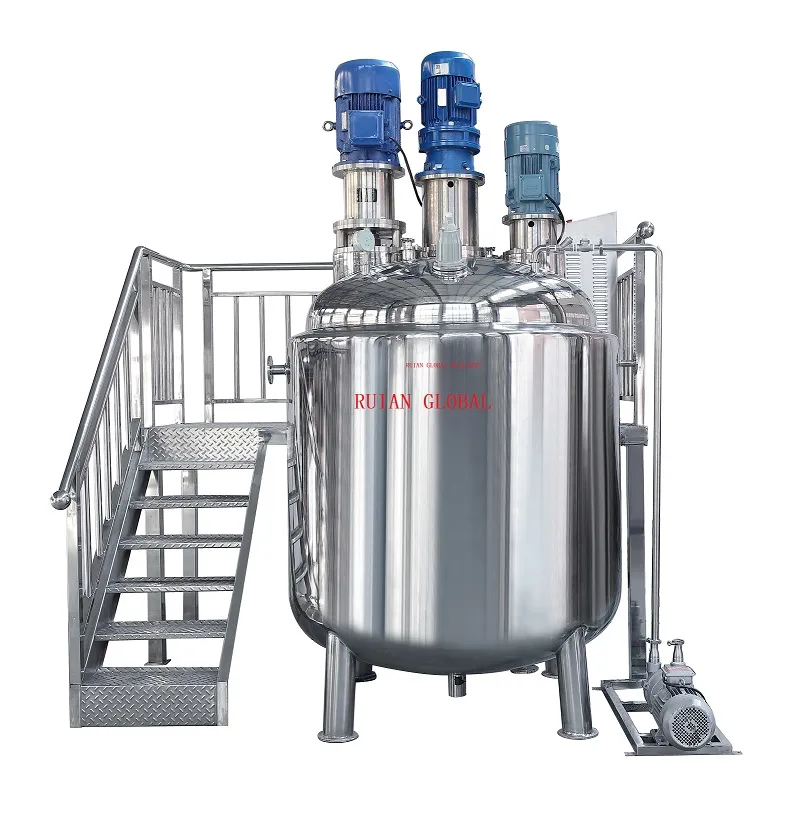

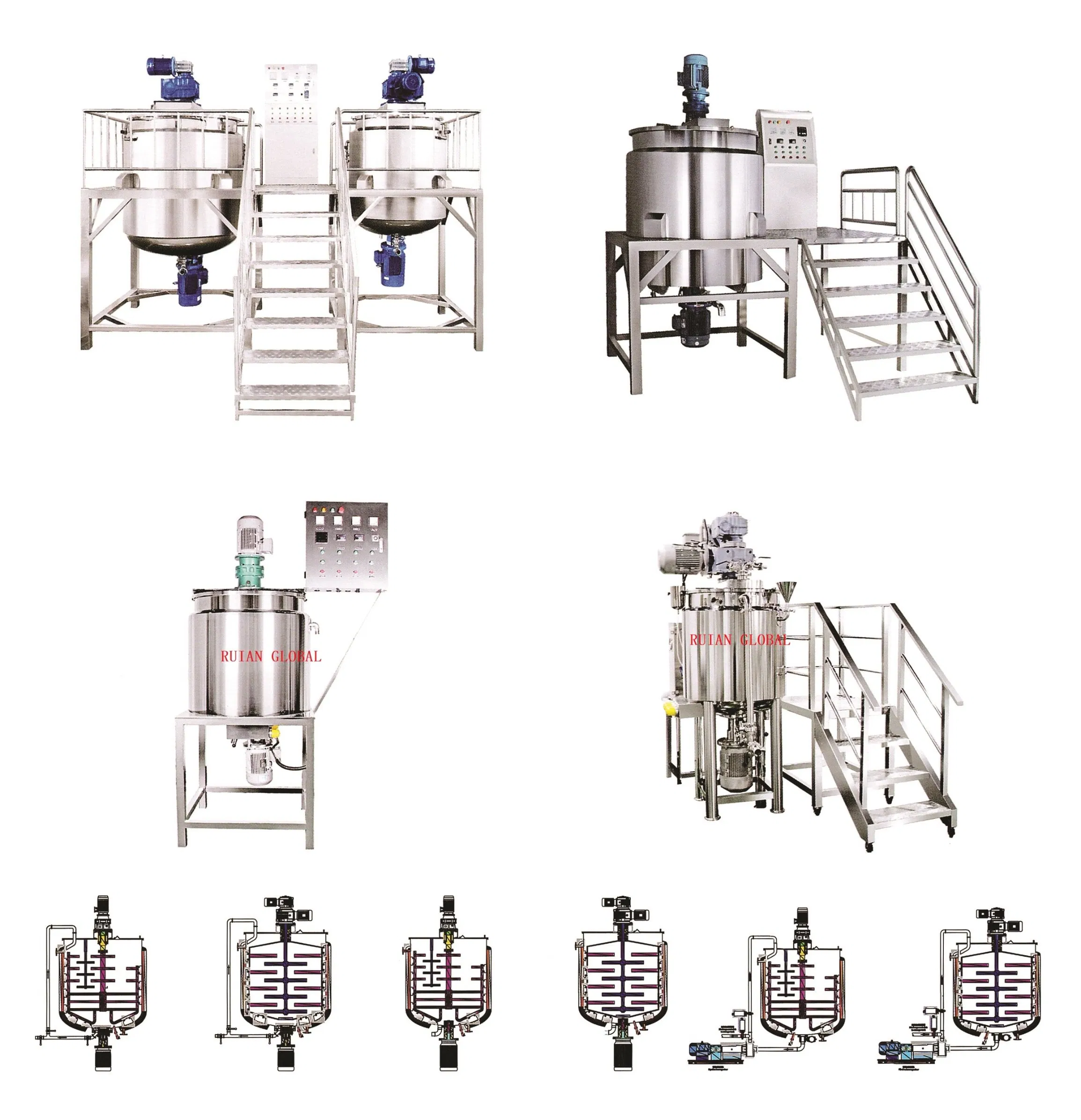

product show:
