Product Description
High Speed YATONG Film Packing SRL-Z Plastic PVC Mixer Unit for Granules

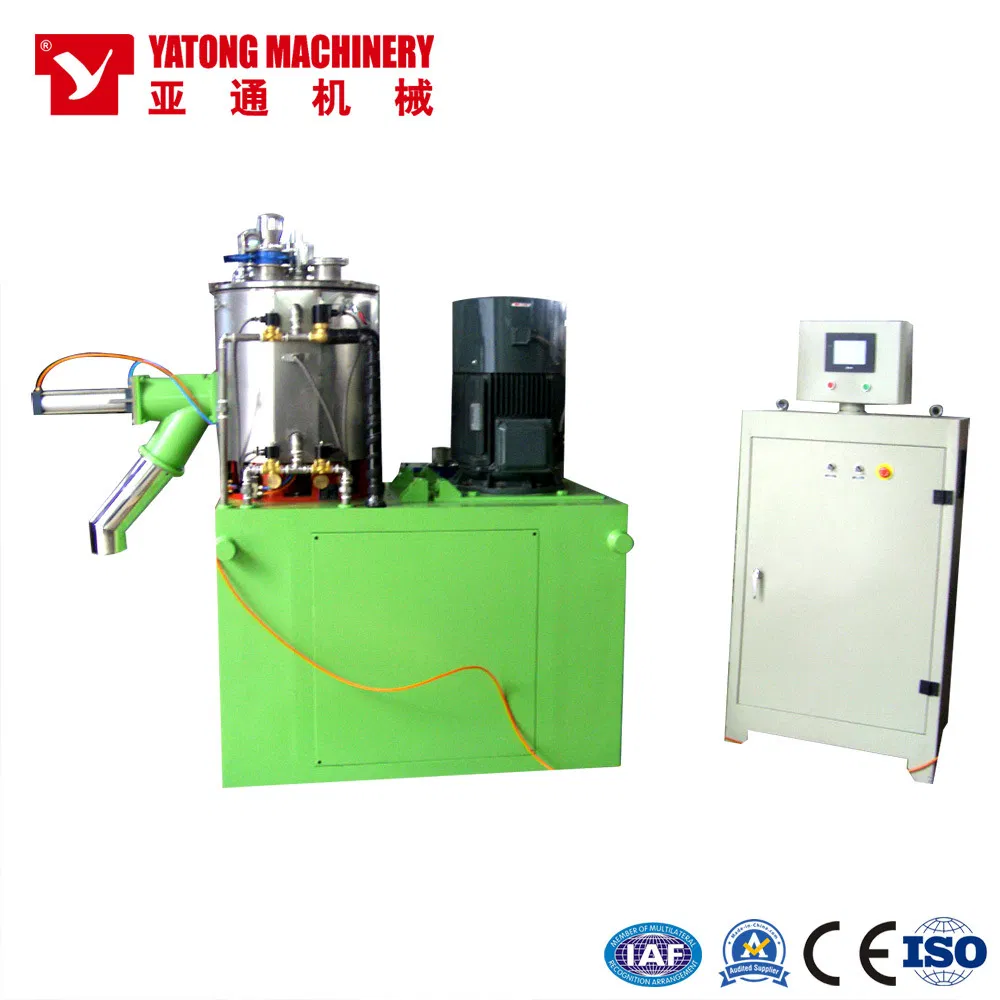

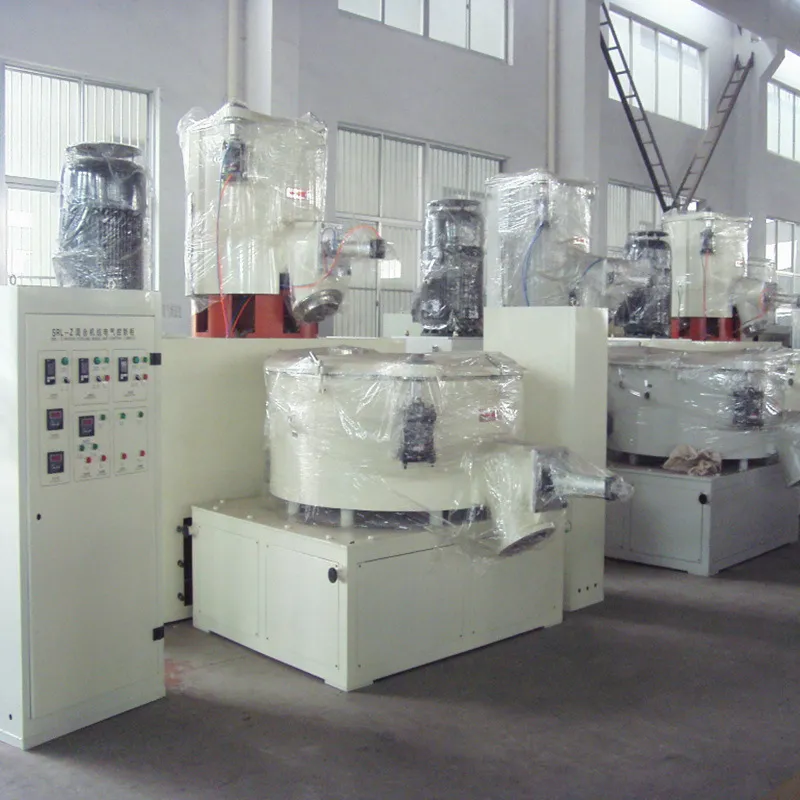

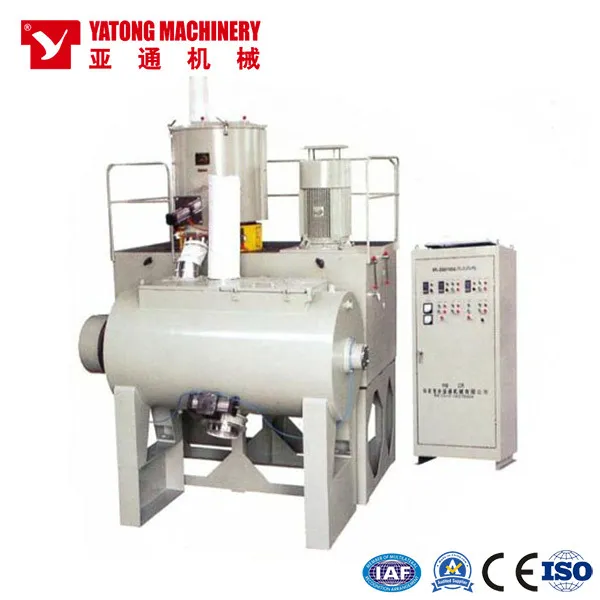

SRL-Z series mixer unit is applicable for mixing, colouring and drying of various resin such as polyethylene, polypropylene, polyvinyl chloride etc and in the craft of engineering plastics such as ABS,polycarbonate etc before forming and processing as well as in the mixing of phenolic resin.
The unit combines heat mixing and cool mixing craft together. The materials after heat mixing can be got into cool mixer for cooling automatically, exhausts remaining gases and prevent agglomeration.
This unit is developed by importing and absorbing advanced foreign technology. By adopting PLC control, if features high automatic level, good mixing result. Heat mixing has such functions as self-friction, and electric heating. The vane has passed the test of dynamic and static equilibrium. The cover adopts special tech of our company, also equipped with pulse dust catching device. Cooling mixer absorbed slowdown tech from overseas, adopts direct slowdown device, overcomes the deadly weakness causing by use of retarder, that makes it running smoothly even more. This machine has come up to the same kind of product level in the world. That is an ideal equipment for producing plates, pipes and special-shaped materials etc.
Specification :
| Model | SRL-Z 100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Total cubage(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective cubage(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
| Mixed speed(rpm) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/40/50 |
| Heating/cooling manner | Electric heating self-friction/water cooling | ||||
| Mixed time(min/batch) | 8-12 | 8-12 | 8-12 | 8-12 | 8-15 |
| Motor power(kw) | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
| Dimension(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 4600*3000*4050 | 5170*3200*4480 |
| Weight(kg) | 2200 | 3400 | 3600 | 4800 | 6200 |
REMARK : if the equipment or technological parameters have some change , we shall not make a notice separately .
Features : a) Easy to opeating the machine
b) save power and need less worker
c) it is convenient to maintain the machine
SRL-Z Series mixer unit / cooling and hoting mixer machine / resin mixing machine
1. The machine inspection before delivery in YATONG MACHINERY When you come to our factory .Check everything is it ok .
2. Free of charge of some necessary spare part.
3. One year guaranteeof all the machines running , if any problem ,we will bear. Of course if the machines after one year ,you also can ask for the technical guidance.
4. 1-2 technical engineers will be come to your factory to installation and commissioningthe machines and train your workers if you need.
5. We accept 30% TT down payment, 70% TT or LC at sight before delivery.
6. Film packing or plywood packing suit for sea shipping.
