High Speed Vibrating Ball Mill with Two Jars for Milling and Mixing Solids, Suspended Liquids

Product Description

High Speed Vibrating Ball Mill with Two Jars for milling and mixing solids, suspended liquids

Introduction of 3D ball mill:

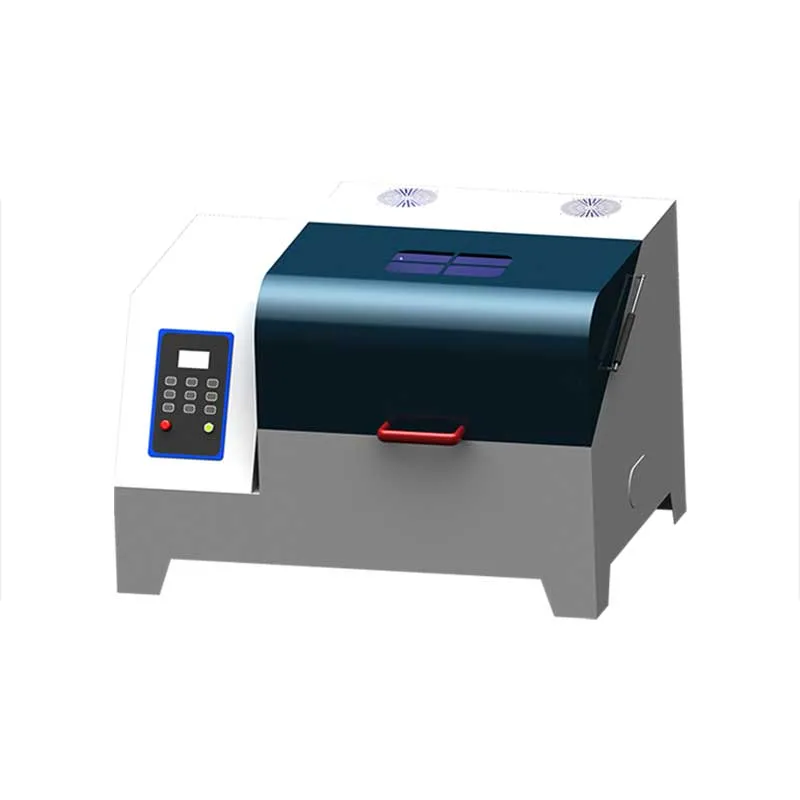

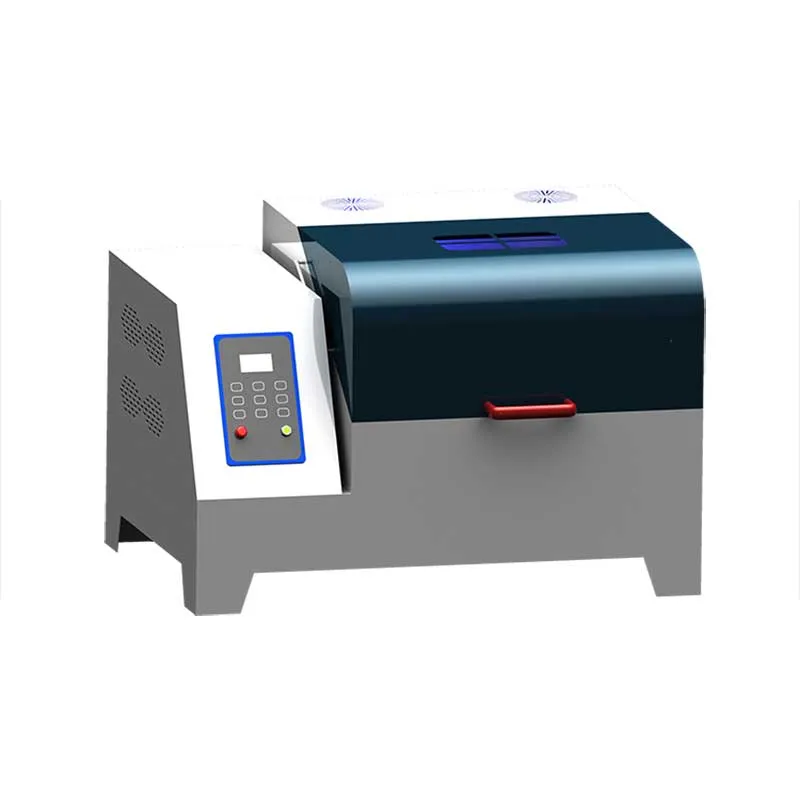

CY-MSK-SFM-3 is a compact high-speed ball mill with the 3D movement for making the small amount samples at easy and fast. It has higher impact energy created by rotation, vibration, and oscillation with frequency up to 1200RPM. The CY-MSK-SFM-3 can be used in either dry or wet method to mill materials and mix all kinds of solids, suspended liquids, and pastes with different sizes and materials. Two milling jars (SS and Nylon) are included for the use of most of the materials. It is an ideal choice to make small quantity sample in material and chemical research laboratories.

Specifications of 3D ball mill:

Features	1200 max. RPM allows efficient pulverization and homogenization The range of jar materials (Nylon, Alumina, SS, and Agate) offered for various applications Easy jar installation Optional for variable speed and forced chilling air cooler

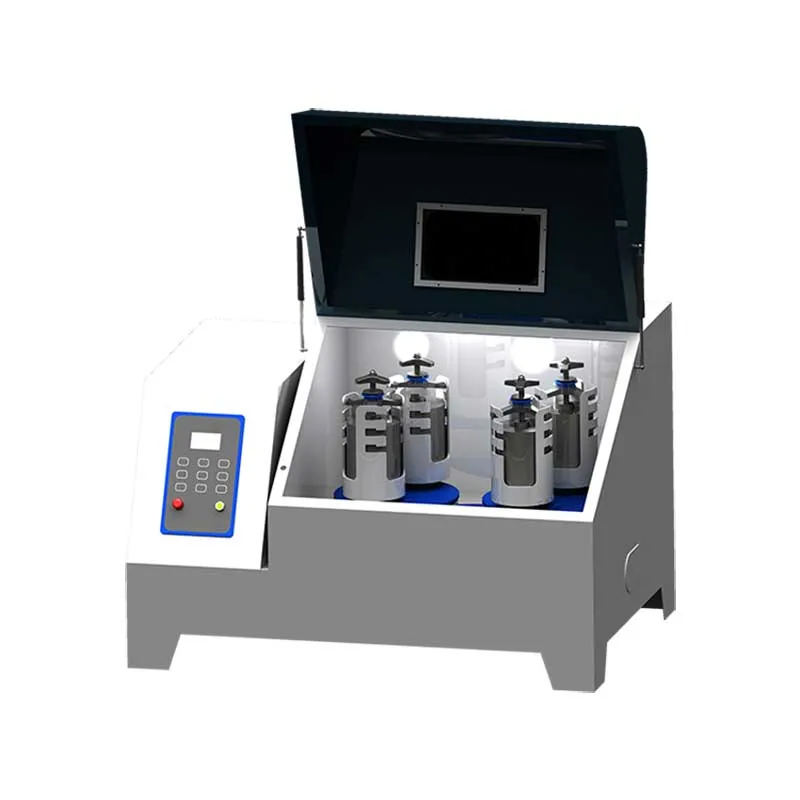

Standard Milling Jars & Media (Two Milling Jars are included)	One 80 ml Nylon Jar with a set of Zirconia milling balls (4 pcs of 11.5 mm, 10 pcs of 10 mm and 10 pcs of 8mm) are included. It is suitable for grinding / milling the materials with minimized contamination. One 80 ml Stainless Steel Jar with a set of SS milling balls (20 pcs) are included for achieving a finer particle size.
Power Input	Single-phase 208- 240VAC 50/60Hz For 110V, please order a 750W transformer The power plug is not included for the 220 VAC version.
Motor Power Consumption	300W
Oscillation Frequency	1,200 rounds/min
Timing Range	0 to 30 minutes for built-in mechanical timer Warning: Running time for the mill should be less than 30 minutes, otherwise the mill may overheat.
Maximum Feeding Capacity	1/3 of the capacity of the ball milling tank
Feeding Granularity	<1mm
Discharging Granularity	0.1 micron minimum for certain material (Mainly ceramic material)
Noise Level	87dBA (standing at 1ft with the machine lid open and SS milling balls in the jar)
Speed Controller	Variable speed version (0 - 1200 RPM) by 3 phase motor and speed controller is available at extra price.
Overall Dimensions	Mill: 415mm(L) x 365mm(W) x 285mm(H) Speed Controller: 260mm(L) x 170mm(W) x 240mm(H)
Net Weight	40 kg (88 lbs)

High Speed Vibrating Ball Mill with Two Jars for Milling and Mixing Solids, Suspended Liquids

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

High Speed Vibrating Ball Mill with Two Jars for Milling and Mixing Solids, Suspended Liquids

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
