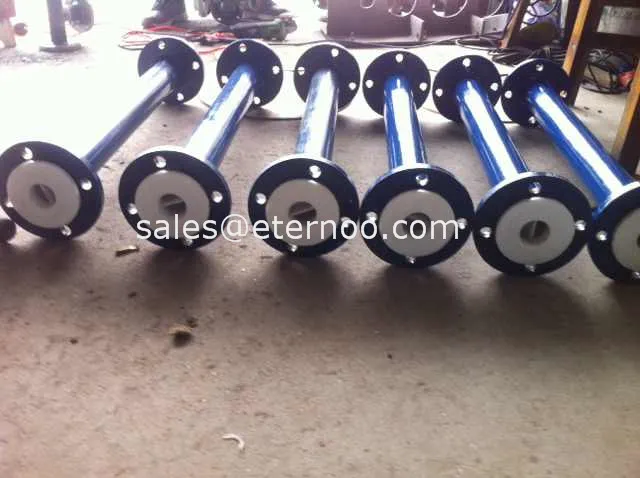

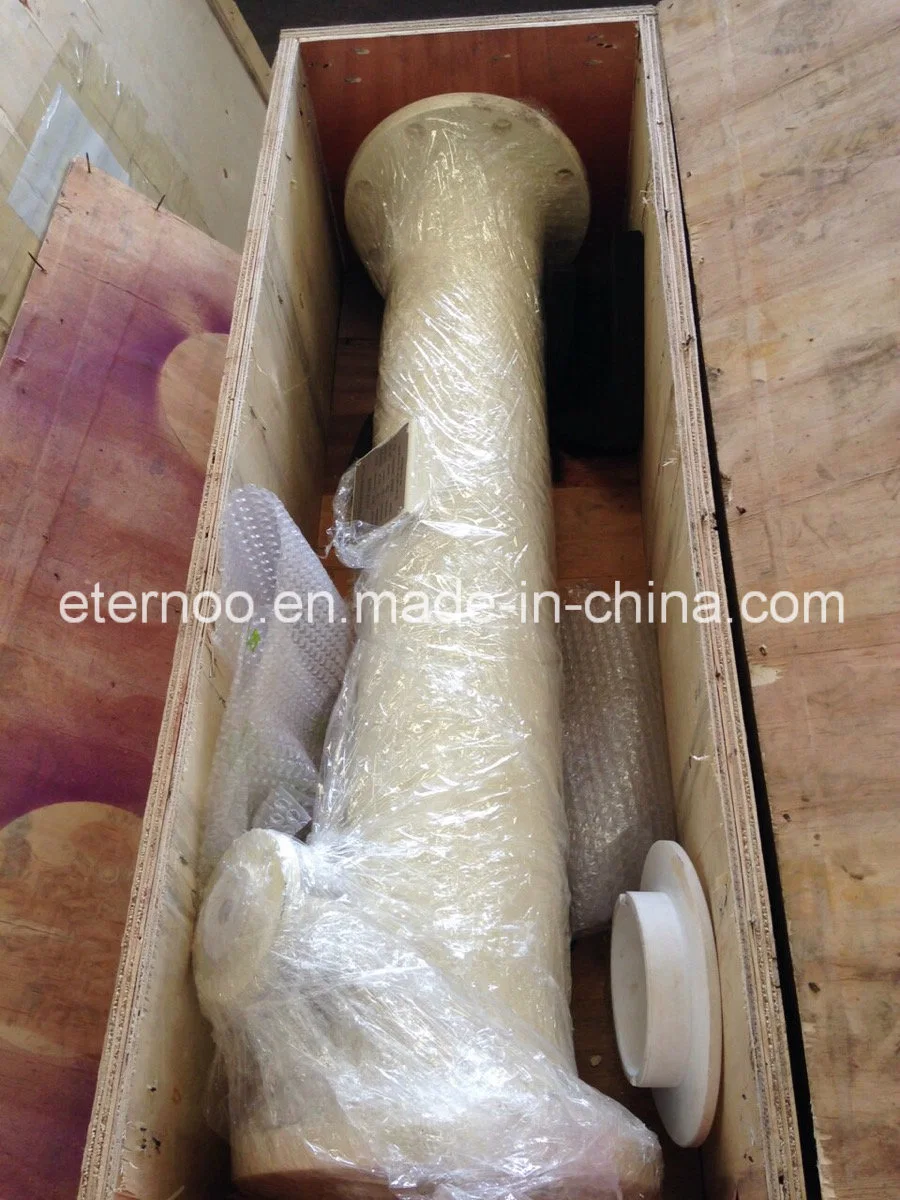

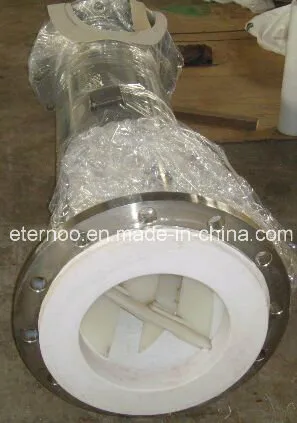

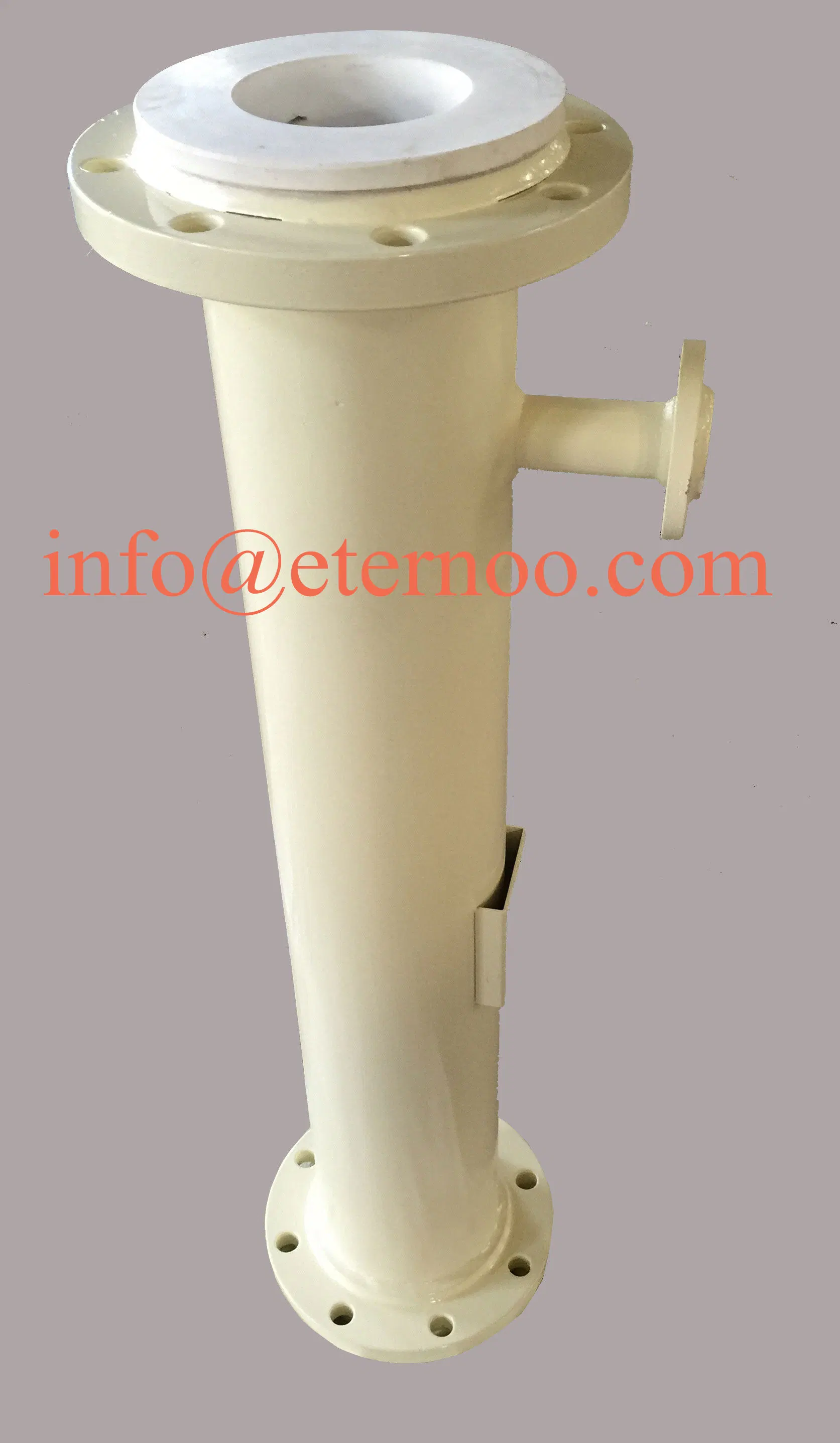

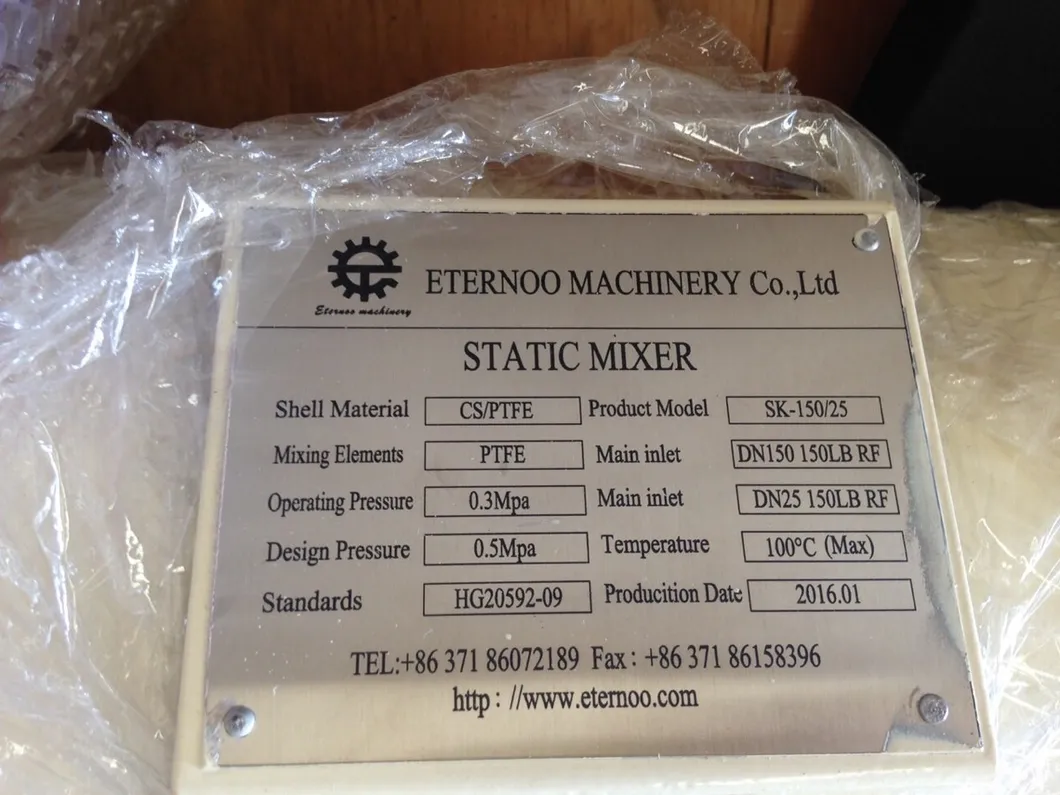

Helical Static Mixer Sk-150 Ss316L Lining with PTFE/PVDF

We are very professional on mixing, separation, and filtration equipment. Now we mainly
produce 8 series of static mixer, which is SV, SK, SH, SL, SX, SQS series, and all kinds of pipe-line
filters, precision filters, automatic self cleaning and back washing filters and the other water
treatment equipment and accessories.
Static mixer product is widely used for petroleum industry, chemical industry, pesticide, paints,
food industry, paper making, environment protection industry, mining and so on, mixing, extraction
and reaction. It is installed in many equipment.
Static Mixer are manufacturing according to JB/T7660-1995 <static mixer standards>,to design,
produce and test.


SK static mixer
A. Product feature
SK element is welded by single pore left and right twisted spiral plate. Max. dispersion:10um,fluid to
fluid and fluid to solids uniformity coefficient <5%
B. Function
Applicable to mixing, emulsification, reaction, absorb, extraction, heat transfer of Chemical, petroleum,
medic ion, precision chemical, plastics, color matching, environment protecting, synthetic fibre etc.
departments. Especially suitable to small flow along with impurity and high viscosity medium <106CP.
C. Parameters
model DN
Hydraulic
Diameter
Flow rate
(m3/h)
Model DN
Hydraulic
diameter
Flow rate
(m3/h)
SK-5/10 10 5 0.15-0.3 SK-50/100 100 50 14-28
SK-7.5/15 15 7.5 0.3-0.6 SK-62.5/125 125 62.5 22-44
SK-10/20 20 10 0.6-1.2 SK-75/150 150 75 31-66
SK-12.5/25 25 12.5 0.9-1.8 SK-100/200 200 100 56-110
SK-16/32 32 16 1.4-3.2 SK-125/250 250 125 88-177
SK-20/40 40 20 2.2-4.5 SK-150/300 300 150 127-250
SK-25/50 50 25 3.5-7 SK-175/350 350 175 173-340
SK-32.5/65 65 32.5 5.9-12 SK-200/400 400 200 226-450
SK-40/80 80 40 9-18 SK-250/500 500 250 353-700


SX static mixer
A. Product feature
SX element is made of many X shape cross elements. uniformity coefficient <5%.
B. Parameters
Model DN
Hydraulic
diameter
Flow rate
(m3/h)
Model DN
Hydrauli
c
diameter
Flow rate
(m3/h)
SX-12.5/50 50 12.5 3.5-7 SX-50/200 200 50 56-110
SX-16.25/65 65 16.25 6-12.25 SX-62.5/250 250 62.5 88-176
SX-20/80 80 20 9-18 SX-75/300 300 75 125-250
SX-25/100 100 25 14-28 SX-87.5/350 350 87.5 173-340
SX-31.25/125 125 31.25 22-44 SX-100/400 400 100 226-450
SX-37.5/150 150 37.5 30-60 SX-125/500 500 125 350-700
C. Function
Applicable to middle and high viscosity <104 CP fluid to fluid reaction, mixing, absorb process or
liquids who producing high polymer products, especially for bigger capacity.
