Product Description

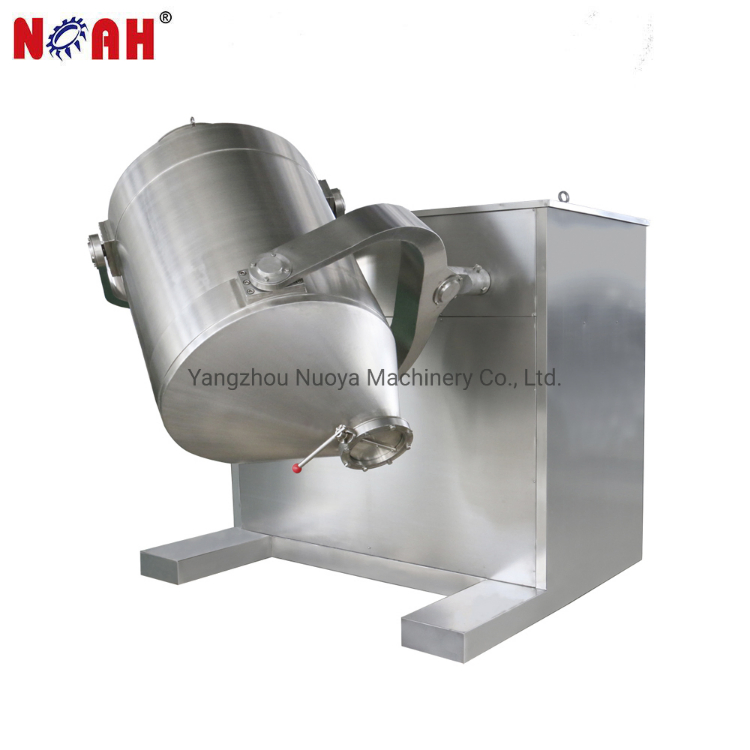

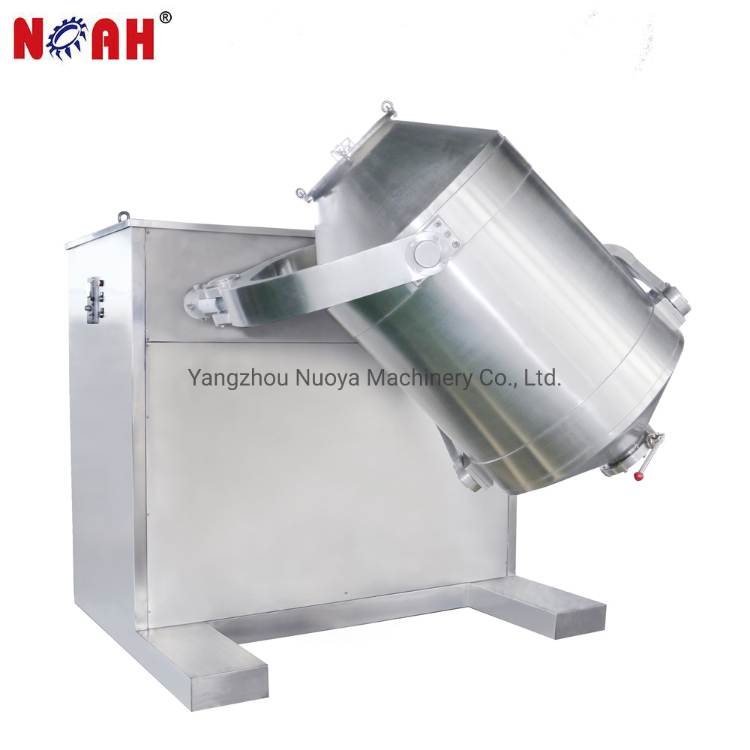

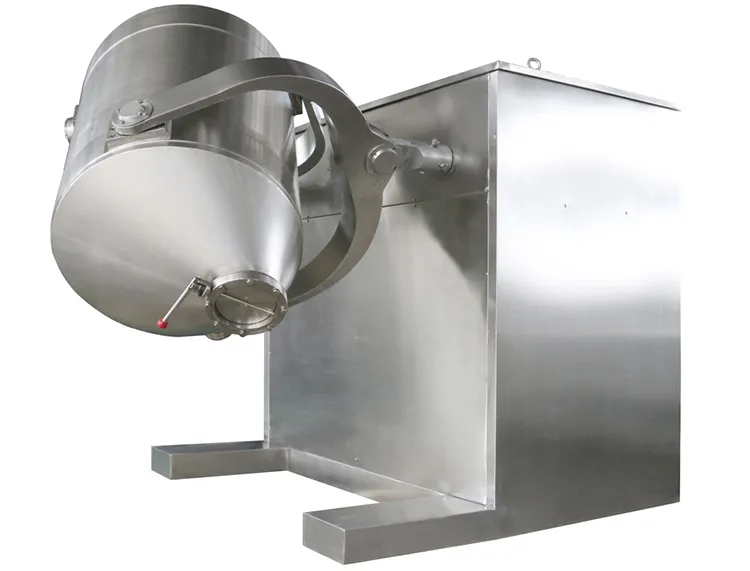

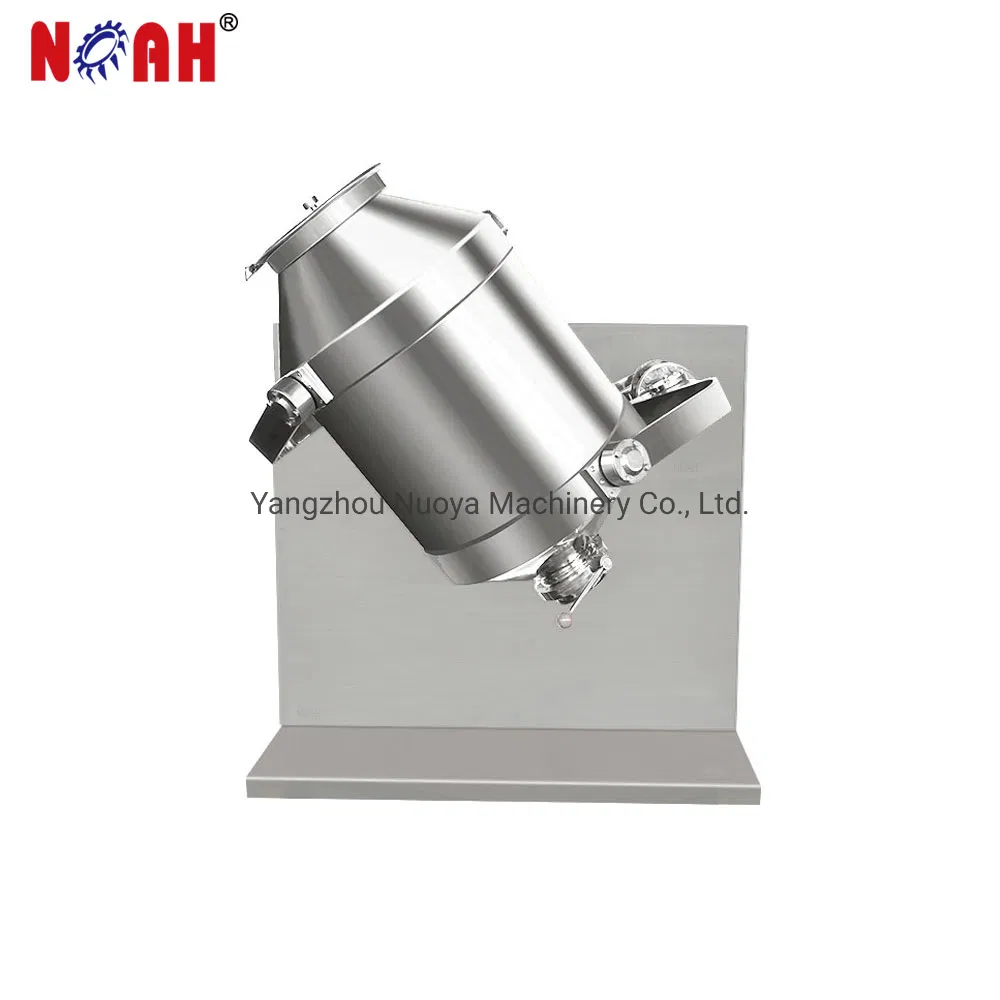

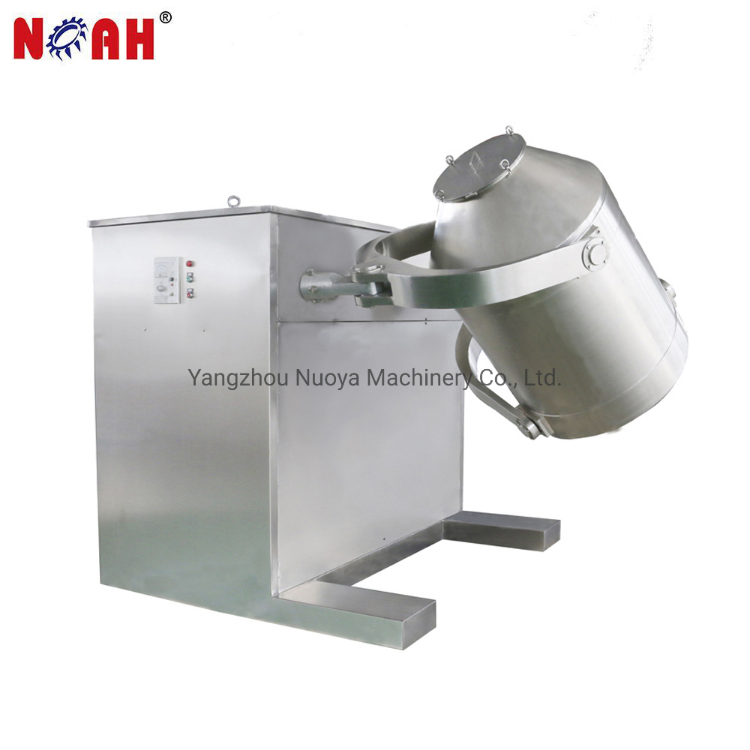

HD Pharmaceutical Three-dimensional Motion Mixer

I. Applications

HD series Multi directional Movement Mixer is a novel materials mixing machine widely applicable to industries such as pharmaceutical,chemical,foodstuff and light industry as well as R&D. institutes. The machine can perform a very uniform mixing of power or granular materials with a good mobility.

II. working principle

When the machine is in operation. because of the running actions of the mixing tank in multi direction, the fluxion and diffuse of the various kinds of materials are sped up in the process of mixing. At the same time, the phenomenon is avoid that the congregation and segregation of the material in gravity ratio occaning due to the centrifulgal force in the normal mixer and extremely good effect can be obtained.

ITEM	TYPE
ITEM	HD100	HD200	HD400	HD600	HD800	HD1000
Volume of tank	100 L	200 L	400 L	600 L	800 L	1000 L
Max.load capacity	75 L	160 L	320 L	480 L	640 L	800 L
Max.load weight	50 kg	100 kg	200 kg	300 kg	400 kg	600 kg
Rotary speed of the Main shaft	O-15 r/min
Power	1.5 Kw	2.2 Kw	4 Kw	5.5 Kw	7.5 Kw	11 Kw
Size(LWH)(mm)	120017001500	140018001600	180021001950	190023002250	220025002590	225026002600
Weight	500 kg	800 kg	1200 kg	1500 kg	2000 kg	2500 kg
