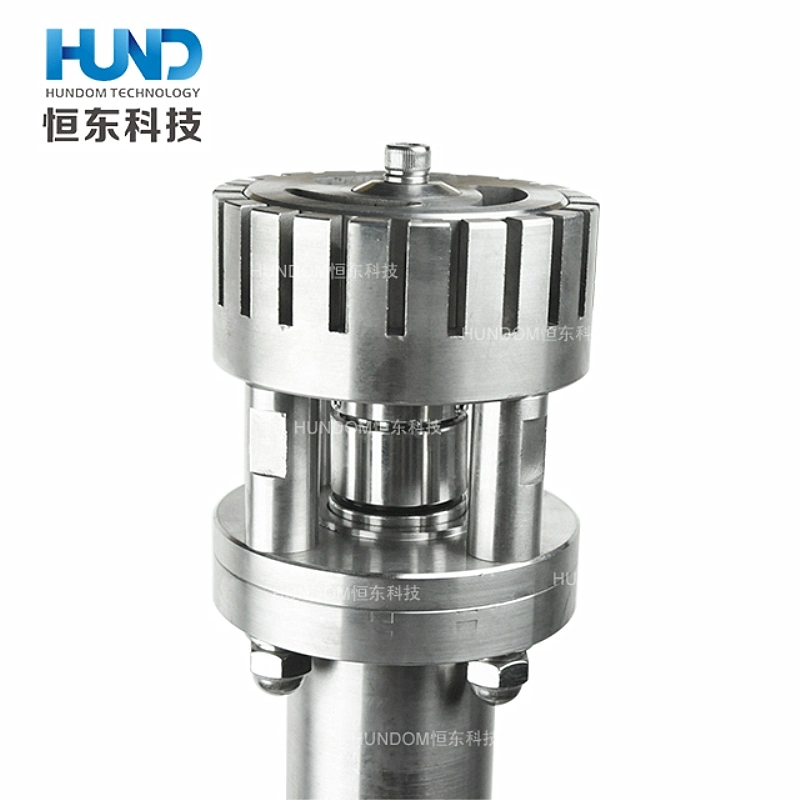

Good Quality Sanitary High Shear Emulsifier Homogenizer Batch Mixer
Tag:Good Quality Sanitary High Shear Emulsifier Homogenizer Batch MixerInstallation<<Top entry, open vessel These mixers are used in an open vessel, that is, a vessel with normal pressure. They are top entry mixers, can be installed onto a lifting stand, or directly onto the vessel by a flange......
Send Inquiry
Product Description
Tag:Good Quality Sanitary High Shear Emulsifier Homogenizer Batch Mixer

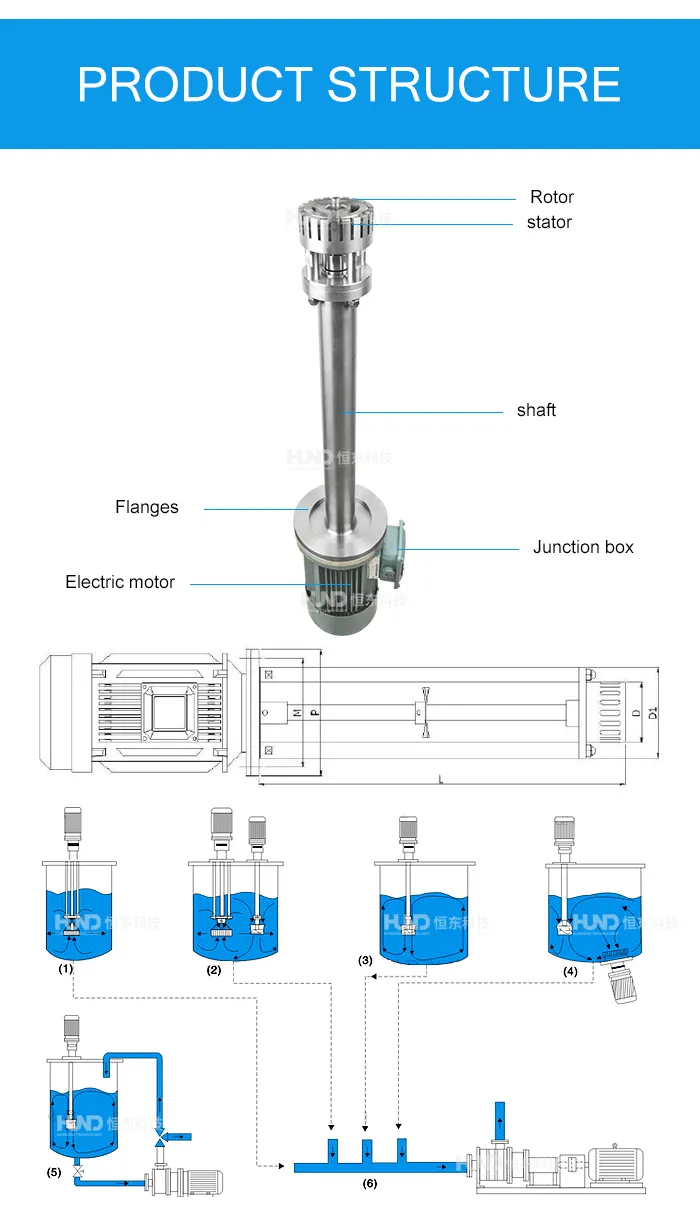

Installation
<<Top entry, open vessel
These mixers are used in an open vessel, that is, a vessel with normal pressure. They are top entry mixers, can be installed onto a lifting stand, or directly onto the vessel by a flange or traverse. A coupling between the motor and shaft is optional for low noise and stable running.
<<Top entry, closed vessel
These PS series top entry Batch Shear Mixers are with a mechanical seal, which enables them to be working in a pressurized or vacuum vessel. Single seal or double seals are available.
<<Side entry
The side entry mixers are very useful when the tank is deep but narrow, or when the top space of the vessel is limited for the top entry ones.
<<Bottom entry
The bottom mixers are outstanding when the liquid level in the tank can get very low during operation, or there is very limited space above or around the tank for either top or side mounted ones. What is more, strong vortex as well as aeration is greatly reduced with the PERMIX bottom mounted mixers.
Technical paramaeters
Product Show
About Hundom
Guangzhou Hundom Machinery Equipment Co., Ltd.has been manufacturing colloid mill, jacketed kettle, rotor pump, mixing tank and other machinery equipment for 14 years , putting quality as our first consideration. We own a team with rich experience in the field, if you have any question, contact us for the professional answer.
Guangzhou Hundom Machinery Technology Co.,Ltd.
Add:No. 115, No. 7, Haina Industrial Park, Shibi Street, Panyu District, Guangzhou City, Guangdong Province, China
Sales: Shum
Tel:+86-020-89081205
Mobile:+86-138-2213-4643
Welcome to visit our factory !
Installation
<<Top entry, open vessel
These mixers are used in an open vessel, that is, a vessel with normal pressure. They are top entry mixers, can be installed onto a lifting stand, or directly onto the vessel by a flange or traverse. A coupling between the motor and shaft is optional for low noise and stable running.
<<Top entry, closed vessel
These PS series top entry Batch Shear Mixers are with a mechanical seal, which enables them to be working in a pressurized or vacuum vessel. Single seal or double seals are available.
<<Side entry
The side entry mixers are very useful when the tank is deep but narrow, or when the top space of the vessel is limited for the top entry ones.
<<Bottom entry
The bottom mixers are outstanding when the liquid level in the tank can get very low during operation, or there is very limited space above or around the tank for either top or side mounted ones. What is more, strong vortex as well as aeration is greatly reduced with the PERMIX bottom mounted mixers.
Technical paramaeters
| Model | Capacity(L/H) | Power(kw) | Speed(rpm) |
| BRH-90 | 5-50 | 1.5 | 2800 |
| BRH-100 | 50-100 | 2.2 | 2800 |
| BRH-120 | 100-300 | 4 | 2800 |
| BRH-140 | 200-800 | 7.5 | 2800 |
| BRH-160 | 300-1000 | 11 | 2800 |
| BRH-180 | 500-1500 | 18.5 | 2800 |
| BRH-200 | 800-2000 | 22 | 1400 |
| BRH-220 | 1000-3000 | 30 | 1400 |
| BRH-240 | 1500-5000 | 37 | 1400 |
