Product Description

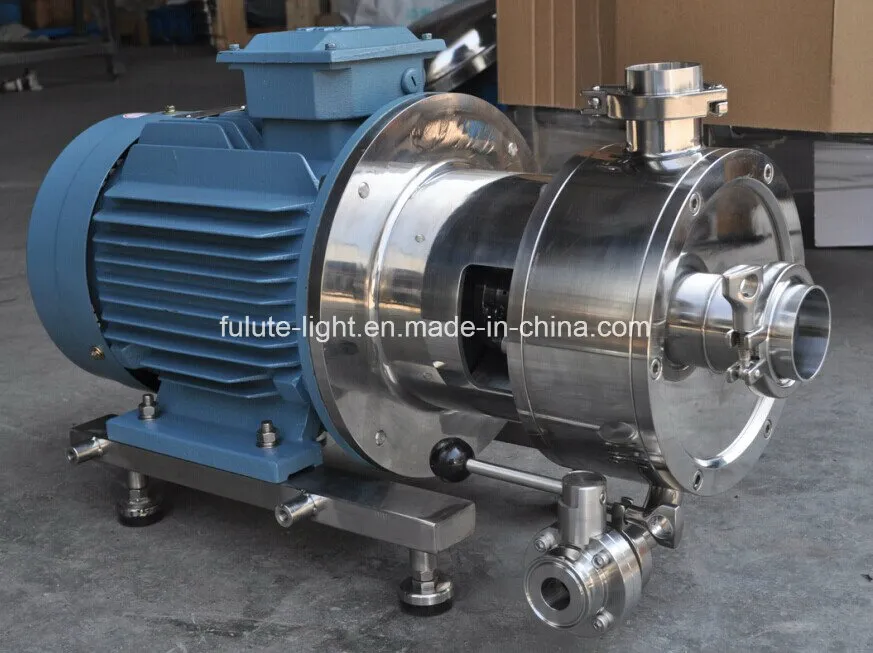

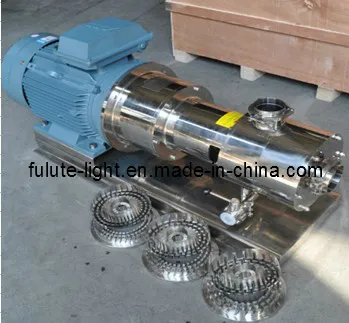

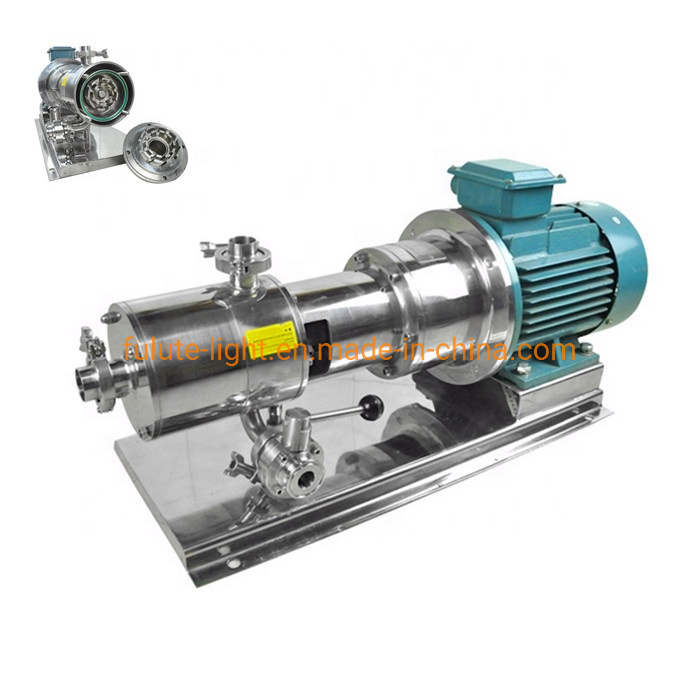

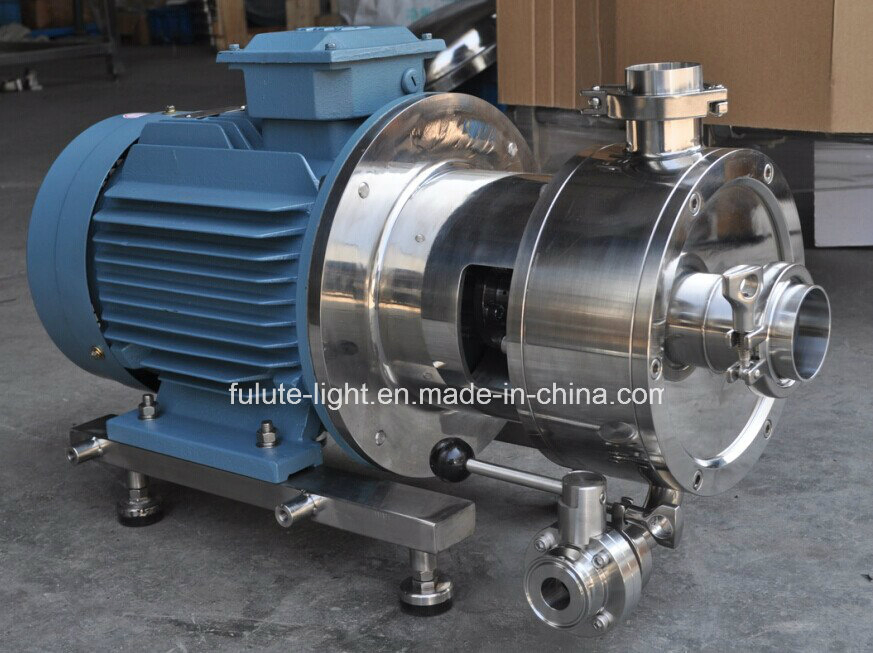

High Shear Inline mixer

Working Method:

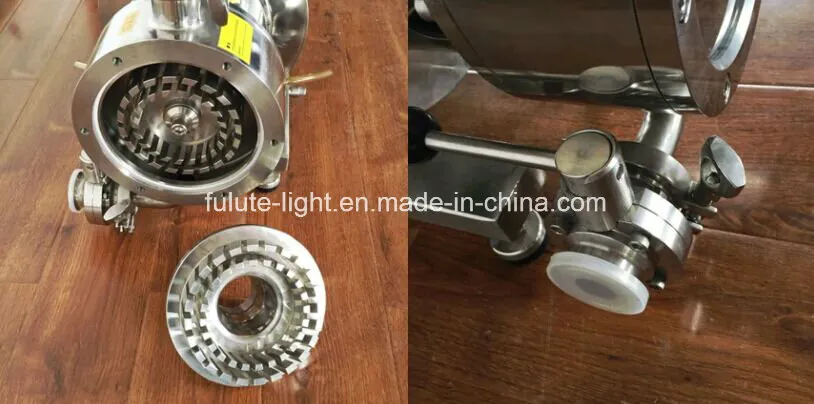

High Shear Inline mixer working principle: The rotor and stator work together to generate strong shearing power during speedy running to realize mixing, smashing and emulsion. Inline mixer could also be fixed on pipeline to do continuous work. The standard components are pump chamber, rotor and stator.
Inline mixer is applied to emulsify and disperse kinds of liquids continuously, transmits low viscosity material and mix powder and liquid. It is widely used in the field of Daily, Beverage, food, Pharmacy, Chemical industry etc.

Features of the Inline mixer
1. All wetted parts are grade 304 or 316 Stainless steel
2. Mechanical Seal for Sanitary Operation
3. Quick opening for easy cleaning
4. Hygienic Design.
5. Explosion-proof ABB Motor 3 Phase
6. Two Machine in one, an emulsifier and a centrifugal pump

With Inline mixer and batch mixer working together, The efficiency of emulsification process would be much higher.

If you need more information about our Inline mixer, Please contact us.
We will send you detail information of our various model type and price.

Model	Power (Kw)	Speed(Rpm)	Flow(M3/h)
BRL1-60	1.5	2800	0-1.5
BRL1-100	2.2	2800	0-3
BRL1-130	4	2800	0-4
BRL1-140	5.5	2800	0-5
BRL1-165	7.5	2800	0-8
BRL1-180	11	2800	0-12
BRL1-185	15	2800	0-18
BRL1-200	22	2800	0-25
BRL1-210	30	2800	0-35
BRL1-230	45	2800	0-50
BRL1-245	55	2800	0-75
BRL1-260	75	2800	0-90
BRL1-275	90	2800	0-110
BRL1-280	132	2800	0-130

BRL3-60	4	2800	0-4
BRL3-100	7.5	2800	0-8
BRL3-120	11	2800	0-12
BRL3-140	15	2800	0-18
BRL3-165	22	2800	0-22
BRL3-200	37	2800	0-30
BRL3-220	55	2800	0-40
BRL3-240	75	2800	0-55
BRL3-260	90	1480	0-65
BRL3-300	110	1480	0-80
BRL3-360	132	1480	0-100
BRL3-380	160	1480	0-120
BRL3-400	185	1480	0-140
