Ghj Series Mixer for Sugar Powder
GHJ Series Mixer For Sugar Powder1. This machine is suitable for the blending of fine powders, grumes.(1) CE confirmed, in accordance with GMP Standard(2) Long life of motor 2. Main ApplicationThe mixer is used ......
Send Inquiry
Product Description

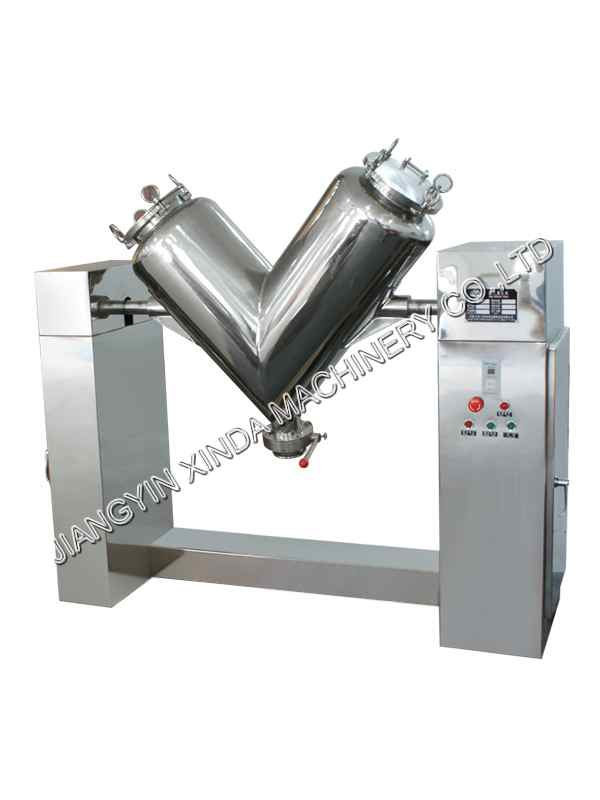

GHJ Series Mixer For Sugar Powder
1. This machine is suitable for the blending of fine powders, grumes.
(1) CE confirmed, in accordance with GMP Standard
(2) Long life of motor
2. Main Application
The mixer is used for the mixing of dry granules for pharmacy or other relative industries.
3. Characteristics
(1) This mixer is suitable for the blending of fine powders, grumes or over two varieties of materials with water content, as well as additive substance.
(2) Unique structure of mixing cylinder, high mixing efficiency, free of dead corner and even mixing.
(3) The mixer is made of stainless steel, with inside and outside walls polished.
4. Technicial data:
1. This machine is suitable for the blending of fine powders, grumes.
(1) CE confirmed, in accordance with GMP Standard
(2) Long life of motor
2. Main Application
The mixer is used for the mixing of dry granules for pharmacy or other relative industries.
3. Characteristics
(1) This mixer is suitable for the blending of fine powders, grumes or over two varieties of materials with water content, as well as additive substance.
(2) Unique structure of mixing cylinder, high mixing efficiency, free of dead corner and even mixing.
(3) The mixer is made of stainless steel, with inside and outside walls polished.
4. Technicial data:
| Model | 50 | 100 | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 4000 |
| Capacity(kg/time) | 15 | 100 | 50 | 80 | 150 | 250 | 400 | 500 | 650 | 1000 |
| Vacuum pump | W2 | W2 | W3orSK-1.5 | W3orSK-3 | W3orSK-3 | W3orSK-3 | W4orSK-6 | W4orSK-6 | ||
| Feeding time(min) | 4-6 | 6-9 | 6-10 | 12-18 | 12-18 | 12-18 | ||||
| Mixing time(min) | 4-8 | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Total volume(m³ ) | 0.05 | 0.1 | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2 | 2.5 | 4 |
| Cylinder speed(r/min) | 20 | 16 | 15 | 15 | 12 | 12 | 12 | 10 | 8 | 6 |
| Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 |
| Weight(kg) | 180 | 280 | 350 | 480 | 780 | 1050 | 1280 | 1700 | 2300 | 3800 |
| Rotation diameter(mm) | 680 | 900 | 1400 | 1600 | 1900 | 2400 | 2520 | 2900 | 3100 | 3800 |
| Overall size(mm) | 1320*100*1100 | 1470*720*1350 | 1910*840*1700 | 2210*1040*1900 | 2500*1220*2420 | 3200*1650*2600 | 3190*1600*3100 | 3800*1900*3310 | 3800*1900*3790 | 4945*2200*4230 |
