Ghj Series High Efficient Mixing Machine
GHJ Series High Efficient Mixing Machine1. This machine is suitable for the blending of fine powders, grumes.(1) CE confirmed, in accordance with GMP Standard(2) Long life of motor (ABB, SIMENS)......
Send Inquiry
Product Description

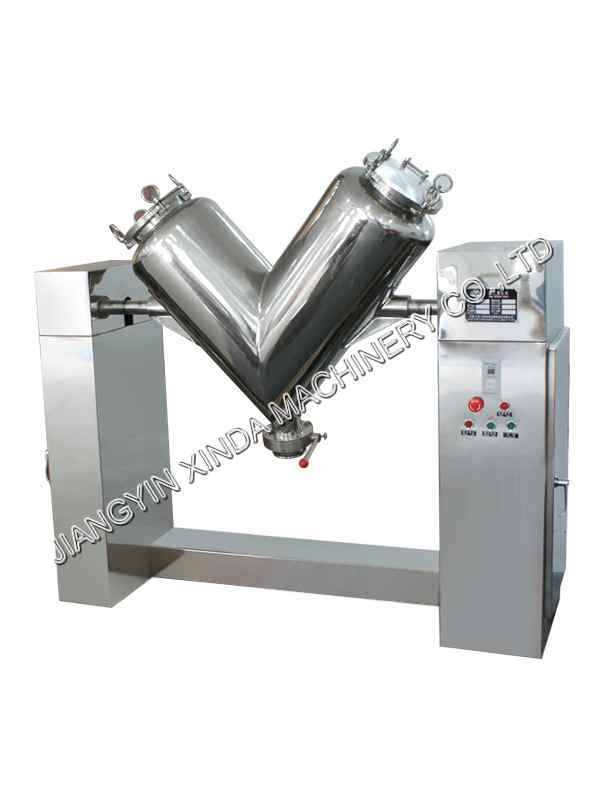

GHJ Series High Efficient Mixing Machine
1. This machine is suitable for the blending of fine powders, grumes.
(1) CE confirmed, in accordance with GMP Standard
(2) Long life of motor (ABB, SIMENS)
2. Main Application
(1) The machine, introduced by new technology abroad, is applied for forced agitating bleding.
3. Characteristics
(1) This mixer is suitable for the blending of fine powders, grumes or over two varieties of materials with water content, as well as additive substance.
(2) Unique structure of mixing cylinder, high mixing efficiency, free of dead corner and even mixing.
(3) The mixer is made of stainless steel, with inside and outside walls polished.
4. Technicial data:
1. This machine is suitable for the blending of fine powders, grumes.
(1) CE confirmed, in accordance with GMP Standard
(2) Long life of motor (ABB, SIMENS)
2. Main Application
(1) The machine, introduced by new technology abroad, is applied for forced agitating bleding.
3. Characteristics
(1) This mixer is suitable for the blending of fine powders, grumes or over two varieties of materials with water content, as well as additive substance.
(2) Unique structure of mixing cylinder, high mixing efficiency, free of dead corner and even mixing.
(3) The mixer is made of stainless steel, with inside and outside walls polished.
4. Technicial data:
| Model | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 4000 |
| Capacity(kg/time) | 50 | 80 | 150 | 250 | 400 | 500 | 650 | 1000 |
| Vacuum pump | W2 | W2 | W3orSK-1.5 | W3orSK-3 | W3orSK-3 | W3orSK-3 | W4orSK-6 | W4orSK-6 |
| Feeding time(min) | 4-6 | 6-9 | 6-10 | 12-18 | 12-18 | 12-18 | ||
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Total volume(m³ ) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2 | 2.5 | 4 |
| Cylinder speed(r/min) | 15 | 15 | 12 | 12 | 12 | 10 | 8 | 6 |
| Motor power(kw) | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 |
| Weight(kg) | 350 | 480 | 780 | 1050 | 1280 | 1700 | 2300 | 3800 |
| Rotation diameter(mm) | 1400 | 1600 | 1900 | 2400 | 2520 | 2900 | 3100 | 3800 |
| Overall size(mm) | 1910*840*1700 | 2210*1040*1900 | 2500*1220*2420 | 3200*1650*2600 | 3190*1600*3100 | 3800*1900*3310 | 3800*1900*3790 | 4945*2200*4230 |
