China Chemical Liquid with Suspended Solids Static Mixer/ Inline Pipe Mixer

Product Description

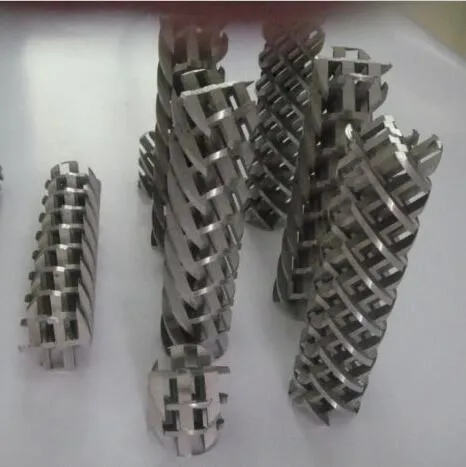

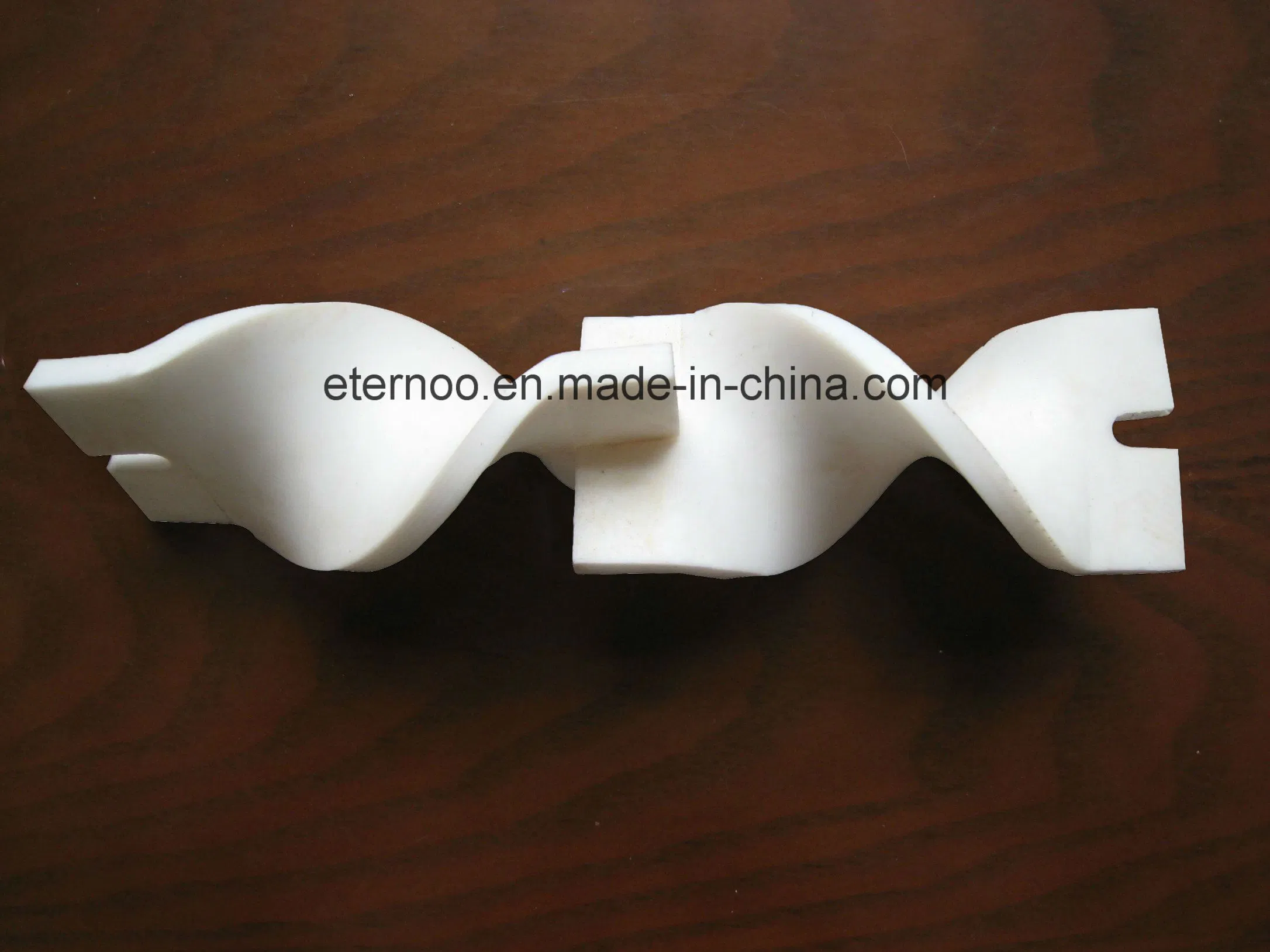

Static mixer is a kind of high efficiency mixing equipment without moving parts. In addition to apply to Petroleum refining and chemical plant, they are also widely used in Medicine, Food, The mines, Plastic extruder and Environmental departments etc. compared to mechanical agitator, colloidmill, homogenizer, venture etc. traditional mixing devices, static mixer has many advantages like Simpler structure, Compact size, Low cost, Less energy consumption, Easy operation, No need to fix, Good mixing performance. They can take place of traditional equipments which use for mixing Liquid to liquid, Liquid to solid, Gas to gas, and Emulsification, Neutralization, Absorption, Extraction, Chemical reaction and Enhanced Heat Transfer process etc.

Specification

Model	DN(mm)	dh(mm)	Q(m3/h)
SX-12.5/50	50	12.5	3.5-7.0
SX-16.25/65	65	16.25	6-12
SX-20/80	80	20	9-18
SX-25/100	100	25	14-28
SX-31.25/125	125	31.25	22-44
SX-37.5/150	150	37.5	30-60
SX-50/200	200	50	56-110
SX-62.5/250	250	62.5	88-176
SX-75/300	300	75	125-250
SX-87.5/350	350	87.5	173-346
SX-100/400	400	100	226-452
SX-125/500	500	125	353-706

The Calculation of pressure drop, depends on different types of static mixers. If need, we will consider it for you.

Application :

1. Polymer mixing

2. Light Ketone benzene dewaxed oil

3. Pulp chlorination and bleaching

4. Crude oil alkali injection progress

Specification

Model	DN(mm)	dh(mm)	Q(m3/h)
SX-12.5/50	50	12.5	3.5-7.0
SX-16.25/65	65	16.25	6-12
SX-20/80	80	20	9-18
SX-25/100	100	25	14-28
SX-31.25/125	125	31.25	22-44
SX-37.5/150	150	37.5	30-60
SX-50/200	200	50	56-110
SX-62.5/250	250	62.5	88-176
SX-75/300	300	75	125-250
SX-87.5/350	350	87.5	173-346
SX-100/400	400	100	226-452
SX-125/500	500	125	353-706
