Product Description
Mixing machine:Characteristic and parameter :
It is an indispensable device for daily chemical industry. such as the production of medicine, pesticides, food, liquid soap, commodity, cosmetics, chemical shampoo, bath gel and other mucus inter-mixed, dissolved, mixing stirring, it is ideal for daily chemical industry equipment .
The blending system adopts single-direction or double- direction wall scraping blending and frequency conversion speed adjustment to satisfy production of different technological requirements.
Materials can be heated or cooled according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer requirements.
Various forms of blending vanes are suitable for production of different types of products.
Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.
Bottom installation type dispersing head and XINJI pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed etc.
Features
Material SUS316 material to make contact with some of the products comply with GMP requirements.
High-speed disperser (homogenizer) strongly mixed decentralized thick, solid, liquid, The production of the material in the liquid detergent can quickly dissolve AES, AESA, LSA and other insoluble Materials, save energy shorten the production cycle.
discharge gear pump cycle device, can accelerate quickly out of shape and material.

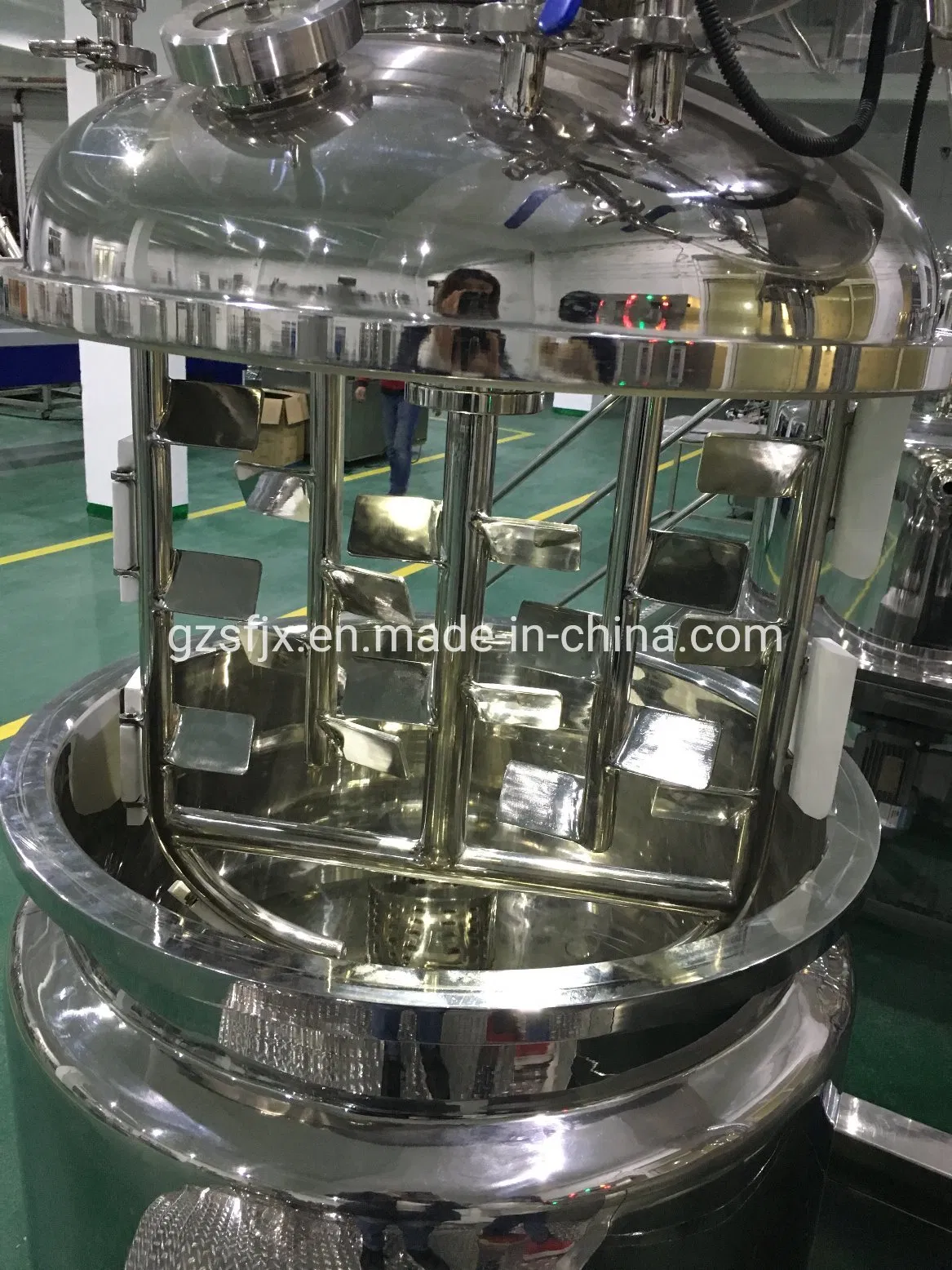

scraped wall mixing, ready to cater to the shape of stirred tank off, sweep the pot wall sticky material.
pot and the pipe surface mirror polishing.
(Note: According to the characteristics of your production process requirements, the design of different washing liquid Polyester production line. )
thchnical parameter
| Specification | Volume (L) | Mixing Power (KW) | Mixing speed(R/MIN)) | Homogeneous power(KW) | Homogeneous speed(R/MIN) | Type of heating |
| 200 L | 200 | 1.5 | 10-60 | 3 | 2890 | Steam or electric |
| 300 L | 300 | 1.5-2.2 | 10-60 | 3 | 2890 | |
| 500 L | 500 | 2.2 | 10-60 | 4 | 2890 | |
| 1000 L | 1000 | 2.2-4 | 10-60 | 7.5 | 2890 | |
| 1500 L | 1500 | 4-5.5 | 10-60 | 11 | 2890 | |
| 2000 L | 2000 | 5.5 | 10-60 | 11 | 2890 | |
| 3000 L | 3000 | 7.5 | 10-60 | 15 | 2890 | |
| 5000 L | 5000 | 11 | 10-60 | 22 | 2890 |

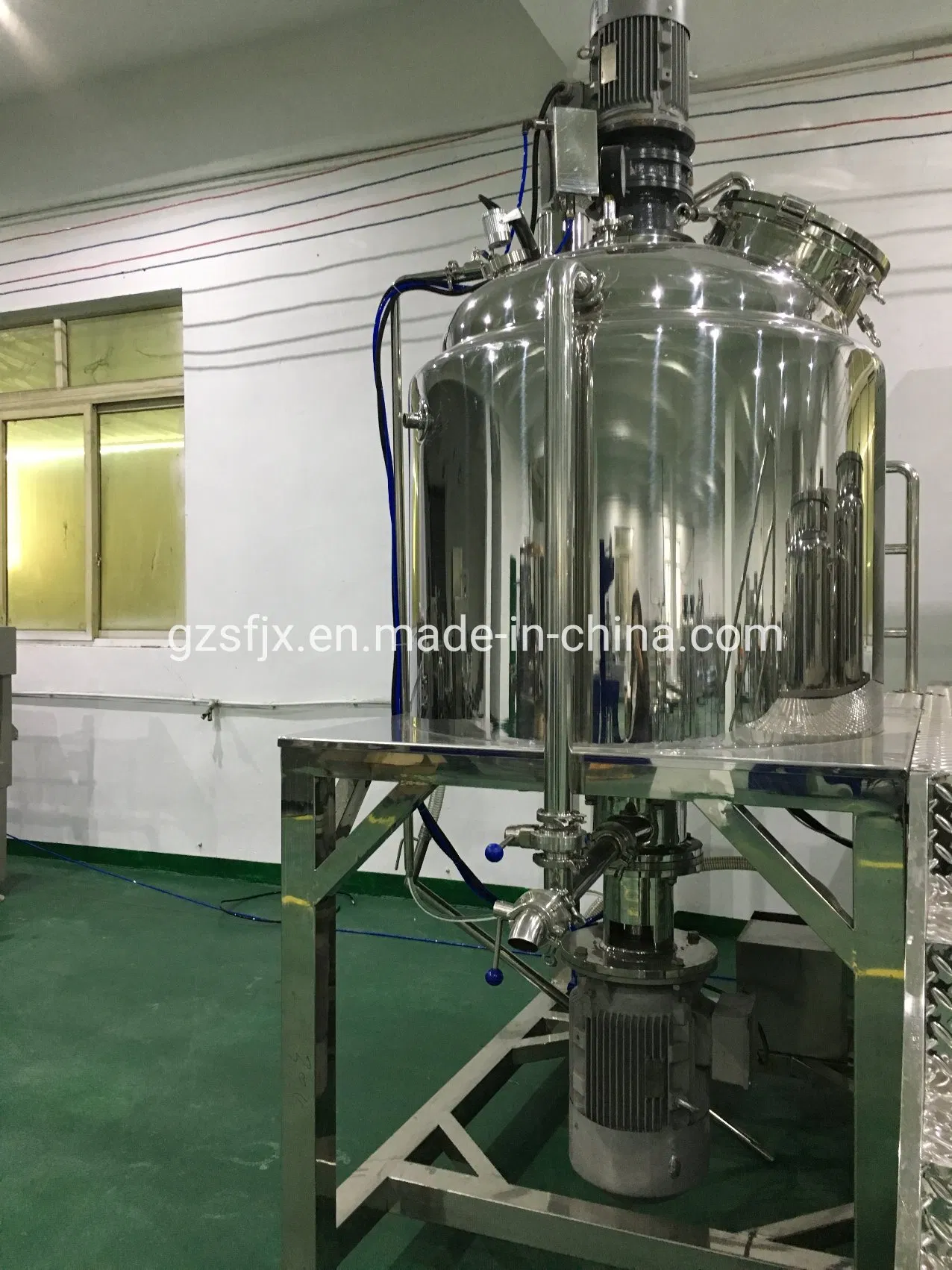

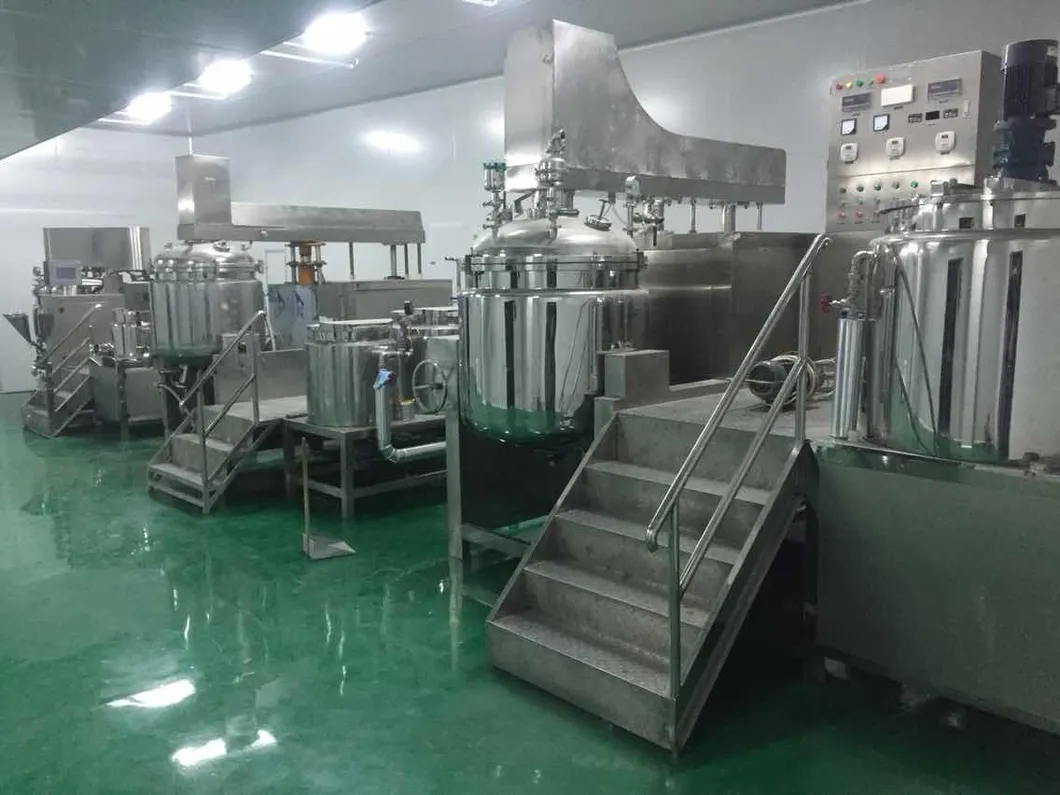

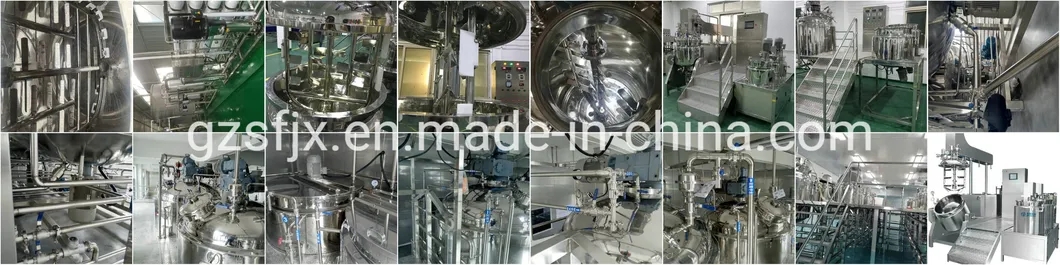

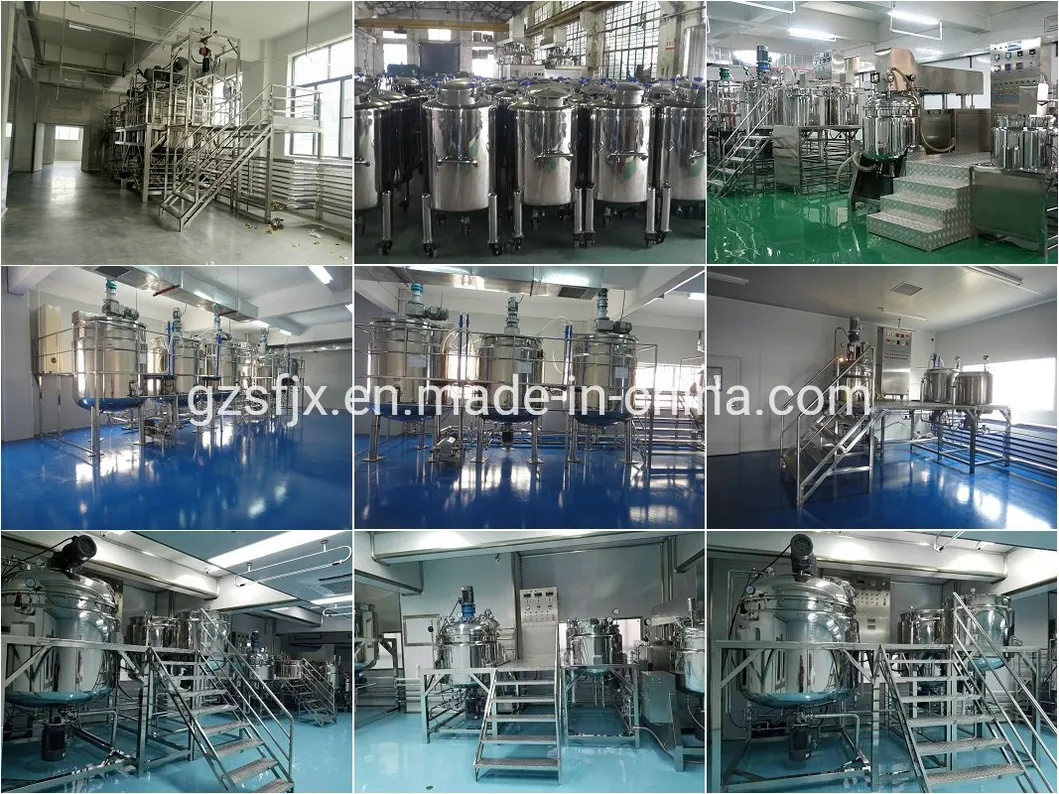

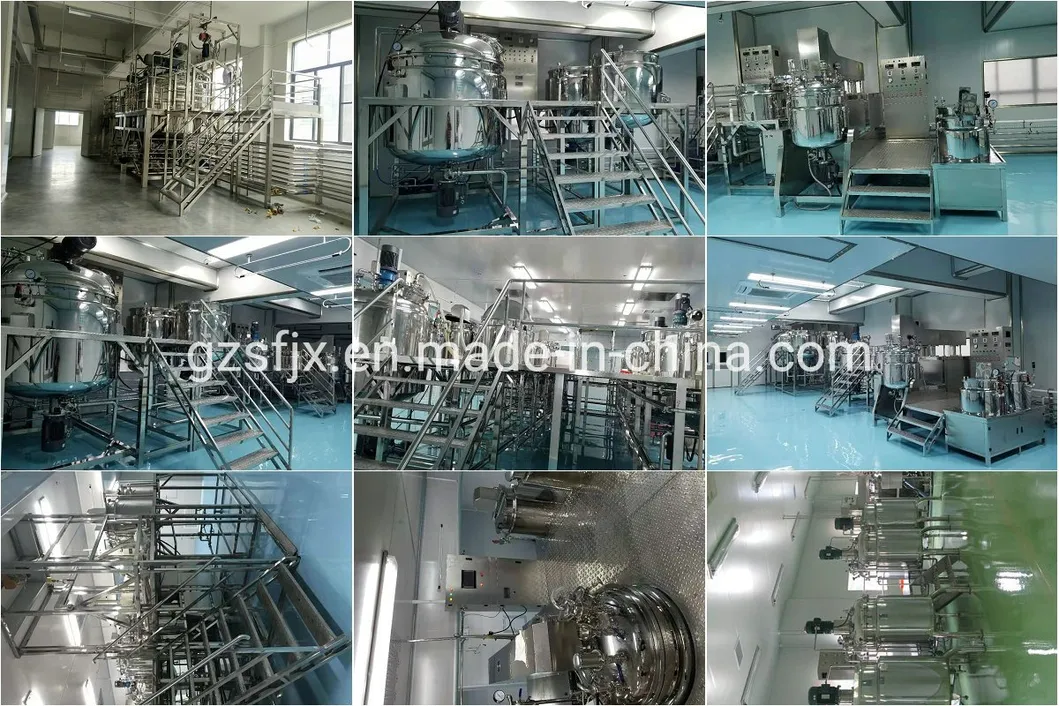

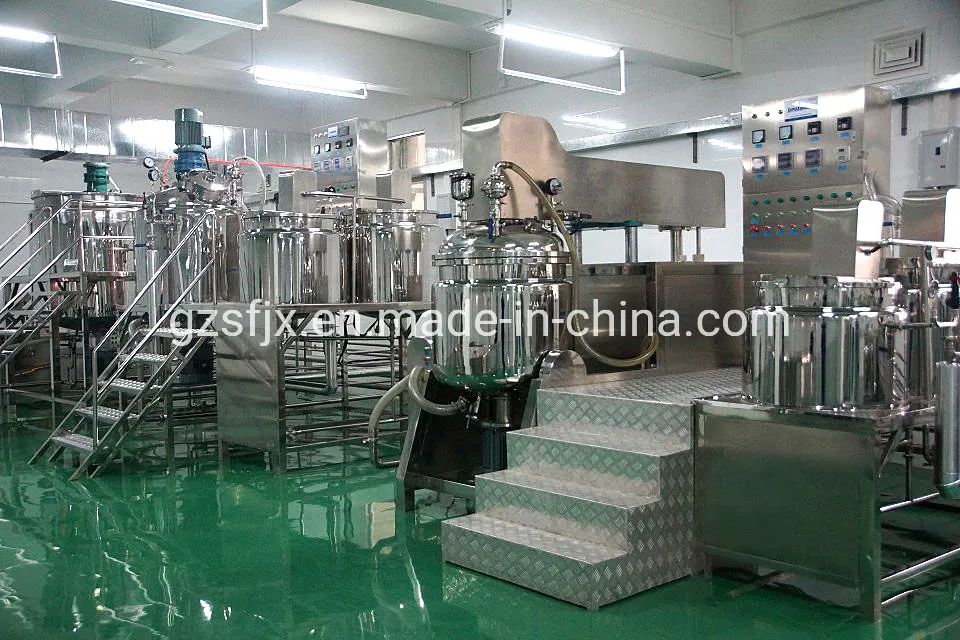

Detailed Images:

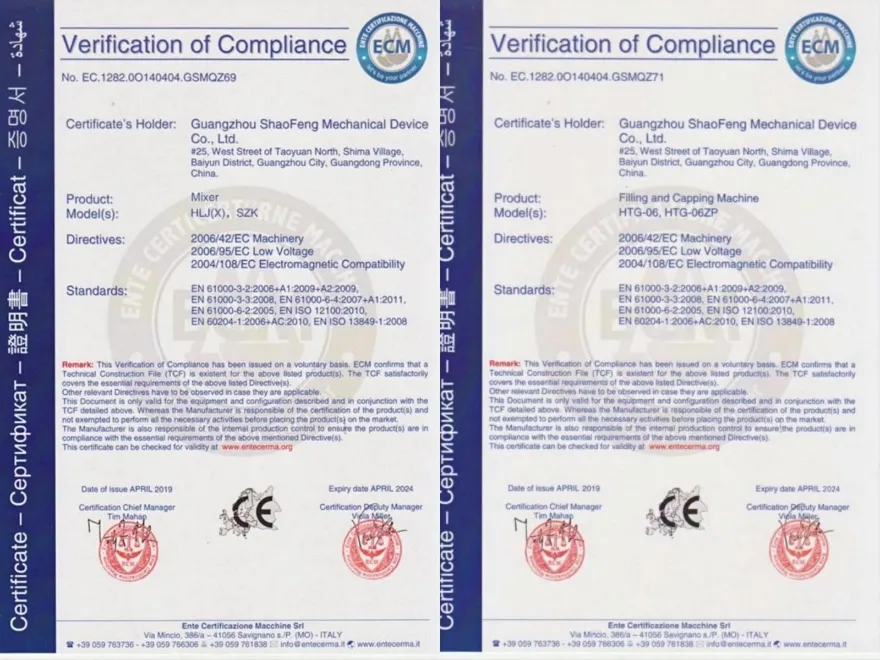

Certificate
PACKING AND SHIPPING
SERVICE
Pre Sales Service After Sales Service
* Inquiry and consulting support. *We will adjust the machine to fit for your product before delivery.
*Sample testing support. *We provide useful instructions of machine.
*24 hours on line anwser your confusion. *Training how to instal the machine,training how to use the machine.
*Welcome to view our factory *Free parts,lifelong maintenance.
*Take video as clent's

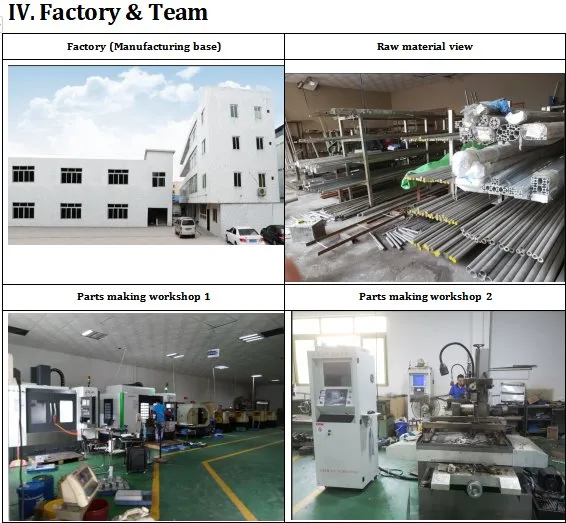

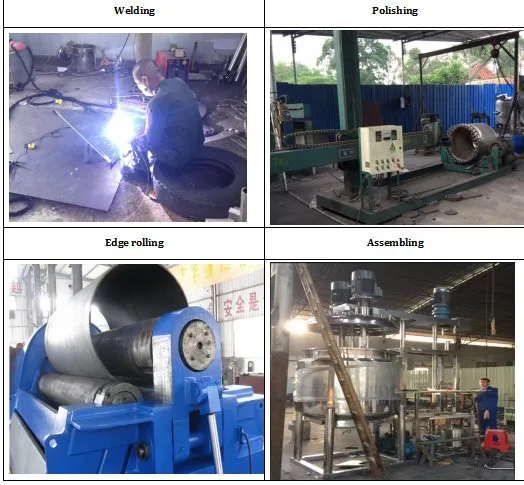

COMPANY INFORMATION
