Batch Production High Shear Emulsifier
Hydraulic lifting Homogenizer (EBR)Description:High Shear Homogenizer/emulsifier is main product of ELE company and precise emulsification working head is the key for homogenizing/emulsifying effect. The precision between stator and rotor is composed of factors such as space force, concentricity, ma......
Send Inquiry
Product Description
Hydraulic lifting Homogenizer (EBR)
Description:
High Shear Homogenizer/emulsifier is main product of ELE company and precise emulsification working head is the key for homogenizing/emulsifying effect. The precision between stator and rotor is composed of factors such as space force, concentricity, material hardness, shearing area, linear velocity etc. EBR Series Batch High Shear Homogenizer
/emulsifier is widely used in chemical production, liquid with liquid, liquid with powder. With high homogenizing/emulsifying efficiency, processing time gets quite shorter.
Features:
1, precise combination between stator and rotor for our High Shear Homogenizer/emulsifier;
2, Fine forging for stator and rotor, linear cutting form, claw type structure, two-way suction, high efficiency for circulation, no dead corner for ELE emulsion machines;
3, gap between rotor and stator 0.2mm and short working time;
4, After special heat-treatment, stator and rotor surface wear-resistance is 2 to 3 times of ordinary stainless steel;

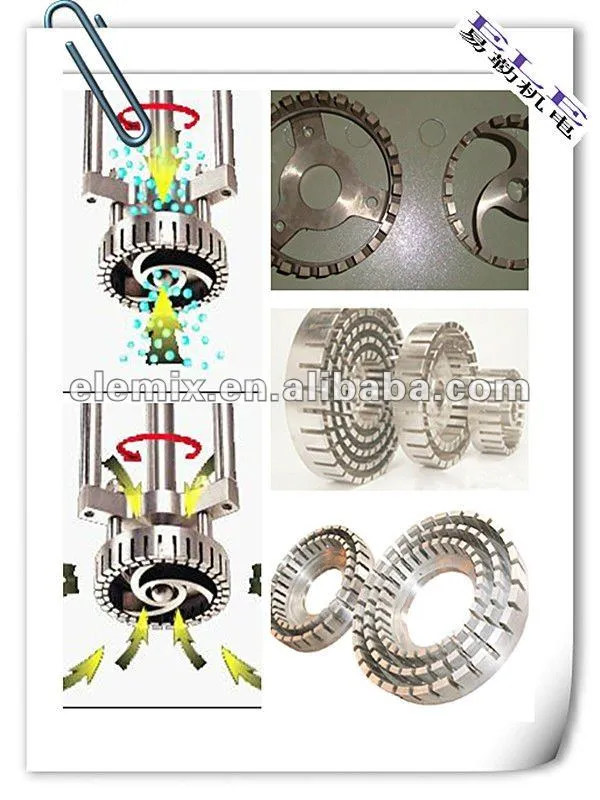

5, Claw-structure, drawing material from the bottom of tank into the centre of working head because of the centrifugal force speed up the toward the side of working head;
6, CNC (numerical control machine) guarantee high accuracy space between stator and rotor and being more stable for the gravity;
7, the key parts are processed via fine grinding to make combination between stator and rotor reach American Standards;
8, Dynamic and static balance test for rotating parts to guarantee stability during high speed shearing for the emulsifying machine, low noise to prolong working life of high shear homogenizer/emulsifier;
9, ex-proof motor (option);

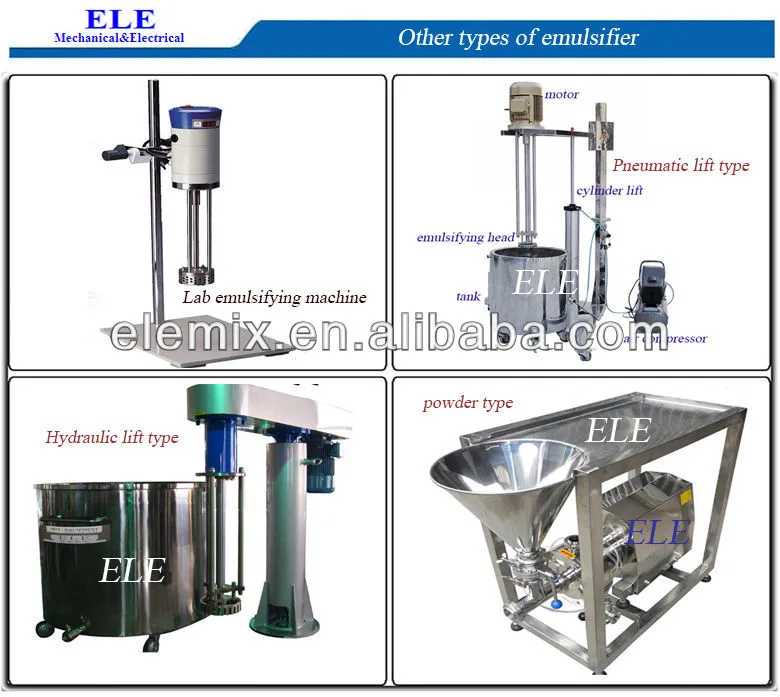

10, Hydraulic Lift or Pneumatic Lift
Specifications
Description:
High Shear Homogenizer/emulsifier is main product of ELE company and precise emulsification working head is the key for homogenizing/emulsifying effect. The precision between stator and rotor is composed of factors such as space force, concentricity, material hardness, shearing area, linear velocity etc. EBR Series Batch High Shear Homogenizer
/emulsifier is widely used in chemical production, liquid with liquid, liquid with powder. With high homogenizing/emulsifying efficiency, processing time gets quite shorter.
Features:
1, precise combination between stator and rotor for our High Shear Homogenizer/emulsifier;
2, Fine forging for stator and rotor, linear cutting form, claw type structure, two-way suction, high efficiency for circulation, no dead corner for ELE emulsion machines;
3, gap between rotor and stator 0.2mm and short working time;
4, After special heat-treatment, stator and rotor surface wear-resistance is 2 to 3 times of ordinary stainless steel;
5, Claw-structure, drawing material from the bottom of tank into the centre of working head because of the centrifugal force speed up the toward the side of working head;
6, CNC (numerical control machine) guarantee high accuracy space between stator and rotor and being more stable for the gravity;
7, the key parts are processed via fine grinding to make combination between stator and rotor reach American Standards;
8, Dynamic and static balance test for rotating parts to guarantee stability during high speed shearing for the emulsifying machine, low noise to prolong working life of high shear homogenizer/emulsifier;
9, ex-proof motor (option);
10, Hydraulic Lift or Pneumatic Lift
Specifications
| Model |
Power (kw) |
Speed (rpm) |
Capacity (L) |
Stroke (mm) |
| EBR-1.1 | 1.1 | 3000 | < 100 | 600 |
| EBR-4 | 4 | 3000 | < 200 | 800 |
| EBR-7.5 | 7.5 | 3000 | < 500 | 900 |
| EBR-11 | 11 | 3000 | < 800 | 900 |
| EBR-15 | 15 | 1500/3000 | < 1200 | 900 |
| EBR-18.5 | 18.5 | 1500/3000 | < 1800 | 1100 |
| EBR-22 | 22 | 1500/3000 | < 2000 | 1100 |
| EBR-30 | 30 | 1500 | < 2500 | 1100 |
| EBR-37 | 37 | 1500 | < 3000 | 1600 |
| EBR-45 | 45 | 1500 | < 4000 | 1600 |
| EBR-55 | 55 | 1500 | < 5000 | 1600 |
