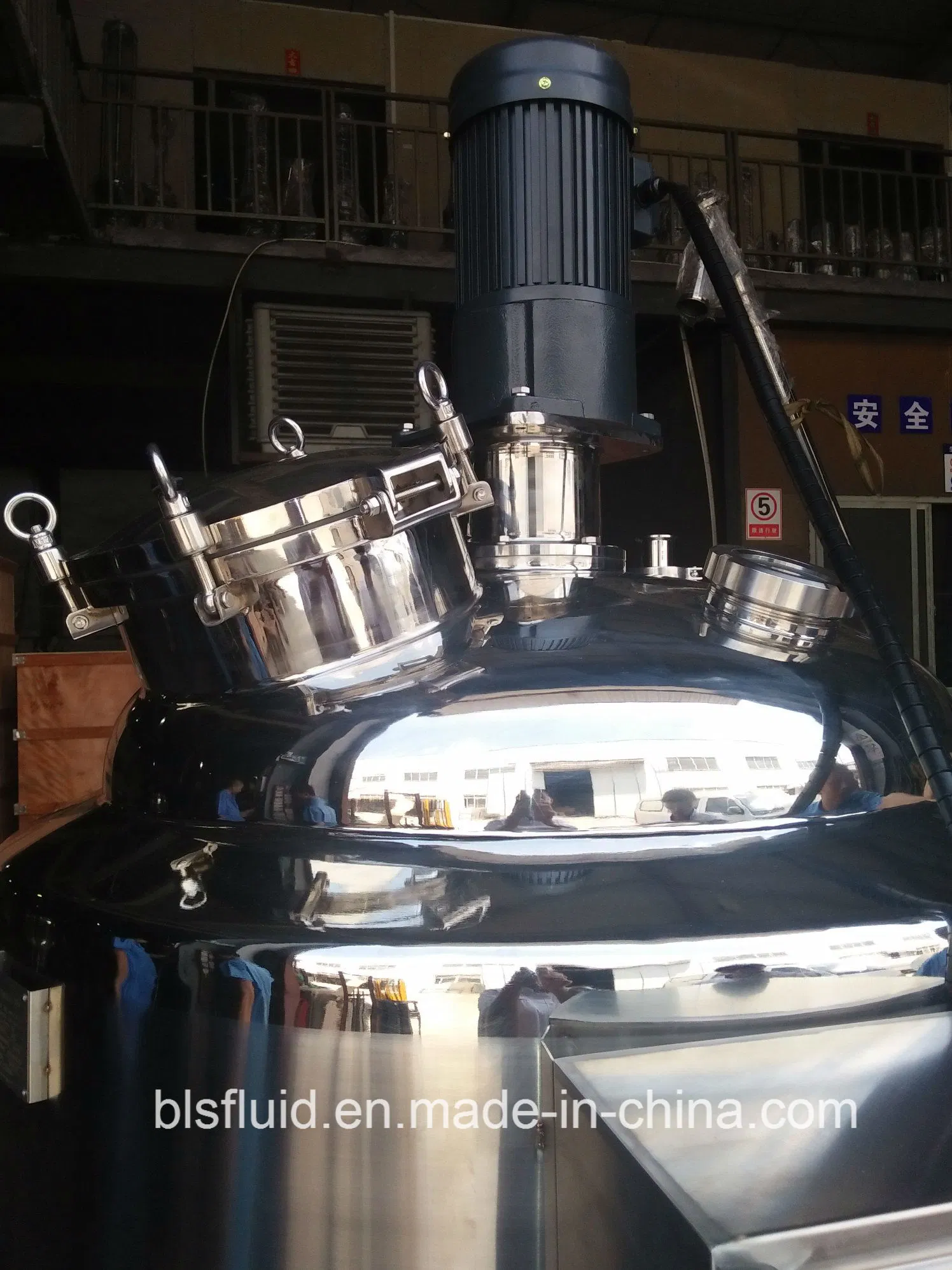

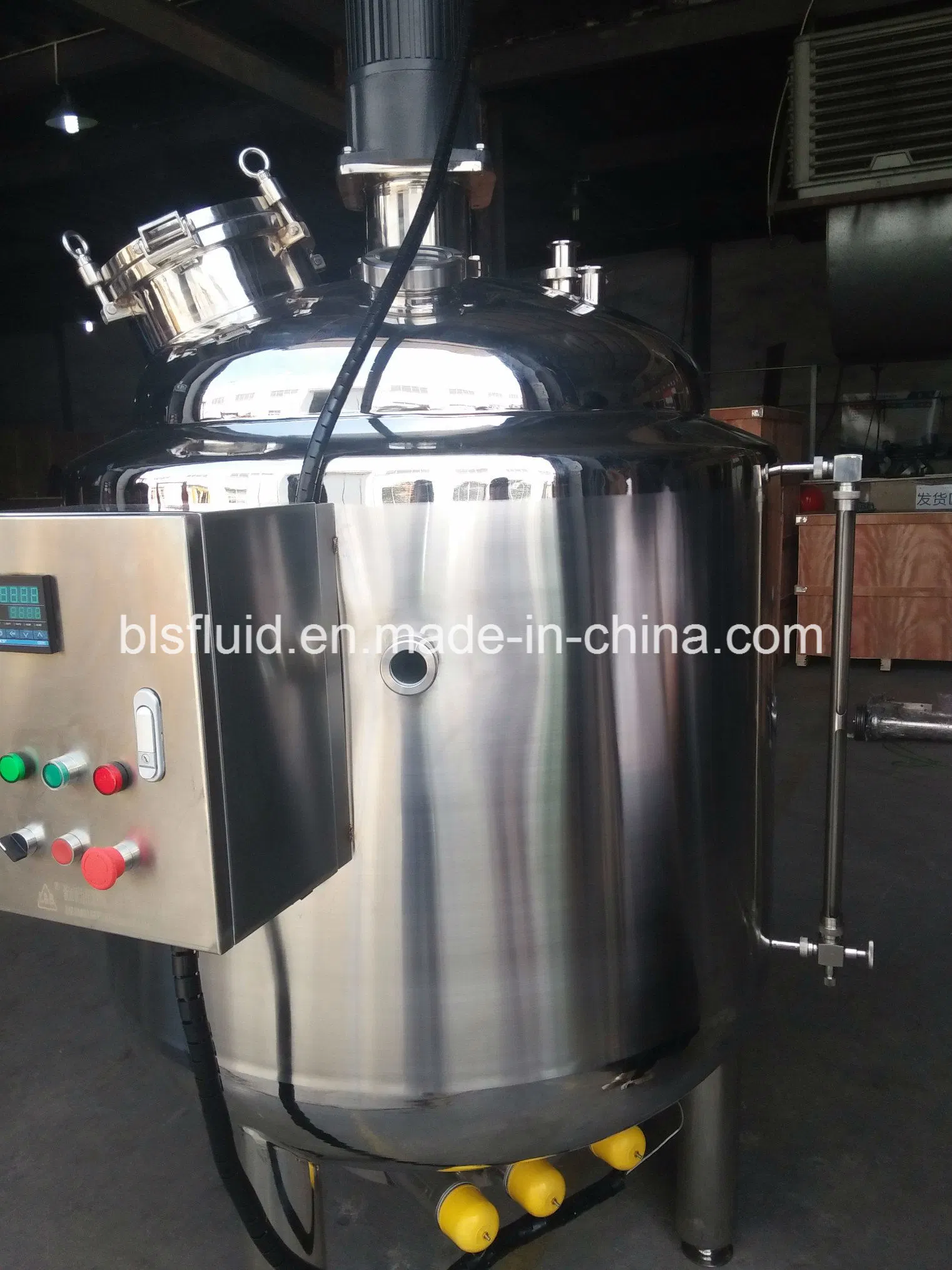

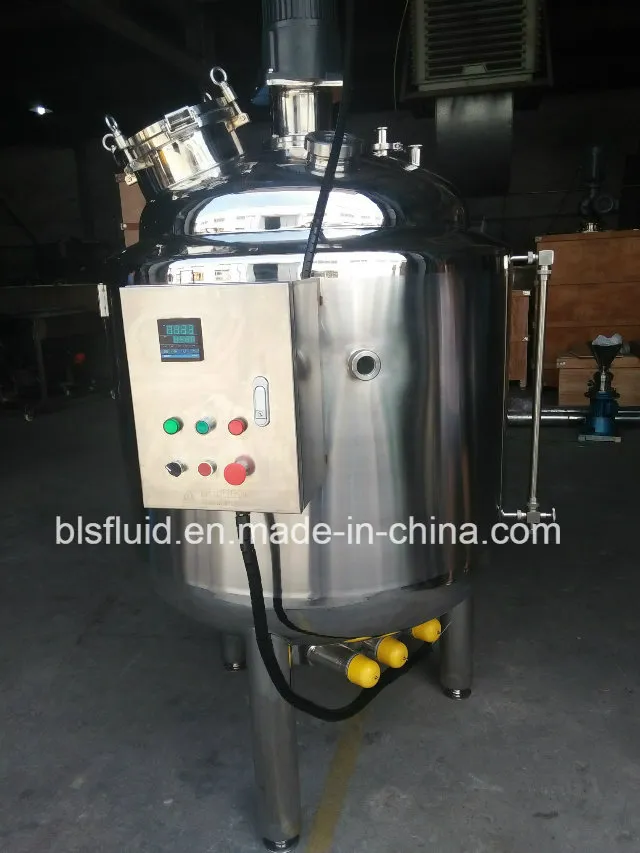

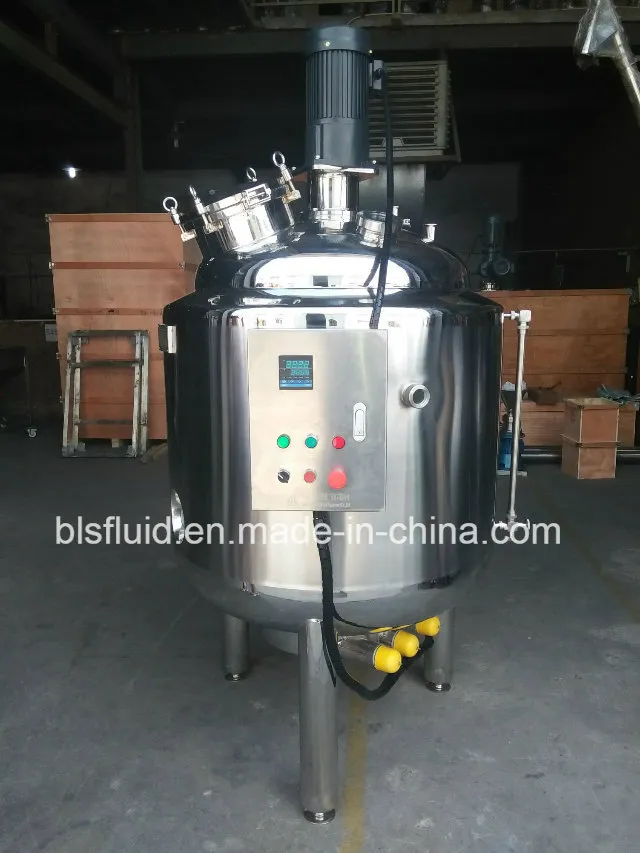

500L Electric Heater Jacket Milk/Wine Batch Pasteurizer with Agitator
500l Electric Heater Jacket Milk/Wine Batch Pasteurizer with agitator Product description: Product Name:500l Electric Heater Jacket Milk/Wine Batch Pasteurizer with agitatorDescription:Designed according to ISO9001/GMP standard, widely used for mixing liquidmedium in the food-processing, cosmetics a......
Send Inquiry
Product Description

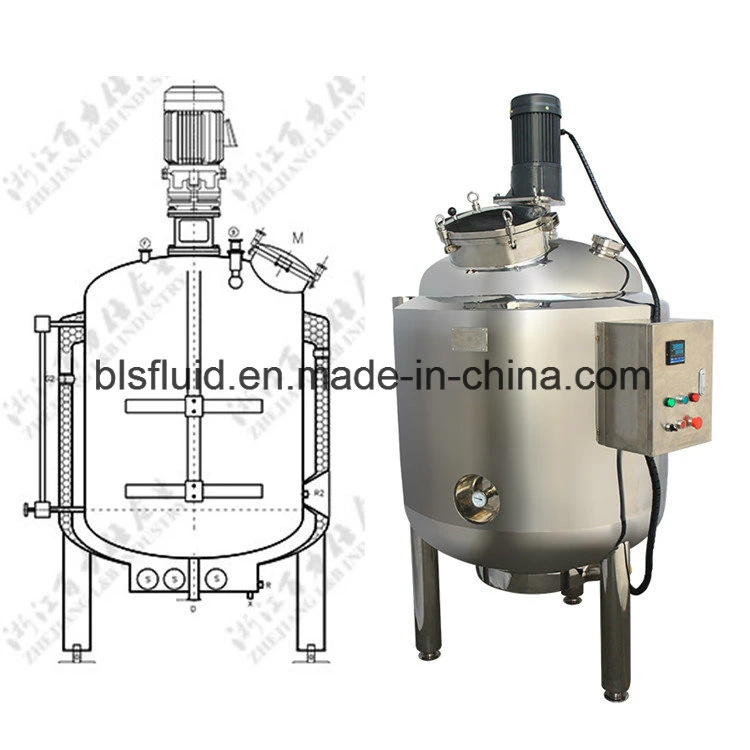

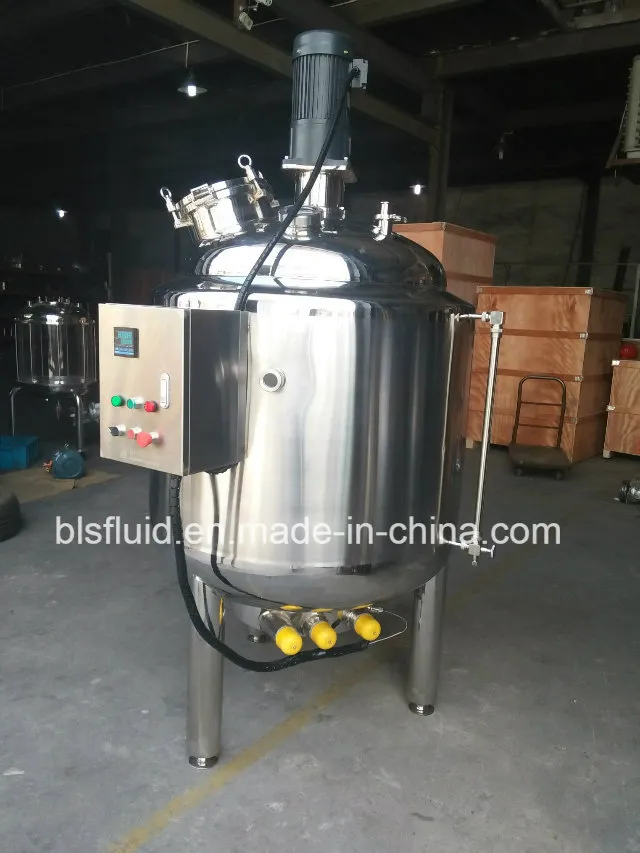

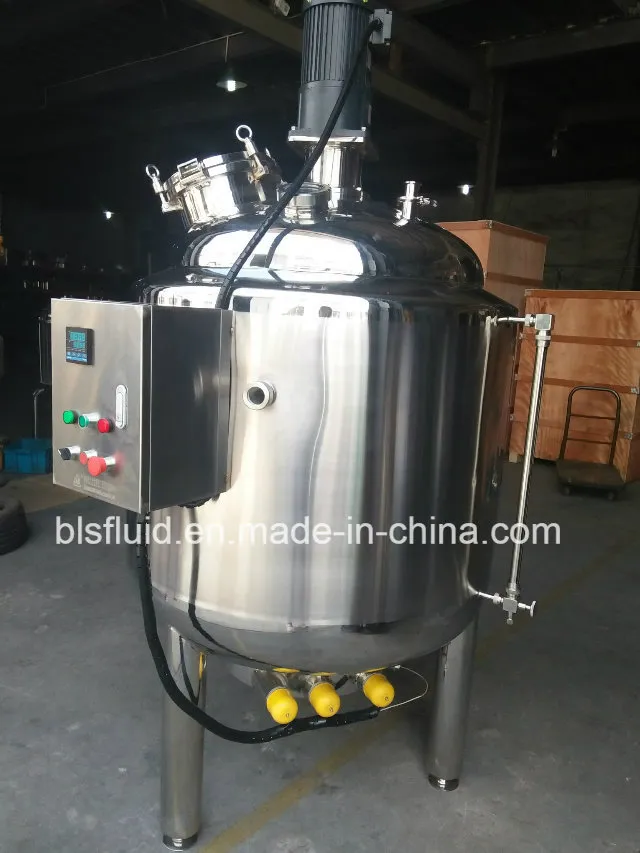

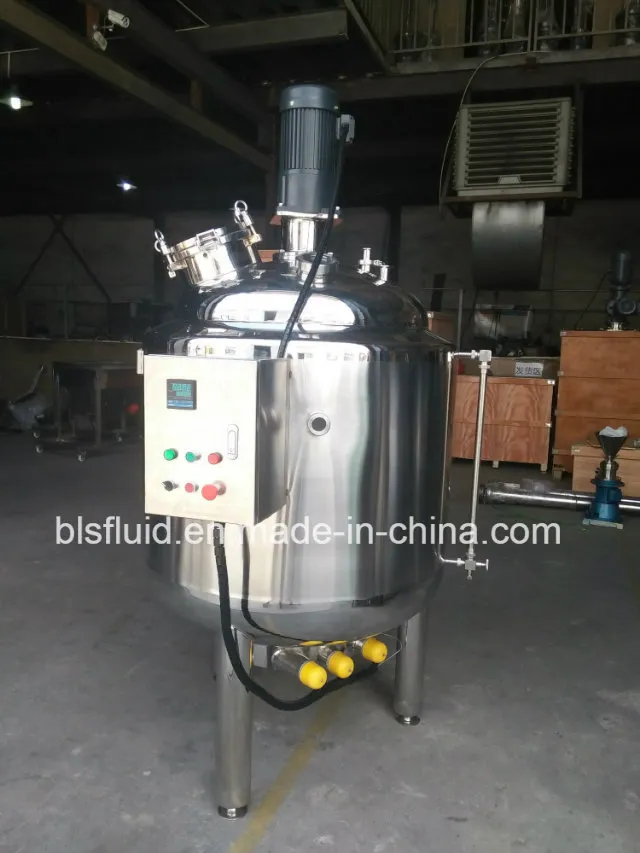

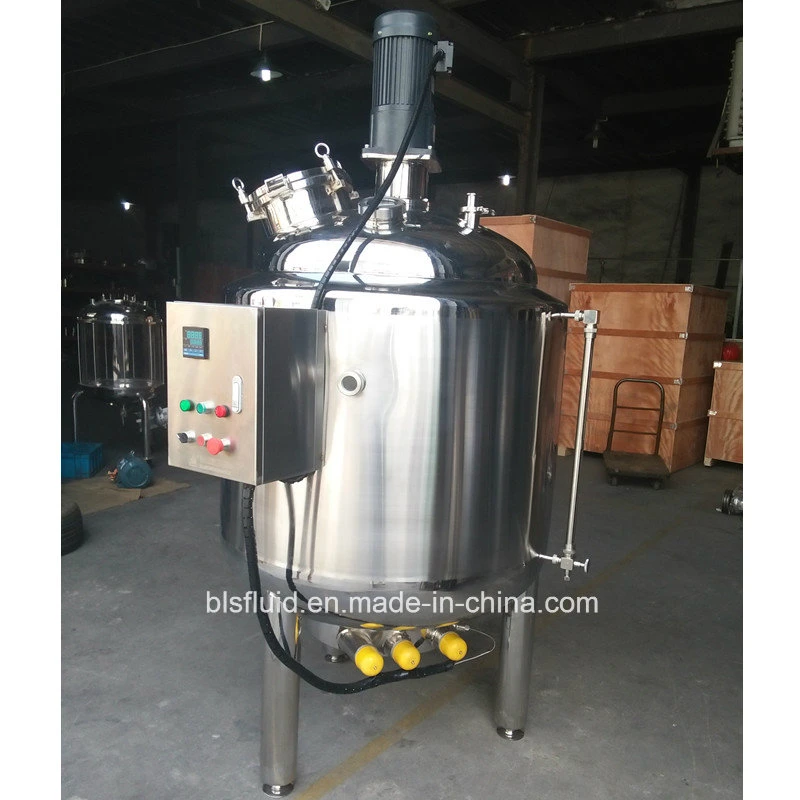

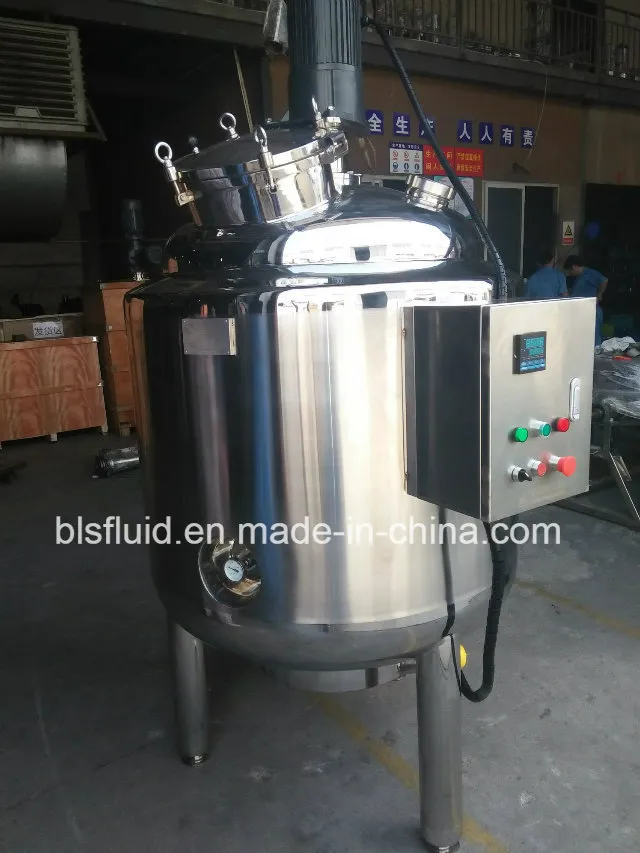

500l Electric Heater Jacket Milk/Wine Batch Pasteurizer with agitator
Product description:
| Product Name: | 500l Electric Heater Jacket Milk/Wine Batch Pasteurizer with agitator |
| Description: | Designed according to ISO9001/GMP standard, widely used for mixing liquid medium in the food-processing, cosmetics and pharmaceutical industries |
| Heating method | By electricity (oils or water), by steam, by gas |
| Material: | SS304/SS316L |
| jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc. | |
| insulation layer: PU Foam | |
| as to the thickness, we can make it according to your requirement. | |
| Optional Configuration | 1.manhole |
| 2.CIP spraying ball | |
| 3.adjusting feet | |
| 4.sample valve | |
| 5.temperature gauge | |
| 6.pressure gauge | |
| 7.level gauge | |
| Capacity: | 50L-10000L |
| Agitator: | With agitator or not |
| Agitator type | Frame, paddle, scraper, homogenizer, turbo type etc. |
| Agitator Speed | 20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Agitator power: | 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 110-480V, 50/60Hz |
| Motor: | ABB, LOCAL,50hz/ 60hz |
| Surface treatment: | Inner polished and outside polished |
| Available connection: | Clamp, Thread Butt weld, Flange |
| Available standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electric |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
Pasteurizer tank , also called as materials blending tank or materials mixing tank , have the advantages such as being energy saving , corrosion-proof , strong productivity and easy to clean etc .
And it is mainly used for blending and homogenizing of dairy products , sugar , other elements and various medicines , as an indispensable equipment for dairy products, beverage and pharmacy manufacturers . It is made of SUS304 or 316 stainless steel , and it in accordance with GMP production standard .
It is a type of tank makes enzymes decompose in optimum conditions and converts certain substances into some other substances with better performances through action of enzymes . The jackey can be used for heating or cooling , attached with external heat preservation layer .
Technical Parameters
| Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer |
| (L) | (mm) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2250 | 38 | 60 |
| 600 | 920*1000 | 2300 | 38 | 60 |
| 700 | 990*1000 | 2300 | 38 | 60 |
| 800 | 950*1220 | 2500 | 38 | 60 |
| 900 | 1010*1220 | 2500 | 38 | 60 |
| 1000 | 1060*1500 | 2850 | 51 | 60 |
| 1500 | 1160*1500 | 2850 | 51 | 60 |
| 2000 | 1340*1500 | 2900 | 51 | 60 |
| 3000 | 1410*2000 | 3400 | 51 | 60 |
| 4000 | 1620*2000 | 3450 | 51 | 60 |
| 5000 | 1810*2000 | 3500 | 51 | 60 |
| 6000 | 1980*2000 | 3550 | 51 | 60 |
| 7000 | 1930*2440 | 4000 | 51 | 60 |
| 8000 | 2060*2440 | 4000 | 51 | 60 |
| 9000 | 2180*2440 | 4050 | 51 | 60 |
| 10000 | 2300*2440 | 4050 | 51 | 60 |
| 12000 | 2270*3000 | 4600 | 51 | 60 |
| 15000 | 2530*3000 | 4700 | 51 | 60 |
| 20000 | 2640*3660 | 5400 | 51 | 60 |
Package and delivery
Our company
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
