1L/2L/5L/10L Shampoo Soap Vacuum Stirring Stainless Steel Emulsifier Mixer Homogenizer
1L/2L/5L/10L Shampoo Soap Vacuum Stirring Stainless Steel Emulsifier Mixer Homogenizer XHCR series emulsification kettle, the processing capacity of the standard system has 1-5l experimental / 10l-50l pilot type and 100-500l production type different series, which can realize material disper......
Send Inquiry
Product Description

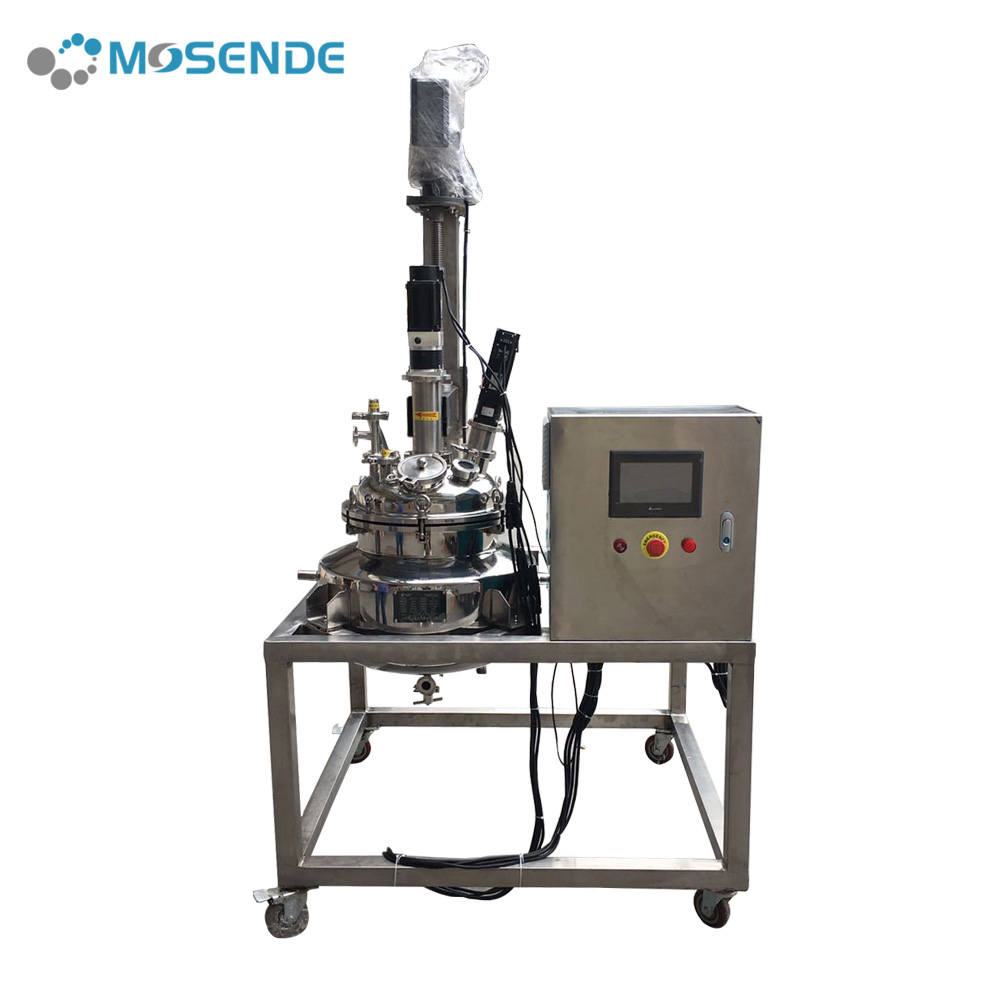

XHCR series emulsification kettle, the processing capacity of the standard system has 1-5l experimental / 10l-50l pilot type and 100-500l production type different series, which can realize material dispersion, emulsification, homogenization, mixing and other technological processes under vacuum or pressure environment. It can be equipped with a variety of high-efficiency macro agitators, high shear homogenizer, reliable vacuum sealing system and temperature control system, and a variety of sensor detection systems can simulate industrial production in the laboratory environment.

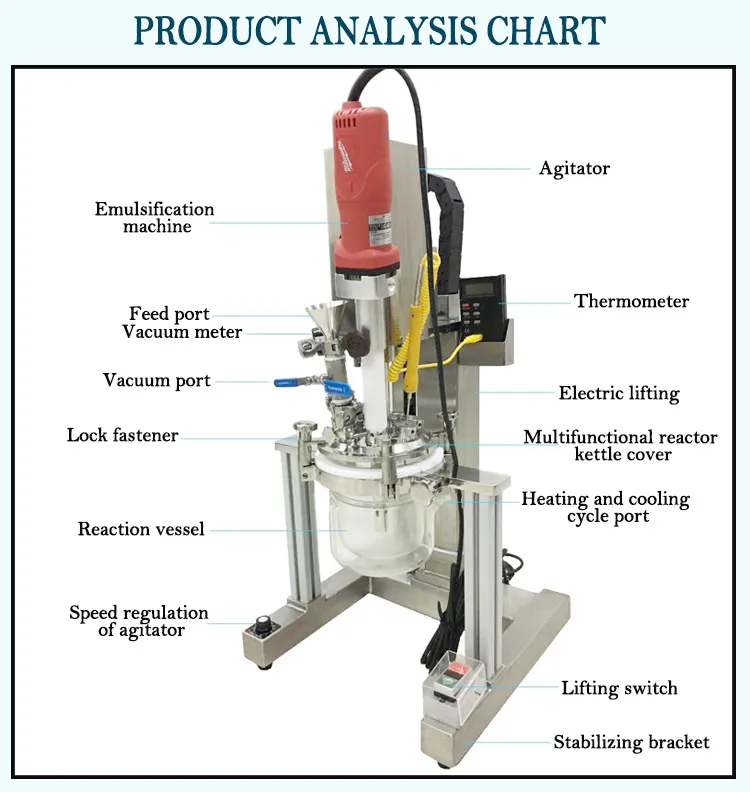

Device configuration:
Model | XHCR-1 | XHCR-2 | XHCR-5 | XHCR-10 |
Power Supply | 220V,50/60Hz | 220V,50/60Hz | 220V,50/60Hz | 220V,50/60Hz |
Allowed mixing volume (ML) | 300 | 500 | 1000 | 2500 |
Allowable emulsification amount (ML) | 500-1000 | 1000-2000 | 3000-5000 | 5000-10000 |
Working temperature (ºC) | 170 | 170 | 290 | 290 |
Vacuum attainable (MPA) | -0.097---0.02 | -0.097---0.02 | -0.097---0.02 | -0.097---0.02 |
Treatment viscosity (MPAs) | 100,000 | 100,000 | 200,000 | 300,000 |
Mixing motor power (W) | 90 | 90 | 120 | 180 |
Mixing speed range (RPM) | 100,000 | 100,000 | 100,000 | 100,000 |
Agitator configuration | Anchor type screw blade | |||
Scraper material | PTFE | |||
Homogeneous motor power (W) | 500 | 500 | 500 | 1050 |
Homogeneous speed range (RPM) | 10000-28000 | 10000-30000 | 10000-30000 | 10000-30000 |
Homogeneous working head configuration | 20DG | 25DG | 25DG | 30DG |
Reactor cover opening | Homogenizer port + hopper port + temperature measuring port + vacuum port + 3 spare ports | |||
Travel of lifting bracket (mm) | 210 (Electric lifting options) | 210 (Electric lifting options) | 300 (Electric lifting options) | 270 (Electric lifting options) |
Main contact materials with materials | SS316L,Borosilicate glass,FKM10 | |||
Outer diameter of vacuum port (mm) | 8 | 8 | 8 | 8 |
Allowable ambient temperature (ºC) | 12 | 12 | 16 | 16 |
Allowable ambient temperature (ºC) | 5-40 | 5-40 | 5-40 | 5-40 |
Reactor can be customized according to customer requirements
Optional laboratory reactor, laboratory homogeneous reactor, laboratory vacuum reactor

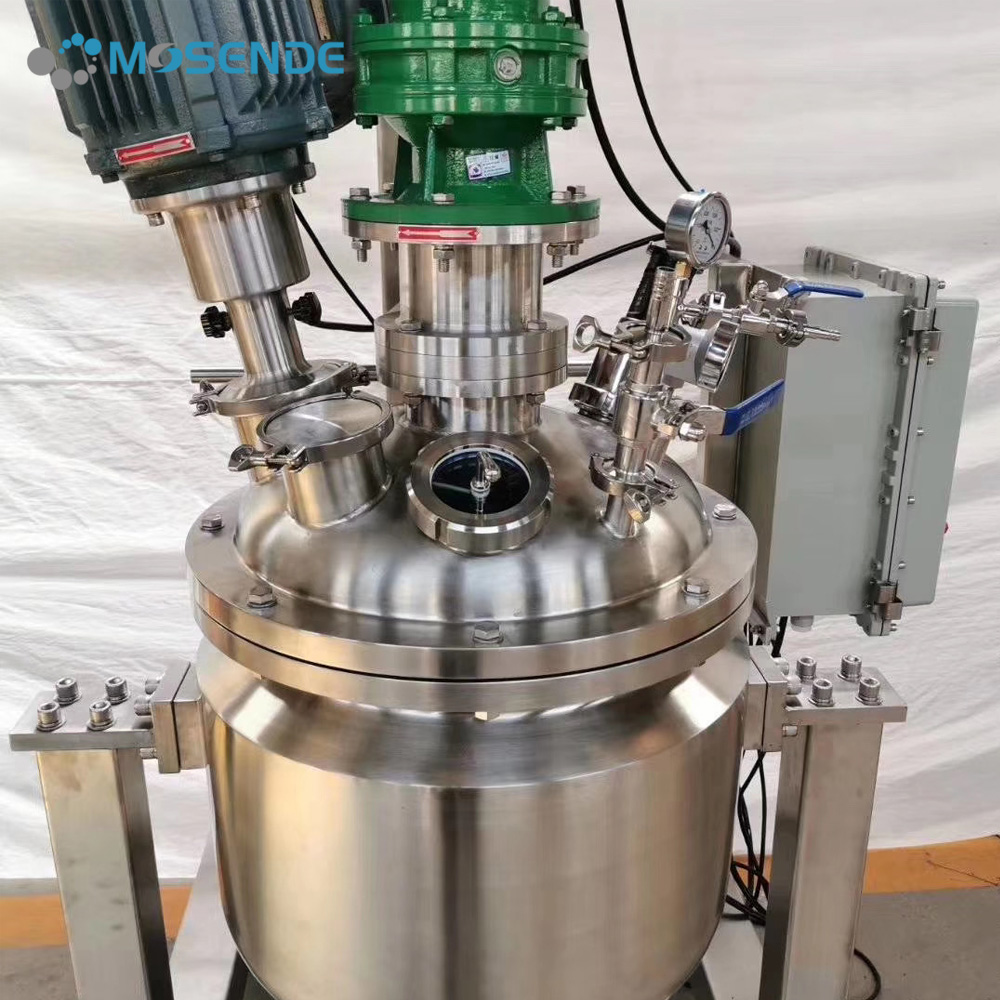

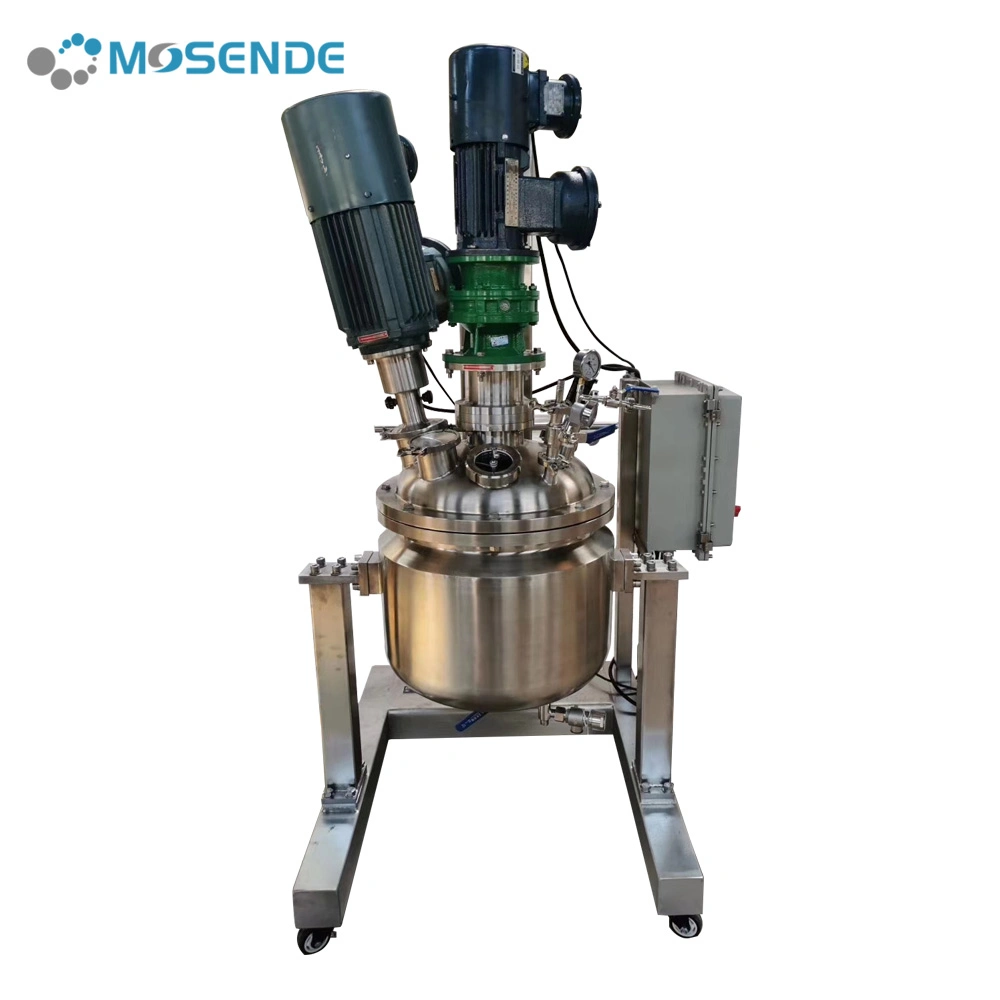

1) Reactor system (stainless steel and glass optional)
2) Emulsification system (emulsification homogenization head optional)
3) Mixing system (digital timing mixer optional)
4) Temperature control system (temperature probe optional)

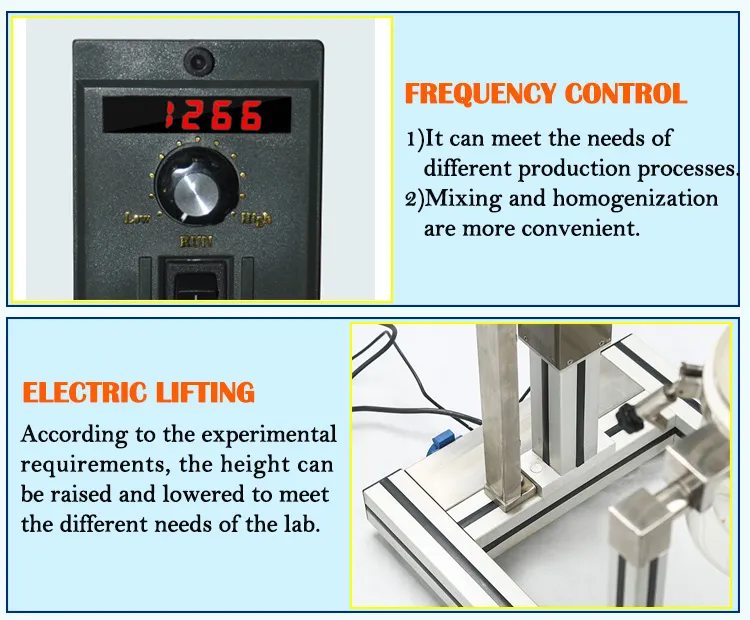

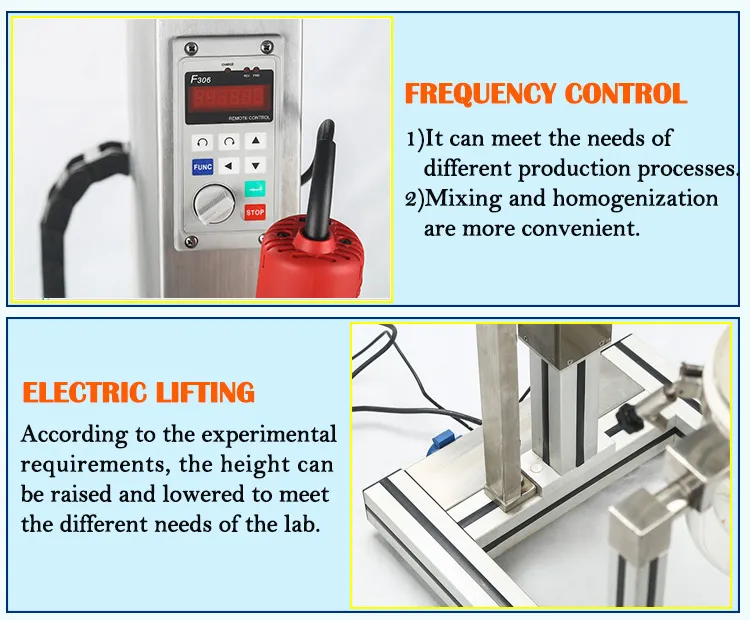

5) Lifting system (pneumatic auxiliary and electric lifting optional)

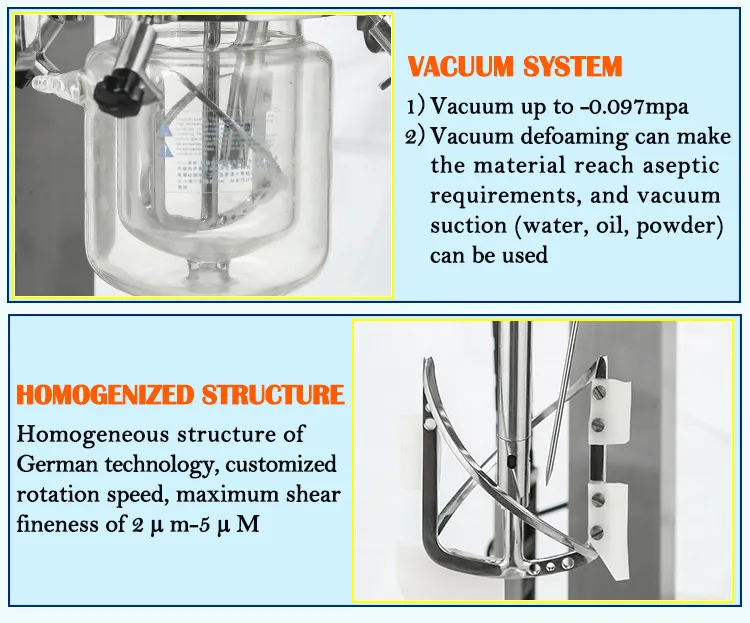

6) Vacuum system (vacuum pump)
7) Heating system (water bath or oil bath)
8) On line monitoring system
