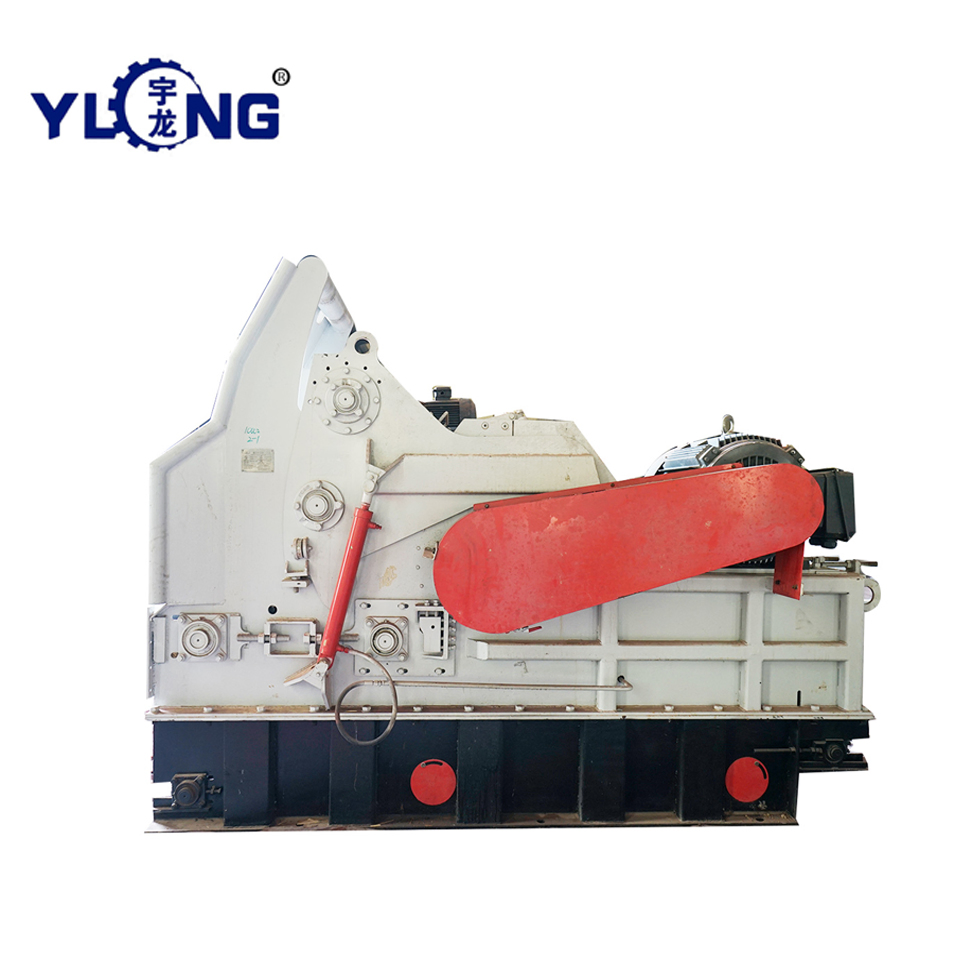

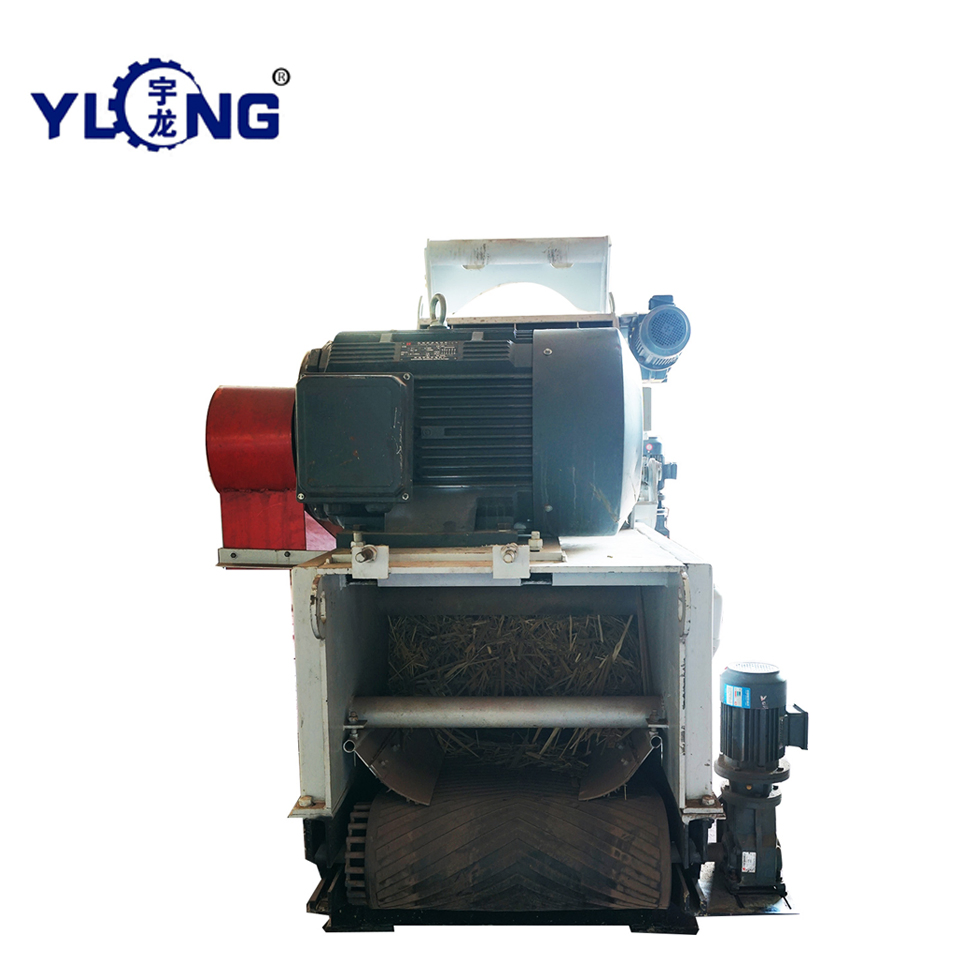

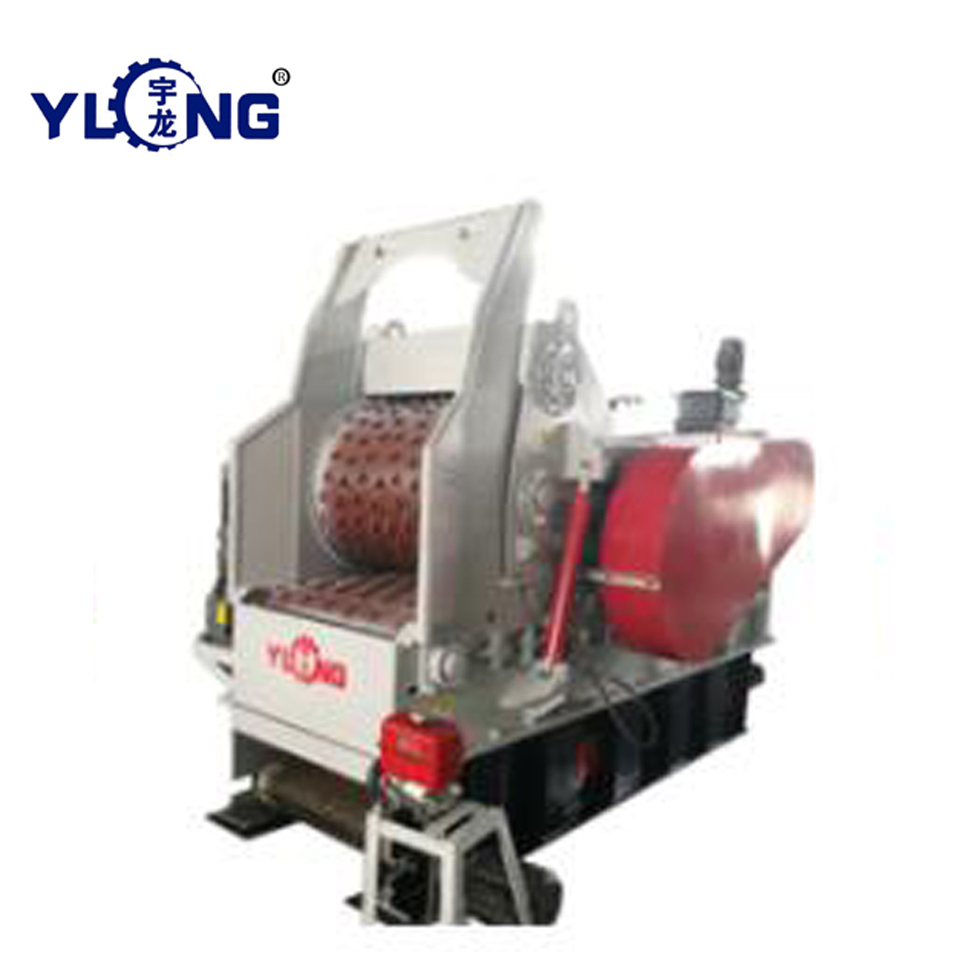

Wood Log Chipping Machine

Product Description

Wood Log Chipping Machine Products Introduction:

BAOLONG (t-rex) wood chipping machine a special equipment for the production of wood chips, which is widely used in raw material production of biomass energy industry and fuel storage in biomass power plants.

Wood Log Chipping Machine Main Parameter and Capability:

Wood chipping machine Compact and reasonable structure, simple operation, high production capacity, wide adaptability of raw materials, high quality of crushing granularity, safety and reliability, convenient maintenance.

Wood Log Chipping Machine components:

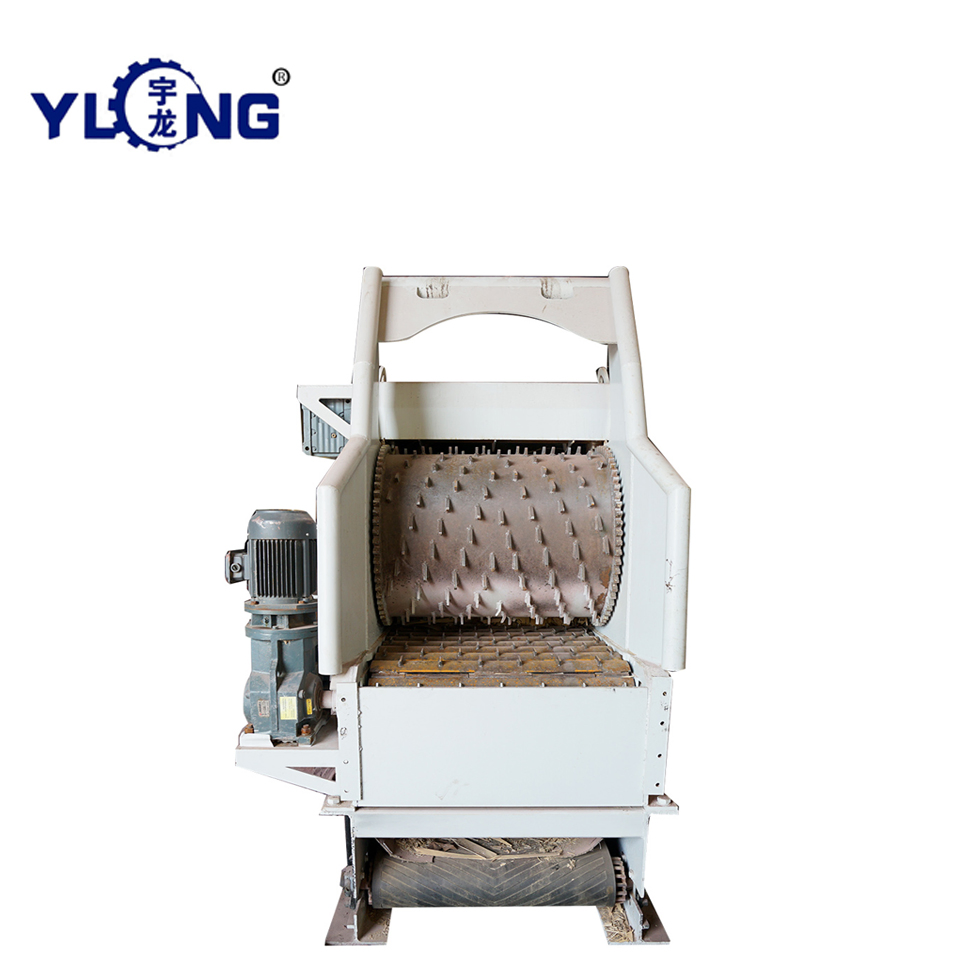

Wood chipping machine consists of frame, knife roller, top and bottom feed mechanism, feeding device and hydraulic buffer system and electric control system.

Wood Log Chipping Machine Working Principle:

Wood after delivery systems and feeding mouth into the wood chipping machine, under the effect of high-speed rotating blades cutting, cutting into wood chips. Chips sending out by the discharging the system. A few larger wood chips can't through the sieve pore, driven by continued in the rotation of the knife roller screen mesh and the impact to chop again.

Wood Log Chipping Machine Application

Wood chipping machine can be installed different kinds of feeding system, log conveyor, Chain Conveyors, vibrating conveyor, belt conveyor for different kinds of wood, log wood, wood blocks, wood branches, etc. The outlet wood chips is about 10-30mm.

Model	Power (kw)	Feeder size (mm)	Output (M3/h)	Qty of rotating and fixed blades (pcs)	Chips size (mm)
T-Rex6550A	75+3+3+2.2	500×500	15-25m³	6/2	10-30
T-Rex6585A	110+3+3+2.2	850×500	25-40m³	10/3	10-30
T-Rex65120A	160+5.5+5.5+4	1200×500	40-60m³	14/3	10-30
