JMV-100 Hualian Colloid Mill

Product Description

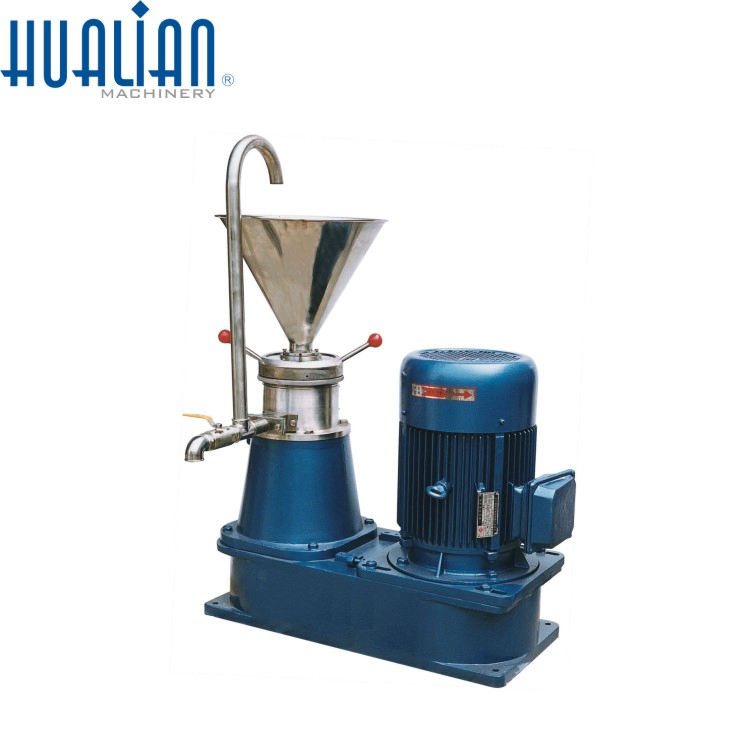

Hualian Colloid Mill(JMV-100)

Description:
JMV series colloid mill is can emulsify, homogenize, disperse and mix the liquid and semi-liquid materials efficiently during the course of cutting, milling and shocking by adopting the effect of centrifugal force and relatively high speed between the rotating gear and the fixed gear. After that you can get the processed and desired material.

Application:
JMV series colloid mill is widely applied in foodstuffs industry, medicine industry, chemical industry and everyday chemical industry etc. For instance, soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen, honey, tooth-paste and so on. When process high consistency material, such as peanut and sesame etc, you should fix the helix drive RAM that is produced by our company to the top side of the rotor.

JMV-100 Hualian Colloid Mill

	JMV60	JMV100	JMV140	JMV150
Voltage (V/Hz)	380/50
Power (kw)	4		11	15
Thin degree (μ m)	2~50
Output (t/h)	0.2~2	0.25~2.5	1~4.5	1~5
Rotary Speed of Main Shaft (r/min)	4500		2900
External Dimensions (L× W× H) (mm)	700× 350× 750	700× 350× 750	900× 450× 1000	900× 450× 1000
Net Weight (kg)	165	180	315	330

	JMV50-a	JMV50-b		JMV130-a	JMV130-b
Voltage (V/Hz)	220/50
Power (kw)	2.2		1.1	11	7.5
Thin degree (μ m)	5~50			2~50
Output (t/h)	0.05~1			1~4.
Rotary Speed of Main Shaft (r/min)	6000	7500		2900
External Dimensions (L× W× H) (mm)	600× 330× 650			850× 400× 950
Net Weight (kg)	110			305	285
