Industrial Plastic Shredder/Single Shaft Shredder
Single Shaft Shredder MachineMachine detail --single shaft shredder/waste plastic shredder Machine Properties:Dimension(L*W*H):2670x2500x2090MMFeed opening (D*F):1420X1900MMHeight of outlet:560MMCylinder Stroke:800MMRotor dia(mm):350MMEffective crushing length of cutter shaft:1200MMRotor speed(rpm......
Send Inquiry
Product Description

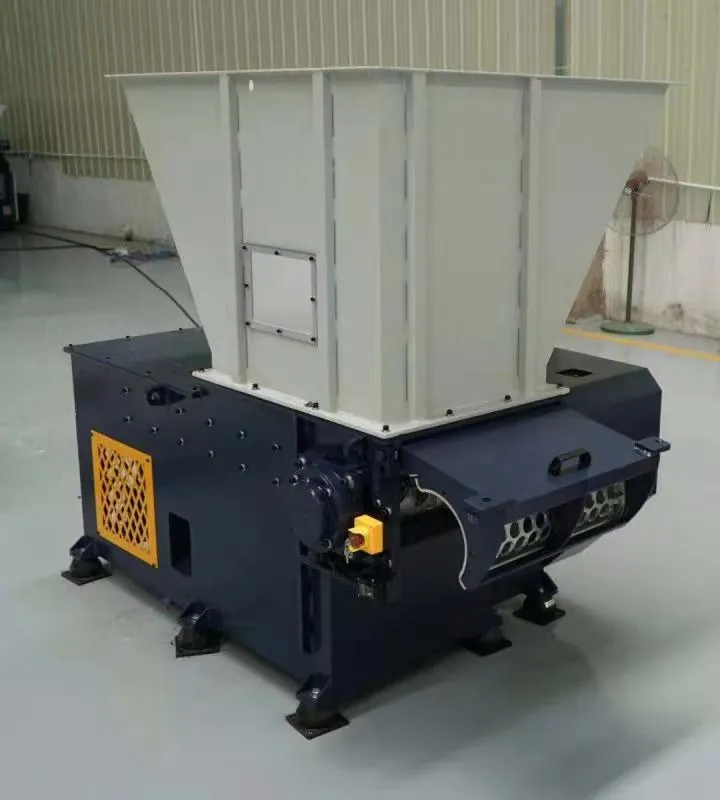

Single Shaft Shredder Machine
Machine detail --single shaft shredder/waste plastic shredder
Machine Properties:
| Dimension(L*W*H): | 2670x2500x2090MM |
| Feed opening (D*F): | 1420X1900MM |
| Height of outlet: | 560MM |
| Cylinder Stroke: | 800MM |
| Rotor dia(mm): | 350MM |
| Effective crushing length of cutter shaft: | 1200MM |
| Rotor speed(rpm) | 80RPM |
| Screen diameter(mm) | 60MM |
| Rotary blade(pcs) | 55+4 PCS |
| Fixed blade(pcs) | 3+3 PCS |
| Main motor(kw) | 55kw |
| Hydraulic power(kw) | 5.5kw |
| Hopper capacity: | 2030MM |
| Weight: | 5050KG |
Product details:
Application:

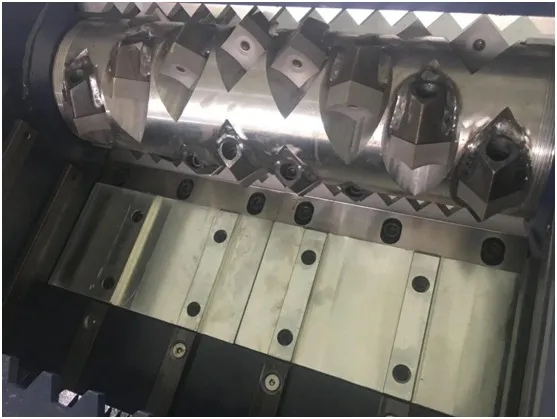

This Single Shaft Shredder is designed and applicable to intractable, hard and irregular enginerring plastics such as thick pipes, lumps from extruder, package barrels, buckets, trays,ruber, wood, etc. Working with medium speed and tenderly, low noise, low power consumption. Rotary knife designed symmetrically, can be exchanged four times for use, which prolong use long life span. When push materials by hydraulic, can select speed and presure freely according to different materials load. It is with low labor strength, safe& reliable operation.
Working flowchart and final material size
shredding the big hard plastic waste into 40mm pieces,
drop into crusher directly, crush the pieces into 10mm scraps,
